P1C16A-MHAU2 Overview

PLC Splitter Module

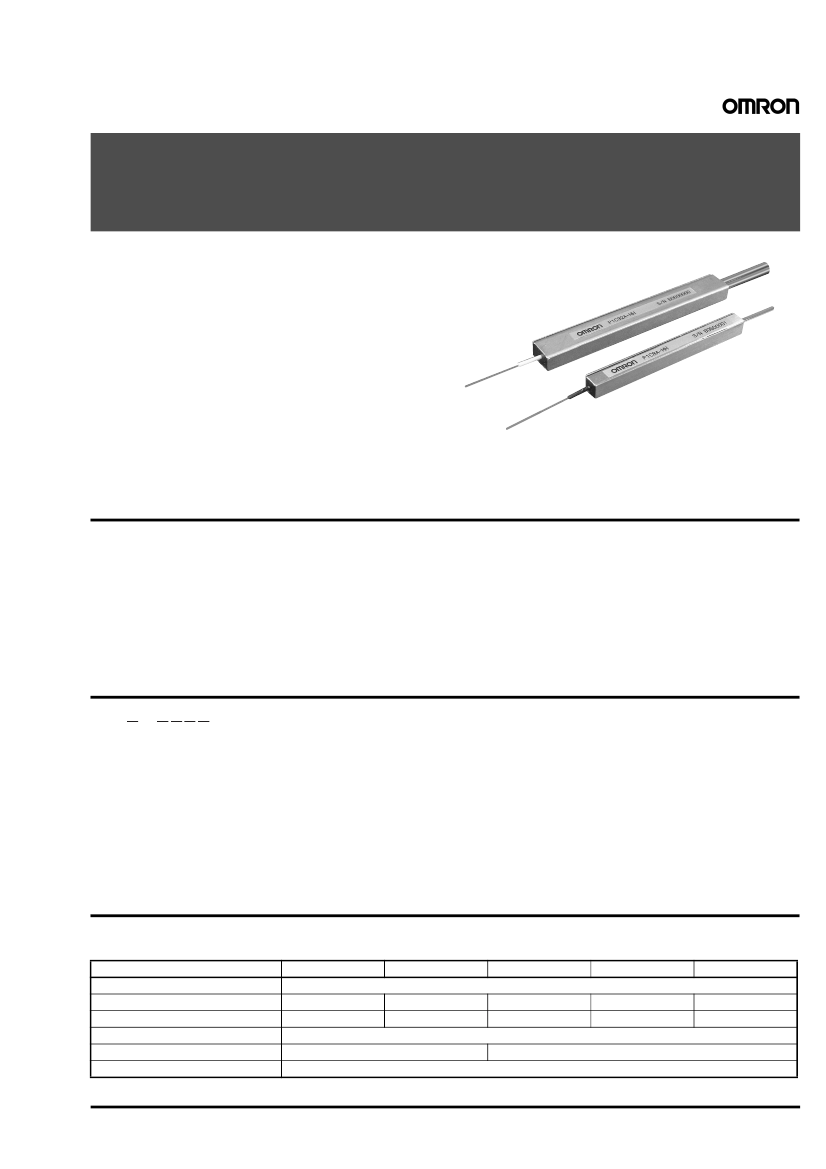

PLC Splitter Module
P1C
Silica-on-Silica Planar Lightwave Circuit
(PLC) Splitter
• 1x4, 1x8, 1x16, 1x32, 1x64 modules*
• Packaged Optical Waveguide chips based on Patented
Plasma Chemical Vapor Deposition (P-CVD) technology for
stable optical characteristics and high reliability
• Low Insertion Loss (IL) and Polarization Dependant Loss (PDL)
• High port uniformity
• Tested to Telcordia GR1209 & GR1221
• Optional custom packaging available including; chip only
metal fittings and connectorized cassette
*Splitter chip available by special order
Applications
Power Splitting and Coupling for FTTx
Passive and Digital Access Distribution Networks (ATM, WDM,
Ethernet EPON), BPON, GEPON, GPON
Local, Wide & Metropolitan Networks (LAN/WAN/MAN)
Cable/Community, Access Television systems and links (CATV,
Video signal distribution)
Multiplexer
Optical Amplifier
Test Equipment
Protection (restoration)
Fiber Optic Sensors
Ordering Information
P1C@A-@@@@
1
2 3 4 5
1. Number of Channels
4, 8, 16, 32, 64
2. Configuration
M:
Module
S:
Bare splitter
3. Pitch
H:
125μm
F:
250μm
4. Type of fiber/Bend radius
A:
R30
B:
R15
5. Fiber color (U.S. Standard)
U1: 8 core = Blue, Orange, Green, Brown,
Slate, White, Red, Black
4 core = Blue, Orange, Green, Brown
Single core = Blue
U2:
8 core and 4 core, same as above.
Single core = Clear
Specifications
Characteristics
Product Model
Operating Wavelength
Insertion Loss (IL) Max
Insertion Loss (IL) Unif
Polarization Dependant Loss (PDL)
Return Loss (RL)
Directivity
50dB
55dB
7.5dB
0.8dB
11.0dB
1.0dB
P1C4A-MFAU1
P1C8A-MHAU1
P1C16A-MHAU1
13.7dB
1.0dB
0.3dB
55dB
P1C32A-MHAU1
17.0dB
1.3dB
P1C64A-MHAU1
20.4dB
2.0dB
1260 - 1360 nm, 1480 - 1610 nm

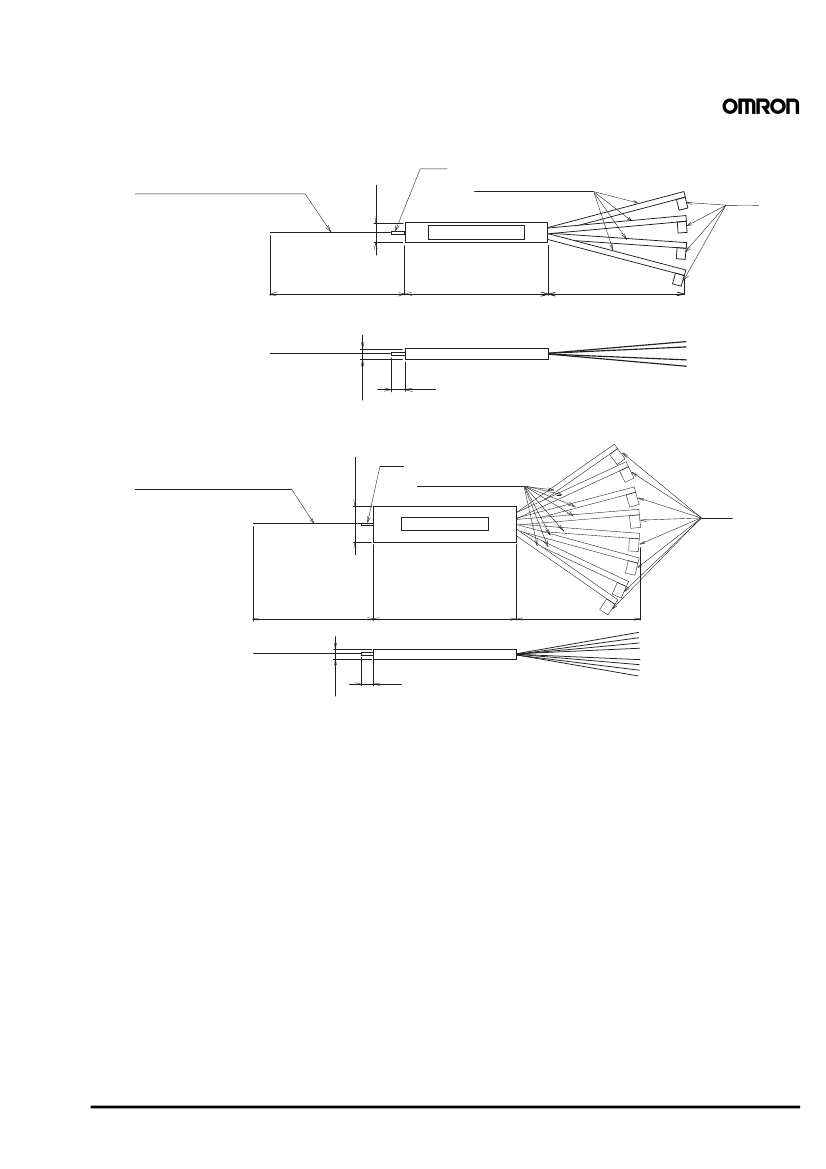

PLC Splitter Module
P1C
1
