AH1-1: Description250 MHz - 3000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER; CategoryTopical application Wireless rf/communication; File Size202KB，5 Pages; ManufacturerETC

Download Datasheet Parametric Compare View All

AH1-1 Overview

250 MHz - 3000 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER

AH1-1 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum input power	10 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency	250 MHz
Processing package description	GREEN, TO-243C, SOT-89, 3 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	TRANSFERRED
structure	COMPONENT
terminal coating	NICKEL PALLADIUM GOLD
Impedance characteristics	50 ohm
Microwave RF Type	WIDE BAND MEDIUM POWER

Preview

Download Datasheet

View All

AH1-1

Product Features

•

The Communications Edge

Product Information

High Dynamic Range Amplifier

Product Description

The AH1-1 is a high dynamic range amplifier in a low-cost

surface-mount package. The combination of low noise

figure and high output IP3 at the same bias point makes it

ideal for receiver and transmitter applications. The AH1-1

is a specially screened version of the AH1 offering a very

narrow gain spread from device to device.

The device combines dependable performance with superb

quality to maintain MTTF values exceeding 100 years at

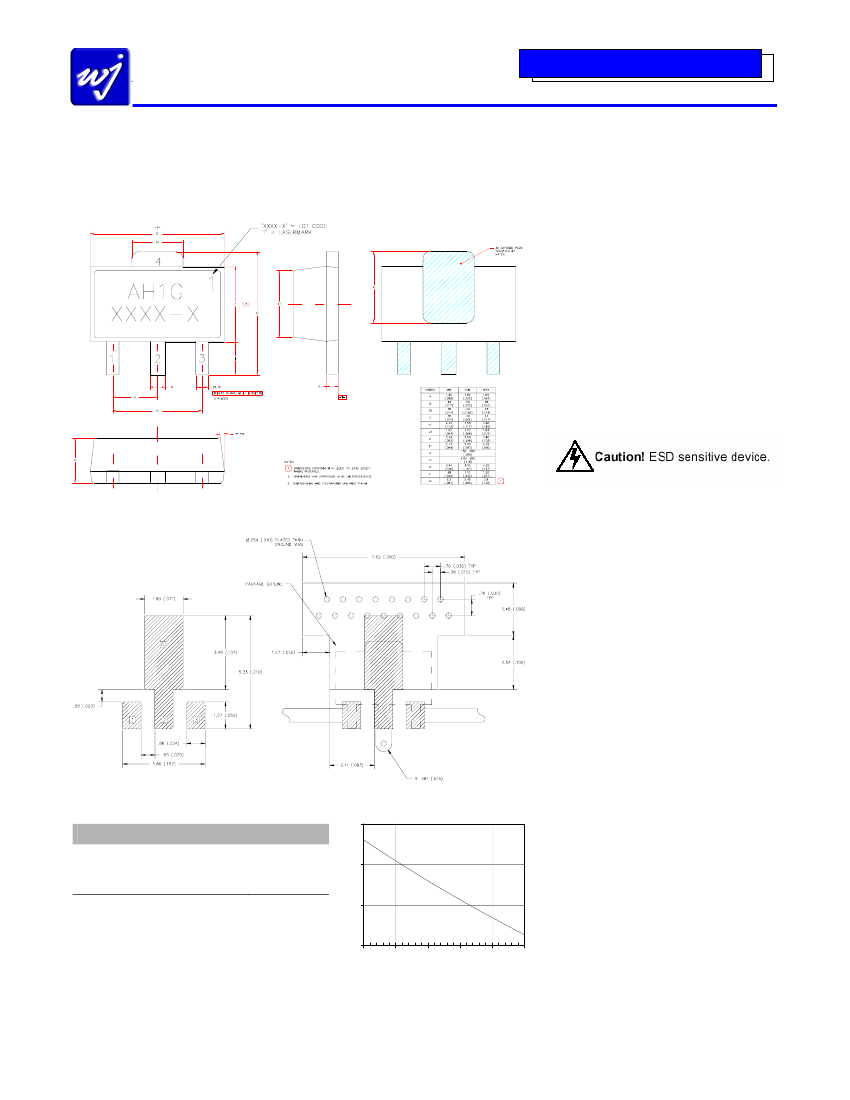

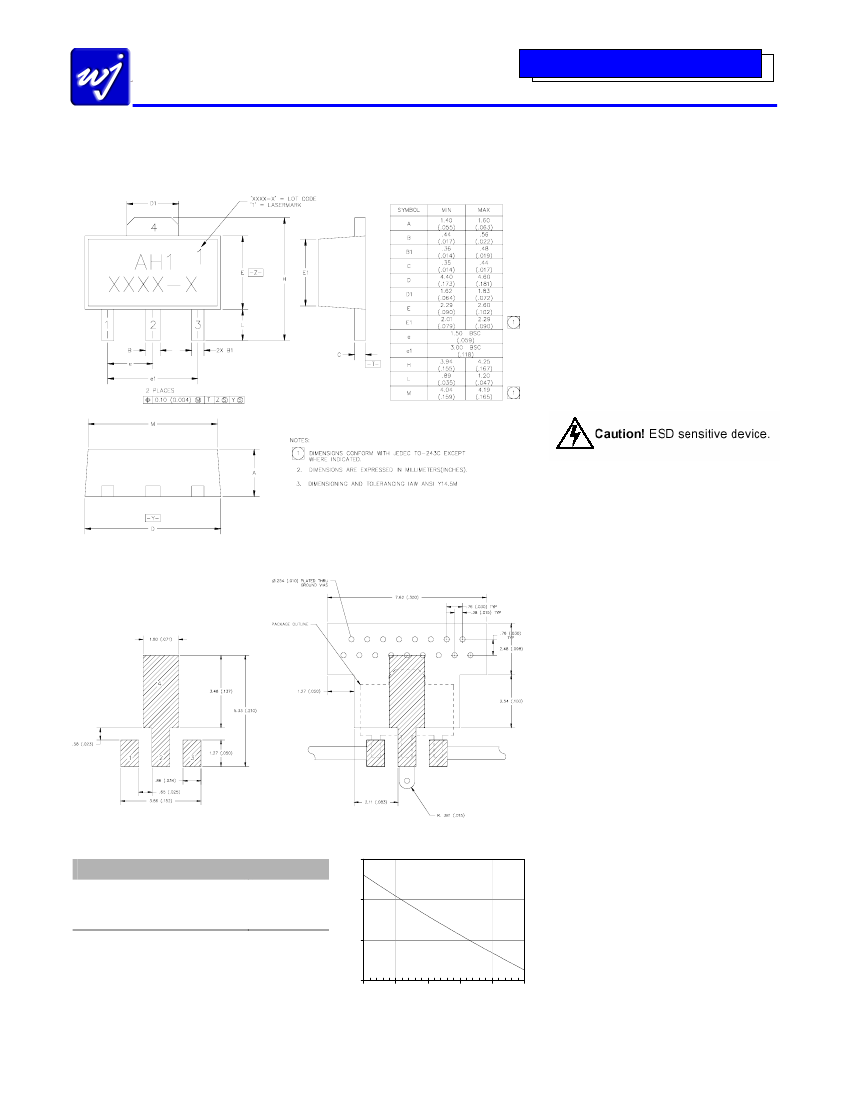

mounting temperatures of +85°C. The AH1-1 is available

in both the standard SOT-89 package and the

environmentally-friendly lead-free/green/RoHS-compliant

SOT-89 package.

The broadband amplifier uses a high reliability GaAs

MMIC technology and is targeted for applications where

high linearity is required. It is well suited for various

current and next generation wireless technologies such as

GPRS, GSM, CDMA, and W-CDMA. In addition, the

AH1-1 will work for other applications within the 250 to

3000 MHz frequency range such as fixed wireless.

Functional Diagram

GND

250 – 3000 MHz

+41 dBm OIP3

2.7 dB Noise Figure

13.5 dB Gain

+21 dBm P1dB

Lead-free/Green/

RoHS-compliant

SOT-89 Package

•

Single +5 V Supply

•

MTTF > 100 years

RF IN

GND

RF OUT

Applications

•

Mobile Infrastructure

CATV / DBS

W-LAN / ISM

RFID

Defense / Homeland Security

Fixed Wireless

Function

Input

Output/Bias

Ground

Pin No.

2, 4

Specifications

(1)

Parameter

Operational Bandwidth

Test Frequency

Gain

Input Return Loss

Output Return Loss

Output P1dB

Output IP3

(2)

Noise Figure

(3)

Operating Current Range

Supply Voltage

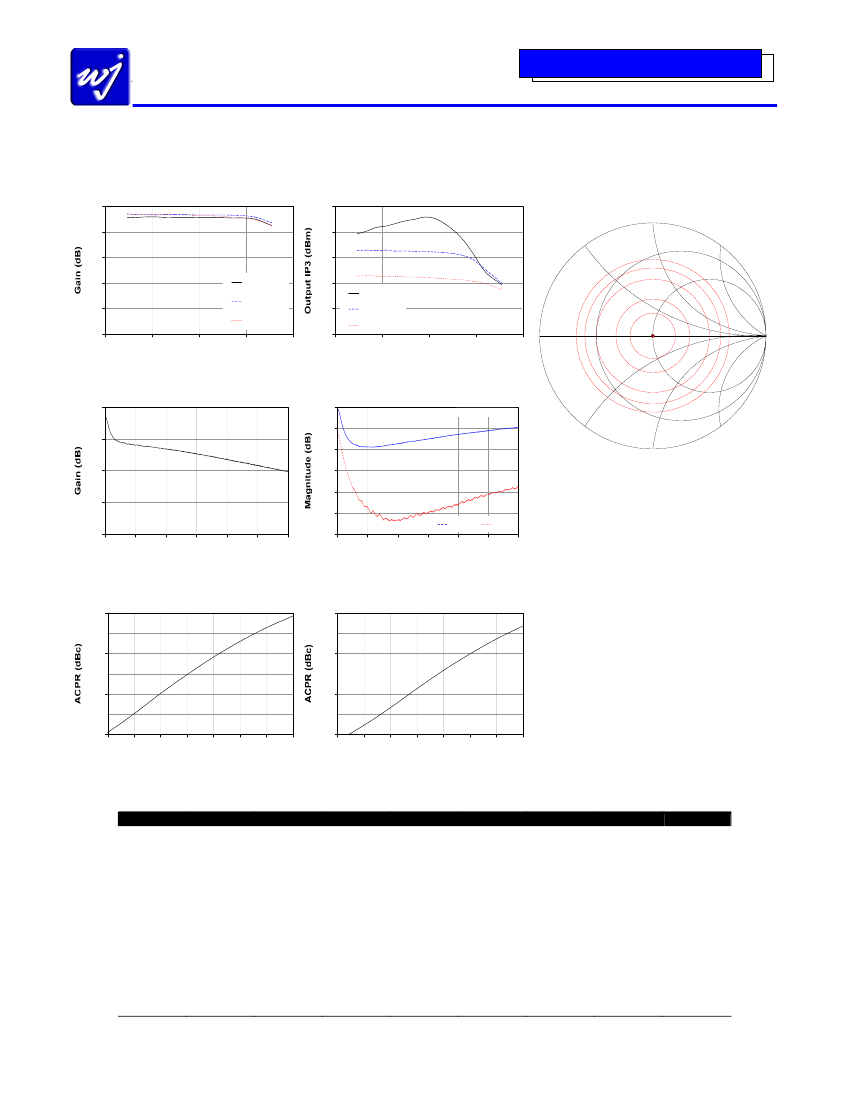

Typical Performance

(4)

Units

MHz

dBm

Min

250

12.9

Typ

800

13.3

+21

+41

2.7

150

Max

3000

13.8

Parameter

Frequency

S21

S11

S22

Output P1dB

Output IP3

(2)

IS-95 Channel Power

(5)

Noise Figure

Supply Voltage

Device Current

Units

MHz

dBm

900

14.2

-21

-14

+21.7

+42

+15.5

2.2

Typical

1900

12.2

-14

-13

+22

+41

+16.5

2.9

150

2140

12.0

-21

-11

+22

+40

2.9

+37

120

180

1. Test conditions unless otherwise noted: T = 25º C, 50

Ω

system.

2. 3OIP measured with two tones at an output power of +5 dBm/tone separated by 10 MHz. The

suppression on the largest IM3 product is used to calculate the 3OIP using a 2:1 rule.

3. Noise figure can be optimized by matching the input for optimal return loss.

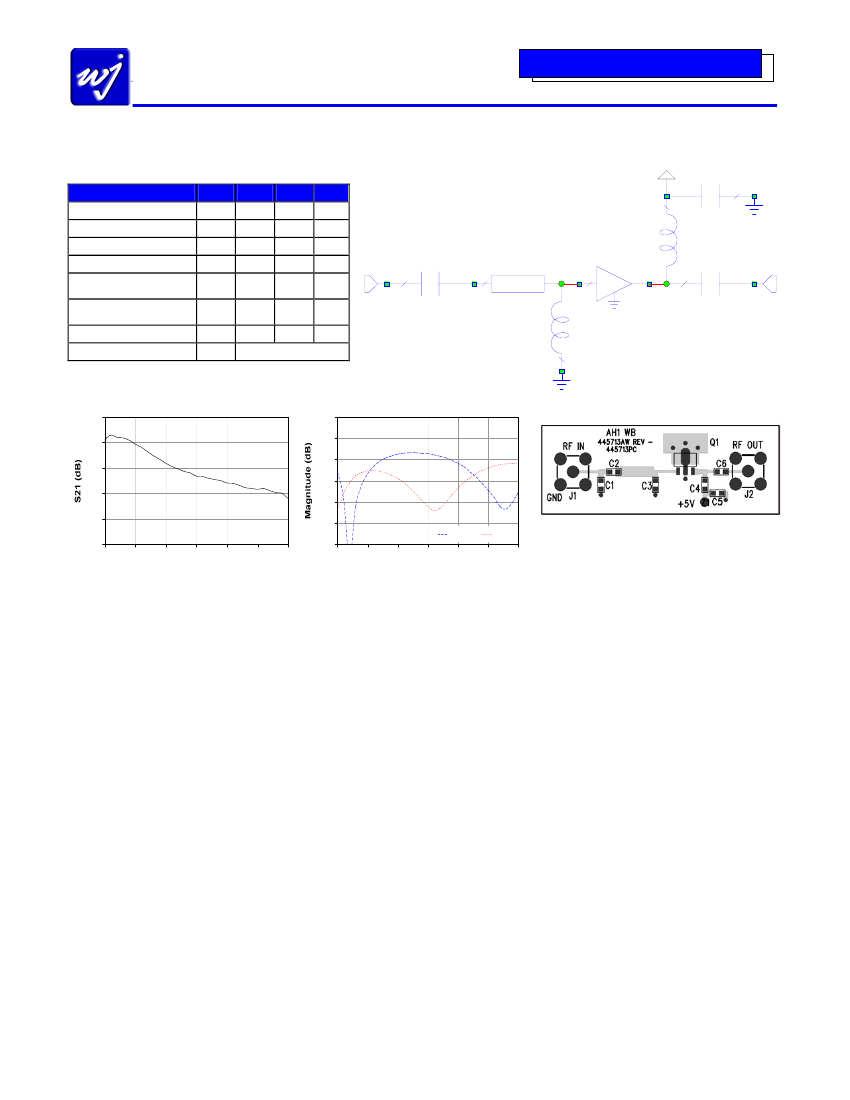

4. Parameters reflect performance in an AH1-PCB application circuit, as shown on page 3.

5. Measured with -45 dBc ACPR, IS-95 9 channels fwd.

Absolute Maximum Rating

Parameter

Operating Case Temperature

Storage Temperature

Supply Voltage

RF Input Power (continuous)

Junction Temperature

-40 to +85

°C

-55 to +150

°C

+6 V

+10 dBm

+220

°C

Ordering Information

Part No.

AH1-1

AH1-1G

AH1-PCB

Rating

Description

High Dynamic Range Amplifier

(leaded SOT-89 Pkg)

High Dynamic Range Amplifier

(lead-free/green/RoHS-compliant SOT-89 Pkg)

0.8 – 2.5 GHz Fully Assembled Application Circuit

Specifications and information are subject to change without notice.

Operation of this device above any of these parameters may cause permanent damage.

WJ Communications, Inc

•

Phone 1-800-WJ1-4401

•

FAX: 408-577-6621

•

e-mail: sales@wj.com

•

Web site: www.wj.com

September 2004
