ADS774JE datasheet, PDF - EEWORLD Datasheet

ADS774JE: DescriptionADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28; CategoryAnalog mixed-signal IC converter; File Size1014KB，12 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

ADS774JE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADS774JE	-	-	View	Buy Now

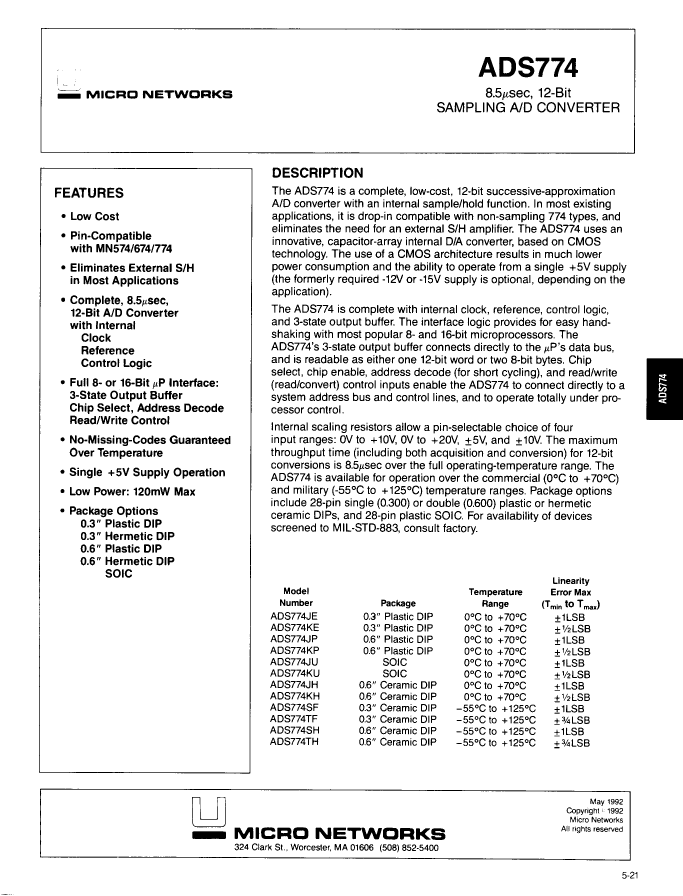

ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28

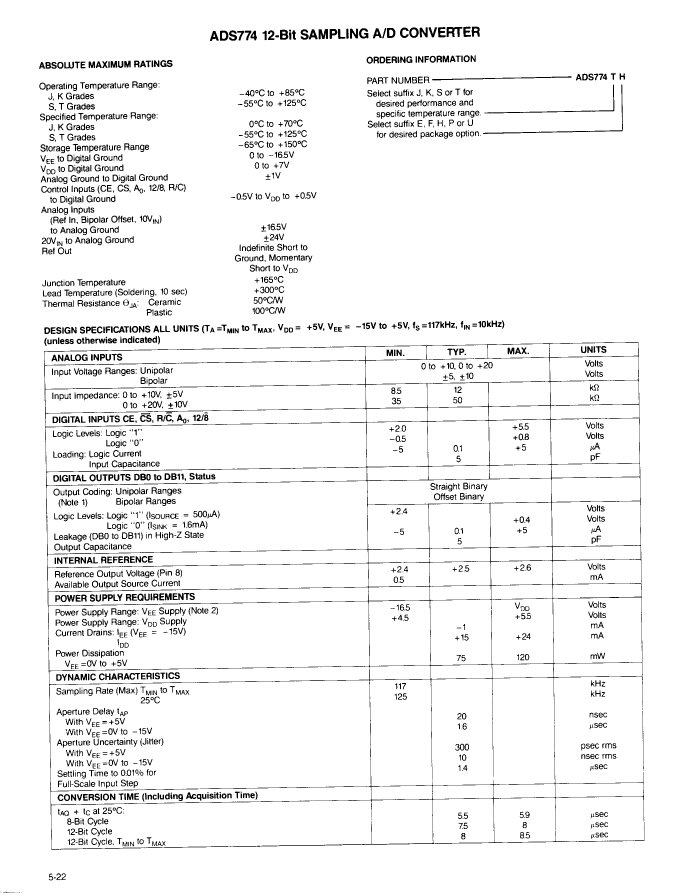

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP28,.3

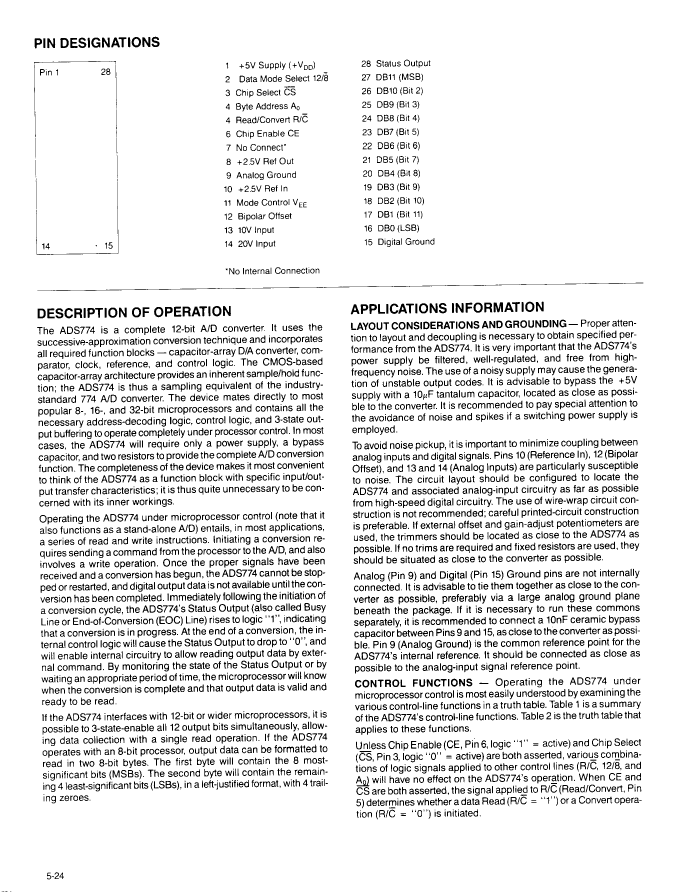

Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	33.15 mm

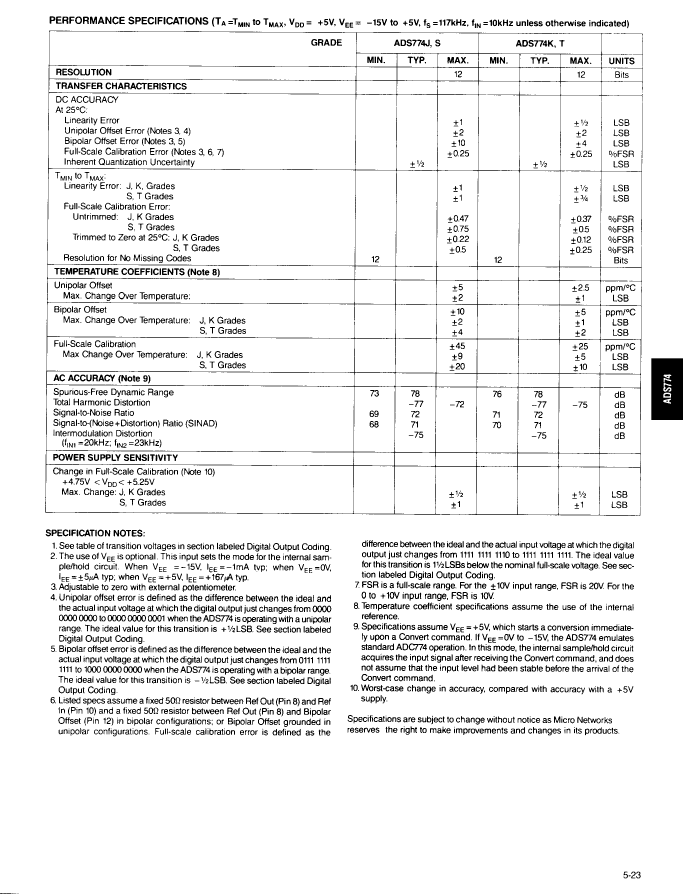

Maximum linear error (EL)	0.0244%
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,5/-15 V
Certification status	Not Qualified
Sample and hold/Track and hold	SAMPLE
Maximum seat height	4.32 mm
Maximum slew rate	24 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
