FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 6 to 24 circuits
s
For 0.30mm thick FFC/FPC
s
Metal solder tabs provide PCB hold-down
and strain relief for SMT tails
Reference Information
Packaging: Embossed
Designed In: Millimeters
Electrical
Voltage: 50V
Current: 0.4A
Contact Resistance: 40m
Ω
max.
Dielectric Withstanding Voltage: 250V
Insulation Resistance: 50 M
Ω
min.
Physical
Housing: PPHS, UL 94V-0
Contact: Phosphor Bronze
Plating: Tin/Lead bright
Solder Tabs: Phosphor Bronze, Tin/Lead half-bright plating
Operating Temperature: -20 to +85˚C
0.50mm (.020") Pitch
FFC/FPC Connector
52975
Right Angle, SMT, Non-ZIF
Top Contact Style
G

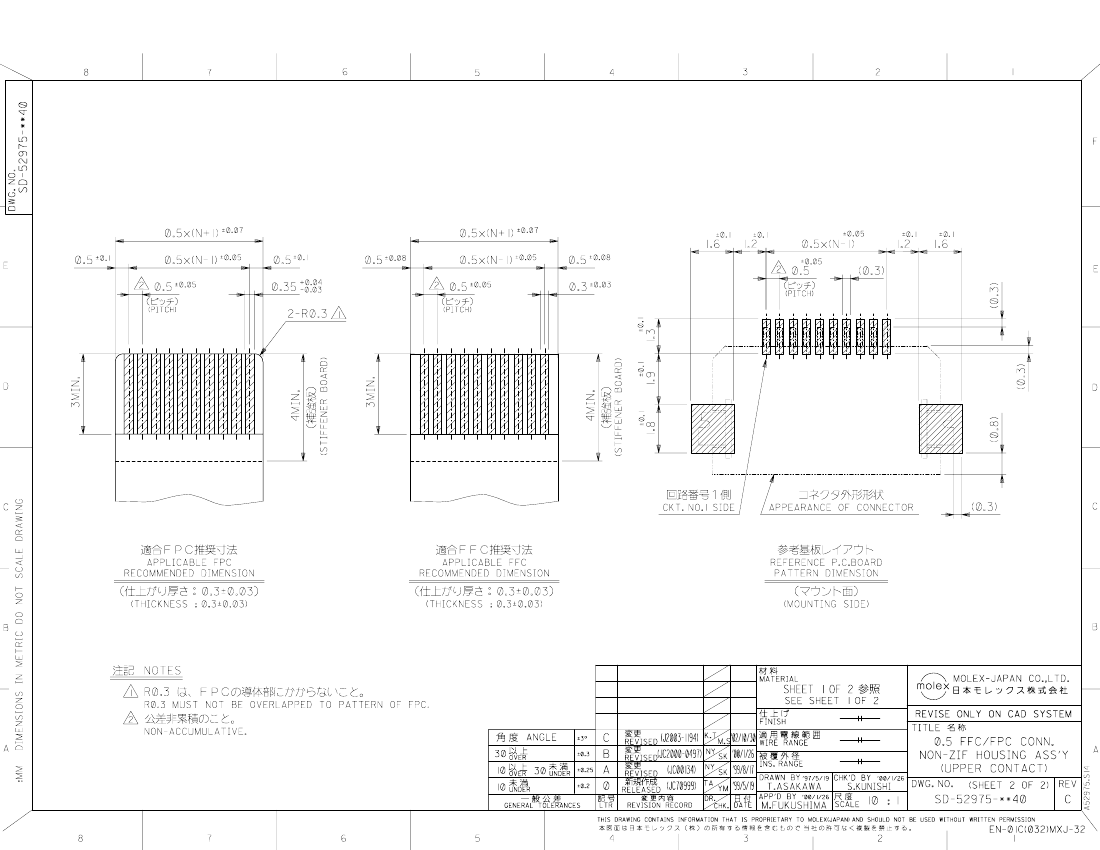

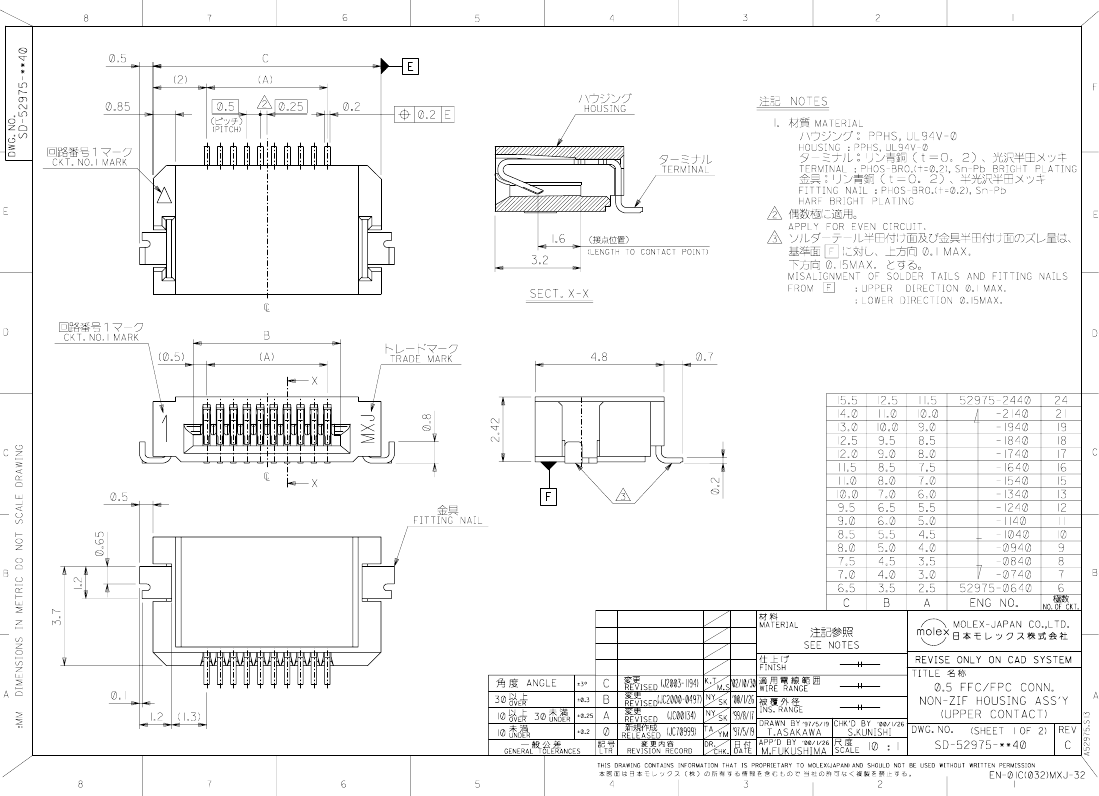

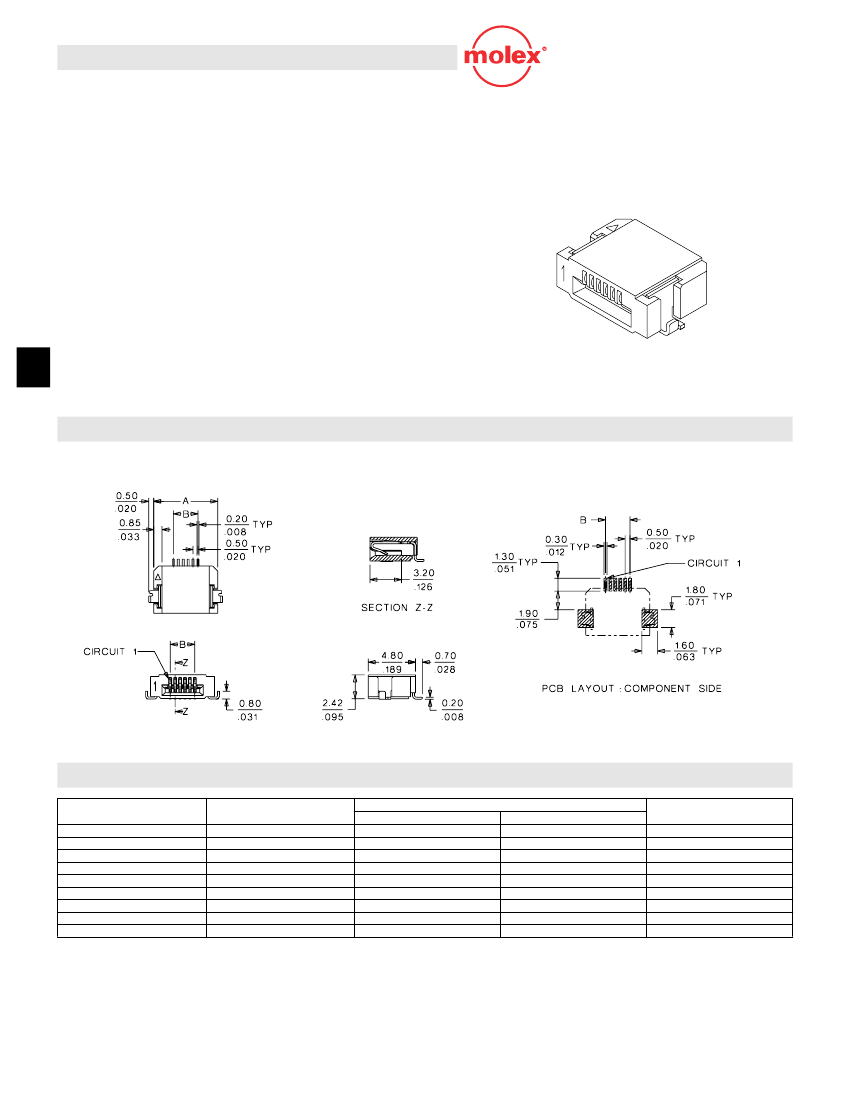

CATALOG DRAWING (FOR REFERENCE ONLY)
FFC/FPC Connectors
ORDERING INFORMATION AND DIMENSIONS
Circuits
6
7
9
12
17
18
19
21
24
Order No.
52975-0692
52975-0792
52975-0992
52975-1292
52975-1792
52975-1892
52975-1992
52975-2192
52975-2492
Dimension
A
6.50 (.255)
7.00 (.275)
8.00 (.314)
9.50 (.374)
12.00 (.472)
12.50 (.492)
13.00 (.511)
14.00 (.551)
15.50 (.610)
B
2.50 (.098)
3.00 (.118)
4.00 (.157)
5.50 (.216)
8.00 (.314)
8.50 (.334)
9.00 (.354)
10.00 (.393)
11.50 (.452)

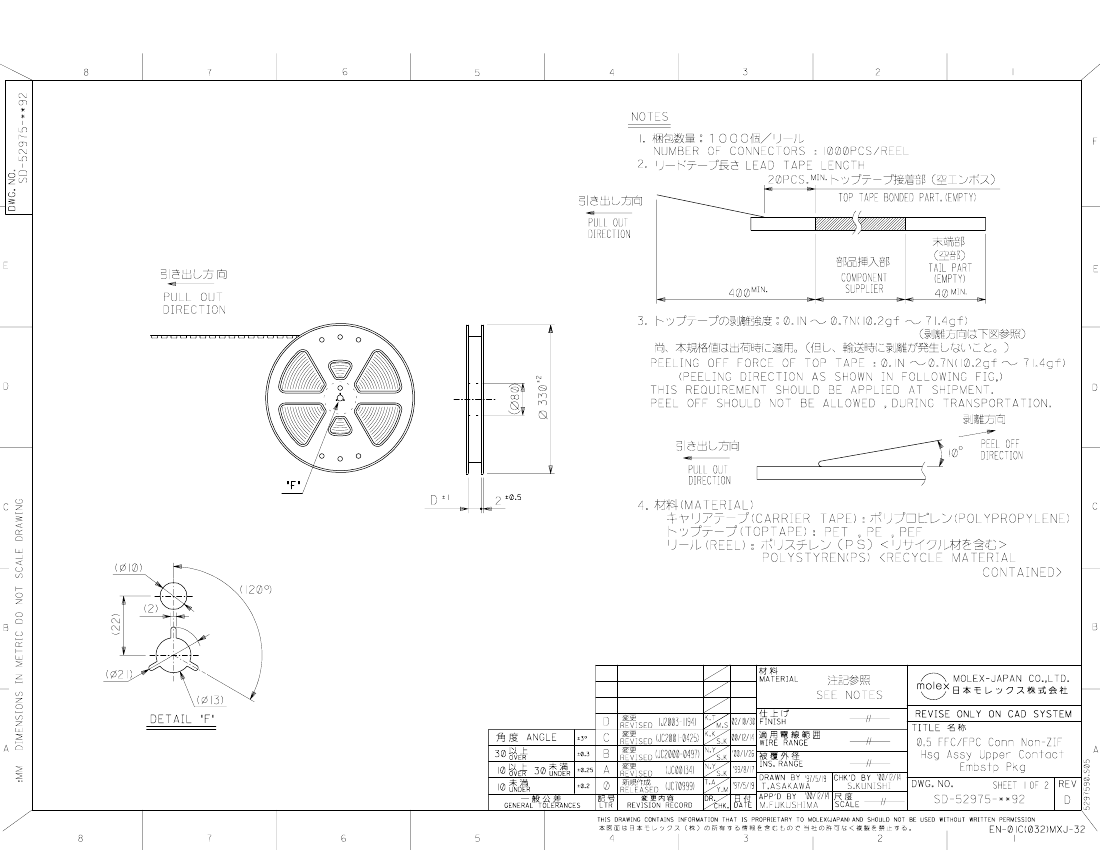

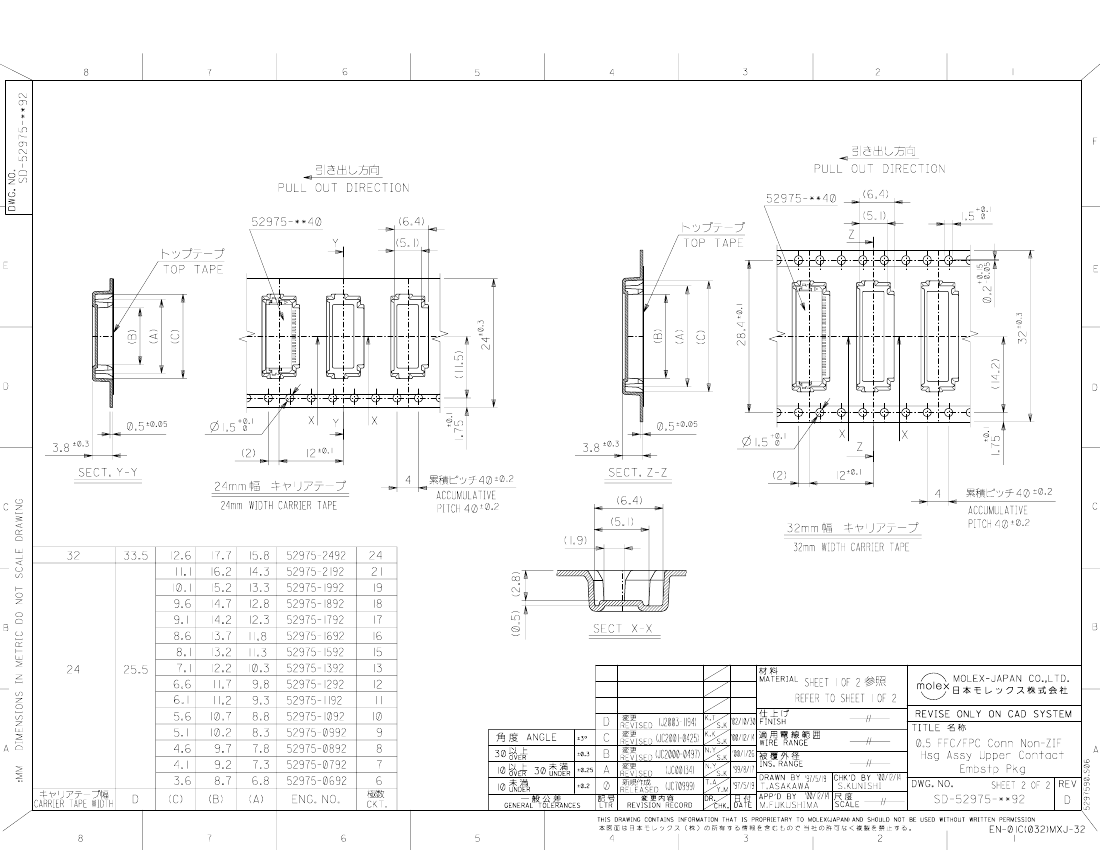

Carrier Tape Width
24.00
24.00
24.00
24.00
24.00
24.00
24.00
24.00
32.00
(.945)
(.945)
(.945)
(.945)
(.945)
(.945)
(.945)
(.945)
(1.260)
Note: For cable specification dimensions, see cable pages at end of section
