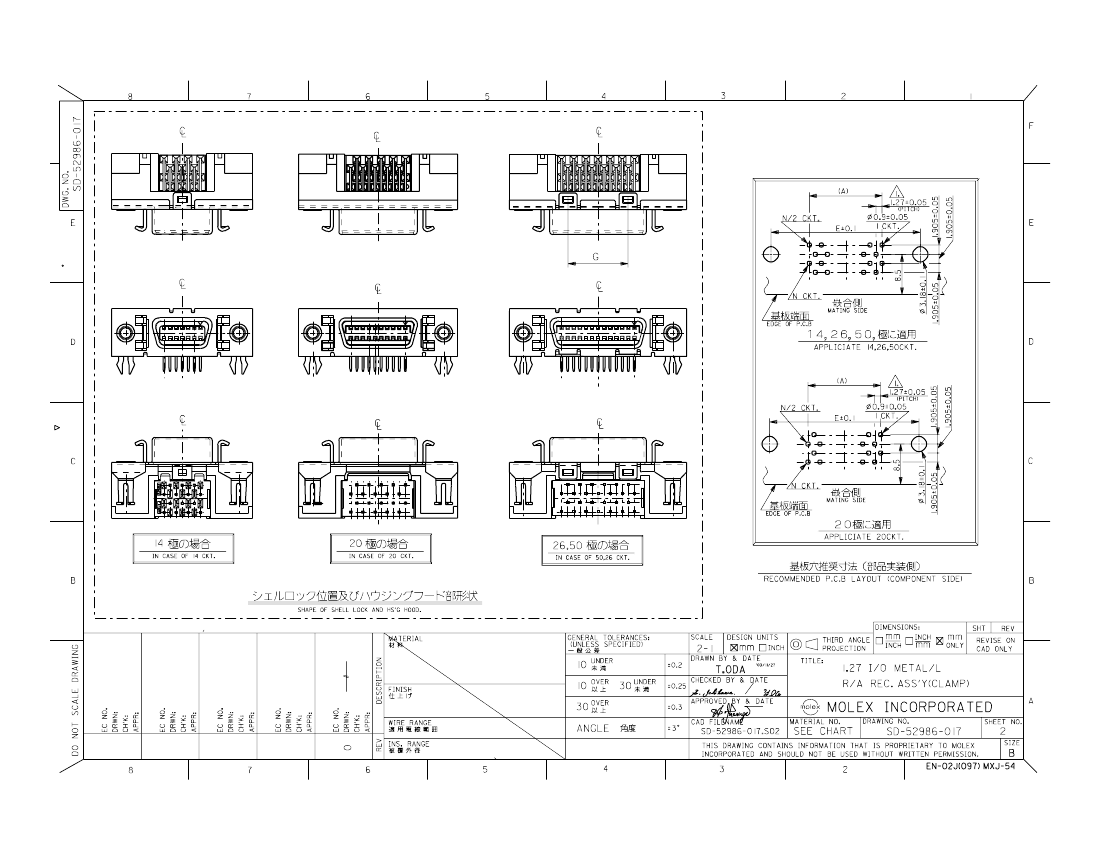

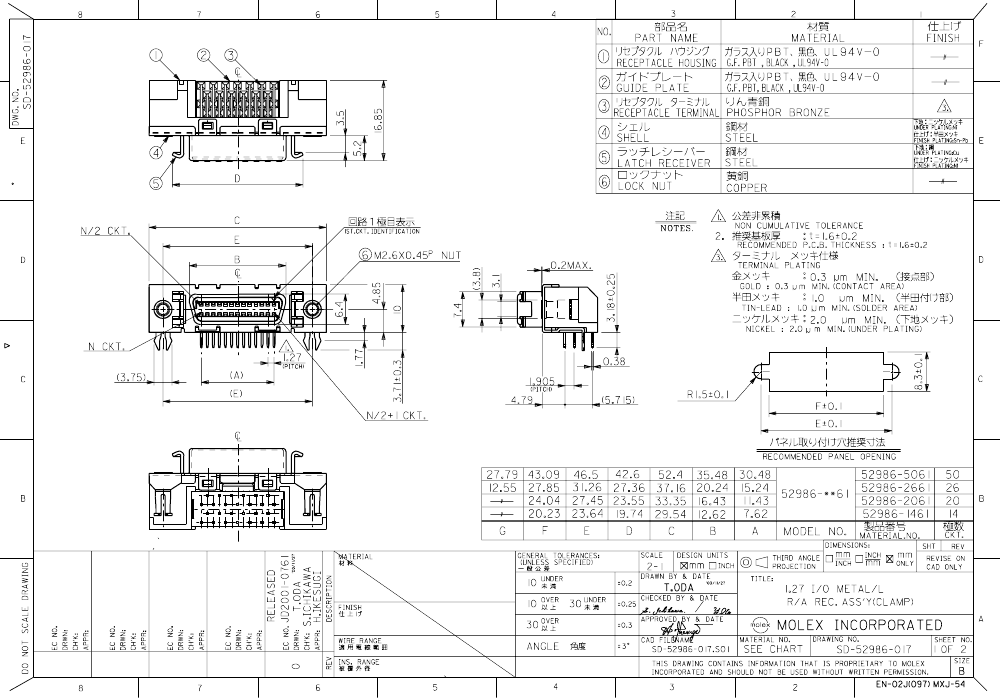

Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Solder Terminal, M2.6x0.45, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | TRAY PACKAGING |
| body width | 0.394 inch |
| subject depth | 0.459 inch |
| body length | 1.163 inch |
| Body/casing type | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 50 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.78 N |
| Insulation resistance | 500000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Manufacturer's serial number | 52986 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation option 1 | M2.6X0.45 |
| Installation option 2 | JACKSCREW |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.905 mm |
| Plating thickness | 12u inch |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN LEAD |
| Shell material | STEEL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .1946 N |
| 52986-1461 | 52986-2661 | 52986-2061 | 52986-5061 | |
|---|---|---|---|---|
| Description | Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Solder Terminal, M2.6x0.45, Receptacle | Telecom and Datacom Connector, 26 Contact(s), Female, Right Angle, Solder Terminal, Receptacle | Telecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Solder Terminal, M2.6x0.45, Receptacle | Telecom and Datacom Connector, 50 Contact(s), Female, Right Angle, Solder Terminal, Receptacle |
| Maker | Molex | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | 52986 | 52986 | 52986 | 52986 |
| Mixed contacts | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Shell material | STEEL | STEEL | STEEL | STEEL |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 14 | 26 | 20 | 50 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
