CS6001/2/3/4/5 Next Generation G.709 Optical Transport Processor Platform for 10G and 40G
Product Overview
Demand for bandwidth-intensive applications such as
video-on-demand, music downloads, and telepresence
is growing, and network deliv ery of larger file formats
like HD video continues to gain in popularit y. Telecom
equipment makers are looking for solutions that allow
them to deliver these bandwidth-intensive
experiences to consumers while k eeping their power
usage and costs in check. The new Cortina S ystems
®
CS600x Optical Transport Processor & FEC Device
(CS600x Transport Processor) enables carriers to
deliver high-quality, data-intensive services while
reducing operational and capital expenditures by
permitting efficient multiplexing and tr ansparent
transport of a broad spectrum of 10G class clients
including Ethernet, SONET/SDH, and Stor age over
high speed optical tr ansport networks as well as 40G.
The CS600x Transport Processor family offers
advanced analog integration, proven optical transport
networking, and FEC leadership . It aggregates and
transports a broad mixture of 10G Ethernet, 10G-
class storage, and SONET/SDH clients o ver 10G or
40G transport networks. Based on cutting-edge
technology, the CS600x Transport Processor offers a
rich feature set that allows for denser and more
flexible line cards for metro and long-haul dense
wavelength-division-multiplexing applications,
Ethernet switch and router platforms, and submarine
ultra long-haul systems. K ey features include
aggregation of four fully independent synchronous or
asynchronous 10Gs tributaries to a 40G signal; super
forward error correction ("Super FEC"); tr ansport,
mapping, and performance monitoring; and
networking support for v arious client signals.
The CS600x Transport Processor family is offered as
five different options that are specifically tailored to
various 40G or 10G applications.
• The CS6001 Transport Processor features two 17-
lane or 16-lane 40G-class interfaces (SFI -5.1 or
16-lane SFI-4.2), eight four-lane 10G-class
interfaces (XAUI or SFI-4.2), and four XFI serial
10G-class interfaces. Additionally, each SFI -5.1
interface can be down-clock ed to operate as a 16-
bit SFI-4.1 compliant interface. The CS6001
Transport Processor can handle full duplex
processing of either a single 40G signal or up to
four independent 10G signals. The receiv er and
transmit ports can be configured independently to
monitor (and optionally terminate) O TU3/OC-768,
40GE, and OTU2/OC-192/10 GbE/FC-1200/FC-800
signals.
• The CS6002 Transport Processor is tailored for 40G
Muxponder and Cross connect applications in the
DWDM, and P-OTP platforms.
• The CS6003 Transport Processor is targeted for
4x10G applications in the D WDM, OTN-crossconnect
applications.
• The CS6004 Transport Processor is targeted for
4x10G applications in the R outer/Switch market
place.
• The CS6005 Transport Processor is targeted for
2x10G applications.
The CS600x Transport Processor is compatible with
Cortina devices, such as the Cortina S ystems
®
CS2777, CS1222, CS3487, CS3477, and CS1999, on
the client side.
Aggregation
The CS600x Transport Processor supports a v ariety of
aggregation configurations. For example, the device
can be used to aggregate 10G clients oper ating at
different rates. Clients are independent - an y mix of
10GE LAN PHY, 10G SDH/SONET, 10G OTN, or
FC1200/800 is allowed. Con versely, an incoming
aggregate 40G signal can be asynchronously
de-aggregated to its original 10G clients. Additional
possibilities include 24 x GbE Aggregation to dual 10G
OTN for Long Haul WDM applications, NxGE
aggregation, or demultiplexing 10G Class Signals from
a 40G circuit backplane input.
10GE LAN Mapping
The CS600x Transport Processor supports man y
different methods, with v arying degrees of
transparency, to map and tr ansport 10 GbE LAN clients
over Transport Networks: by synchronously mapping
the 10 GbE LAN client o ver an OPU2 or OPU1 pa yload
(resulting in an O TU2 signal overclocked at 11.096
Gbps or 11.049 Gbps), by r ate adapting the 64B/66B
stream before mapping ov er OPU2 (or VC -4-64c)
payload, or by using GFP-F encapsulation before
mapping over OPU2
(or VC-4-64c).
Copyright © 2009 Cortina Systems, Inc.
Product Brief Number: 400967-1.0
Forward Error Correction
The 10G Super FEC scheme used in the CS600x
Transport Processor is the Ultr a-Strong FEC (UFEC)
supported by the industry leading Cortina S ystems
®
IXF30009/IXF30011 Optical Transport Processors and
specified in section I.7 of the ITU G.975.1
recommendation. The device also supports a similar
40G Super FEC scheme according Section I.7
("Ultra-Strong FEC") of the ITU G.975.1
recommendation. The device pro vides 10G & 40G
configurable ultra-FECs with 4%, 7%, 10%, 15%,
20%, and 25% FEC ov erhead rates with a net coding
gain of greater than 10 dB for Ultr a Long Haul (ULH)
and submarine applications. Standard G.709 (RS-255,
239) Forward Error Correction with a net coding gain
of approximately 6 dB, allowing the CS6001 Transport
Processor to be used as a single-chip G.709 FEC
regenerator for 40 Gbps to 40 Gbps, quad 10 Gbps
to/from 40 Gbps or dual 10 Gbps to dual 10 Gbps
applications. FEC capabilities are supplemented with
Advanced Error Rate Monitoring capabilities.
Features
The CS600x Transport Processor supports Core tr ansport
processing for various protocols:
• Full SONET/SDH TOH processing of OC-768 and
OC-192 signals (termination and gener ation)
• Full G.709 compliant OxU2 and OxU3 o verhead
termination and generation
• Asynchronous aggregation of four independent 10G
class signals into a standard or an o ver-clocked OTU3
• 10GE LAN/WAN, FC-1200, and FC800 non-intrusiv e
Performance Monitoring
• Fully transparent and asynchronous mapping of one
40 Gbps or four 10 Gbps tributaries into an O TU3 or
four independent OTU2s
Additional networking features supported include:
• Known pattern (PRBS, constant bit patterns)
processing on all streams and lay ers
• Maintenance signal processing/propagation for
SONET/SDH and OTN
• Reverse multiplexing (40 Gbps to/from 4x10 Gbps) for
DWDM and cross-connect applications
• Substantial hardware support for G.709 and G.798
functions
High Speed Interfaces
• The CS600x Transport Processor has two sets of 17
x 3.5 Gbps-capable shared high-speed CML or L VDS
configurable I/Os; each set could be configured for
40G or Nx10G (N=1,..,4) class line or client ports
as:
- 40G class SFI-5.1 compliant interface
- 40G class 16-lane client agnostic backplane
interface (extended SFI-4.2)
- Four independent 10G class backplane or chip-
to-chip interfaces with CML I/Os; each interface
could be configured as a XA UI port or SFI -4.2
interface
- Single 10G class 16-bit SFI -4.1 compliant
parallel interface clocked at up to 800 MHz with
LVDS I/O
• Four independent 10G class XFI serial interfaces
clocked at up to 12.5 Gbps
• Optional DPSK, PSBT (ODB), or DQPSK differential
pre-coders
• 16-bit general purpose microprocessor interface,
Intel*-style and Motorola*-style, synchronous or
asynchronous, interrupt driven or polling mode
Applications
• OTN networks
• FEC regenerators
• 10GE transport solution
• Protocol transparent transport
• Multiservice platforms
• SONET/SDH Add/Drop multiplexers
• Submarine and ULH FEC applications
• 10G/40G core and metro networks
• High density line cards for 10G networks
(four bi-directional ports)
• 10GE LAN monitoring
Technology
• CS6001/2/3/5: 1517-ball BGA, 40x40 mm
2
CS6004: 896-ball BGA, 31x31 mm
2
•
• 1.0 V (Core), 1.8 V (Analog), and 2.5 V
(Digital I/Os) operational supplies
• CML, LVDS, and 2.5 V L VCMOS I/Os
Copyright © 2009 Cortina Systems, Inc.
Product Brief Number: 400967-1.0
CS600x Transport Processor Block Diagrams
Both the west side interface and east side interface feature the following connection: OxU-3(V)/OC -768/40GE or
4XOxU-2(V)/10GbE/OC-192/FC1200/800/400/200/100.

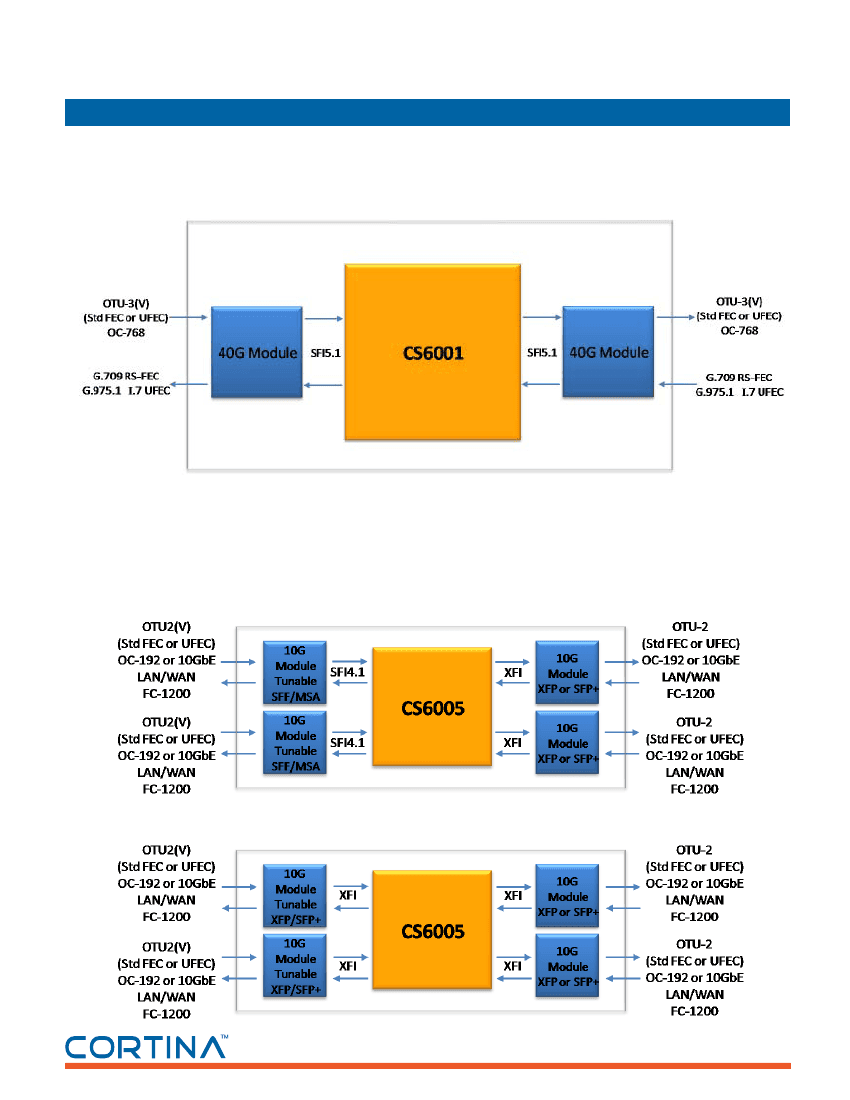

40G Regenerator / Transponder with Internal 40G SuperFEC
The CS600x Transport Processor shown below in either a tr ansponder (SONET/SDH over OTU-3) or regenerator
application. As the device integr ates two 40G Ultr a-FECs (G.975.1 I.7) and two 40G Standard FEC (G.709 RS-
FEC) encoder/ decoders, both Ultr a and/or Standard FECs can be used simultaneously on both 40G ports for
regenerator or transponder applications.
Dual 10G Transponder
Copyright © 2009 Cortina Systems, Inc.
Product Brief Number: 400967-1.0
CS600x Transport Processor Block Diagrams (Con’t)
This diagram illustrates the use of the CS600x T ransport Processor in wr apping 10G client signals into an O TU-2
for transport with Ultra FEC. Note that the device supports both SFI4.1 and XFI interfaces. As the device
integrates four 10G Ultra-FEC encoders/decoders and four 10G Std FEC encoders/decoders, both Ultr a and/or
Standard FECs can be used simultaneously on all four 10G ports.

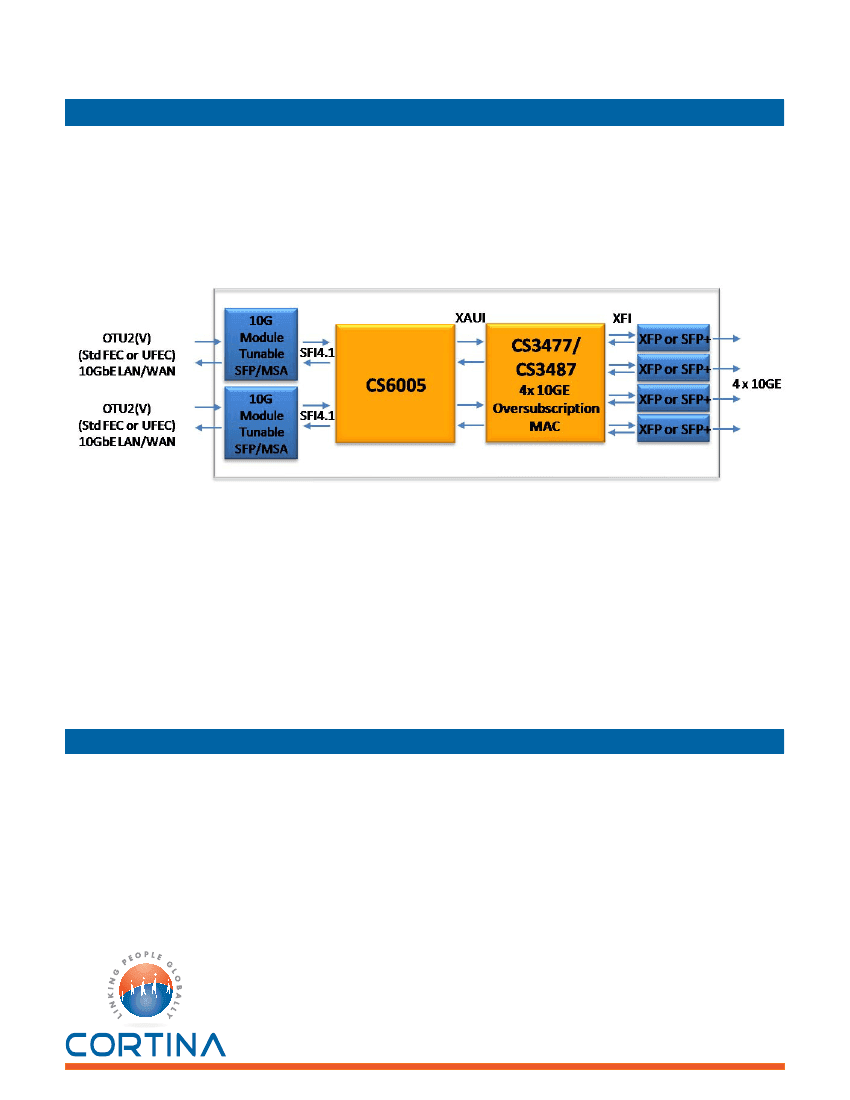

2 x 10GE Aggregation (Oversubscription) And Transport Over Dual 10G OTN
Cortina in Communications
Cortina is a leading supplier of intelligent
communication solutions through continuous
innovations in advanced port processing and intelligent
port connectivity to the Core, Metro , Access and
Enterprise Market Segments. With our state-of -the-art
high speed analog digital integr ation, we deliver a wide
suite of products that address our customers’
performance, density and flexibilit y needs enabling
faster time-to-market, longer time-in-market, and
increased revenue opportunities. Working closely with
our customers to understand their system requirements
and anticipate their needs, we are creating the
foundation ingredients for new gener ations of services.
*Other names and brands may be claimed as the property of others.
