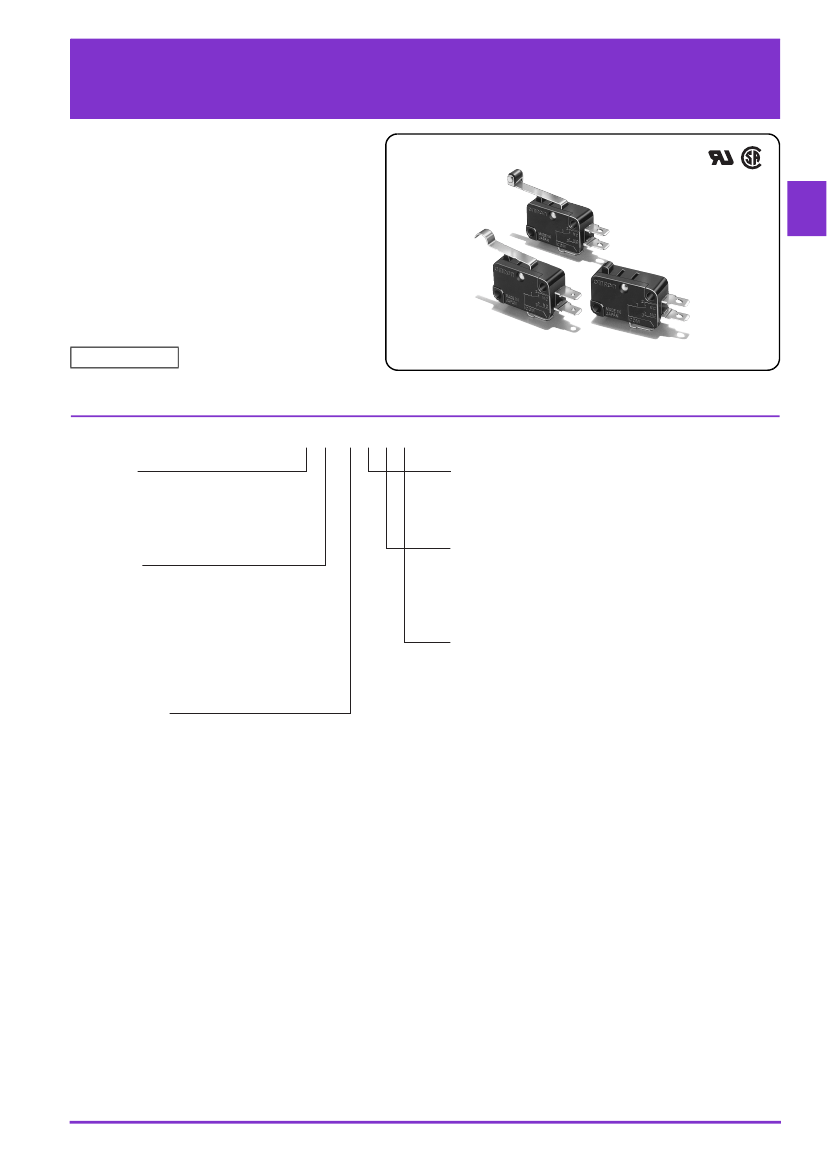

Miniature Basic Switch
Miniature Basic Switch that
Offers High Reliability and
Security
●
Wide variation of best-selling microswitches with
switching currents of 10 to 21 A.
●
Can be used for interrupting current when doors
are opened or closed.
●
Available in two types of cases: thermoplastic resin
and thermosetting resin.
●
Indium contact models available for DC load
RoHS Compliant
V
Model Number Legend
1 2
3 4 5 6
V-
@ @
-
@ @ @ @
1. Ratings
21: 21 A at 250 VAC
16: 16 A at 250 VAC
15: 15 A at 250 VAC
10: 10 A at 250 VAC
2. Actuator
None : Pin plunger
1 : Short hinge lever
2 : Hinge lever
3 : Long hinge lever
4 : Simulated roller lever
5 : Short hinge roller lever
6 : Hinge roller lever
3. Contact Form
1: SPDT
2: SPST-NC
3: SPST-NO
4. Terminals
A : Solder terminals
C2 : Quick-connect terminals (#187)
C : Quick-connect terminals (#250)
5. Maximum Operating Force
6: 3.92 N {400 gf}
5: 1.96 N {200 gf}
4: 0.98 N {100 gf}
Note: These values are for the pin plunger models.
6. Heat Resistance
None : Standard (80°C)
-T : Heat-resistive (150°C)
1
V
List of Models
Thermoplastic Case
Ratings
Actuator
Terminals
Contact form
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Pin plunger
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
0.98N
1.96N
3.92N
0.98N
1.96N
3.92N
0.98N
1.96N
3.92N
Maximum operating force (OF)
21A
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-21-1C6
V-21-2C6
V-21-3C6
---
---
---
---
---
---
Miniature Basic Switch
16A
V-16-1A6
V-16-2A6
V-16-3A6
V-16-1A5
V-16-2A5
V-16-3A5
---
---
---
V-16-1C26
V-16-2C26
V-16-3C26
V-16-1C25
V-16-2C25
V-16-3C25
---
---
---
V-16-1C6
V-16-2C6
V-16-3C6
V-16-1C5
V-16-2C5
V-16-3C5
---
---
---
V
Refer to
"Micro Switch Common Accessories"
for Separators (sold separately), Actuators (sold separately) and Terminal
Connectors (sold separately).
2
V
Ratings
Actuator
Terminals
Contact form
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Short hinge lever
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Hinge lever
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
0.98N
1.96N
3.92N
0.98N
1.96N
3.92N
0.98N
1.96N
3.92N
Maximum operating force (OF)
21A
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-211-1C6
V-211-2C6
V-211-3C6
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-212-1C6
V-212-2C6
V-212-3C6
---
---
---
---
---
---
Miniature Basic Switch
16A
V-161-1A6
V-161-2A6
V-161-3A6
V-161-1A5
V-161-2A5
V-161-3A5
---
---
---
V-161-1C26
V-161-2C26
V-161-3C26
V-161-1C25
V-161-2C25
V-161-3C25
---
---
---
V-161-1C6
V-161-2C6
V-161-3C6
V-161-1C5
V-161-2C5
V-161-3C5
---
---
---
V-162-1A6
V-162-2A6
V-162-3A6
V-162-1A5
V-162-2A5
V-162-3A5
---
---
---
V-162-1C26
V-162-2C26
V-162-3C26
V-162-1C25
V-162-2C25
V-162-3C25
---
---
---
V-162-1C6
V-162-2C6
V-162-3C6
V-162-1C5
V-162-2C5
V-162-3C5
---
---
---
V
Refer to
"Micro Switch Common Accessories"
for Separators (sold separately), Actuators (sold separately) and Terminal
Connectors (sold separately).
3
V
Ratings
Actuator
Terminals
Contact form
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Long hinge lever
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Simulated roller
lever
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
0.34N
0.69N
1.27N
0.34N
0.69N
1.27N
0.34N
0.69N
1.27N
Maximum operating force (OF)
21A
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-213-1C6
V-213-2C6
V-213-3C6
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-214-1C6
V-214-2C6
V-214-3C6
---
---
---
---
---
---
Miniature Basic Switch
16A
V-163-1A6
V-163-2A6
V-163-3A6
V-163-1A5
V-163-2A5
V-163-3A5
---
---
---
V-163-1C26
V-163-2C26
V-163-3C26
V-163-1C25
V-163-2C25
V-163-3C25
---
---
---
V-163-1C6
V-163-2C6
V-163-3C6
V-163-1C5
V-163-2C5
V-163-3C5
---
---
---
V-164-1A6
V-164-2A6
V-164-3A6
V-164-1A5
V-164-2A5
V-164-3A5
---
---
---
V-164-1C26
V-164-2C26
V-164-3C26
V-164-1C25
V-164-2C25
V-164-3C25
---
---
---
V-164-1C6
V-164-2C6
V-164-3C6
V-164-1C5
V-164-2C5
V-164-3C5
---
---
---
V
Refer to
"Micro Switch Common Accessories"
for Separators (sold separately), Actuators (sold separately) and Terminal
Connectors (sold separately).
4
V
Ratings
Actuator
Terminals
Contact form
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
Short hinge roller
lever
SPST-NO
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
Solder terminals
(A)
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Hinge roller lever
Quick-connect
terminals (#187)
(C2)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
Quick-connect
terminals (#250)
(C)
SPDT
SPST-NC
SPST-NO
SPDT
SPST-NC
SPST-NO
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
0.59N
1.23N
2.45N
1.18N
2.35N
4.71N
1.18N
2.35N
4.71N
1.18N
2.35N
4.71N
Maximum operating force (OF)
21A
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-215-1C6
V-215-2C6
V-215-3C6
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
---
V-216-1C6
V-216-2C6
V-216-3C6
---
---
---
---
---
---
Miniature Basic Switch
16A
V-165-1A6
V-165-2A6
V-165-3A6
V-165-1A5
V-165-2A5
V-165-3A5
---
---
---
V-165-1C26
V-165-2C26
V-165-3C26
V-165-1C25
V-165-2C25
V-165-3C25
---
---
---
V-165-1C6
V-165-2C6
V-165-3C6
V-165-1C5
V-165-2C5
V-165-3C5
---
---
---
V-166-1A6
V-166-2A6
V-166-3A6
V-166-1A5
V-166-2A5
V-166-3A5
---
---
---
V-166-1C26
V-166-2C26
V-166-3C26
V-166-1C25
V-166-2C25
V-166-3C25
---
---
---
V-166-1C6
V-166-2C6
V-166-3C6
V-166-1C5
V-166-2C5
V-166-3C5
V
Refer to
"Micro Switch Common Accessories"
for Separators (sold separately), Actuators (sold separately) and Terminal
Connectors (sold separately).
5
