BH-5641122 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BH-5641122

BH-5641122: DescriptionBoard Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

BH-5641122 Overview

Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal

BH-5641122 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD (100)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	BH-56
Plug information	BH-5951122
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0

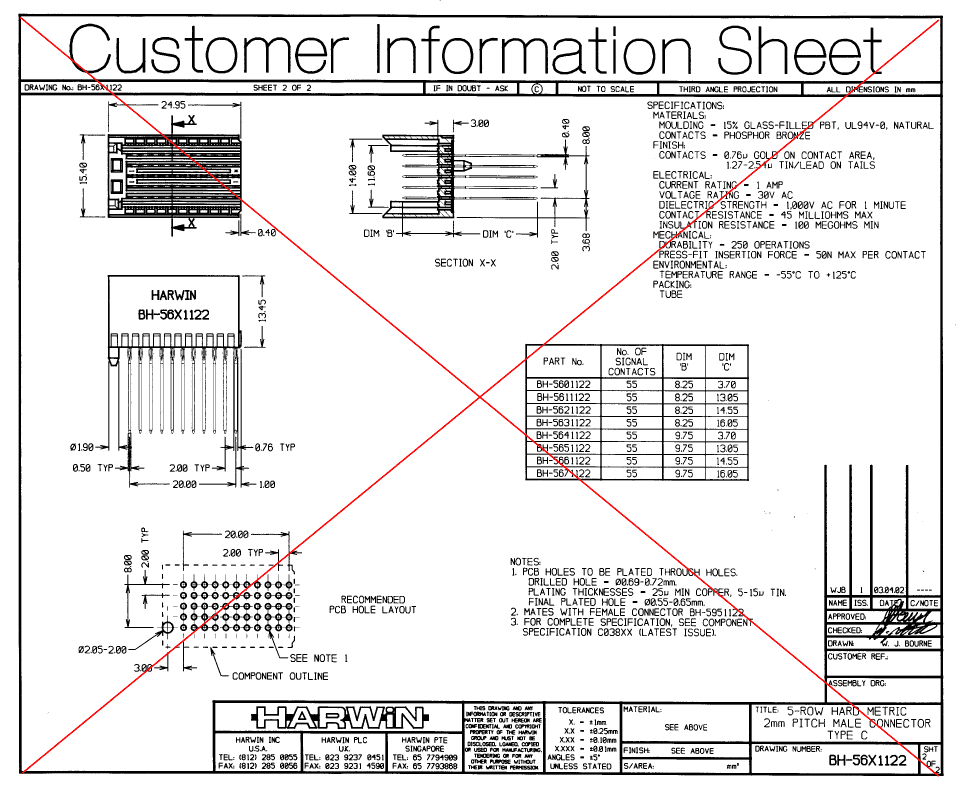

Preview

Download Datasheet

View All

OBSOLETE

BH-5641122 Related Products

	BH-5641122	BH-5601122	BH-5611122	BH-5621122	BH-5631122	BH-5651122	BH-5661122	BH-5671122
Description	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 55 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BH-56	BH-56	BH-56	BH-56	BH-56	BH-56	BH-56	BH-56
Plug information	BH-5951122	BH-5951122	BH-5951122	BH-5951122	BH-5951122	BH-5951122	BH-5951122	BH-5951122
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	55	55	55	55	55	55	55	55
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
