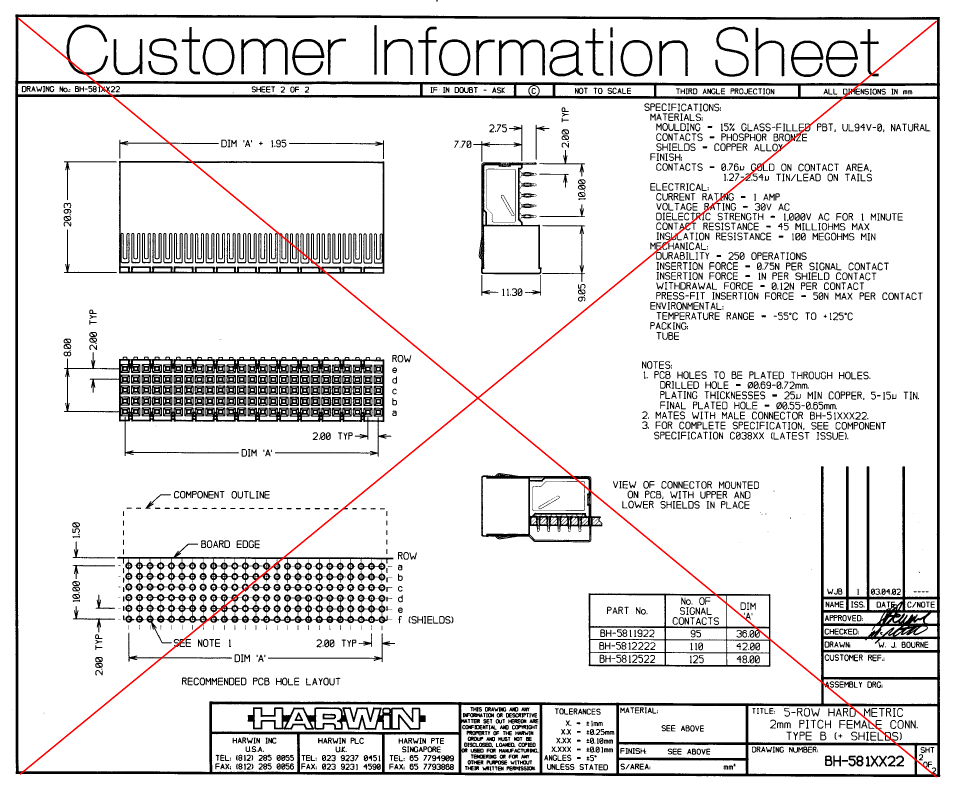

BH-5812222: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal; CategoryThe connector The connector; File Size242KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

BH-5812222 Overview

Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	compliant
Other features	SHIELDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD (100)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	BH-581
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0

OBSOLETE

	BH-5812222	BH-5811922	BH-5812522
Description	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Harwin	Harwin	Harwin
Reach Compliance Code	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	TIN LEAD (100)	TIN LEAD (100)	TIN LEAD (100)
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	BH-581	BH-581	BH-581
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	95	125
UL Flammability Code	94V-0	94V-0	94V-0
