RF179-74BJ3-73RP4-0200 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> RF179-74BJ3-73RP4-0200

RF179-74BJ3-73RP4-0200: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size1MB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

RF179-74BJ3-73RP4-0200 Overview

Cable Assembly

RF179-74BJ3-73RP4-0200 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

REVISION Y

FIG 2

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

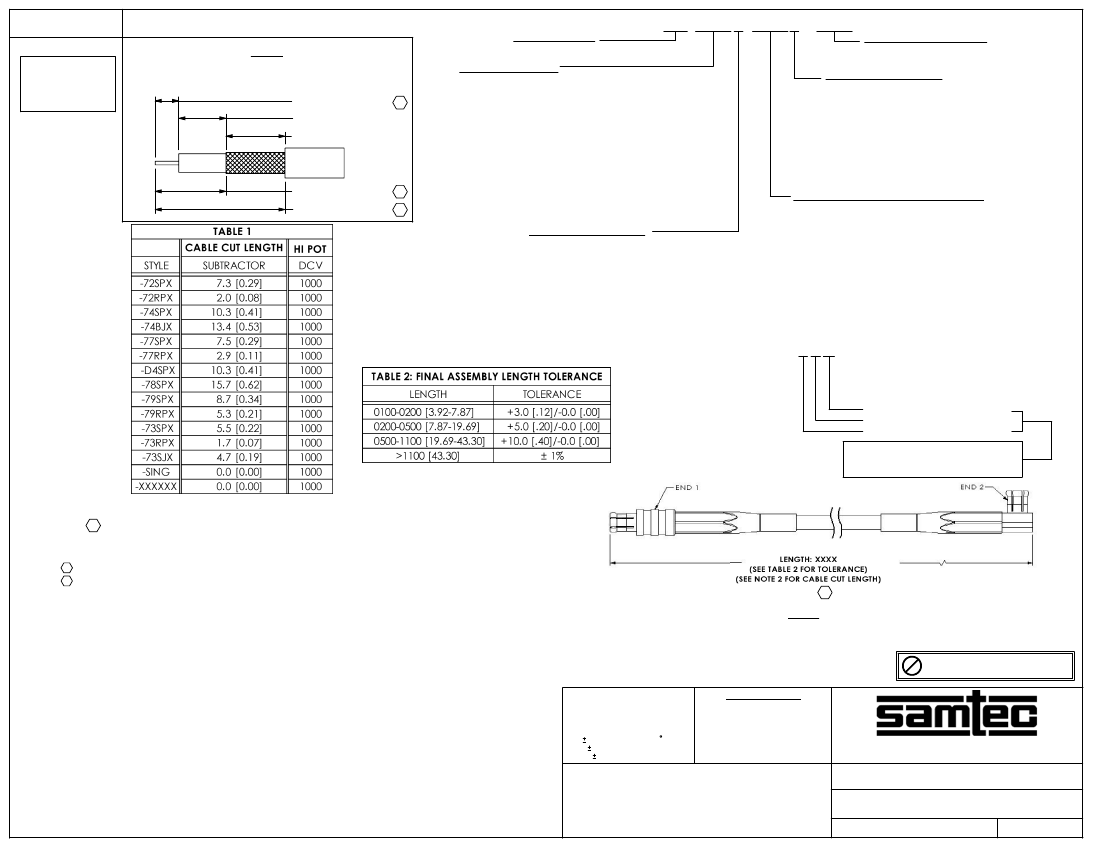

CABLE CALLOUT

RF179-XXXXX-XXXXXX-XXXX

CABLE STRIPPING DIMENSIONS

PER CONFIGURATIONS

(SEE TABLE 1)(SEE NOTE 12,13,14,15)

"A" mm

"B" mm

"C" mm

179: CCA-179 (RG-179 COAXIAL CABLE)

"D" mm

"E" mm

END 1 CONNECTOR

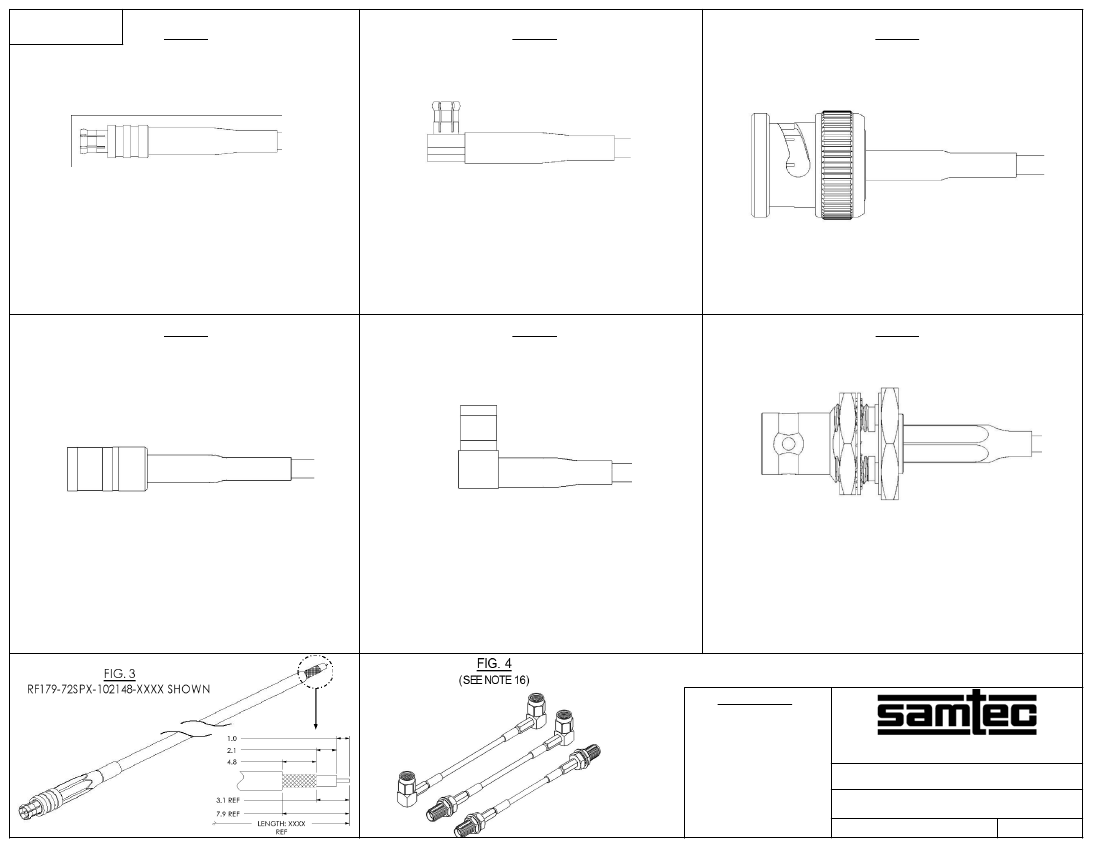

-72SP: MCX7-P-C-XX-ST-CA3 (SEE SHEET 2)

-72RP: MCX7-P-C-XX-RA-CA3 (SEE SHEET 2)

-74SP: BNC7T-P-C-XX-ST-CA3 (SEE SHEET 2)

-74BJ: BNC7T-J-C-XX-ST-BH3 (SEE SHEET 2)

-77SP: SMB7H-P-C-XX-ST-CA3 (SEE SHEET 2)

-77RP: SMB7H-P-C-XX-RA-CA3 (SEE SHEET 2)

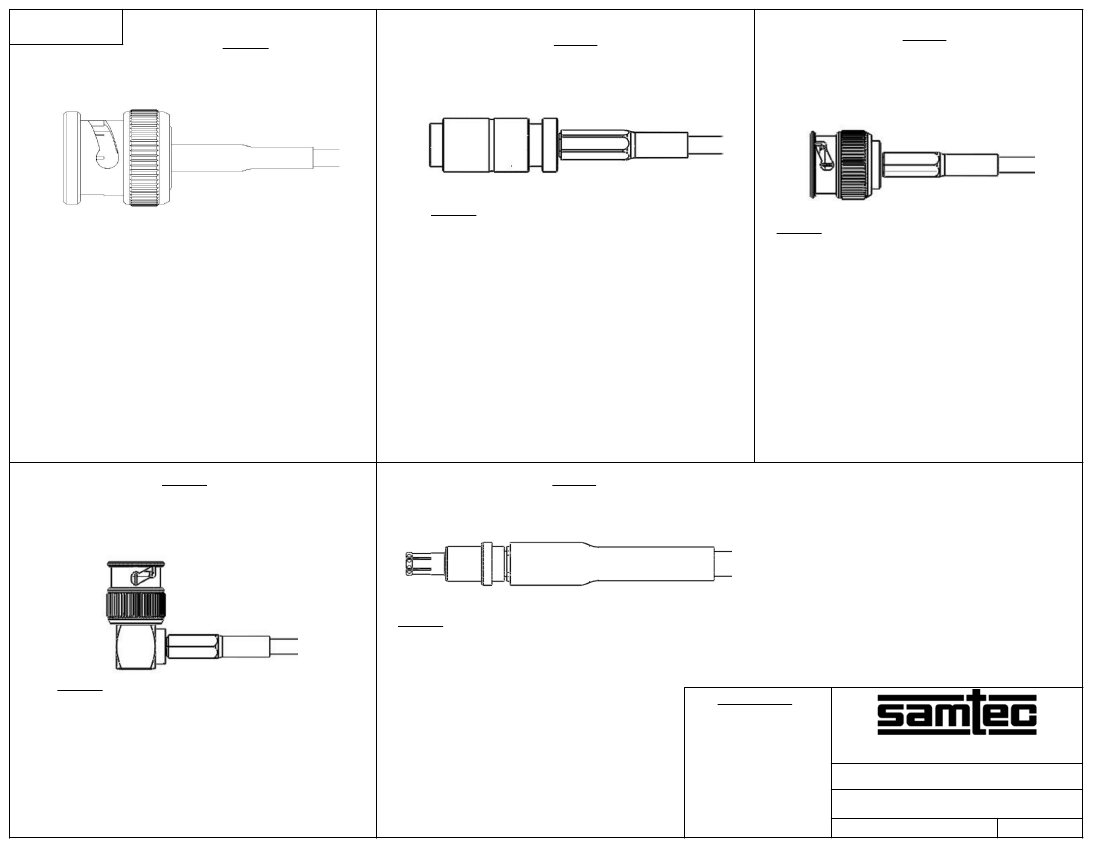

-D4SP: BNC7T-P-C-XX-ST-CA3D (SEE SHEET 3)

-78SP: DIN7A-PP-C-XX-ST-CA3 (SEE SHEET 3)

-79SP: MBNC7-P-C-XX-ST-CA3 (SEE SHEET 3, SEE NOTE 18)

-79RP: MBNC7-P-C-XX-RA-CA3 (SEE SHEET 3, SEE NOTE 18)

-73SP: MMCX7-P-C-XX-ST-CA3 (SEE SHEET 3)

-73RP: MMCX7-P-C-XX-RA-CA3 (SEE SHEET 4)

-73SJ: MMCX7-J-C-XX-ST-CA3 (SEE SHEET 4)

END 1 PLATING OPTION

1: GOLD ALL COMPONENTS

2: GOLD / NICKEL COMBINATION

3: ALTERNATE GOLD / NICKEL

4: ALTERNATE GOLD / GOLD FLASH / NICKEL

5: ALTERNATE GOLD / GOLD / NICKEL

6: ALTERNATE H GOLD / H GOLD / NICKEL

8. ALTERNATE HEAVY GOLD / GOLD FLASH /NICKEL

(SEE SHEET 2 AND 3 FOR PLATING SPECIFICS)

OVERALL CABLE LENGTH

MILLIMETERS OF CABLE

0100 MIN. (SEE NOTE 8 & 9)

END 2 PLATING OPTION

1: GOLD ALL COMPONENTS

2: GOLD / NICKEL COMBINATION

3: ALTERNATE GOLD / NICKEL

4: ALTERNATE GOLD / GOLD FLASH / NICKEL

5: ALTERNATE GOLD / GOLD / NICKEL

6: ALTERNATE H GOLD / H GOLD / NICKEL

8. ALTERNATE HEAVY GOLD / GOLD FLASH /NICKEL

(SEE SHEET 2 AND 3 FOR PLATING SPECIFICS)

(LEAVE BLANK FOR -SING OR -XXXXXX

END 2 PREPARATION)

END 2 CONNECTOR OR PREPARATION

-72SP: MCX7-P-C-XX-ST-CA3 (SEE SHEET 2)

-72RP: MCX7-P-C-XX-RA-CA3 (SEE SHEET 2)

-74SP: BNC7T-P-C-XX-ST-CA3 (SEE SHEET 2)

-74BJ: BNC7T-J-C-XX-ST-BH3 (SEE SHEET 2)

-77SP: SMB7H-P-C-XX-ST-CA3 (SEE SHEET 2)

-77RP: SMB7H-P-C-XX-RA-CA3 (SEE SHEET 2)

-D4SP: BNC7T-P-C-XX-ST-CA3D (SEE SHEET 3)

-78SP: DIN7A-PP-C-XX-ST-CA3 (SEE SHEET 3)

-79SP: MBNC7-P-C-XX-ST-CA3 (SEE SHEET 3, SEE NOTE 18)

-79RP: MBNC7-P-C-XX-RA-CA3 (SEE SHEET 3 SEE NOTE 18)

-73SP: MMCX7-P-C-XX-ST-CA3 (SEE SHEET 3)

-73RP: MMCX7-P-C-XX-RA-CA3 (SEE SHEET 4)

-73SJ: MMCX7-J-C-XX-ST-CA3 (SEE SHEET 4)

-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)

-XXXXXX: STRIPPED AND TINNED (THIS END ONLY-

SEE NOTES 11-15 &17, SHEET 2, FIG. 3)

(SEE FIG. 2) "C" FORMAT: X.X

(SEE FIG. 2) "B" FORMAT: X.X

(SEE FIG. 2) "A" FORMAT: X.X

DO NOT LEAVE ANY SPACE BLANK,

EACH MUST CONTAIN A

NUMERIC CHARACTER 0 THRU 9.

NOTES:

REPRESENTS A CRITICAL DIMENSION

2. CABLE CUT LENGTH:

= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2)

(SEE TABLE 1 FOR SUBTRACTORS)

3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS

4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1, THE TEST VOLTAGE FOR THE ASSEMBLY

SHOULD BE SET TO THE END OPTION WITH THE LOWEST TEST VOLTAGE RATING.

5. AFTER FINAL ELECTRICAL TEST, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL-ET

6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.

7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3040-M.

LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.

8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS

9. CABLE LENGTHS LONGER THAN 500 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA

10. MINIMUM BEND RADIUS FOR RG179 = 10.2 [.40].

11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED

ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.

12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm

13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A

14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B

15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C

16. CONNECTORS TO BE ORIENTED ACCORDING TO CO-RF-WI-3048-M.

17. FOR STRIPPED AND TINNED OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.

18. AVAILABLE TO EXISTING CUSTOMERS ONLY

RF179-72SPX-72RPX-XXXX SHOWN

CABLE STRIPPING DIMENSIONS

PER END 1 AND END 2 ASSEMBLY PRINTS

OR STRIPPED AND TINNED

(SEE NOTES 11-15, SHEET 2, FIG. 3)

F:\DWG\MISC\MKTG\RF179-XXXXX-XXXXXX-XXXX-MKT.SLDDRW

FIG 1

Pb THIS PRODUCT MANUFACTURED

WITH LEAD-FREE PROCESSING

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN

MILLIMETERS [INCHES].

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

TOLERANCES ARE:

DECIMALS

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

SEE END 1 AND END 2 ASSEMBLY PRINTS

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

RF179 CABLE ASSEMBLY

RF179-XXXXX-XXXXXX-XXXX

1-30-2007

BY:

B. RAY

SHEET
