UBJ95-105-1540: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, N CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size100KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

UBJ95-105-1540 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, N CONNECTOR, CRIMP, JACK

UBJ95-105-1540 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	CAPTIVE CENTER CONTACT
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	90
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP

Preview

Download Datasheet

View All

32

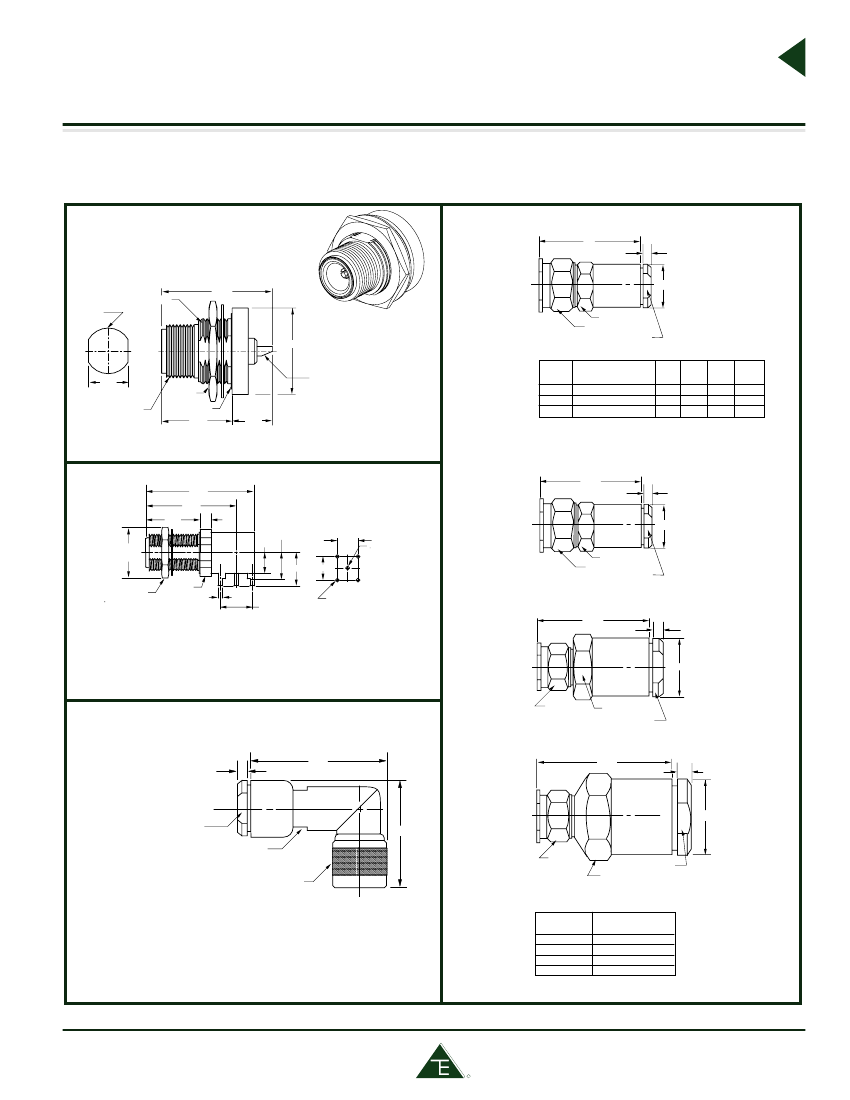

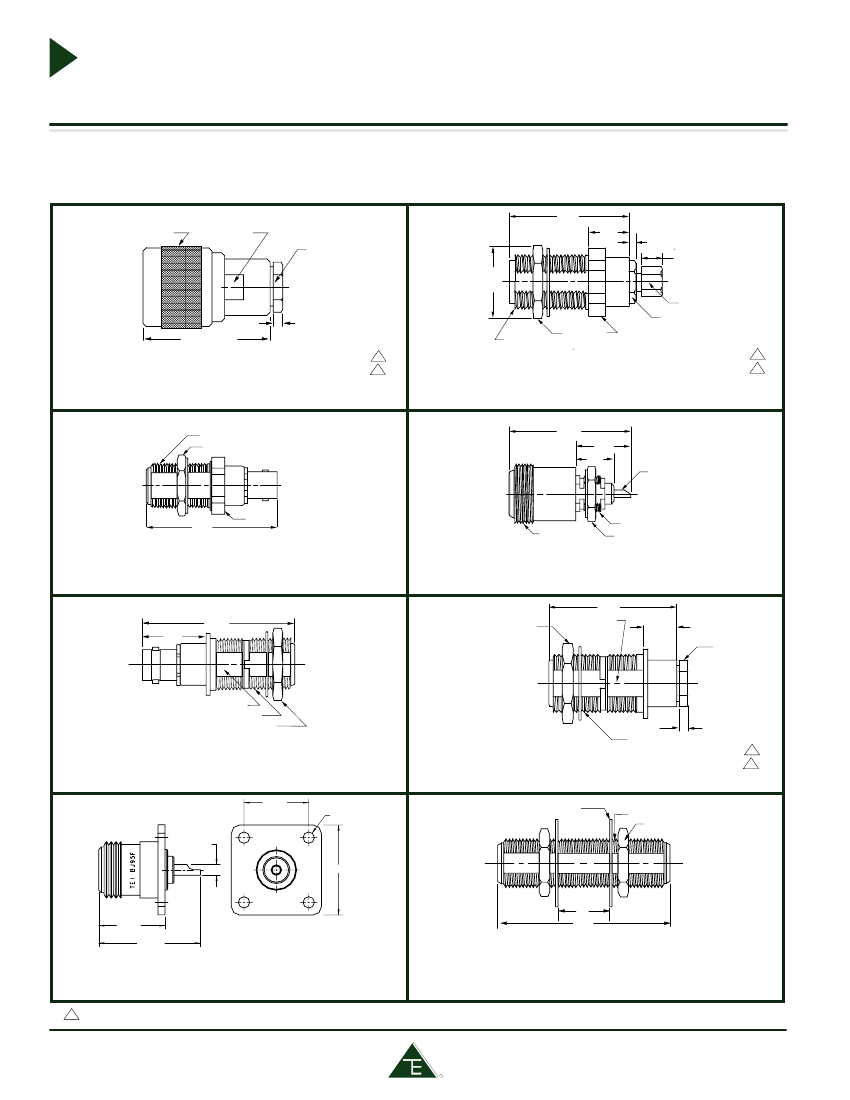

Coax "n" connectors, 90 series

Trompeter's 90 Series incorporates many of the features of our BNC lines including 3-piece wrench crimp configuration, gold

plated captive center contacts, beryllium copper female contacts, and PTFE dielectrics. The 90 Series will also accommodate

nonflammable plenum coax cables.

PL95-1 and -6 Shown

.828 DIA MAX

BJ95-141 Shown

1.392

.462

.094

,,,,,,,

Cable Plug

.500 OR .688

WRENCH FLATS

.438 OR .625 FLATS

.250

.800

DIA

.312 FLATS

.437 HEX NUT

.096 OR .130

.750 HEX NUT

.625-24 UNEF-2A

1.274 OR 1.336

50Ω

Wrench Crimp

75Ω

Large body versions are available, contact the factory.

Size depends on cable group.

PL95-

UPL95-

1

Bulkhead Cable Jack

Wrench Crimp

Mounting Holes:

DD4.310 (Standard body)

DD1.310 (Cable Groups -6A/6B/6E, -48, -50)

50Ω

75Ω

BJ95-

UBJ95-

1

.625-24UNEF-2A

3/4 HEX NUT

1.287

.587

.406

SOLDER POT ACCEPTS

.064 DIA WIRE

3/4 HEX

1.863

.375-32UNEF-2A

.625-24UNEF-2A

.500 HEX NUT

Adapter

N to BNC

Mounting Hole:

DD4.310

50Ω

75Ω

AD95

UAD95

Bulkhead Jack

Solder pot

Mounting Hole:

D5.310

1.387

BJ96-1 Shown

50Ω

75Ω

J95

UJ95

1.860

.833

.750 HEX NUT

.562 WRENCH

FLATS

.362

.437 HEX

.562 WRENCH FLATS

.625-24UNEF-2A

.750 HEX NUT

.096

Insulated Adapter

N to BNC

Mounting Hole:

DD4.203

(.718)

50Ω

75Ω

ADI95

UADI95

Insulated Bulkhead

Cable Jack

Wrench Crimp

Mounting Hole:

DD4.203

.875 MAX

.625-24UNEF-2A

50Ω

75Ω

BJ96-

UBJ96-

1

(Ø.126) TYP

BJ98-2 Shown

.625-24UNEF-2A

.750 HEX NUT TYP

(Ø.118)

(1.000)

.50

(.736)

(1.130)

1.75

Flange Mount

Bulkhead Jack

N, Solder Pot

1

Feed-thru jack

50Ω

75Ω

50Ω

75Ω

BJ98-2

UBJ98-2

BJ95F

UJ95F

(Not Shown)

Mounting Hole:

DD4.50

For panels up to 2.25" thick, For thicker panels call the factory

- Refers to Cable Group Table, see pages 68-88. "D" mounting holes are on page 45.
