HMC330_01

Description
GaAs MMIC SUB-HARMONICALLY PUMPED MIXER, 25 - 40 GHz
File Size206KB,6 Pages
ManufacturerHittite Microwave(ADI)
Websitehttp://www.hittite.com/
Download Datasheet Compare View All

HMC330_01 Overview

GaAs MMIC SUB-HARMONICALLY PUMPED MIXER, 25 - 40 GHz

v01.0301
HMC330
GaAs MMIC SUB-HARMONICALLY
PUMPED MIXER, 25 - 40 GHz
Typical Applications
The HMC330 is ideal for:
• LMDS
• Point-to-Point Radios
• SATCOM
Features
Sub-Harmonically Pumped (x2) LO
Input IP3: 17 dBm
2LO/RF Isolation: 48 dB
Small Size: 0.97 mm
2
Functional Diagram
General Description
The HMC330 MMIC is a broadband double
balanced sub-harmonically pumped passive
mixer that may be used as an upconverter or
downconverter. The mixer requires no external
matching or bias. This design was optimized to
provide better 1dB compression performance
as compared to the HMC266 under the same
LO drive levels. The HMC330 provides greater
than 38 dB LO to RF and 2LO to RF isolation

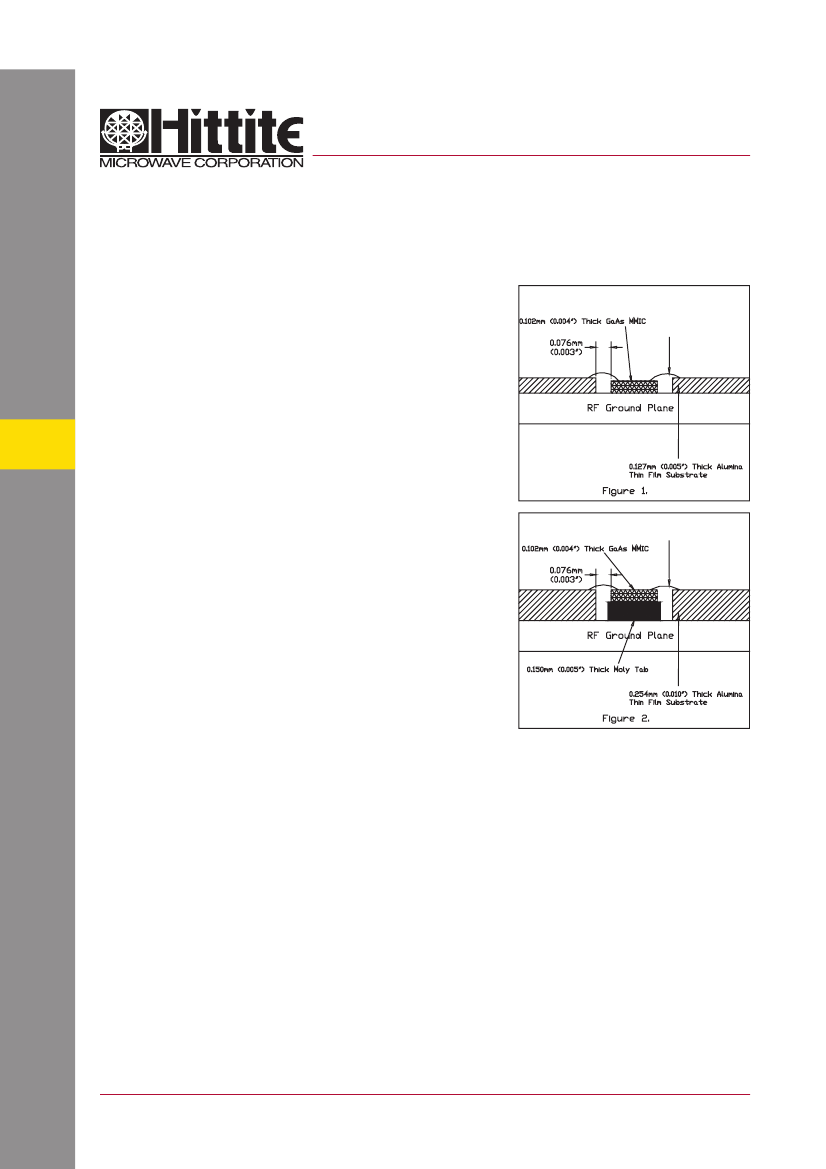

performance. Measurements were made with the
chip mounted and ribbon bonded into a 50-ohm
microstrip test fixture that contains 5-mil alumina
substrates between the chip and K-connectors.
Measured data includes the parasitic effects of
the assembly. RF connections to the chip were
made with 0.076 mm (3-mil) ribbon bond with
minimal length <0.31mm (<12 mil).
5
MIXERS - CHIP
Electrical Specifi cations,
T
A
= +25° C
LO = +14 dBm, IF = 2.5 GHz
Parameter
Min.
Frequency Range, RF
Frequency Range, LO
Frequency Range, IF
Conversion Loss
Noise Figure (SSB)
2LO to RF Isolation
LO to RF Isolation
2LO to IF Isolation
RF to IF Isolation
LO to IF Isolation
IP3 (Input)
1 dB Compression (Input)
40
30
50
27
38
+13
+4
Typ.
25 - 40
12.5 - 20
2-4
13
13
48
38
60
37
48
+17
+8
17
17
Max.
GHz
GHz
GHz
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
Units
* Unless otherwise noted, all measurements performed as downconverter, IF= 2.5 GHz.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
5 - 94
