HMC701LP6CE
v05.0110
8 GHz 16-BIT FRACTIONAL-N SYNTHESIZER
Features
• fractional or integer Modes
• 8 Ghz, 16-Bit rf n-counter
• 24-Bit step size resolution, 3 hz typ
• Ultra Low Phase noise 6 Ghz, 50 Mhz ref.
-103 / -110 dBc/hz @ 20 khz (frac / integer)
• reference Path input: 200 Mhz
• 14-Bit reference Path Divider
• Low fractional spurious
• reference spurs: -90 dBc typ
• auto and triggered sweeper functions
• cycle slip Prevention (csP) for fast settling
• autotune support for external step tuned Vcos
• Multi-Vco support
• auxiliary clock source
• 40 Lead 6x6mm sMt Package: 36mm²
11
PLL - fractionaL-n synthesizer - sMt
Typical Applications
• Base stations for Mobile radio
(GsM, Pcs, Dcs, cDMa, WcDMa)
• Wireless Lans, WiMax
• communications test equipment
• catV equipment
• fMcW sensors
• automotive radar
• Phased-array systems

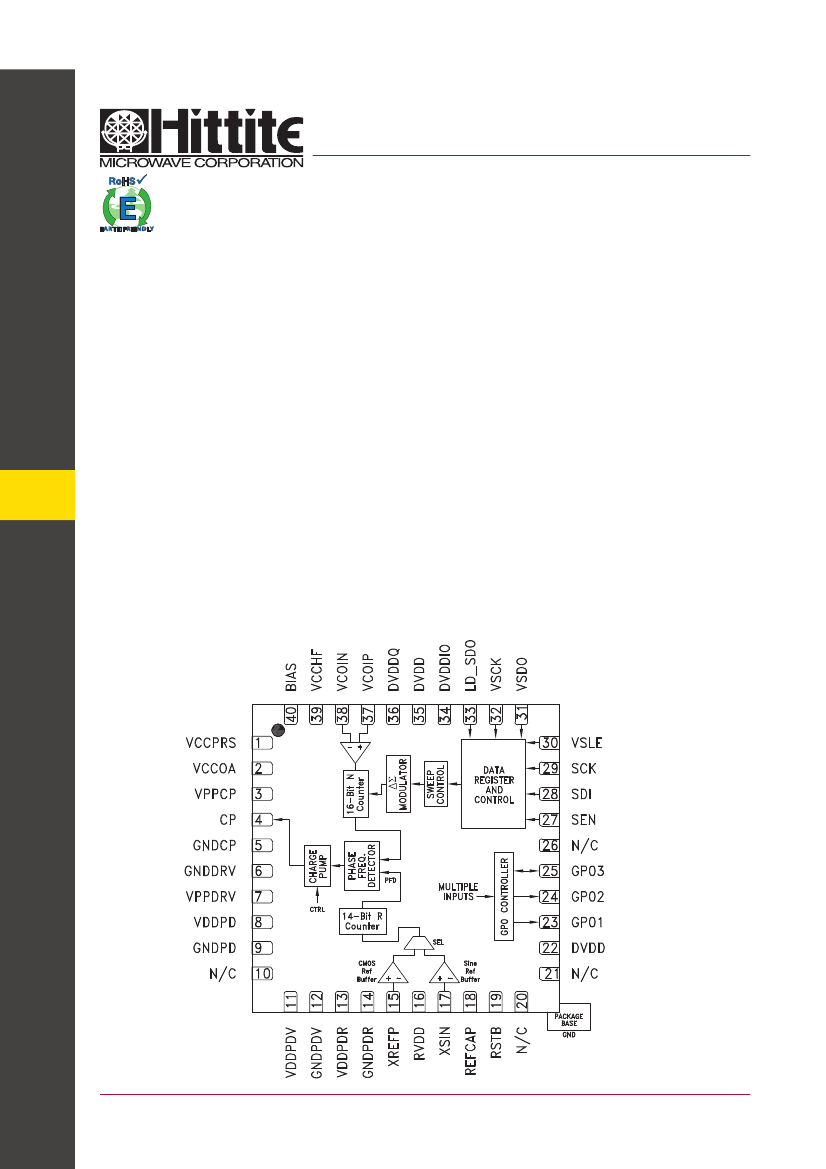

Functional Diagram
(Figure 1.)
11 - 2
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC701LP6CE
v05.0110
8 GHz 16-BIT FRACTIONAL-N SYNTHESIZER
General Description
the hMc701LP6ce is a siGe BicMos fractional-n frequency synthesizer. the synthesizer includes a 8Ghz 16-bit
rf n-Divider, a 24-bit delta-sigma modulator, a very low noise digital phase frequency detector (PfD), and a precision
controlled charge pump. in addition the synthesizer supports an external step tuned Vco.
the fractional synthesizer features an advanced delta-sigma modulator design that allows ultra-fine frequency step
sizes. the synthesizer features the ability to alter both the phase-frequency detector (PfD) gain and the cycle slipping
characteristics of the PfD. this feature can reduce the time to arrive at the new frequency by 50% vs. conventional
PfDs. Ultra low in-close phase noise also allows wider loop bandwidths for faster frequency hopping.
the synthesizer contains a built-in linear sweeper function, which allows it to perform frequency chirps with a wide
variety of sweep times, polarities and dwells, all with an external or automatic sweep trigger.
a General Purpose output (GPo) bus supports the use of multiple Vcos. in addition the synthesizer has a number of
auxiliary clock generation modes that can be accessed via the GPo.
11
Vcchf = VccPrs = rVDD = +3.3V
VPPcP = Vccoa = VDDPDr = VPPDrV = VDDPD = VDDPDV = +5V
DVDD = DVDDio = DVDDQ = +3.3V
GnDDrV = GnDcP = GnDPD = GnDPDV = GnDPDr = 0V
Electrical Specifications,
T
A
= +25°C
Table 1. Electrical Specifications
Parameter
Prescaler Characteristics
Max rf input frequency (3.3V)
Max rf input frequency (2.7 - 3.3V)
Min rf input frequency
rf input Power
16-bit n-Divider range (integer)
16-bit n-Divider range (fractional)
REF Input Characteristics
Max ref input frequency (pin XrefP)
Max ref input frequency (pin Xsin)
Max ref frequency with autocal
Min ref input frequency
ref input Voltage range (pin XrefP)
ref input Power range (pin Xsin)
ref input capacitance
14-Bit r-Divider range
1
ac coupled
50 Ω source
750
-6
180
200
200
220
60
100
1000
0
3300
12
5
16,383
Mhz
Mhz
Mhz
khz
mVpp
dBm
pf
fraction nominal Divide ratio varies
(-3 / +4) dynamically max
-10
32
35
-6
8
7
9
8
0.1
10
65,535
65,531
Ghz
Ghz
Mhz
dBm
conditions / notes
Min
typ
Max
Units
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
11 - 3
PLL - fractionaL-n synthesizer - sMt
HMC701LP6CE
v05.0110
8 GHz 16-BIT FRACTIONAL-N SYNTHESIZER
Table 1. Electrical Specifications
Parameter
Phase Detector
fractional Mode
Max Phase Detector frequency
Min Phase Detector frequency
integer Mode
Max Phase Detector frequency
Min Phase Detector frequency
Charge Pump
Max output current
(Continued)
conditions / notes
Min
typ
Max
Units
70
75
100
Mhz
khz
110
150
100
Mhz
khz
4
125
125
14
29
6 Ghz, 50 Mhz ref, input referred
-141
-149
-155
Less than 3 dB degradation typ. at
these limits
ma
µa
µa
µa
µa
11
PLL - fractionaL-n synthesizer - sMt
Min output current
charge Pump Gain step size (5-bits)
charge Pump trim step size (3-bits)
charge Pump offset step size (4-bits)
PfD / charge Pump noise (integer)
1 khz
10 khz
100 khz
dBc/hz
dBc/hz
dBc/hz
compliance Voltage
-406 µa offset
-406 µa offset
0.4
0.8
VPPcP-0.8
VPPcP-0.4
V
V
Logic Inputs
Vih input high Voltage
ViL input Low Voltage
Logic Outputs
Vih output high Voltage
ViL output Low Voltage
Power Supply Voltages
Vcc - analog 3V supplies
DVDD - Digital internal supply
DVDDio - Digital i/o supply
analog 5V supplies
VccPrs, rVDD, Vcchf
DVDD, DVDDQ
DVDDio
Vccoa, VPPcP, VPPDrV,
VDDPD, VDDPDV, VDDPDr
3
3
1.8
4.5
3.3
3.3
3.3
5.0
3.45
3.45
5.5
5.5
V
V
V
V
VDDio-0.1
V
0.1
V
VDDio-0.4
V
0.4
V
Power Supply Current
(6 Ghz fractional Mode, 50 Mhz PfD)
analog +5V
analog +3.3V
Digital +3.3V
Power Down - crystal off
Power Down - crystal on, 100 Mhz
Vccoa, VPPcP, VPPDrV,
VDDPD, VDDPDV, VDDPDr
VccPrs, rVDD, Vcchf
DVDD, DVDDio, DVDDQ
reg 01h = 0
crystal not clocked
reg 01h = 0
crystal clocked 100 Mhz
37
71
19
6
20
200
ma
ma
ma
µa
µa
11 - 4
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC701LP6CE
v05.0110
8 GHz 16-BIT FRACTIONAL-N SYNTHESIZER
Table 1. Electrical Specifications
Parameter
Temperature Sensor (3-bit)
Min temperature
Max temperature
temp change / LsB
Worst case absolute temp error
current consumption (when enabled)
Power on Reset
typical reset Voltage on DVDD
Min DVDD Voltage for no reset
Closed Loop Phase Noise
6 Ghz Vco, integer, 50 Mhz PfD
6 Ghz Vco, integer, 50 Mhz PfD
6 Ghz Vco, integer, 50 Mhz PfD
6 Ghz Vco, fractional, 50 Mhz PfD
6 Ghz Vco, fractional, 50 Mhz PfD
6 Ghz Vco, fractional, 50 Mhz PfD
Closed Loop Phase Noise
integer Mode
fractional Mode
(Continued)
conditions / notes
Min
typ
Max
Units
readout: 000
readout: 111
-32
+82
17.5
±10
2
°c
°c
°c/LsB
°c
ma
700
1.5
mV
V
1 khz offset
10 khz offset
100 khz offset
1 khz offset
10 khz offset
100 khz offset
normalized to 1 hz
Measured with 50 Mhz PfD
Measured with 50 Mhz PfD
-98
-108
-110
-93
-103
-105
dBc/hz
dBc/hz
dBc/hz
dBc/hz
dBc/hz
dBc/hz
11
-227
-221
dBc/hz
dBc/hz
Table 2. Absolute Maximum Ratings
Parameter
rVDD, Vcchf, DVDD,
DVDDQ, VccPrs
Vccoa, VPPcP, VPPDrV, VDDPD,
VDDPDV, VDDPDr, DVDDio
operating temperature
storage temperature
Maximum Junction temperature
reflow soldering
Peak temperature
time at Peak temperature
esD sensitivity (hBM)
260 °c
40 sec
class 1B
Rating
-0.3 to +3.6V
-0.3 to +6V
-40 to +85 °c
-65 to +120 °c
+150 °c
stresses above those listed under absolute Maximum
ratings may cause permanent damage to the device. this
is a stress rating only; functional operation of the device
at these or any other conditions above those indicated in
the operational section of this specification is not implied.
exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
11 - 5
PLL - fractionaL-n synthesizer - sMt
HMC701LP6CE
v05.0110
8 GHz 16-BIT FRACTIONAL-N SYNTHESIZER
Table 3. Pin Description
Pin no.
1
2
3
4
5
6
7
8
9
Pin name
VccPrs
Vccoa
VPPcP
cP
GnDcP
GnDDrV
VPPDrV
VDDPD
GnDPD
n/c
VDDPDV
GnDPDV
VDDPDr
GnDPDr
XrefP
rVDD
Xsin
refcaP
rstB
DVDD
GPo1
GPo2
GPo3
sen
sDi
scK
VsLe
VsDo
VscK
LD_sDo
DVDDio
DVDD
DVDDQ
VcoiP
Vcoin
Vcchf
Bias
Pin type
supply
supply
supply
analog o/P
GnD
GnD
supply
supply
GnD
n/c
supply
GnD
supply
GnD
analog i/P
supply
analog i/P
analog i/o
cMos i/P
supply
Do
Do
Dio
cMos i/P
cMos i/P
cMos i/P
cMos o/P
cMos o/P
cMos o/P
cMos o/P
supply
supply
supply
rf i/P
rf i/P
supply
analog i/P
Description
rf Prescaler Power supply. nominally +3.3V
chargePump opamp Power supply. nominally +5V
Power supply for charge Pump. nominally +5V
charge Pump output
Power supply GnD for charge Pump
charge Pump GnD
Power supply for charge Pump, nominally +5V
Power supply for Phase Detectors, nominally +5V
Power supply GnD for Phase Detector
no connection
Power supply for Phase Detector Vco Path, nominally +5V
Power supply GnD for Phase Detector Vco Path
Power supply for Phase Detector ref Path, nominally +5V
Power supply GnD for Phase Detector ref Path
square Wave crystal ref input
Power supply for ref Path, nominally +3.3V
sinusoidal crystal reference input
reference Path bypass
reset input (active low)
Digital Power supply, nominally +3.3V
General Purpose output 1 with tristate
General Purpose output 2 with tristate
General Purpose input/output with tristate
may be configured for external ramp trigger input. see register reG 14h[5]
Main serial port enable input
Main serial port data input
Main serial port clock input
Vco serial port enable output
Vco serial port data output
Vco serial port clock output
Lock Detect or Main serial Port Data output
Power supply for digital i/o, matches external Digital supply in 1.8V to 5.5V range
internal Digital Power supply. nominally 3.3V
Power supply isolation pin. nominally 3.3V, bypassed to GnD, zero current.
complementary input to the rf Prescaler. if single ended input, this point must be
decoupled to the ground plane with a ceramic bypass capacitor, typically 100 pf
input to the rf Prescaler. this signal input is ac-coupled to the external Vco
rf section Power supply. nominally 3.3V
Decoupling Pin for rf section, nominally external 1nf bypassed to Vcchf
