HMC783LP6CE
v02.0110
FRACTIONAL-N SYNTHESIZER WITH
INTEGRATED VCO, 11.5 - 12.5 GHz
Features
• RF Bandwidth: 11.5 GHz to 12.5 GHz
• Fractional or Integer Modes
• Ultra Low Phase Noise
12 GHz; 50 MHz Ref.
-95 / -99 dBc/Hz @ 10 kHz (Frac / Int)
-134 dBc/Hz @ 1 MHz (Open Loop)
• Figure of Merit (FOM)
-221 / -226 dBc/Hz (Frac / Int)
• 24-bit Step Size, Resolution 3 Hz typ
• 225 MHz, 14-bit reference path input
• Direct FSK Modulation Mode
• Cycle Slip Prevention
• Read / Write Serial Port, Chip ID
• 40 Lead 6x6mm SMT Package: 36mm2
Typical Applications
6
PLLS w/ INTEGRATED VCO - SMT
• VSAT Radio
• Point-to-Point / Multi-Point Radio
• Test Equipment & Industrial Control
• Military End-Use
• Phased Array Applications

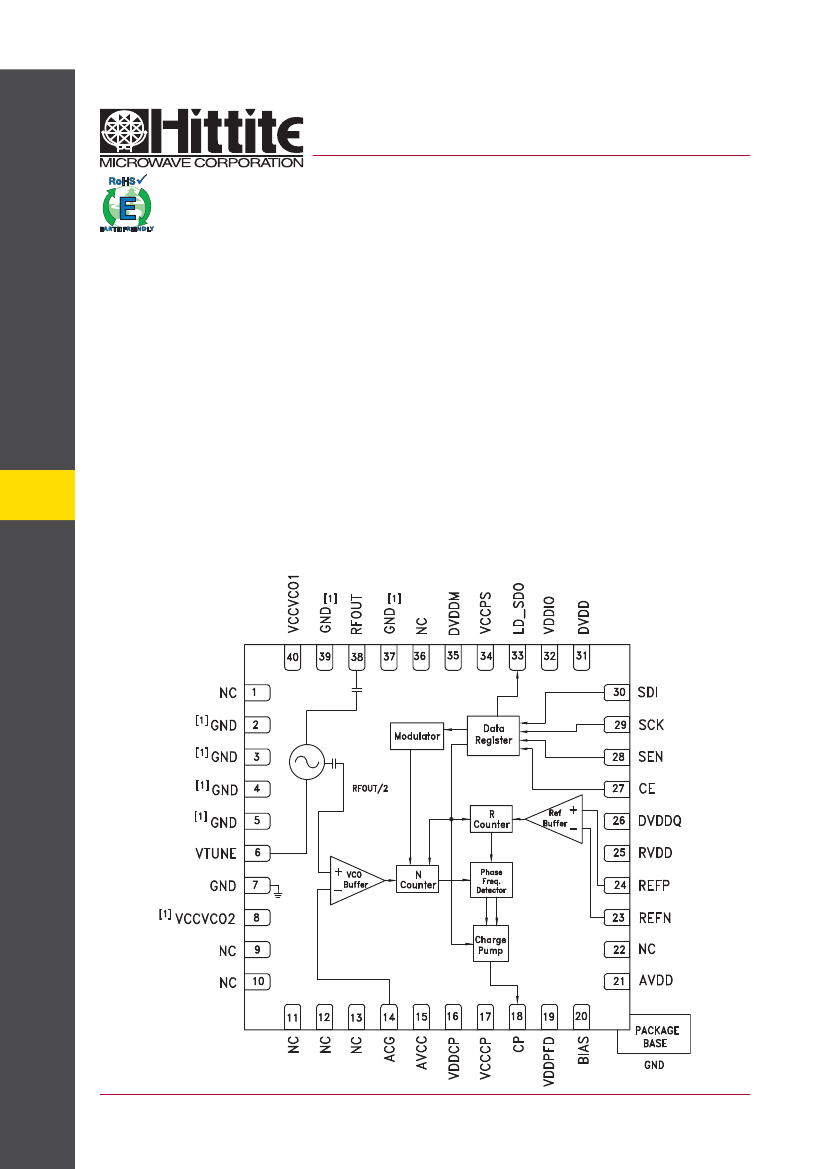

Functional Diagram
[1] Please refer to the pin description table for details
6 - 30
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC783LP6CE
v02.0110
FRACTIONAL-N SYNTHESIZER WITH
INTEGRATED VCO, 11.5 - 12.5 GHz
General Description
The HMC783LP6CE is a fully functioned Fractional-N Phase-Locked-Loop (PLL) Frequency Synthesizer with an
Integrated Voltage Controlled Oscillator (VCO). The input reference frequency range is 100 kHz to 220 MHz while the
advanced delta-sigma modulator design in the fractional synthesizer allows both ultra-fine step sizes and very low
spurious products. The highly integrated structure provides excellent phase noise performance over temperature,
shock and process. The HMC783LP6CE is packaged in a leadless QFN 6x6 mm surface mount package. The output
power is 11 dBm typical, making the HMC783LP6CE ideal for driving the LO port of many of Hittite’s Hi Linearity and
I/Q mixer products.
For theory of operation and register map refer to the “PLLs w/ Integrated VCO - Microwave VCOs” Operating Guide.
To view the Operating Guide, please visit www.hittite.com and choose HMC783LP6CE from the “Search by Part
Number” pull down menu.
Electrical Specifi cations,
T
A
= +25° C; VCCVCO, VDDCP, VCCCP = +5V; AVCC, VCCPS
VDDPFD, AVDD, RVDD, DVDD, DVDDM, DVDDQ, VDDIO = +3.3V; AGND = DGND = 0V
Parameter
Condition
Min.
Typ.
Max.
Units
6
V
RF Output Characteristics
VCO Output Frequency Range
VCO Output Power
VCO Tuning Voltage
VCO Tuning Sensitivity
Frequency Pulling (into a 2:1 VSWR)
Frequency Pushing
Frequency Drift Rate
Sub Harmonic (1/2)
Harmonic (2
nd
)
Harmonic (3
rd
)
VCO SSB Phase Noise @ 100 kHz Offset (Open Loop)
Synthesizer In-Band
SSB Phase Noise @ 10 kHz Offset (Frac/Int)
Synthesizer Normalized In-Band
SSB Phase Noise Floor (Frac/Int)
Synthesizer Fractional Spurs
[1]
Synthesizer Frequency Settling Time (100 MHz Step)
16-Bit Divider Range (Int)
16-Bit Divider Range (Frac)
From 12.1 GHz to 12 GHz
Loop BW = 100 kHz
N Divider Ratio 2
16
+31
N Divider Ratio 2
16
-1
32
36
V
TUNE
= +5V
Fvco = 12 GHz
Fref = 50 MHz Fvco = 12 GHz
Loop BW = 100 kHz
V
TUNE
= +5V
V
TUNE
= +5V
11.5
5
2
160
8
6
1.2
30
24
40
-110
-95 / -99
-221 / -226
-65
104
65567
65535
12
12.5
15
13
GHz
dBm
MHz/V
MHz pp
MHz/V
MHz/ °C
dBc
dBc
dBc
dBc/Hz
dBc/Hz
dBc/Hz
dBc
us
REF Input Characteristics
Max Ref Input Frequency (3.3V)
Min Ref Input Frequency
Ref Input Sensitivity
Max Ref Input
Ref Input Capacitance
14-Bit Ref Divider Range
16383
AC Coupled
DC Coupled
0
200
225
100
500
200
700
VDDIO
5
1
MHz
kHz
mV
pp
V
pF
[1] Actual spur level is dependent on loop parameters and will increase at division ratios closest to integer boundaries. Number listed is average
value.
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
6 - 31
PLLS w/ INTEGRATED VCO - SMT
HMC783LP6CE
v02.0110
FRACTIONAL-N SYNTHESIZER WITH
INTEGRATED VCO, 11.5 - 12.5 GHz
Electrical Specifi cations
(Continued)
Parameter
Condition
Min.
Typ.
Max.
Units
Phase Detector
Max Phase Detector Frequency (Frac)
Max Phase Detector Frequency (Int)
Min Phase Detector Frequency
70
140
105
160
100
MHz
MHz
kHz
Charge Pump
Max Output Current
Min Output Current
Charge Pump Noise
Input referred 50 MHz Ref.
2
500
-145
mA
μA
dBc/Hz
Logic Inputs
6
PLLS w/ INTEGRATED VCO - SMT
VIH Input High Voltage
VIL Input Low Voltage
VDDIO-0.4
0
VDDIO
0.4
V
V
Logic Outputs
VOH Output High Voltage
VOL Output Low Voltage
Serial Port Max Clock
VDDIO-0.4
0
50
VDDIO
0.4
V
V
MHz
Power Supply Voltages
Analog 3.3V Supplies: AVCC, VDDPFD, AVDD, RVDD,
VCCPS
Digital Internal Supplies: DVDD, DVDDQ, DVDDM
Digital I/O Supplies: VDDIO
Analog 5V Supplies: VCCVCO, VDDCP, VCCCP
Logic I/O
VCCCP must equal VDDCP
AVDD must equal DVDD
3
3
1.8
4.75
3.3
3.3
3.3
5
3.45
3.45
5.5
5.25
V
V
V
V
Power Supply Currents
Total Current Consumption (5V)
Total Current Consumption (3.3V)
Power Down Current
[1]
CSP Disabled
CSP Enabled
Measured with 10 GΩ meter
1.880
145
90
1
450
1.920
1.960
190
110
10
mA
mA
μA
μA
V
Bias Reference Voltage
[1] Refers only to the Synthesizer portion of the HMC783LP6CE
6 - 32
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC783LP6CE
v02.0110
FRACTIONAL-N SYNTHESIZER WITH
INTEGRATED VCO, 11.5 - 12.5 GHz

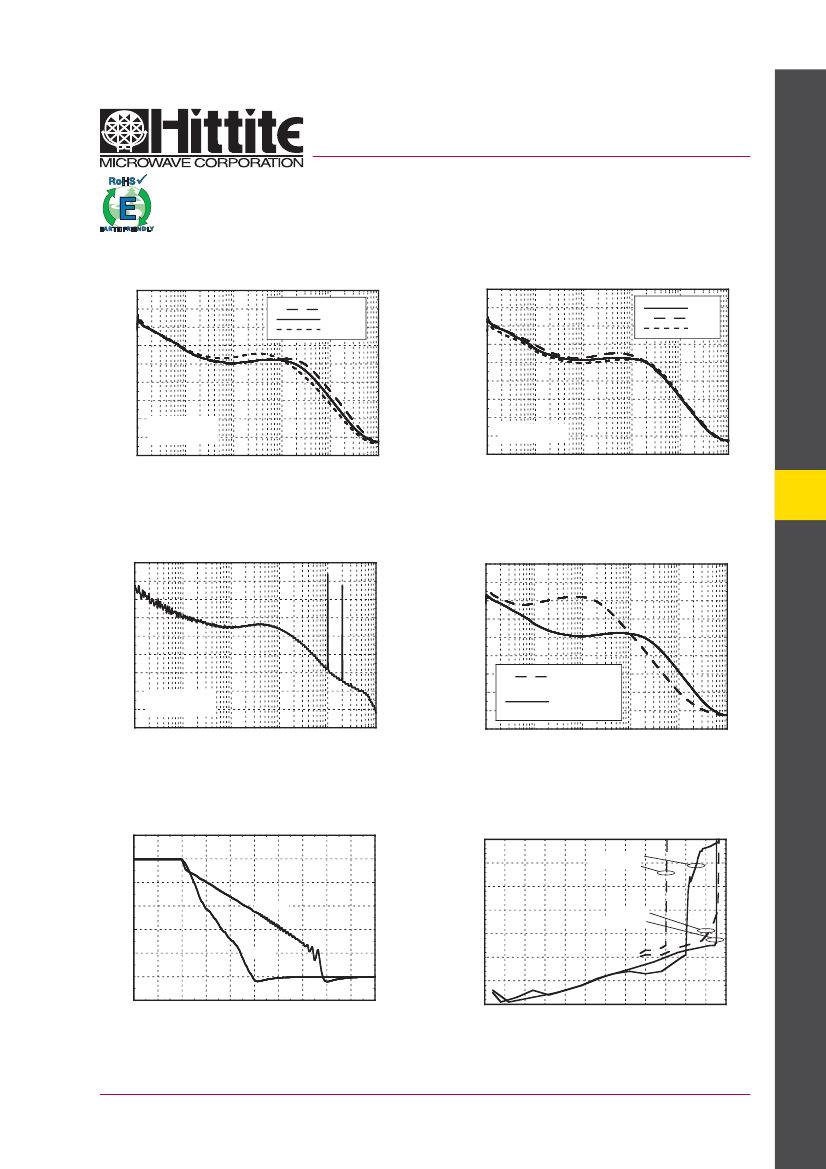

SSB Phase Noise vs. Frequency,
Integer Mode
-60
-70
11.5 GHz
12.0 GHz
12.5 GHz
SSB Phase Noise vs. Temperature
@ 12 GHz, Integer Mode
-60
-70
+25 C
+85 C
-40 C
PHASE NOISE (dBc/Hz)
-80
-90
-100
-110
-120
-130
-140
-150
10
2
PHASE NOISE (dBc/Hz)
-80
-90
-100
-110
-120
-130
-140
-150
2
10
Fref = 50 MHz
Loop BW = 100 kHz
3
4
5
6
Temp = 25C
Fref = 50 MHz
Loop BW = 100 kHz
3
4
5
6
7
10
10
10
10
10
10
10
10
10
10
7
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
6
PLLS w/ INTEGRATED VCO - SMT
SSB Phase Noise Fractional
Spurs @ 12.002 GHz
-60
-70
SSB Phase Noise vs. Reference Freq. &
Loop BW @ 12 GHz, Integer Mode
-60
-70
PHASE NOISE (dBc/Hz)
PHASE NOISE (dBc/Hz)
-80
-90
-100
-110
-120
-130
-140
-150
2
10
Temp = 25C
Fref = 50 MHz
Loop BW = 100 kHz
10
3
-80
-90
-100
-110
-120
-130
-140
Fref = 10MHz
Loop BW= 10kHz
Fref = 50MHz
Loop BW=100kHz
10
4
10
5
10
6
10
7
-150
2
10
10
3
10
4
10
5
10
6
10
7
OFFSET FREQUENCY (Hz)
OFFSET FREQUENCY (Hz)
Example of Cycle Slip Prevention Hop
from 12.2 to 11.7 GHz
12.3
12.2
Typical Reference Sensitivity
vs. Frequency, 3.3V
[1]
20
10
R = Max, +25C
R = Max, +85C
FREQUENCY (GHz)
12.1
12
11.9
11.8
11.7
11.6
-20
-10
0
10
20
30
40
50
60
70
80
CSP ON
CSP OFF
SENSITIVITY (dBm)
0
-10
-20
-30
-40
-50
R = 3, +25C
R = 3, +85C
0
50
100
150
200
250
300
TIME (μSEC)
FREQUENCY (MHz)
[1] R refers to the reference path division ratio
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
6 - 33
HMC783LP6CE
v02.0110
FRACTIONAL-N SYNTHESIZER WITH
INTEGRATED VCO, 11.5 - 12.5 GHz

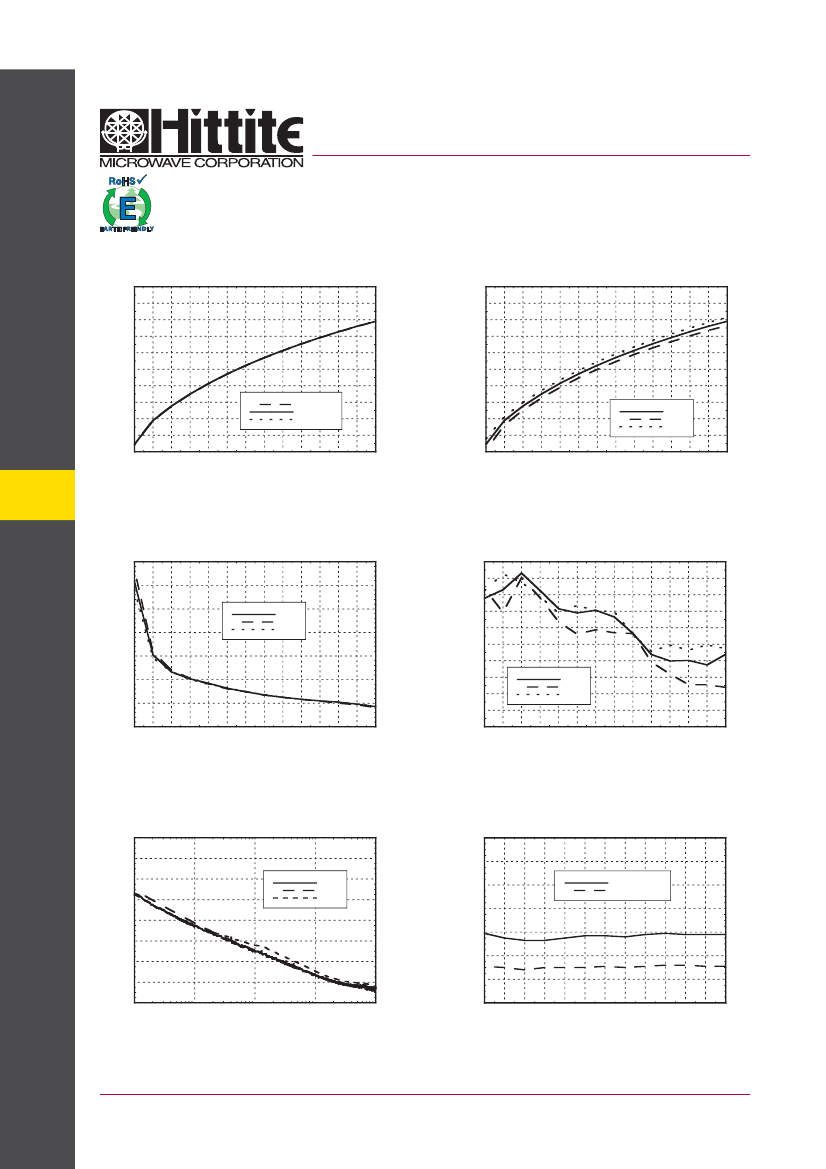

Frequency vs. Tuning Voltage, T= 25°C
13.4
Frequency vs. Tuning Voltage, Vcc= +5V
13.4
OUTPUT FREQUENCY (GHz)
OUTPUT FREQUENCY (GHz)
13.1
12.8
12.5
12.2
11.9
11.6
11.3
11
10.7
10.4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
Vcc=4.75V
Vcc=5.00V
Vcc=5.25V
13.1
12.8
12.5
12.2
11.9
11.6
11.3
11
10.7
10.4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
+25C
+85C
-40C
6
PLLS w/ INTEGRATED VCO - SMT
700
600
500
400
300
200
100
0
0
1
2
3
TUNING VOLTAGE (V)
TUNING VOLTAGE (V)
Sensitivity vs. Tuning Voltage, Vcc= +5V
Output Power
vs. Tuning Voltage, Vcc= +5V
14
13
OUTPUT POWER (dBm)
SENSITIVITY (MHz/V)
12
11
10
9
8
7
6
5
4
+25C
+85C
-40C
+25C
+85C
-40C
4
5
6
7
8
9
10
11
12
13
0
1
2
3
4
5
6
7
8
9
10
11
12
13
TUNING VOLTAGE (V)
TUNING VOLTAGE (V)
Open Loop VCO SSB Phase Noise @
Vtune = +5V
0
Open Loop VCO SSB Phase Noise vs.
Tuning Voltage
0
SSB PHASE NOISE (dBc/Hz)
-40
-60
-80
-100
-120
-140
-160
10
3
+25C
+85C
-40C
SSB PHASE NOISE (dBc/Hz)
-20
-20
-40
-60
-80
-100
-120
-140
10KHz Offset
100KHz Offset
10
4
10
5
10
6
10
7
1
2
3
4
5
6
7
8
9
10
11
12
13
OFFSET FREQUENCY (GHz)
TUNING VOLTAGE (V)
6 - 34
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
