G3VM-61A1_1

Description
TRANSISTOR OUTPUT SOLID STATE RELAY, 2500 V ISOLATION-MAX
CategoryLED optoelectronic/LED
File Size388KB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Parametric View All

G3VM-61A1_1 Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 2500 V ISOLATION-MAX

G3VM-61A1_1 Parametric

Parameter NameAttribute value
Maximum operating temperature65 Cel
Minimum operating temperature-20 Cel
Number of functions1
Processing package descriptionROHS COMPLIANT PACKAGE-4
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
terminal coatingNOT SPECIFIED
structureSingle WITH BUILT-IN diode
Optoelectronic device typetransistor output
Maximum input control current25 mA
Maximum insulation voltage2500 V
On-state resistance2 ohm
Maximum output current500 A

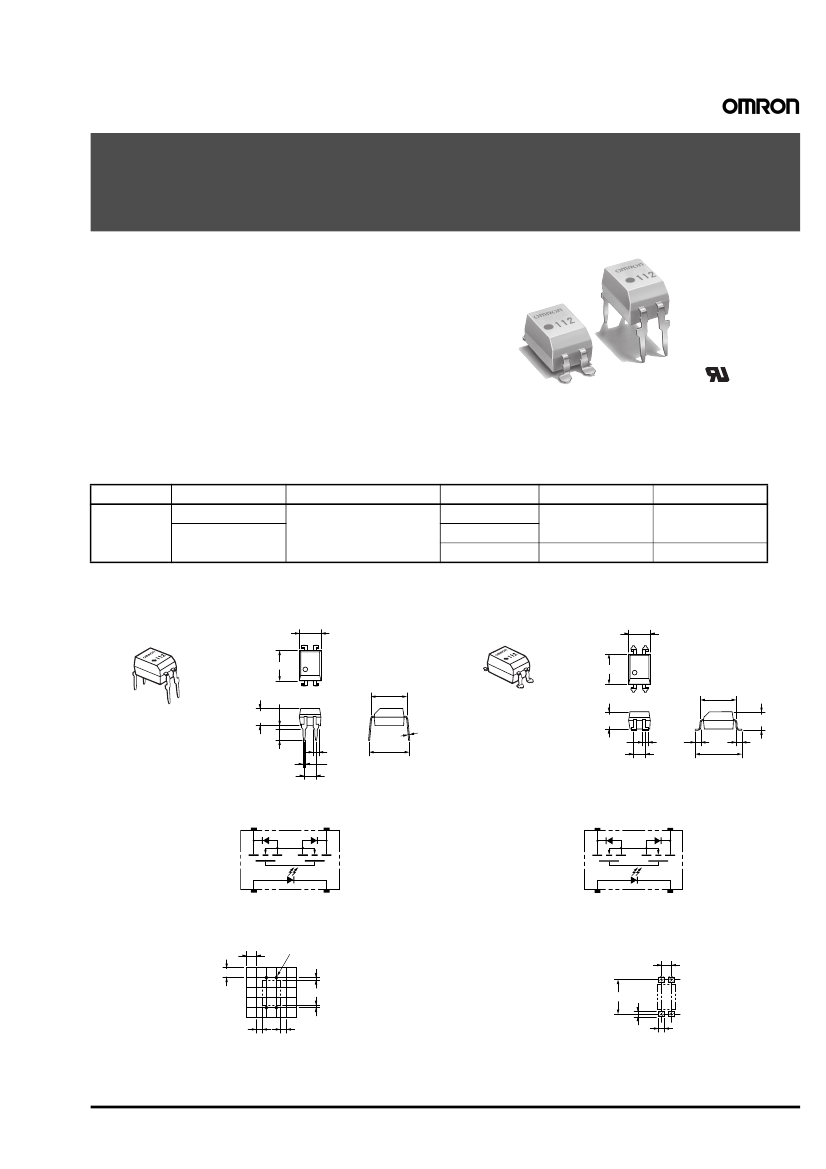

MOS FET Relays
G3VM-61A1/D1
Compact, General-purpose, Analog-switching
MOS FET Relay, with Dielectric Strength of
2.5 kVAC between I/O Using Optical Isolation
• Upgraded G3VM-61 A/D Series.
• Switches minute analog signals.
• RoHS Compliant.
Application Examples
Measurement devices
Security systems
Amusement machines
Note:
The actual product is marked differently from the image shown
here.
List of Models
Contact form
SPST-NO
Terminals
PCB terminals
Surface-mounting
terminals
Load voltage (peak value)
60 VAC
Model
G3VM-61A1
G3VM-61D1
G3VM-61D1(TR)
---
1,500
Number per stick
100
Number per tape
---
Dimensions
Note:
All units are in millimeters unless otherwise indicated.
G3VM-61A1
4.58±
0.25
G3VM-61D1
4.58±
0.25
6.4±
0.25
7.62±
0.25
0.8±
0.25
3.65
−0.25
+0.15
+0.1
−0.05
6.4±
0.25
7.62±
0.25
+0.15
3.65
−0.25
0.25
1.0
min.
10.0 max.
4.0
+0.25
−0.2
Note:
The actual product
is marked different-
ly from the image
shown here.
2.5 min.
1.2±
0.15
0.5±
0.1
2.54±
0.25
7.85 to 8.80
Weight: 0.25 g
Note:
The actual product
is marked different-
ly from the image
shown here.
1.2±
0.15
2.54±
0.25
1.0 min.
Weight: 0.25 g
Terminal Arrangement/Internal Connections (Top View)
G3VM-61A1
4
3
G3VM-61D1
4
3
1
2
1
2
PCB Dimensions (Bottom View)
G3VM-61A1
2.54
2.54
Four 0.8-dia. holes
(0.61)
Actual Mounting Pad Dimensions
(Recommended Value, Top View)
G3VM-61D1
8.3 to 8.8
2.54
(1.52)
(0.61)
(1.52)
1.3
1.5
MOS FET Relays
G3VM-61A1/D1
