S-80230AG-GA-T1 datasheet, PDF

S-80230AG-GA-T1: DescriptionFixed Negative LDO Regulator, 3V, CMOS, PSSO3, PLASTIC, SOT-89, 3 PIN; CategoryPower/power management The power supply circuit; File Size480KB，10 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

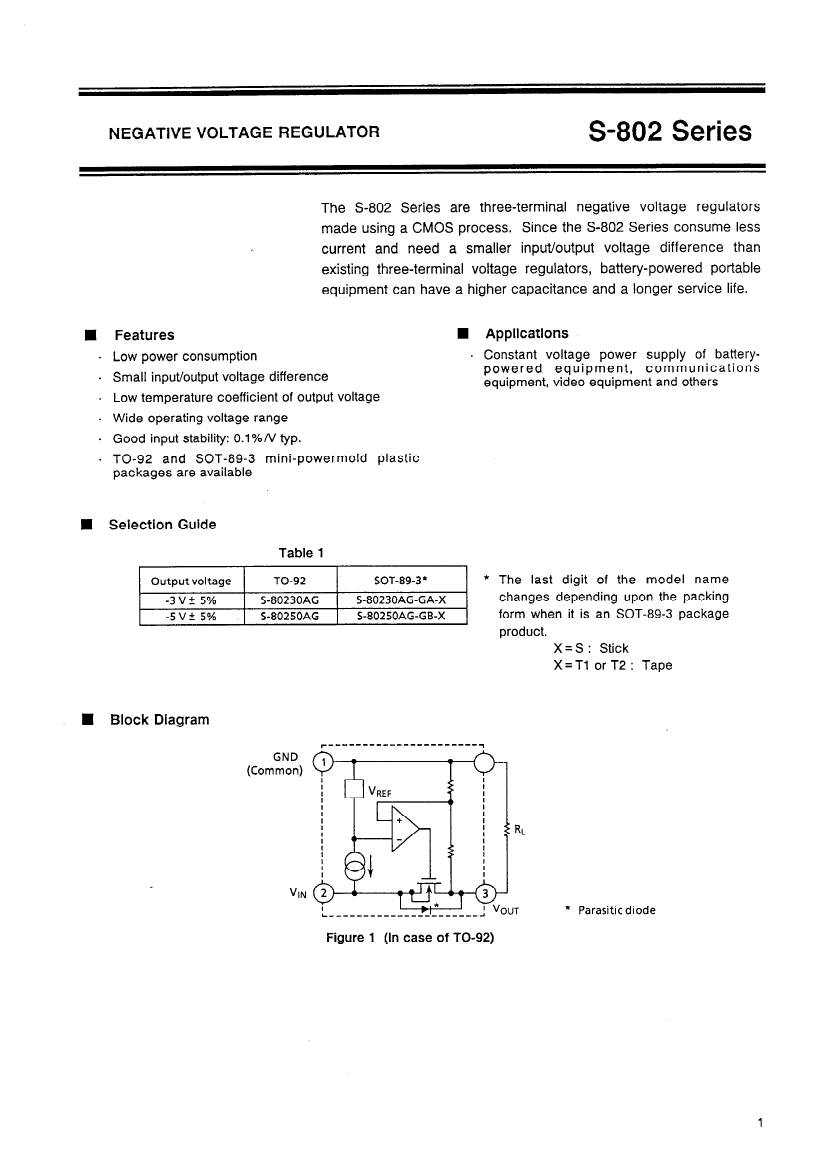

S-80230AG-GA-T1 Overview

Fixed Negative LDO Regulator, 3V, CMOS, PSSO3, PLASTIC, SOT-89, 3 PIN

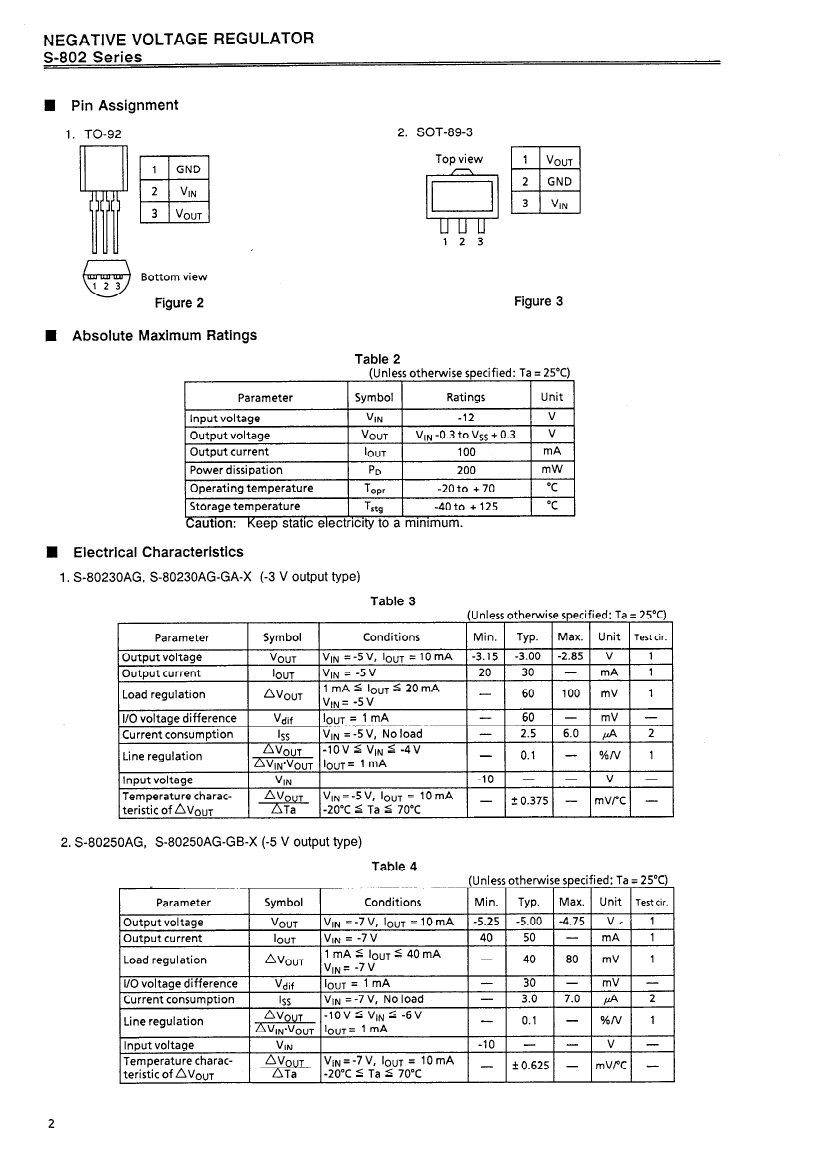

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOT-89
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	10 V
Minimum input voltage	4 V
JESD-30 code	R-PSSO-F3

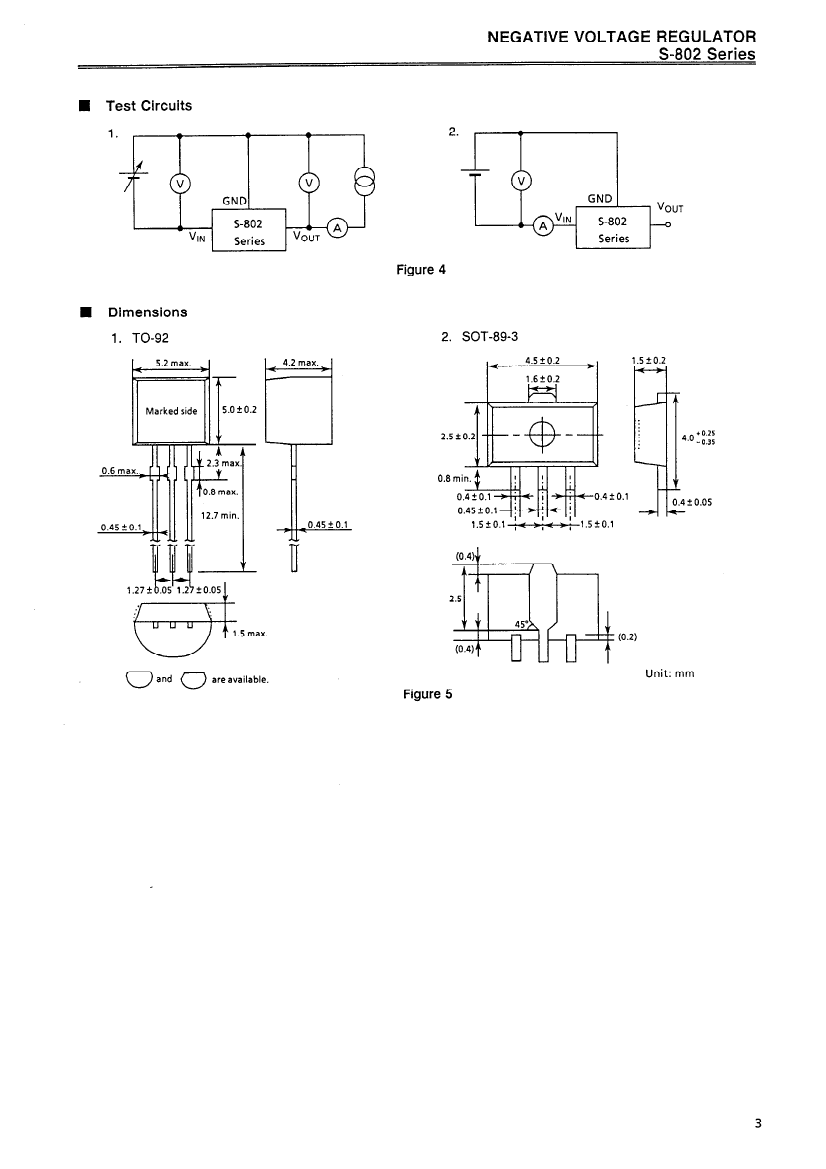

length	4.5 mm
Number of functions	1
Number of terminals	3
Maximum output voltage 1	3.15 V
Minimum output voltage 1	2.85 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.7 mm
surface mount	YES
technology	CMOS
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
width	2.5 mm

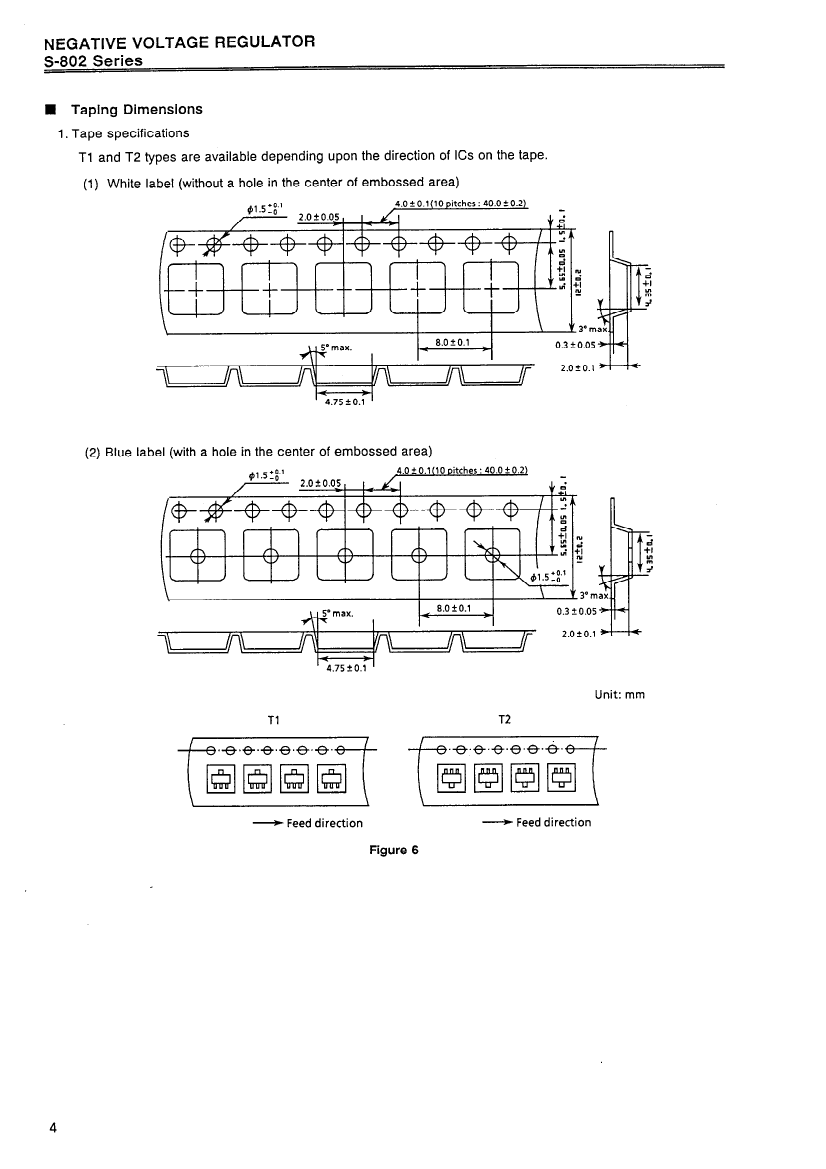

	S-80230AG-GA-T1	S-80230AG-GA-T2	S-80250AG-GB-T1	S-80250AG-GB-T2
Description	Fixed Negative LDO Regulator, 3V, CMOS, PSSO3, PLASTIC, SOT-89, 3 PIN	FIXED NEGATIVE LDO REGULATOR, PSSO3, SOT-89, 3 PIN	Fixed Negative LDO Regulator, 5V, CMOS, PSSO3, PLASTIC, SOT-89, 3 PIN	FIXED NEGATIVE LDO REGULATOR, PSSO3, SOT-89, 3 PIN
Maker	ABLIC	ABLIC	ABLIC	ABLIC
Parts packaging code	SOT-89	SOT-89	SOT-89	SOT-89
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
length	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm
surface mount	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
width	2.5 mm	2.5 mm	2.5 mm	2.5 mm
