BC856BLT3: Description100mA, 65V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB; CategoryDiscrete semiconductor The transistor; File Size188KB，5 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BC856BLT3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC856BLT3	-	-	View	Buy Now

BC856BLT3 Overview

100mA, 65V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB

BC856BLT3 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	4.5 pF
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
Minimum DC current gain (hFE)	220
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power consumption environment	0.225 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
VCEsat-Max	0.65 V

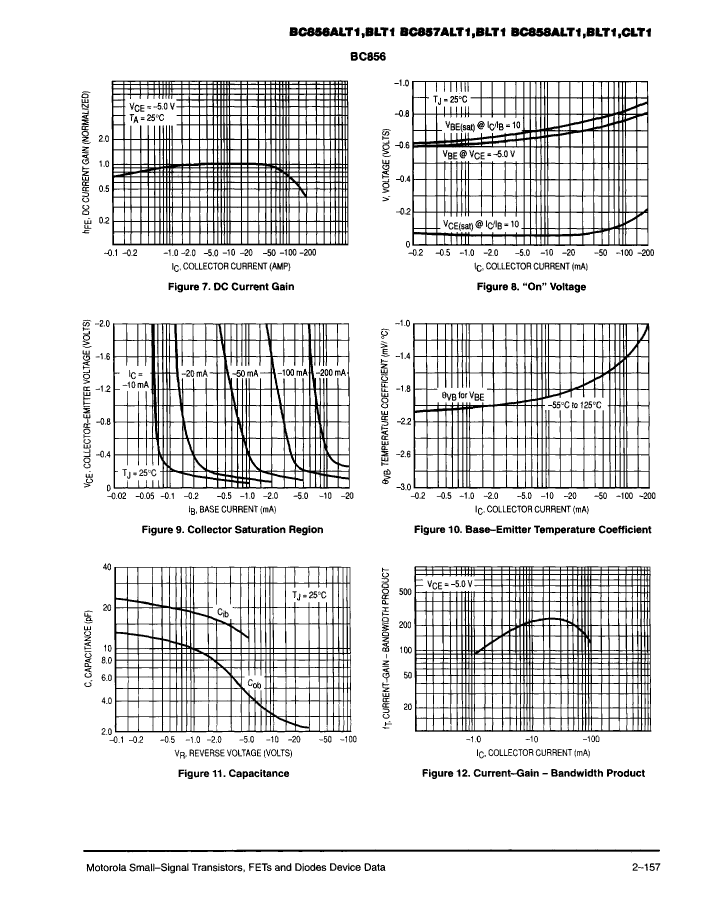

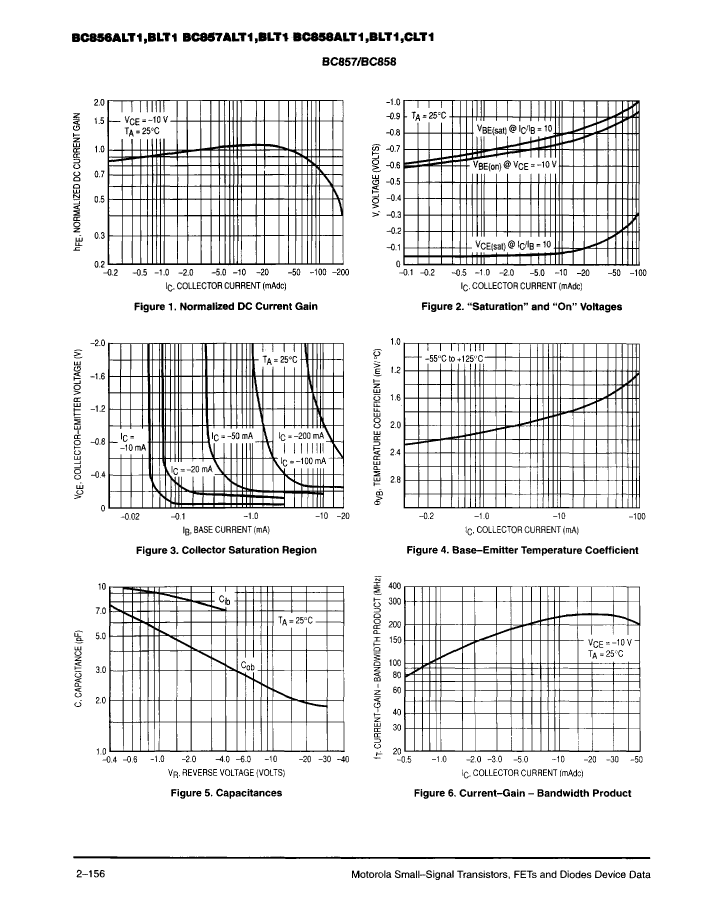

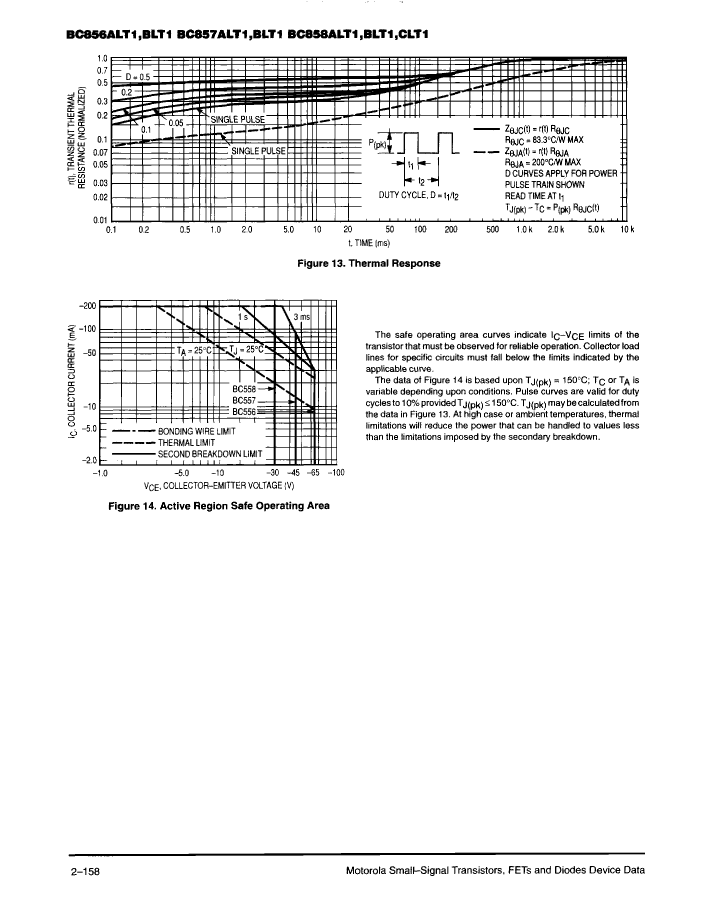

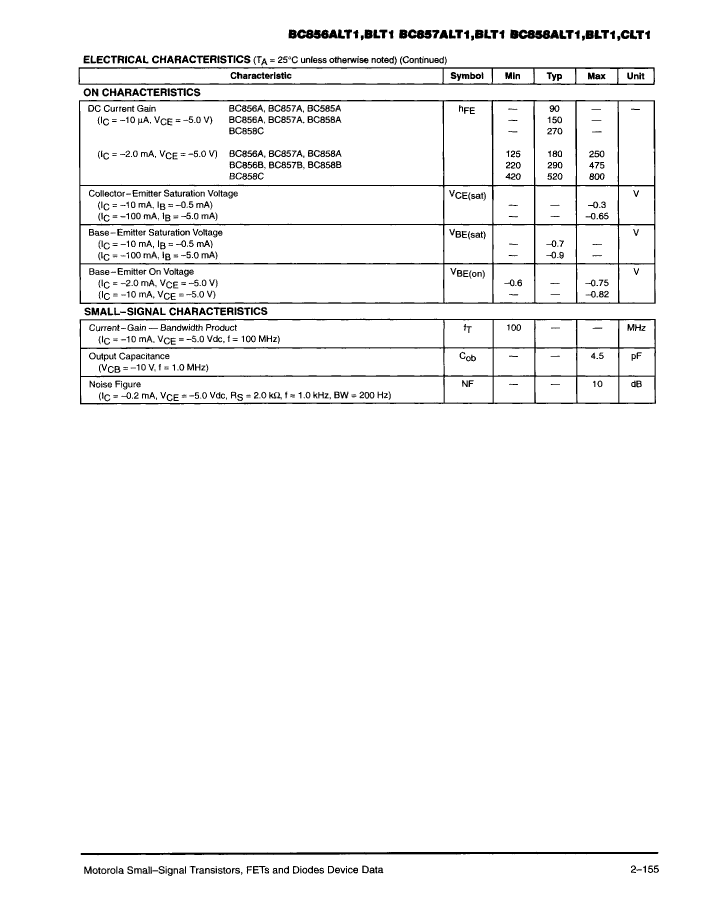

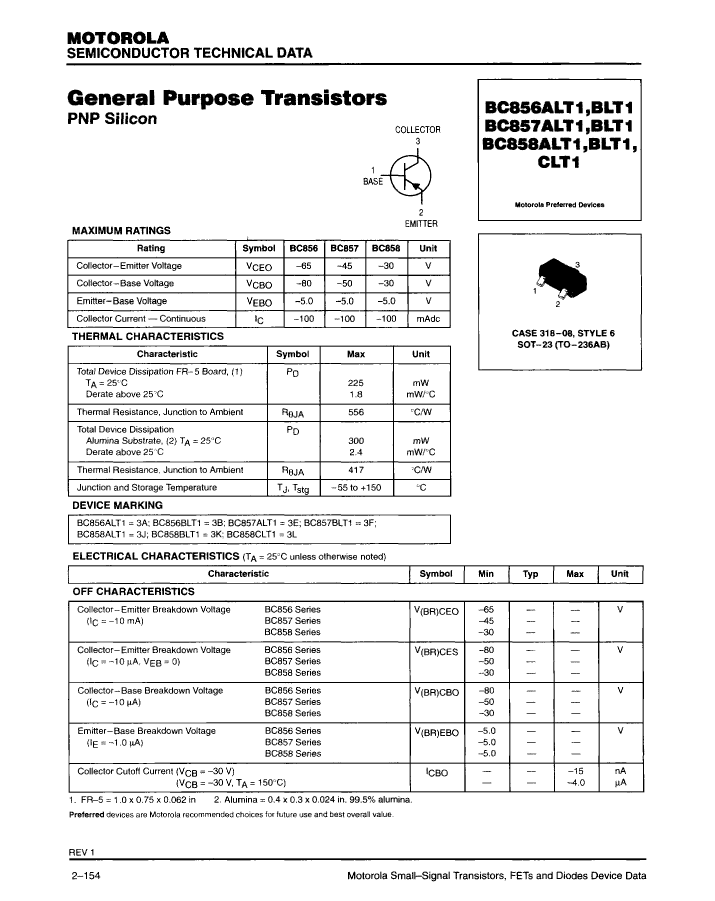

Preview

Download Datasheet

View All

BC856BLT3 Related Products

	BC856BLT3	BC857ALT3	BC856ALT3	BC858BLT3	BC858CLT3	BC858ALT3	BC857BLT3
Description	100mA, 65V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	100mA, 45V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB	Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB	100mA, 30V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	100mA, 30V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-based maximum capacity	4.5 pF	4.5 pF	4.5 pF	4.5 pF	4.5 pF	4.5 pF	4.5 pF
Collector-emitter maximum voltage	65 V	45 V	65 V	30 V	30 V	30 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	220	125	125	220	420	125	220
JEDEC-95 code	TO-236AB	TO-236AB	TO-236AB	TO-236AB	TO-236AB	TO-236AB	TO-236AB
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power consumption environment	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W	0.225 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
VCEsat-Max	0.65 V	0.65 V	0.65 V	0.65 V	0.65 V	0.65 V	0.65 V
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
