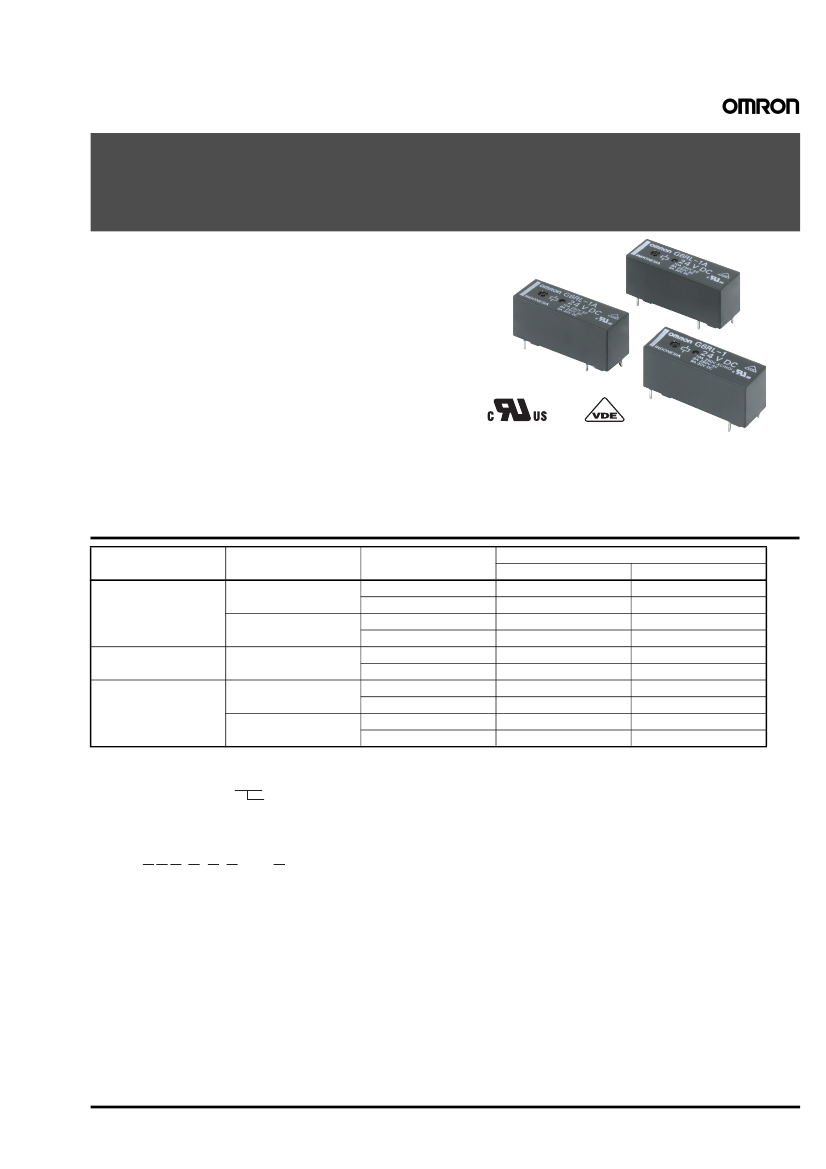

PCB Relay
G6RL
Low-profile power relay with maximum
switching of 10 A
• Low profile: 12.3 mm in height
• Max. switching capacity: 2,500 VA (NO)
• IEC 60947-5-1, AC-15, DC13
• Clearance and creepage distance: 10 mm.
• Models with high shock resistance (250 m/s
2
) are available.
• Models for P1 load (2
×
200 W lamps parallel to ignition
transformer) are available.
• RoHS Compliant
Applications:
Boilers, PLCs, I/O ports, timers, and temperature controllers
Ordering Information
Classification
Standard
Enclosure rating
Flux protection
Fully sealed
P1 Load
Shock resistance
Flux protection
Flux protection
Fully sealed
Contact form
SPST-NO
SPDT
SPST-NO
SPDT
SPST-NO
SPDT
SPST-NO
SPDT
SPST-NO
SPDT
Note:
When ordering, add the rated coil voltage to the model number.
Contact material
AgSnIn
G6RL-1A-ASI
G6RL-1-ASI
G6RL-1A4-ASI
G6RL-14-ASI
G6RL-1A-ASI-PL
G6RL-1-ASI-PL
---
G6RL-1-SR-ASI
---
G6RL-14-SR-ASI
G6RL-1A
G6RL-1
---
---
---
---
---
---
---
---
AgNi
Examples: G6RL-1A DC12
Rated coil
voltage
■
Model Number Legend:
G6RL-@@@-@-@-@ DC@
1 2 3
4
5
6
7
5. Contact material
None: AgNi
ASI: AgSnIn
6. Special Function 2
PL: P1 load (See note.)
7. Rated Coil Voltage
3, 5, 6, 12, 24, or 48
Note:
Please refer to
Endurance Under Real Load
table in this
datasheet.
1. Number of Poles
1:
1 pole
2. Contact Form/Contact Construction
None: SPDT
A:
SPST-NO
3. Enclosure Rating
None: Flux protection
4:
Fully sealed
4. Special Function 1
SR: Shock resistance of 25G
PCB Relay
G6RL
179
Specifications
■
Coil Ratings
Classification
Rated voltage
Rated current
Coil resistance
3 VDC
73.3 mA
40
Ω
5 VDC
44 mA
113
Ω
Standard, P1 load
6 VDC
36.7 mA
163
Ω
12 VDC
18.3 mA
654
Ω
24 VDC
9.2 mA
2,618
Ω
48 VDC
5 mA
9,600
Ω
3 VDC
101 mA
30
Ω
5 VDC
60.2 mA
83
Ω
Shock resistance
6 VDC
50.1 mA
120
Ω
12 VDC
25.2 mA
476
Ω
24 VDC
12.6 mA
1,912
Ω
Must operate voltage
70% max. of rated voltage
Must release voltage
10% min. of rated voltage
Max. voltage
Power consumption
150% of rated voltage
Approx. 220 mW
Approx.
240 mW
80% max. of rated voltage
10% min. of rated voltage
150% of rated voltage (23°C)
Approx. 300 mW
Note: 1.
The above items are measured at a coil temperature of 23°C.
2.
The tolerance of the rated current is
±10%.
■
Contact Ratings
Load
Rated load (See note 1.)
Resistive load (cos
φ
= 1)
10 A at 250 VAC, NO resistive load
8 A at 250 VAC, resistive load
5 A at 30 VDC, resistive load
10 A at 250 VAC
5 A at 30 VDC
400 VAC, 300 VDC
NO: 10 A, NC: 8 A
NO: 2,500 VA, NC: 2,000 VA
150 W
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Failure rate (reference value)
10 mA at 5 VDC (P level) (See note 2.)
Note: 1.
G6RL-1(A), G6RL-1(A)4-ASI: 8 A 250 VAC, resistive load; 5 A 24 VDC resistive load.
2.
P level:
λ
60 = 0.1
×
10
−6
/ operations
■
Characteristics
Contact resistance
Operate time
Release time
Insulation resistance
Dielectric strength
Impulse withstand voltage
Vibration resistance
100 mΩ max.
10 ms max. (SR Models: 15 ms max.)
5 ms max.
1,000 MΩ min. (at 500 VDC)
5,000 VAC, 50/60 Hz for 1 min between coil and contacts
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
10 kV between coil and contacts (1.2
×
50
μs)
Destruction:
Malfunction:
10 to 55 to 10 Hz, 1.5-mm double amplitude
10 to 55 to 10 Hz, 0.825-mm single amplitude (1.65-mm double amplitude) when energized.
10 to 55 to 10 Hz, 0.4-mm single amplitude (0.8-mm double amplitude) when not energized.
Shock resistance
Destruction: 1,000 m/s
2
Malfunction: NO: 200 m/s
2
, NC: 50 m/s
2
when not energized
SR Models: 250 m/s
2
(NO and NC) when not energized
Mechanical: 10,000,000 operations min. (at 18,000 operations/hr)
Operating:
−40°C
to 85°C (with no icing)
Operating: 5% to 85%
Approx. 7.8 g
Endurance
Ambient temperature
Ambient humidity
Weight
180
PCB Relay
G6RL
■
Other Data
Construction of protection
Insulation material group
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
Creepage distance
Clearance distance
RoHS
Tracking index of relay base
Flux protection
IIIa
250 V
3
250 V
III
10 mm
10 mm
Compliant
PTI 250
2
400 V
Fully sealed
Flammability class according to UL94
V-0
Flammability-flame
GWFI (IEC 60695-2-12)
GWIT (IEC 60695-2-13)
Ball pressure test (IEC 60695-10-2)
850°C
750°C
170°C
■
Approved Standards
UL Recognized (File No. E41643) - - Ambient Temp. = 85°C
Models
G6RL-1A
G6RL-1
G6RL-1A(4)-ASI
G6RL-1(4)-ASI
G6RL-1(4)-SR-ASI
Contact form
SPST-NO
SPDT
SPST-NO
SPDT
SPDT
3 to 24 VDC
Coil rating
3 to 48 VDC
Contact rating
10 A at 250 VAC (NO) (Resistive) 6,000 operations
8 A at 250 VAC (Resistive)
5 A at 30 VDC (Resistive)
VDE (EN61810-1) (Certificate No.C266)
Models
G6RL-1A-(ASI)
G6RL-1-(ASI)
Contact form
SPST-NO
SPDT
Coil rating
Contact rating
Model
3, 5, 6, 12, 24, or 48 VDC 10 A at 250 VAC (NO) 10,000 operations at 85°C
8 A at 250 VAC
5 A at 30 VDC
G6RL-1A4-ASI (See note.)
G6RL-14-ASI (See note.)
SPST-NO
SPDT
30,000 operations at 85°C
50,000 operations at 85°C
3, 5, 6, 12, 24, or 48 VDC 10 A at 250 VAC (NO) 10,000 operations at 85°C
8 A at 250 VAC
5 A at 30 VDC
10,000 operations at 85°C
10,000 operations at 85°C
G6RL-1(4)-SR-ASI
SPDT
3, 5, 6, 12 or 24 VDC
10 A at 250 VAC (NO) 10,000 operations at 85°C
8 A at 250 VAC
5 A at 30 VDC
10,000 operations at 85°C
10,000 operations at 85°C
Note:
In progress
PCB Relay
G6RL
181
VDE (60947-5-1) (Certificate No. C266)
Models
G6RL-1(A)
AC15 (NO)
AC15 (NO)
AC15 (NO)
DC13
DC13 (See note.)
G6RL-1(A)-ASI
G6RL-1(A)4-ASI (See note.)
G6RL-1(4)-SR-ASI
AC15
AC15
AC15
DC13
DC13 (See note.)
Note: 1.
In progress
2.
All ratings are valid at Room Temperature
Contact rating
Utilization category
Ie: 3 A, Ithe: 10 A (A300)
Ie: 3 A, Ithe: 5 A (B300)
Ie: 1.5 A, Ithe: 5 A (B300)
Ie: 0.22A, Ithe: 1A (R150)
Ie: 0.1 A, Ithe: 1 A (R300)
Ie: 3 A, Ithe: 10 A (A300)
Ie: 3 A, Ithe: 5 A (B300)
Ie: 1.5 A, Ithe: 5 A (B300)
Ie: 0.22 A, Ithe: 1 A (R150)
Ie: 0.1 A, Ithe: 1 A (R300)
Rated voltage (V)
AC240
AC120
AC240
DC125
DC250
AC240
AC120
AC240
DC125
DC250
Operations
6,000
6,000
6,000
6,000
6,000
6,000
6,000
6,000
6,000
6,000
VDE (60947-4-1) (Certificate No. C266)
Models
G6RL-1(A)
G6RL-1(A)-ASI (See note.)
AC1
AC3
DC1
DC3
Note: 1.
In progress
2.
All ratings are valid at Room Temperature
Contact rating
Utilization category
8A
2A
5A
2A
Rated voltage (V)
AC250
AC250
DC24
DC24
Operations
6,000
6,000
6,000
6,000
VDE (EN60730-1) (Certificate No. C266)
Models
G6RL-1(A)
2 (2) A
8 (4) A (NO)
6 (4) A (NO)
6 (4)A (NO)
6 (4) A (NC)
G6RL-1(A)-ASI (See note.)
2 (2) A
8 (4) A (NO)
6 (4) A (NO)
6 (4) A (NC)
Note:
In progress
Contact rating
Utilization category
65°C
85°C
85°C (See note.)
65°C
65°C
65°C
85°C
85°C
65°C
Rated voltage (V)
AC250
AC250
AC250
AC250
AC250
AC250
AC250
AC250
AC250
Operations
100,000
100,000
100,000
100,000
100,000
100,000
100,000
100,000
100,000
182
PCB Relay
G6RL
Electrical Endurance Data
G6RL-1(A)
8 A at 250 VAC (cosφ = 1) NO
8 A at 250 VAC (cosφ = 1) NC
5 A at 24 VDC
G6RL-1(A)-(SR)-ASI-(PL)
10 A at 250 VAC (cosφ = 1) NO
8 A at 250 VAC (cosφ = 1)
5 A at 30 VDC
G6RL-1(A)4-ASI
8 A at 250 VAC (cosφ = 1) NO
8 A at 250 VAC (cosφ = 1) NC
5 A at 24 VDC
G6RL-14-SR-ASI
8 A at 250 VAC (cosφ = 1) NO
3 A at 250 VAC (cosφ = 1) NC
5 A at 24 VDC NO
5 A at 24 VDC NC
50,000 operations min.
50,000 operations min.
50,000 operations min.
100,000 operations min.
100,000 operations min.
50,000 operations min.
50,000 operations min.
50,000 operations min.
50,000 operations min.
50,000 operations min.
100,000 operations min.
50,000 operations min.
30,000 operations min.
Endurance Under Real Load
G6RL-1(A)-ASI-PL
Rated voltage
230 VAC
Condition
(Reference Only)
Frequency
1.5 s ON/4.5 s OFF
Electrical life
250,000 operations
P1 load (2
×
200 W lamps parallel to ignition transformer)
Note:
The results shown reflect values measured using very severe test conditions, i.e., Duty: 1 s ON/OFF.
Electrical endurance will vary depending on the test conditions. Contact your OMRON representative if you require more detailed information
for the electrical endurance under your test conditions.
PCB Relay
G6RL
183
