BC849ALT3 datasheet, PDF - EEWORLD Datasheet

BC849ALT3: Description100mA, 30V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB; CategoryDiscrete semiconductor The transistor; File Size46KB，1 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

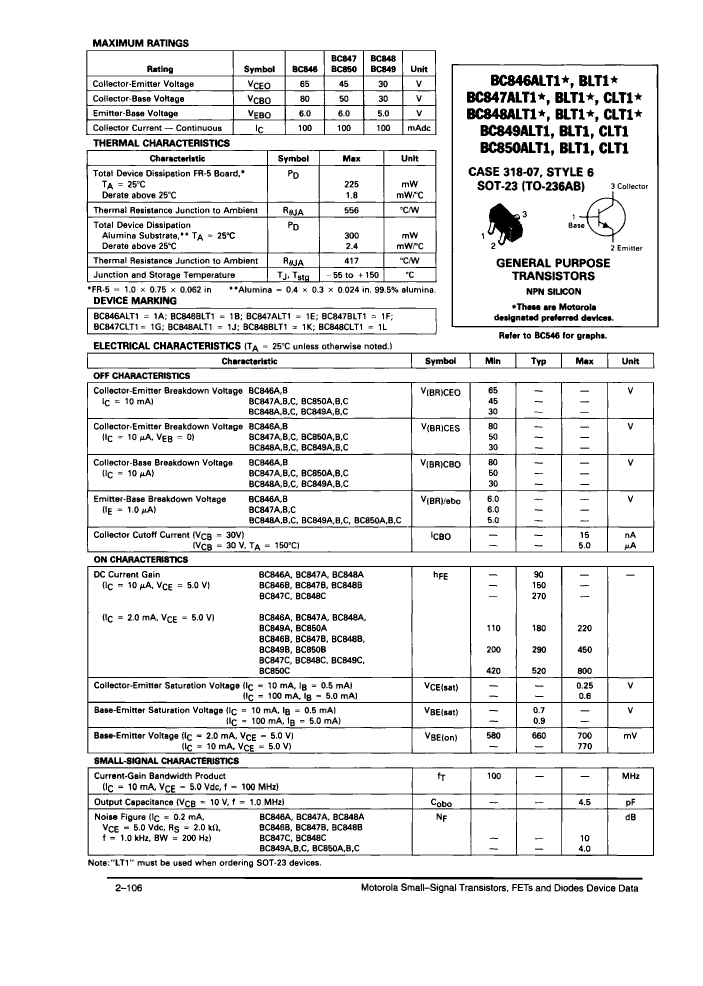

BC849ALT3 Overview

100mA, 30V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	4.5 pF
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	110
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	0.225 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz
VCEsat-Max	0.6 V

	BC849ALT3	BC850ALT3
Description	100mA, 30V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB
Maker	Motorola ( NXP )	Motorola ( NXP )
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A
Collector-based maximum capacity	4.5 pF	4.5 pF
Collector-emitter maximum voltage	30 V	45 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	110	110
JEDEC-95 code	TO-236AB	TO-236AB
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power consumption environment	0.225 W	0.225 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz
VCEsat-Max	0.6 V	0.6 V
