PR1MP32FREQ1: DescriptionParallel - Fundamental Quartz Crystal, 10MHz Min, 12.999MHz Max, ROHS COMPLIANT, MINIATURE PACKAGE-2; CategoryPassive components Crystal/resonator; File Size401KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

PR1MP32FREQ1 Overview

Parallel - Fundamental Quartz Crystal, 10MHz Min, 12.999MHz Max, ROHS COMPLIANT, MINIATURE PACKAGE-2

PR1MP32FREQ1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
package instruction	ROHS COMPLIANT, MINIATURE PACKAGE-2
Reach Compliance Code	unknown
Other features	AT-CUT CRYSTAL
Ageing	2 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	32 pF
Manufacturer's serial number	PR
Installation features	SURFACE MOUNT
Maximum operating frequency	12.999 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L6.0XB3.5XH1.2 (mm)/L0.236XB0.138XH0.047 (inch)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

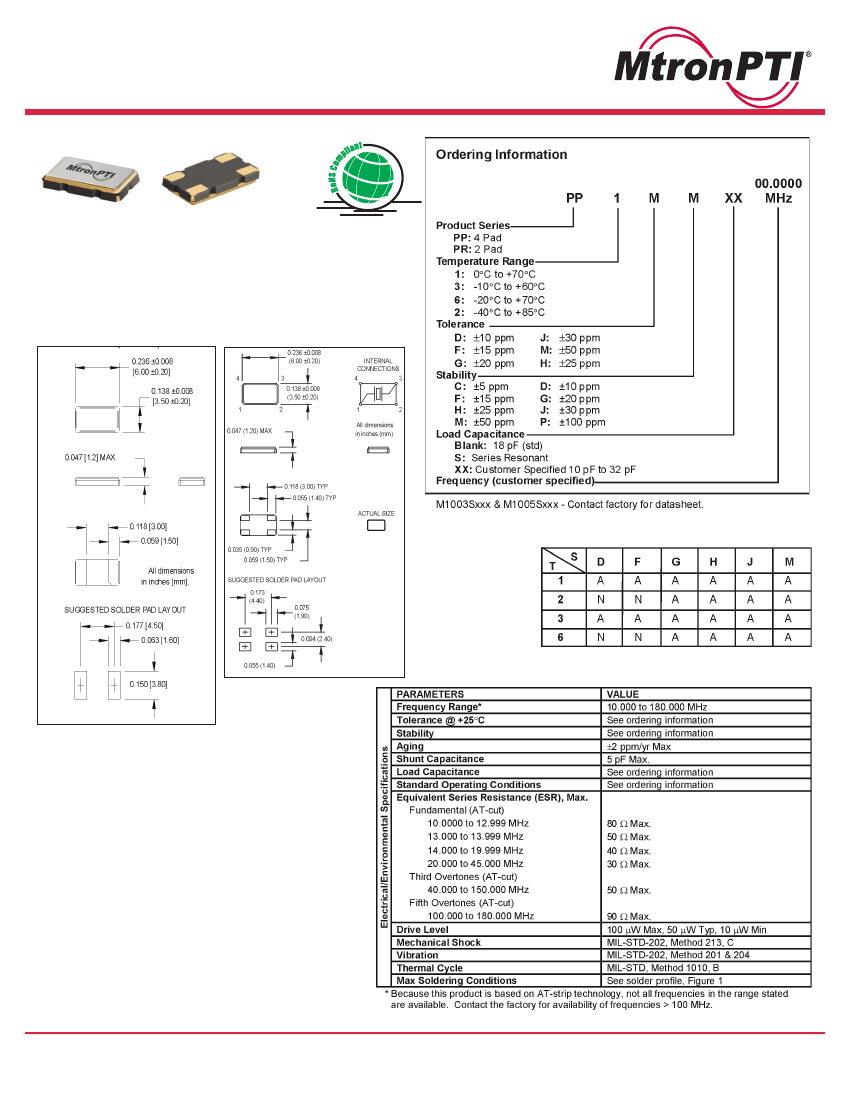

PP & PR Surface Mount Crystals

3.5 x 6.0 x 1.2 mm

•

Miniature low profile package (2 & 4 Pad)

RoHS Compliant

Wide frequency range

PCMCIA - high density PCB assemblies

PR (2 Pad)

PP (4 Pad)

Available Stabilities vs. Temperature

A = Available

N = Not Available

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 7-29-08
