G8N-1F

Description
Ultra-Miniature Automotive PCB Relay
File Size238KB,6 Pages
ManufacturerOMRON
Websitehttps://www.omron.com
Download Datasheet Compare View All

G8N-1F Overview

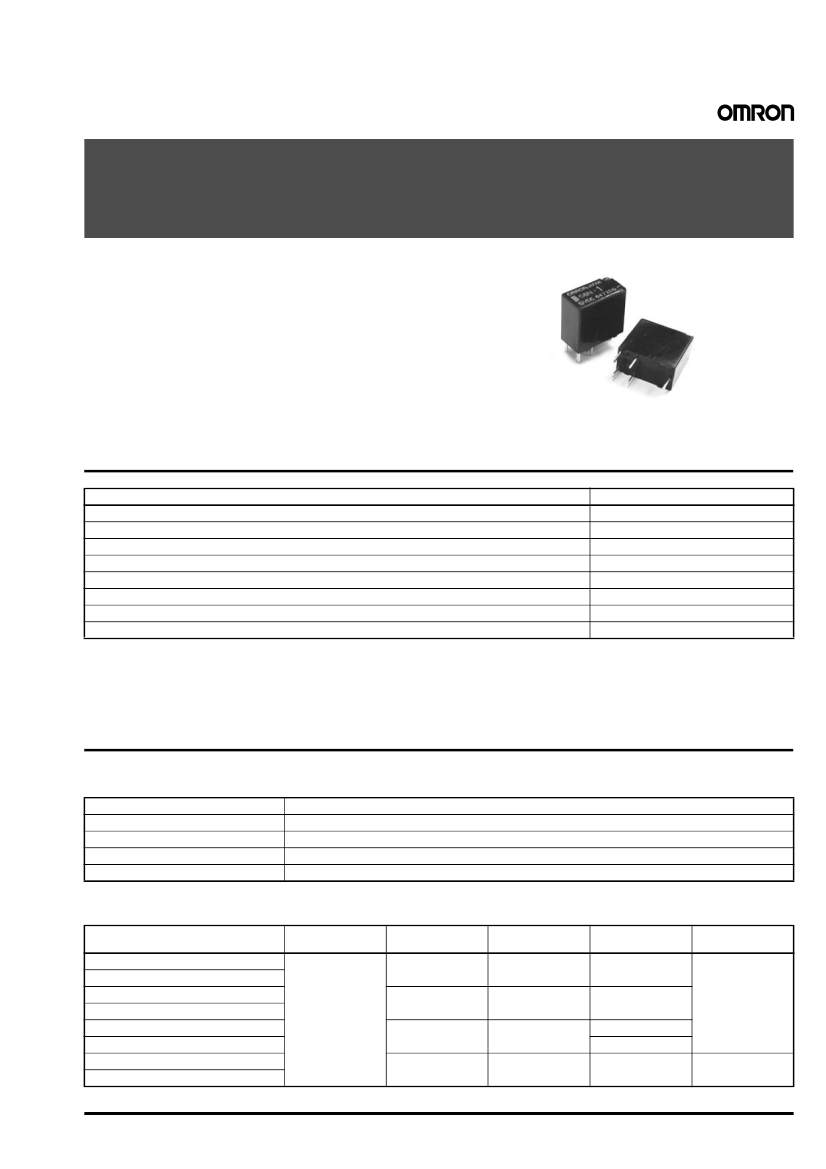

Ultra-Miniature Automotive PCB Relay

Ultra-Miniature Automotive PCB Relay
G8N-1
• Compact size.
• High performance PCB relay.
• Fully automated assembly.
• Fully sealed construction.
• SPDT contacts.
Ordering Information
Description
Standard type
High sensitivity (low pull-in voltage)
High temperature (150° C)
High temperature / high sensitivity
Flasher load switching
Ultra-high sensitivity
Reflow solder type
Pin in paste solder type (shortened terminals)
G8N-1
G8N-1S
G8N-1L
G8N-1H
G8N-1F
G8N-1U
G8N-1R
G8N-1C
Model
Typical Applications
Power windows/power door lock
Smart junction box and module applications
Seat adjustment
Sunroof
Specifications
Contact Data
Max. switching current
Max. switching voltage
Max. carry current
Min. carry current
Contact material
30 A
16 V
25 A (at 20° C for 1 hour)
100 mA
Silver tin oxide – cadmium free (PdRu for -F type)
Coil Ratings (at 20° C)
Type
G8N-1
G8N-1L
G8N-1S
G8N-1H
G8N-1F
G8N-1U
G8N-1R
G8N-1C
130
1108 mW
< 7.2 V
< 5.5 V
180
800 mW
< 6.5 V
Rated voltage
12 VDC
Coil resistance
(±10%)
225
Nominal power
consumption
640 mW
Pull in voltage
< 7.2 V
Dropout voltage
> 1.0 V
Ultra-Miniature Automotive PCB Relay
G8N-1
1
