Datasheet> All Categories > storage> storage> HN62412P

Preview

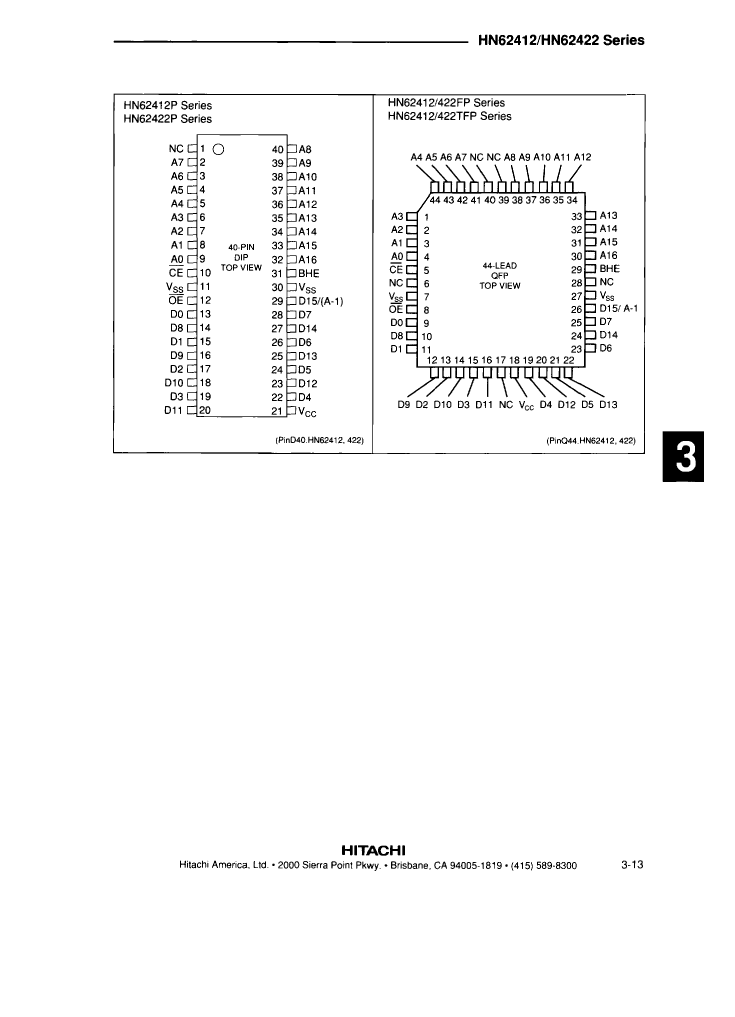

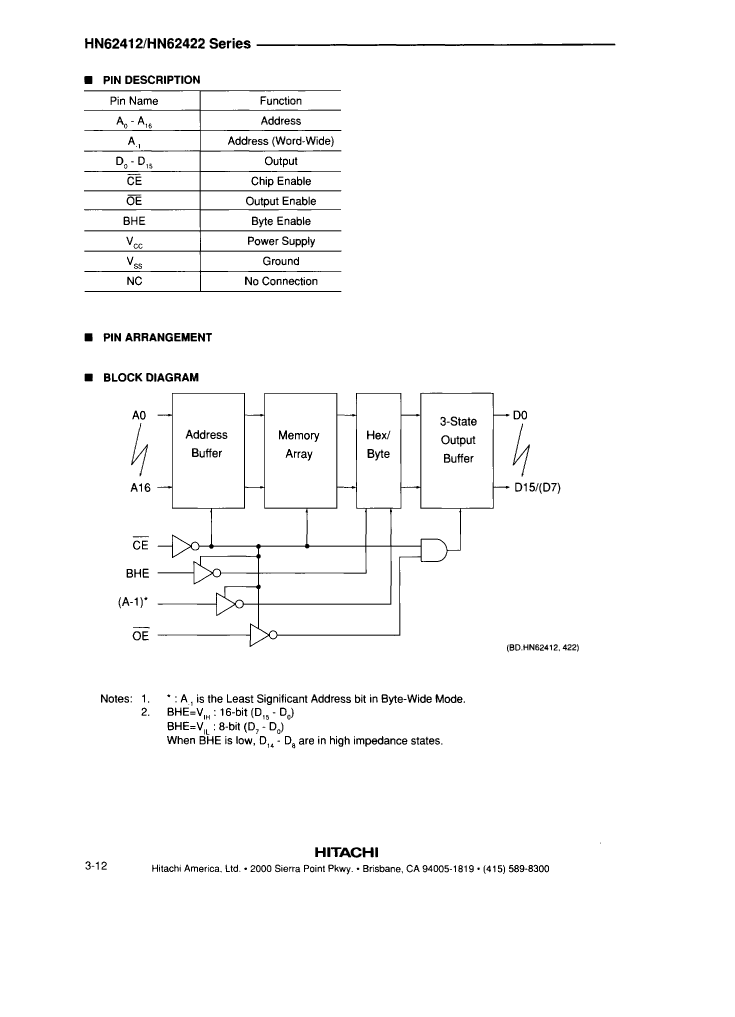

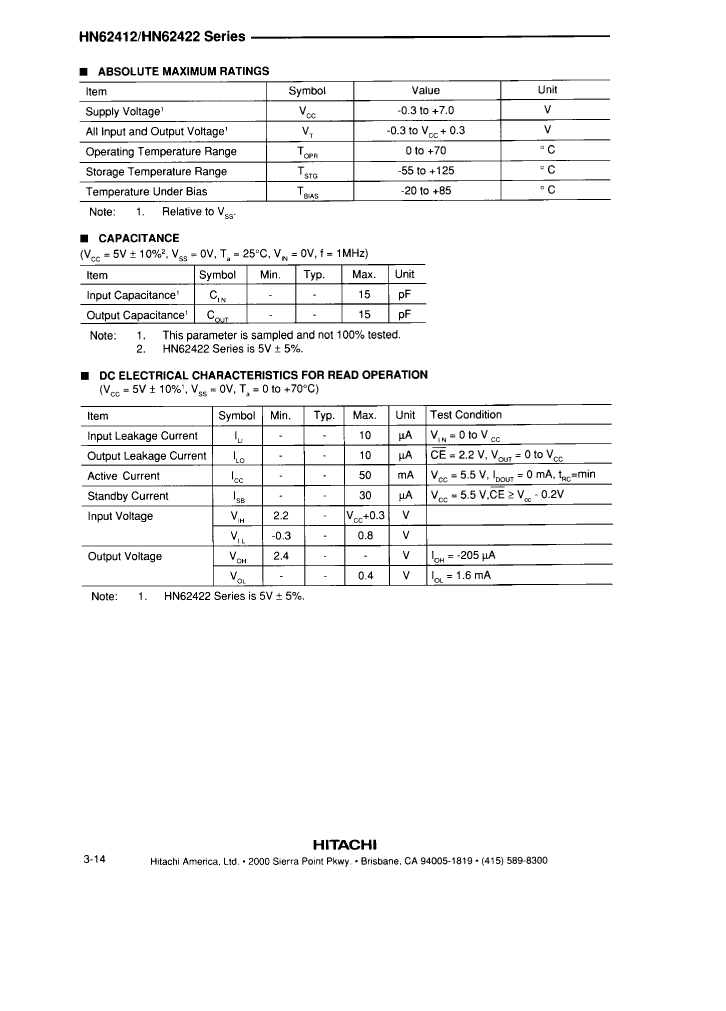

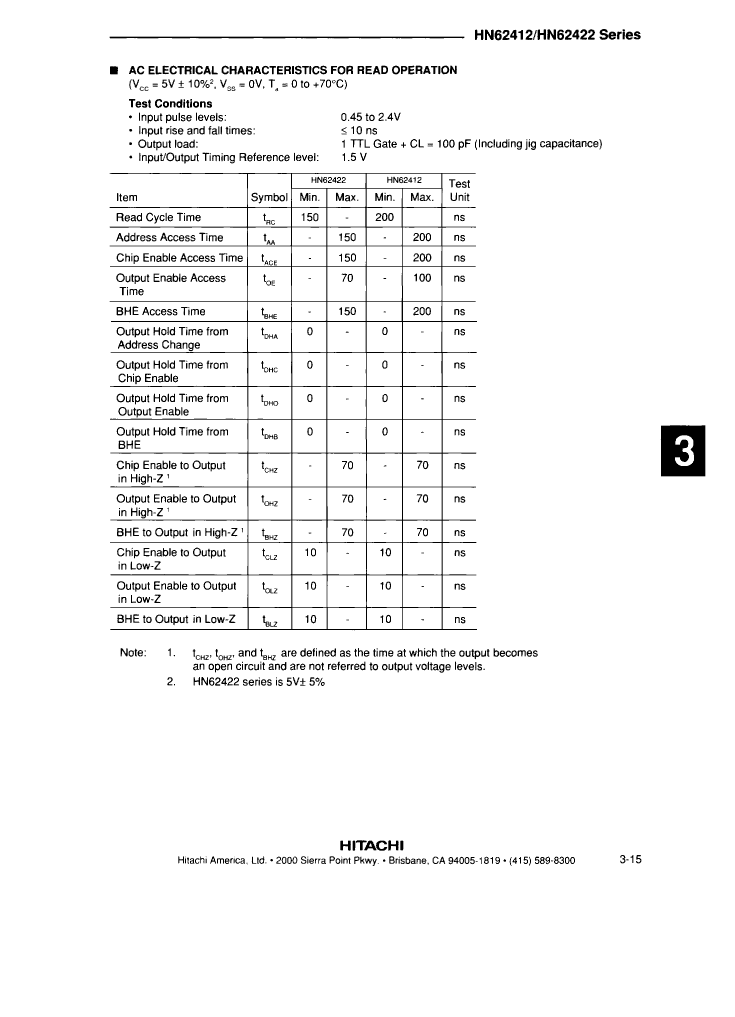

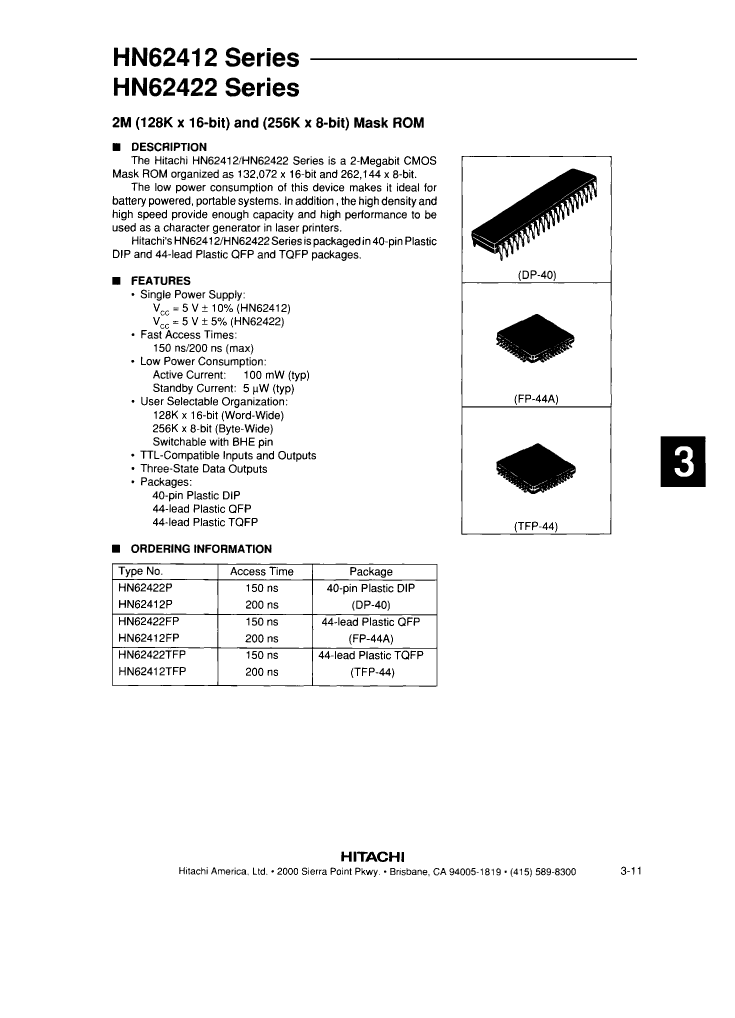

HN62412P: Description256KX8 MASK PROM, 200ns, PDIP40, PLASTIC, DIP-40; Categorystorage storage; File Size121KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HN62412P Overview

256KX8 MASK PROM, 200ns, PDIP40, PLASTIC, DIP-40

HN62412P Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	200 ns
Spare memory width	16
JESD-30 code	R-PDIP-T40
length	52.8 mm
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

Preview

Download Datasheet

View All

HN62412P Related Products

	HN62412P	HN62412FP	HN62422FP	HN62422TFP	HN62412TFP	HN62422P
Description	256KX8 MASK PROM, 200ns, PDIP40, PLASTIC, DIP-40	256KX8 MASK PROM, 200ns, PQFP44, PLASTIC, QFP-44	256KX8 MASK PROM, 150ns, PQFP44, PLASTIC, QFP-44	256KX8 MASK PROM, 150ns, PQFP44, PLASTIC, TQFP-44	256KX8 MASK PROM, 200ns, PQFP44, PLASTIC, TQFP-44	256KX8 MASK PROM, 150ns, PDIP40, PLASTIC, DIP-40
Parts packaging code	DIP	QFP	QFP	QFP	QFP	DIP
package instruction	DIP,	QFP,	QFP,	TQFP,	TQFP,	DIP,
Contacts	40	44	44	44	44	40
Reach Compliance Code	unknown	compli	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	200 ns	150 ns	150 ns	200 ns	150 ns
Spare memory width	16	16	16	16	16	16
JESD-30 code	R-PDIP-T40	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44	R-PDIP-T40
length	52.8 mm	14 mm	14 mm	14 mm	14 mm	52.8 mm
memory density	2097152 bit	2097152 bi	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	40	44	44	44	44	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP	QFP	TQFP	TQFP	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	3.05 mm	3.05 mm	1.1 mm	1.1 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	2.54 mm
Terminal location	DUAL	QUAD	QUAD	QUAD	QUAD	DUAL
width	15.24 mm	14 mm	14 mm	14 mm	14 mm	15.24 mm
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation
