IDT79R4600-150MD datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> IDT79R4600-150MD

IDT79R4600-150MD: DescriptionRISC Microprocessor, 64-Bit, 150MHz, CMOS, PQFP208, MQUAD-208; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，28 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT79R4600-150MD Overview

RISC Microprocessor, 64-Bit, 150MHz, CMOS, PQFP208, MQUAD-208

IDT79R4600-150MD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	MQUAD-208
Contacts	208
Reach Compliance Code	not_compliant
ECCN code	3A001.A.3
Other features	5 PIPELINE STAGES; 150 MIPS MAX; 50 MFLOPS MAX; SPECINT92=96
Address bus width	64
bit size	64
boundary scan	NO
maximum clock frequency	75 MHz
External data bus width	64
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G208
JESD-609 code	e0
length	27.69 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	7
Number of serial I/Os
Number of terminals	208
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	FQFP
Encapsulate equivalent code	QFP208,1.2SQ,20
Package shape	SQUARE
Package form	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	3.86 mm
speed	150 MHz
Maximum slew rate	2600 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	27.69 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

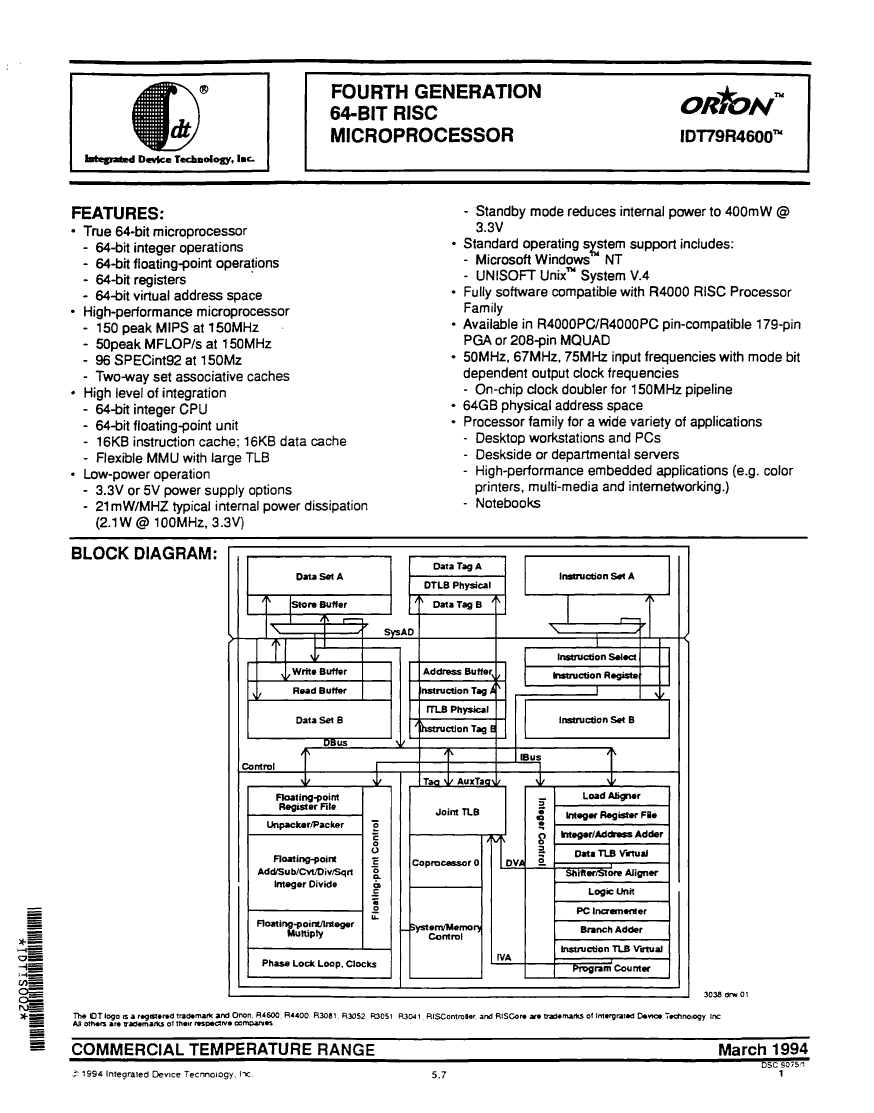

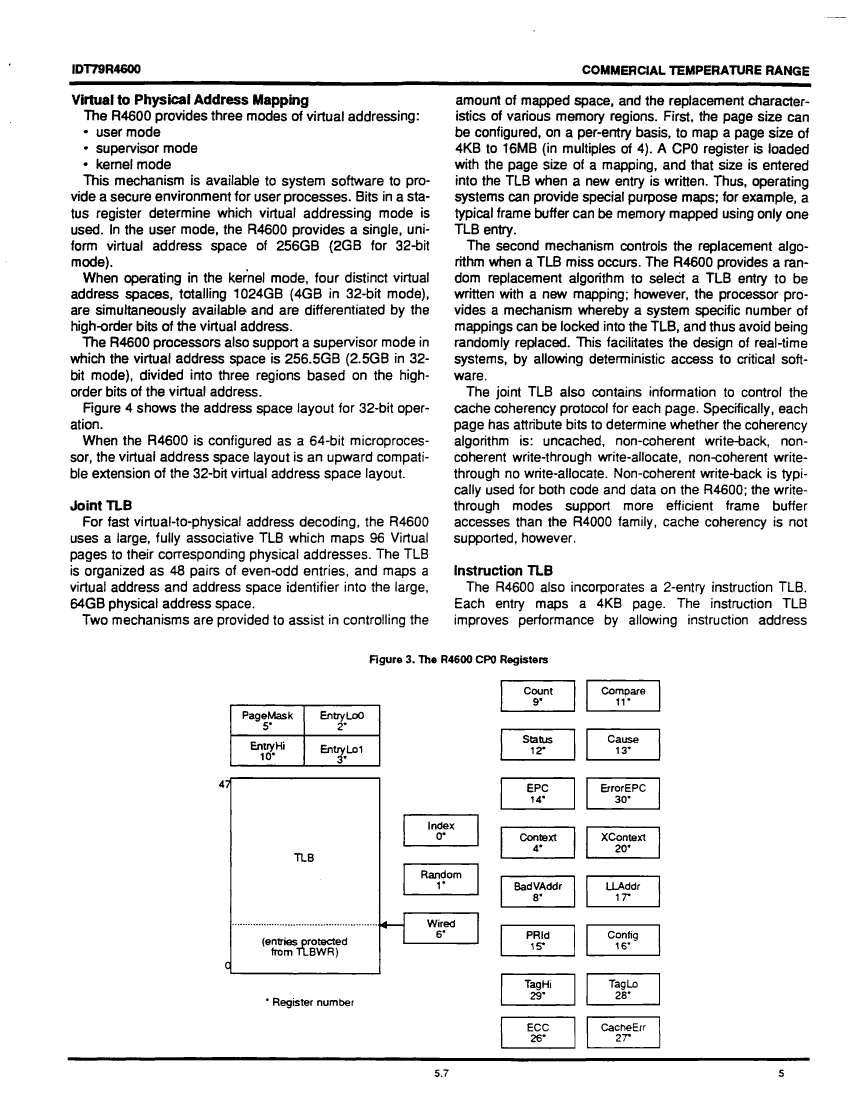

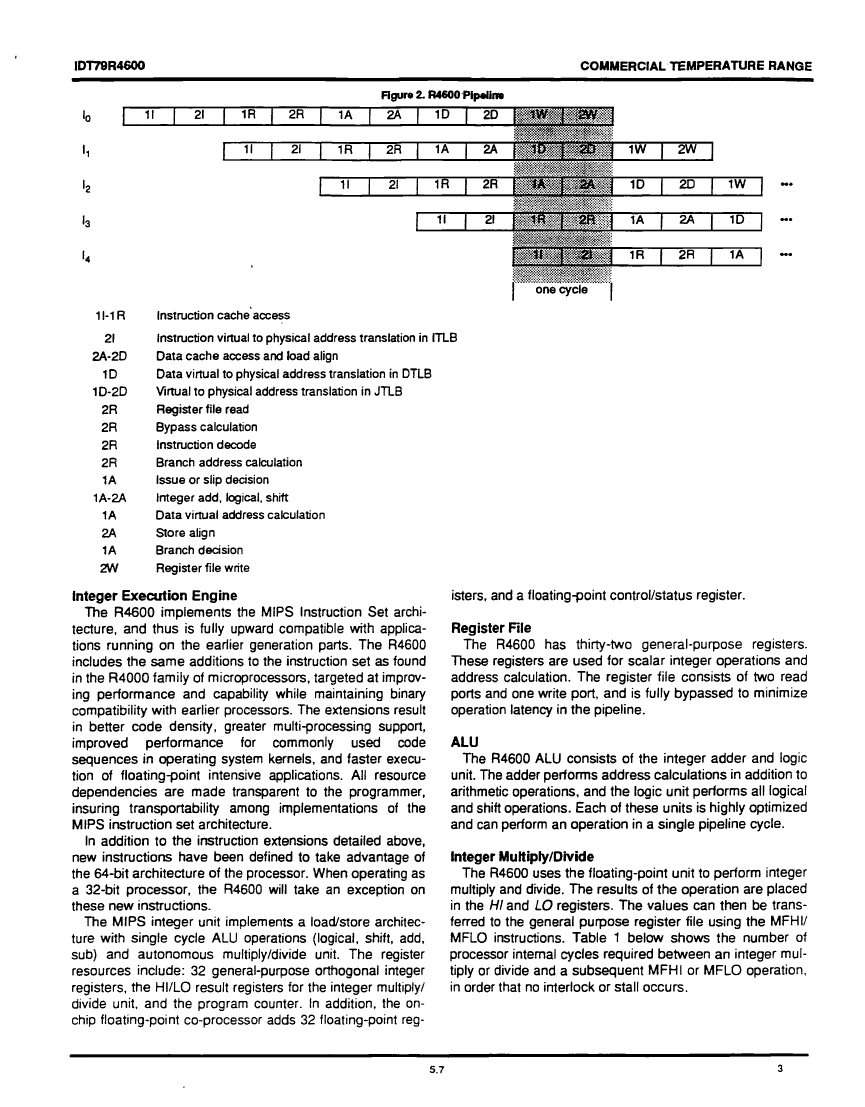

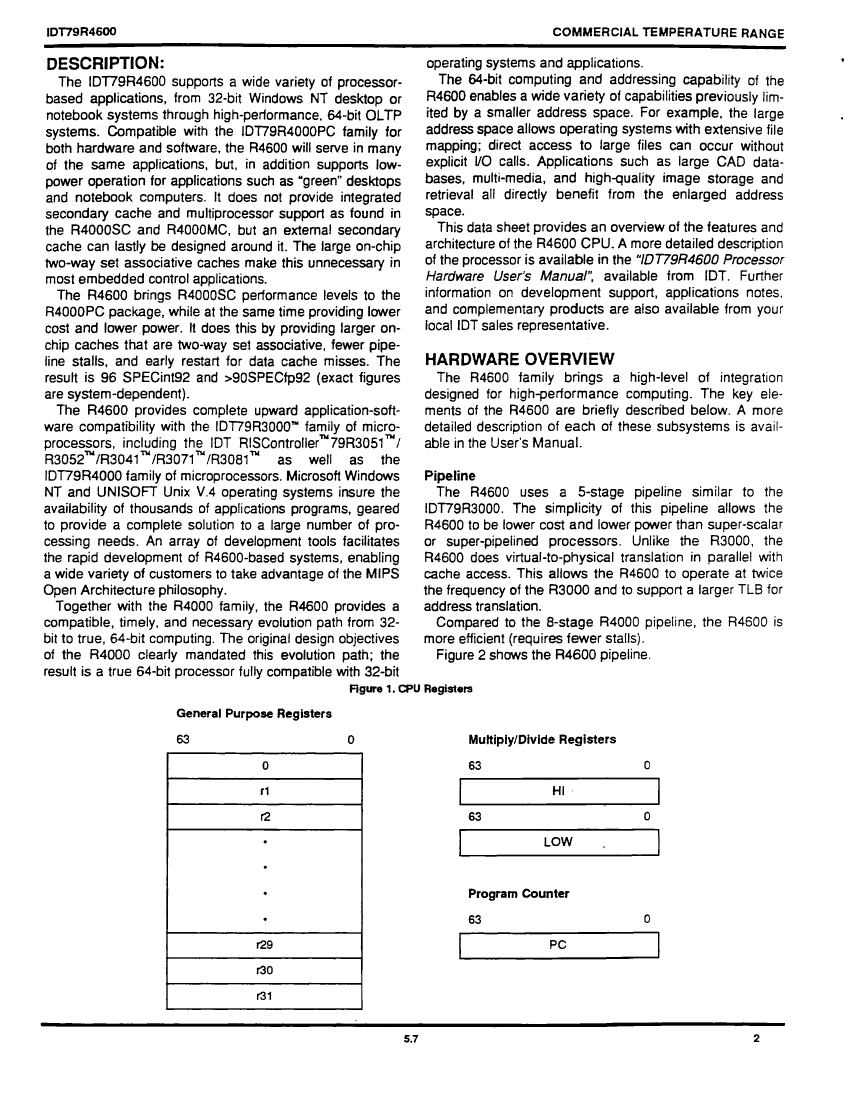

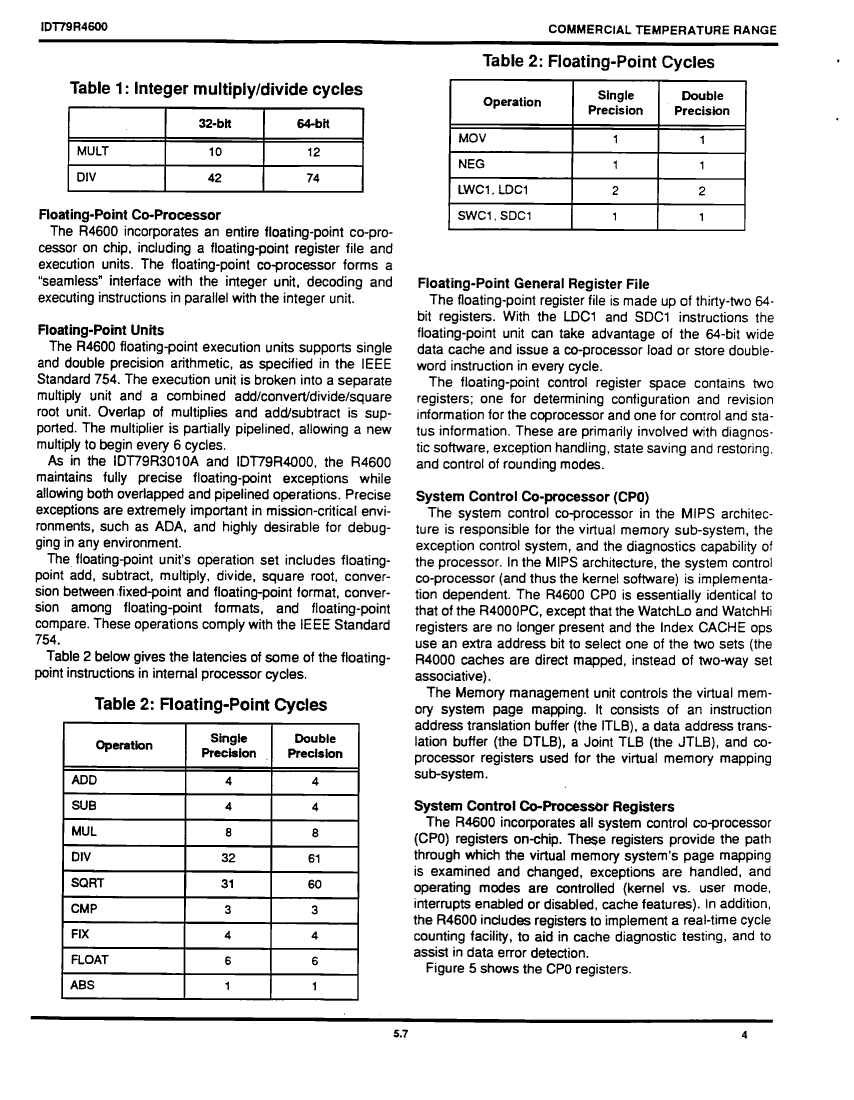

Preview

Download Datasheet

View All

IDT79R4600-150MD Related Products

	IDT79R4600-150MD	IDT79R4600-100MD	IDT79R4600-133MD	IDT79R4600-150G	IDT79RV4600-100MD	IDT79RV4600-133MD	IDT79RV4600-150G	IDT79RV4600-150MD
Description	RISC Microprocessor, 64-Bit, 150MHz, CMOS, PQFP208, MQUAD-208	RISC Microprocessor, 64-Bit, 100MHz, CMOS, PQFP208, MQUAD-208	RISC Microprocessor, 64-Bit, 133MHz, CMOS, PQFP208, MQUAD-208	RISC Microprocessor, 64-Bit, 150MHz, CMOS, CPGA179, PGA-179	RISC Microprocessor, 64-Bit, 100MHz, CMOS, PQFP208, MQUAD-208	RISC Microprocessor, 64-Bit, 133MHz, CMOS, PQFP208, MQUAD-208	RISC Microprocessor, 64-Bit, 150MHz, CMOS, CPGA179, PGA-179	RISC Microprocessor, 64-Bit, 150MHz, CMOS, PQFP208, MQUAD-208
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP	PGA	QFP	QFP	PGA	QFP
package instruction	MQUAD-208	MQUAD-208	MQUAD-208	PGA-179	MQUAD-208	MQUAD-208	PGA-179	MQUAD-208
Contacts	208	208	208	179	208	208	179	208
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3
Other features	5 PIPELINE STAGES; 150 MIPS MAX; 50 MFLOPS MAX; SPECINT92=96	5 PIPELINE STAGES	5 PIPELINE STAGES	5 PIPELINE STAGES; 150 MIPS MAX; 50 MFLOPS MAX; SPECINT92=96	5 PIPELINE STAGES	5 PIPELINE STAGES	5 PIPELINE STAGES; 150 MIPS MAX; 50 MFLOPS MAX; SPECINT92=96	5 PIPELINE STAGES; 150 MIPS MAX; 50 MFLOPS MAX; SPECINT92=96
Address bus width	64	64	64	64	64	64	64	64
bit size	64	64	64	64	64	64	64	64
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	75 MHz	50 MHz	67 MHz	75 MHz	50 MHz	67 MHz	75 MHz	75 MHz
External data bus width	64	64	64	64	64	64	64	64
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G208	S-PQFP-G208	S-PQFP-G208	S-CPGA-P179	S-PQFP-G208	S-PQFP-G208	S-CPGA-P179	S-PQFP-G208
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	27.69 mm	27.69 mm	27.69 mm	47.244 mm	27.69 mm	27.69 mm	47.244 mm	27.69 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	7	7	7	7	7	7	7	7
Number of terminals	208	208	208	179	208	208	179	208
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	FQFP	FQFP	FQFP	PGA	FQFP	FQFP	PGA	FQFP
Encapsulate equivalent code	QFP208,1.2SQ,20	QFP208,1.2SQ,20	QFP208,1.2SQ,20	PGA179,18X18	QFP208,1.2SQ,20	QFP208,1.2SQ,20	PGA179,18X18	QFP208,1.2SQ,20
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, FINE PITCH	FLATPACK, FINE PITCH	FLATPACK, FINE PITCH	GRID ARRAY	FLATPACK, FINE PITCH	FLATPACK, FINE PITCH	GRID ARRAY	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.86 mm	3.86 mm	3.86 mm	5.207 mm	3.86 mm	3.86 mm	5.207 mm	3.86 mm
speed	150 MHz	100 MHz	133 MHz	150 MHz	100 MHz	133 MHz	150 MHz	150 MHz
Maximum slew rate	2600 mA	1925 mA	2300 mA	2600 mA	1275 mA	1525 mA	1725 mA	1725 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	5 V	5 V	5 V	5 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	PIN/PEG	GULL WING	GULL WING	PIN/PEG	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	2.54 mm	0.5 mm	0.5 mm	2.54 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	PERPENDICULAR	QUAD	QUAD	PERPENDICULAR	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	27.69 mm	27.69 mm	27.69 mm	47.244 mm	27.69 mm	27.69 mm	47.244 mm	27.69 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Maker	IDT (Integrated Device Technology)	-	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
