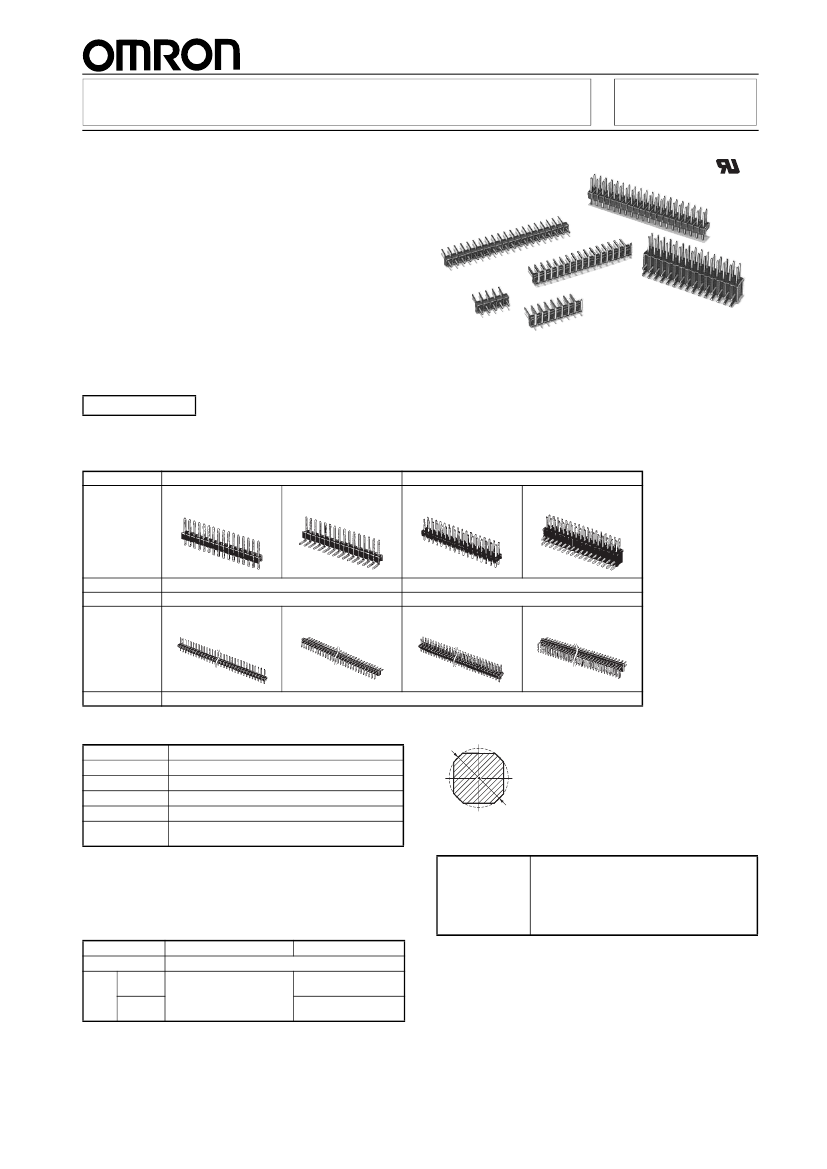

Simply cut to divide (excluding XG8W Right-angle Plugs).
Standard models are approved by UL standards
(file No. E103202)
RoHS Compliant
■
Connectors
For MIL Connectors
Model
Appearance
XG8V
Single-row plugs with
straight terminals
Single-row plugs with
right-angle terminals
XG8W
Double-row plugs with
straight terminals
Double-row plugs with
right-angle terminals
Page
Model
Appearance
2
XG8A
Single-row plugs with
straight terminals
Single-row plugs with
right-angle terminals
3
XG8B
Double-row plugs with
straight terminals
Double-row plugs with
right-angle terminals
Page
4
■
Ratings and Characteristics
Rated current
Rated voltage
Contact resistance
Insulation resistance
Ambient operating
temperature
3 A (See note 1.)
300 VAC
20 mΩ max. (at 20 mV, 100 mA max.) (See note 2.)
1,000 MΩ min. (at 500 VDC)
■
Cross-sectional View of Terminal
Dielectric strength 650 VAC for 1 min (leakage current: 1 mA max.)
−55
to 105°C (with no icing at low temperature)
0.75 dia.
■
Applicable Sockets
XG8W and XG8B
(Double Row)
Note:
1.
The rated current will depend on the Socket you are us-
ing. It is 1 A using the XG4M for example.
2.
The contact resistance is measured with the Plug mat-
ed to an XG5M-N.
XG4M Flat Cable Connectors
XG4H Board-to-Board Sockets
XG5M-N Discrete-wire IDC Connectors
(Double-row Sockets)
XG5N Discrete-wire crimped Sockets
■
Materials and Finish
Model
Base
Con-
tacts
Mating
end
Terminal
XG8V and XG8W (See note.)
Brass/nickel base, 0.15-μm
gold plating
Brass/nickel base, 2.0-μm
tin plating
XG8A and XG8B
Brass/nickel base, 0.15-
μm
gold plating
Brass/nickel base, 2.0-
μm
tin plating
Fiber-glass reinforced PBT resin (UL94 V-0)/black
Note:
Two types of contacts and mating ends, one with gold
plating and the other with tin plating, are available.
1

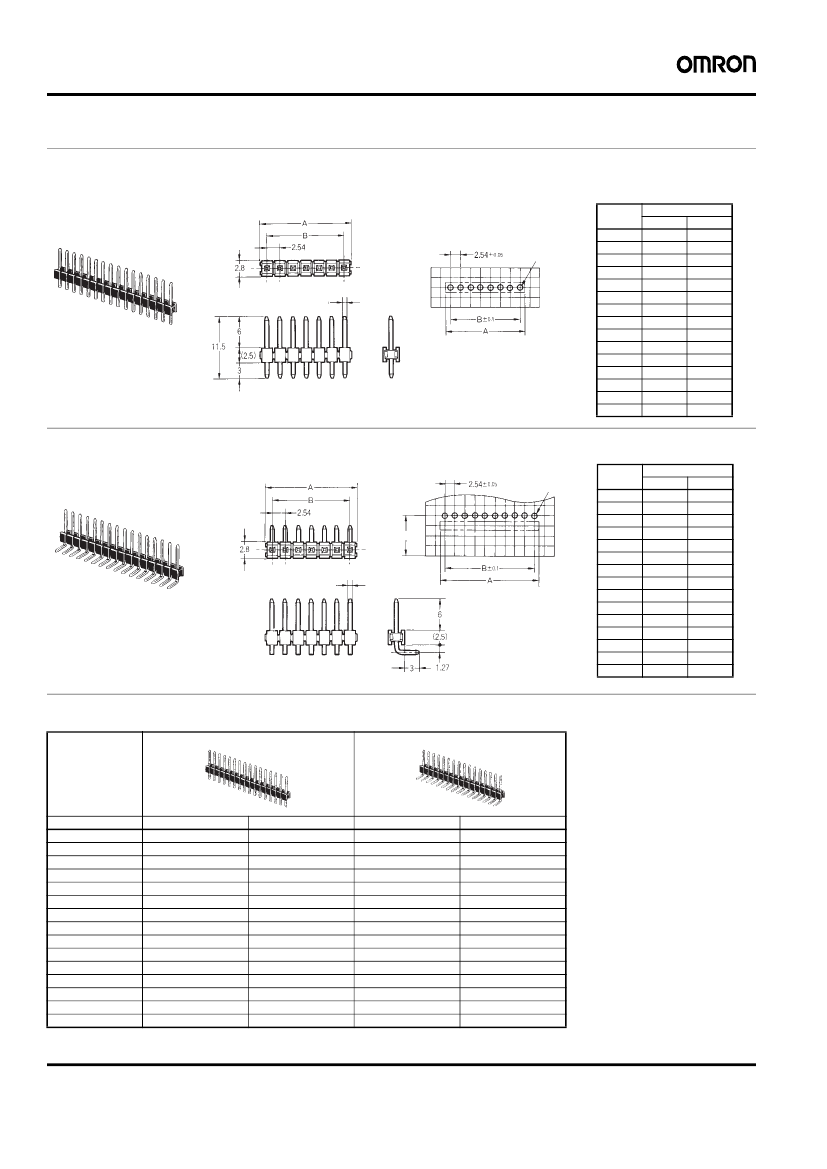

XG8V
Single-row Original Plugs
■
Dimensions
XG8V-@@31
(With gold-plated straight terminals)
XG8V-@@41
(With tin-plated straight terminals)
(Unit: mm)
Dimensions
No. of
contacts
Dimensions (mm)
A
B
5.1
2.54
7.6
5.08
10.2
12.7
15.2
17.8
20.3
25.4
30.5
33.0
38.1
40.6
43.2
50.8
91.4
7.62
10.16
12.70
15.24
17.78
22.86
27.94
30.48
35.56
38.10
40.64
48.26
88.90
Mounting holes (bottom view)
0.8
+0.1
dia.
0
2
3
4
5
6
7
8
10
12
13
15
16
17
20
36
0.635
×
0.635
XG8V-@@34
(With gold-plated right-angle terminals)
XG8V-@@44
(With tin-plated right-angle terminals)
Dimensions
Mounting holes (bottom view)
0.8
+0.1
dia.
0
No. of
contacts
2
3
4
5
6
7
8
10
12
13
15
16
17
20
36
Dimensions (mm)
A
B
5.1
2.54
7.6
5.08
10.2
7.62
12.7
10.16
15.2
12.70
17.8
15.24
20.3
17.78
25.4
22.86
30.5
27.94
33.0
30.48
38.1
35.56
40.6
38.10
43.2
40.64
50.8
48.26
91.4
88.90
4 to 11
0.635
×
0.635
■
Ordering Information
Appearance
Plugs with straight terminals
Plugs with right-angle terminals
No. of contacts
2
3
4
5
6
7
8
10
12
13
15
16
17
20
36
Model (gold plated)
XG8V-0231
XG8V-0331
XG8V-0431
XG8V-0531
XG8V-0631
XG8V-0731
XG8V-0831
XG8V-1031
XG8V-1231
XG8V-1331
XG8V-1531
XG8V-1631
XG8V-1731
XG8V-2031
XG8V-3631
Model (tin plated)
---
XG8V-0341
XG8V-0441
XG8V-0541
XG8V-0641
XG8V-0741
XG8V-0841
XG8V-1041
XG8V-1241
---
---
XG8V-1641
---
XG8V-2041
XG8V-3641
Model (gold plated)
---
XG8V-0334
XG8V-0434
XG8V-0534
XG8V-0634
XG8V-0734
XG8V-0834
XG8V-1034
XG8V-1234
XG8V-1334
XG8V-1534
XG8V-1634
XG8V-1734
XG8V-2034
XG8V-3634
Model (tin plated)
XG8V-0244
XG8V-0344
XG8V-0444
XG8V-0544
XG8V-0644
XG8V-0744
XG8V-0844
XG8V-1044
XG8V-1244
---
---
XG8V-1644
---
XG8V-2044
XG8V-3644
2
Original Plugs

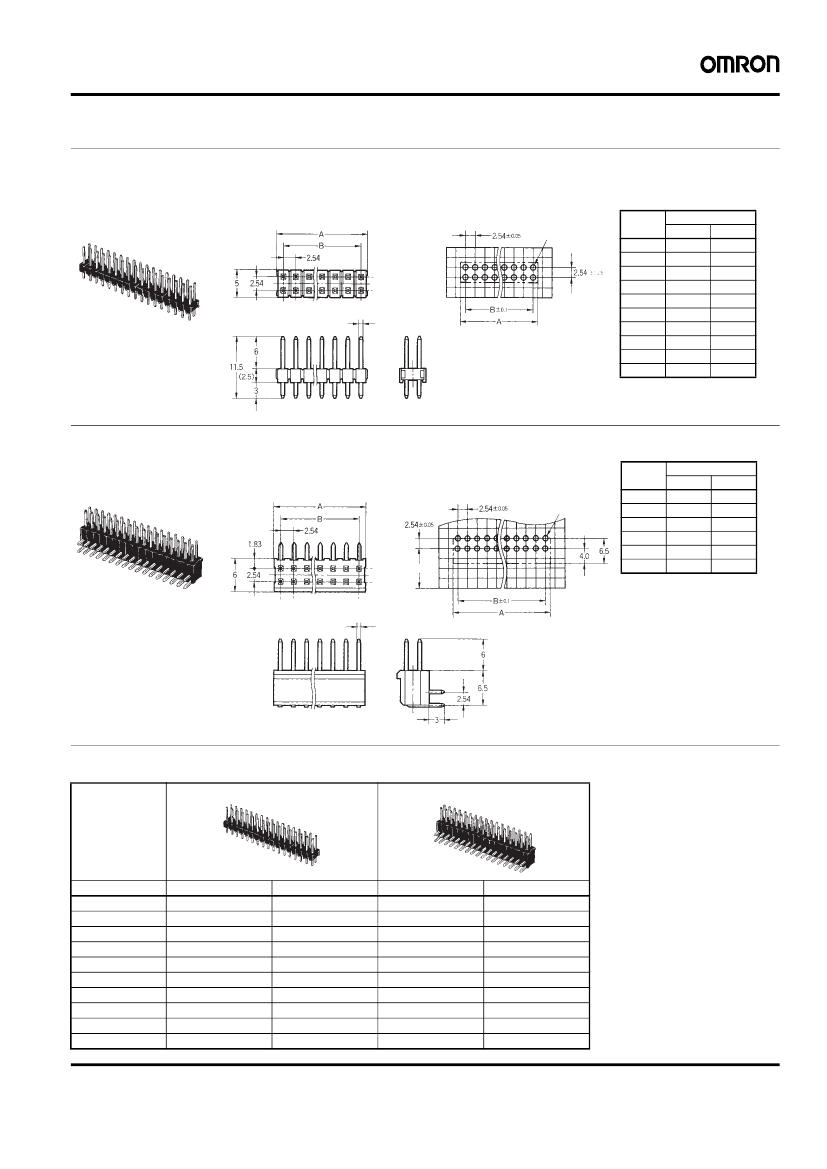

XG8
XG8W
Original Plugs for MIL Connectors
■
Dimensions
XG8W-@@31
(With gold-plated straight terminals)
XG8W-@@41
(With tin plated straight terminals)
(Unit: mm)
Dimensions
Mounting holes (bottom view)
0.8
+0.1
0
No. of
contacts
10
14
16
20
26
30
34
40
50
60
Dimensions (mm)
A
12.7
17.8
20.3
25.4
33.0
38.1
43.2
50.8
63.5
76.2
B
10.16
15.24
17.78
22.86
30.48
35.56
40.64
48.26
60.96
73.66
dia.
0.635
×
0.635
XG8W-@@34
(With gold-plated right-angle terminals)
XG8W-@@44
(With tin-plated right-angle terminals)
Dimensions
No. of
contacts
Dimensions (mm)
A
25.4
33.0
38.1
43.2
50.8
63.5
B
22.86
30.48
35.56
40.64
48.26
60.96
Mounting holes (bottom view)
20
0.8
+0.1
dia.
0
26
30
34
40
50
4 to 11
0.635
×
0.635
■
Ordering Information
Appearance
Plugs with straight terminals
Plugs with right-angle terminals
No. of contacts
10
14
16
20
26
30
34
40
50
60
Model (gold plated)
XG8W-1031
XG8W-1431
XG8W-1631
XG8W-2031
XG8W-2631
XG8W-3031
XG8W-3431
XG8W-4031
XG8W-5031
XG8W-6031
Model (tin plated)
XG8W-1041
XG8W-1441
XG8W-1641
XG8W-2041
XG8W-2641
XG8W-3041
XG8W-3441
XG8W-4041
XG8W-5041
XG8W-6041
Model (gold plated)
---
---
---
XG8W-2034
XG8W-2634
XG8W-3034
XG8W-3434
XG8W-4034
XG8W-5034
---
---
---
---
Model (tin plated)
XG8W-2044
XG8W-2644
XG8W-3044
XG8W-3444
XG8W-4044
XG8W-5044
---
Original Plugs
XG8
3

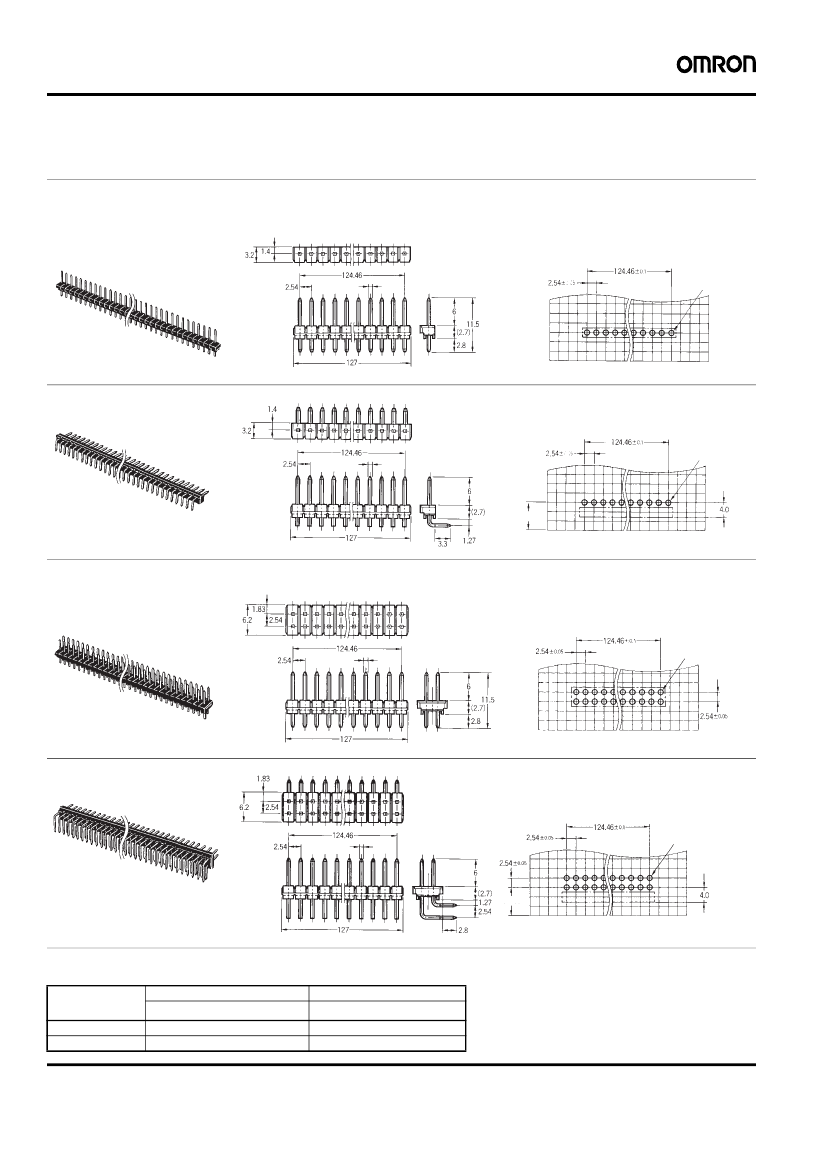

XG8A (Single-row)/XG8B (Double-row)
Original Plugs for MIL Connectors
■
Dimensions
Single-row Plugs
XG8A-5031
(With straight terminals)
0.635
×
0.635
(Unit: mm)
Mounting holes (bottom view)
0.8
+0.1
dia.
0
XG8A-5034
(With right-angle terminals)
Mounting holes (bottom view)
0.635
×
0.635
0.8
+0.1
dia.
0
4 to 11
Double-row Plugs
XG8B-0131
(With straight terminals)
Mounting holes (bottom view)
0.635
×
0.635
0.8
+0.1
dia.
0
XG8B-0134
(With right-angle terminals)
Mounting holes (bottom view)
0.635
×
0.635
0.8
+0.1
dia.
0
4 to 11
■
Ordering Information
Terminal type
No. of contacts
50 (Single-row)
100 (Double-row)
Plugs with straight terminals
Model (gold plated)
XG8A-5031
XG8A-0131
Plugs with right-angle terminals
Model (gold plated)
XG8A-5034
XG8A-0134
4
Original Plugs
XG8
■
Accessories
(Sold Separately)
Lock Levers
XG5Z-0002
Can be used to lock XG8W Double-row
Right-angle Terminal Plugs to XG4M Flat
Cables and XG5M-N Discrete-wire IDC
Connectors.
They cannot be used with XG8W Double-
row Straight Terminal Plugs or XG8V Sin-
gle-row Plugs.
Mounting the Lock Lever
Insert the tab on the Lock Lever into the
hole on a Socket with a polarity guide. In
this way, it can be locked with XG8W Right-
angle Terminal Plugs.
Polarizing guide hole XG4M
XG8
■
Precautions
Correct Use
Dividing the XG8W (with
Straight Terminals), XG8V,
XG8A, and XG8B
•
Using a Cutter, make a cut on the slot as
indicated by the dotted line in the dia-
gram. Then fold the Plug manually in the
direction of the arrows.
Tab
Lock lever
(1) Using a cutter,
make a cut along
the dotted line.
(2) Manually fold in
the direction of the
arrows.
Automated Soldering
Conditions (Jet Flow)
Model
XG5Z-0002
1.
Soldering temperature: 250 ±5°C
2.
Continuous soldering time: Within 5±1 s
■
Ordering
Procedure
•
Contact your OMRON representative if
you require a product with a non-standard
number of contacts.
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product.
•
Consult your OMRON representative before using the product under conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and be sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
