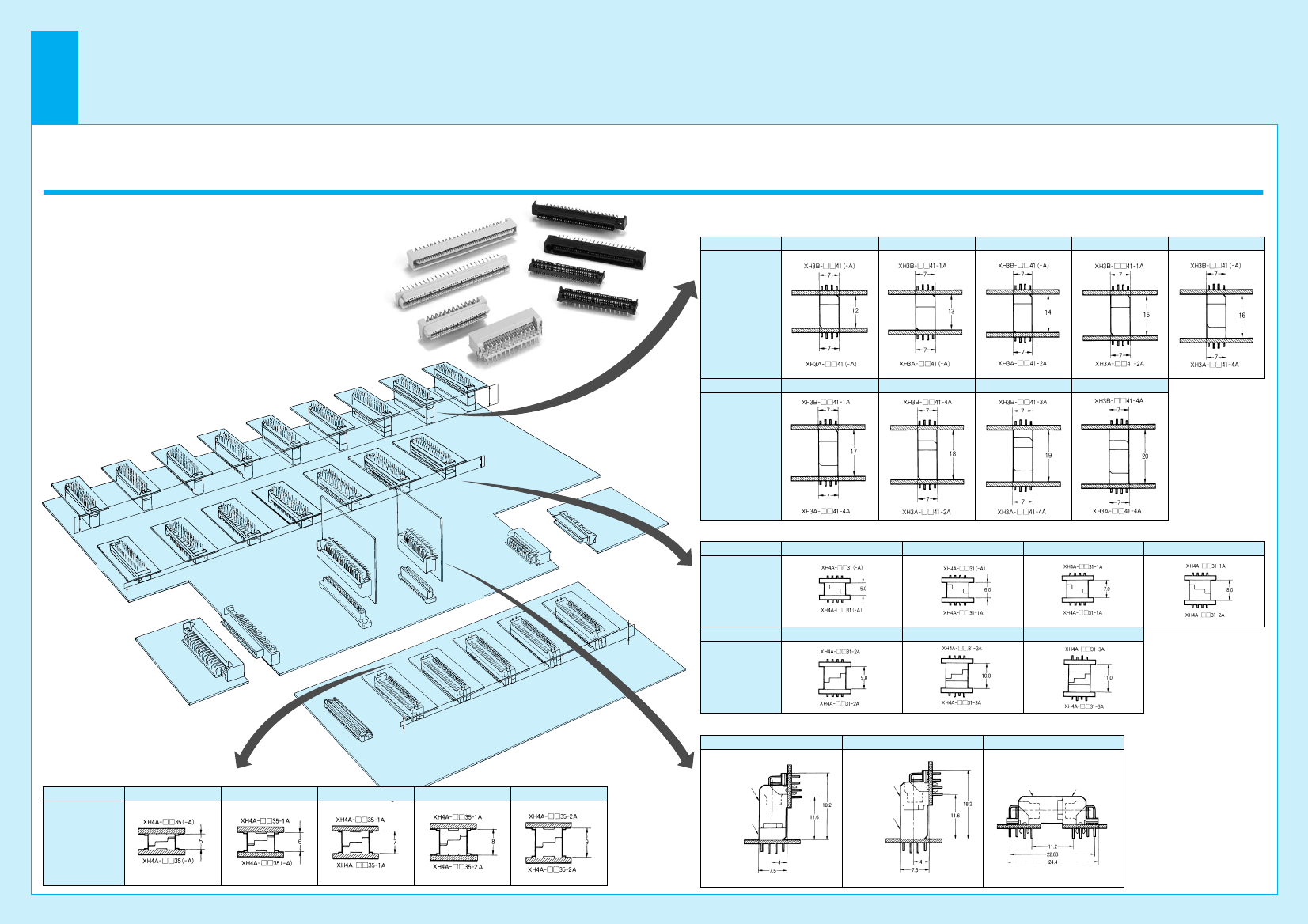

XH3/XH4/XH2
Half-pitch Connectors Series
1.27-mm Contact Pitch
Greatly Contributing to High-density Mounting of Electronic
Components and Miniaturization of Electronic Devices
Stacking heights supported in the range 5 to 20 mm at 1-mm increments.
Leaf contact structure ensures high resistance to twisting force and
smooth connection and disconnection.
XH2/XH3: Au/Pd-plated contacts with an engagement length of 3.1 mm
ensure high contact reliability.
Snap-on terminal for easy connection to the PCB.
Housing with standoff construction for improved soldering quality and
easier cleaning (except 1 and 2-mm increment models).
XH2/XH3/XH4 DIP model: Approved by EN, IEC, UL, and CSA standards.
Product lineup includes fine-fit models that are mounted to PCBs
with ease with no soldering.
Engagement
Stacking Connections
Stacking Height
12 mm
13 mm
14 mm
15 mm
16 mm
Engagement
Stacking Examples
DIP Models
Stacking Height
20 mm
17 mm
18 mm
19 mm
20 mm
11 mm
XH3
Engagement
12 mm
XH3
(with no
finger ends)
Stacking Connections (Straight Terminal)
Stacking Height
5 mm
6 mm
7 mm
8 mm
XH4A
5 mm
XH3
(with no finger ends)
XH2
(with finger ends)
Engagement
Stacking Height
9 mm
9 mm
10 mm
11 mm
XH2 (with finger ends)
Engagement
5 mm
Vertical/Horizontal/Stacking
Vertical (Standard) (See note.)
Vertical (Reverse)
Horizontal
XH4A SMT Terminal
SMT Model
8 mm
9 mm
XH3A-
Plug
42-A
XH3B-
Socket
XH3A-
Plug
42-A
XH3A-
Plug
42-A
XH3B-
Socket
2-A
Stacking Connections (Surface Mount Terminal)
Stacking Height
5 mm
6 mm
7 mm
XH3B-
Socket
41
41
Engagement
11
12
XH3/XH4/XH2
Half-pitch Connectors Series

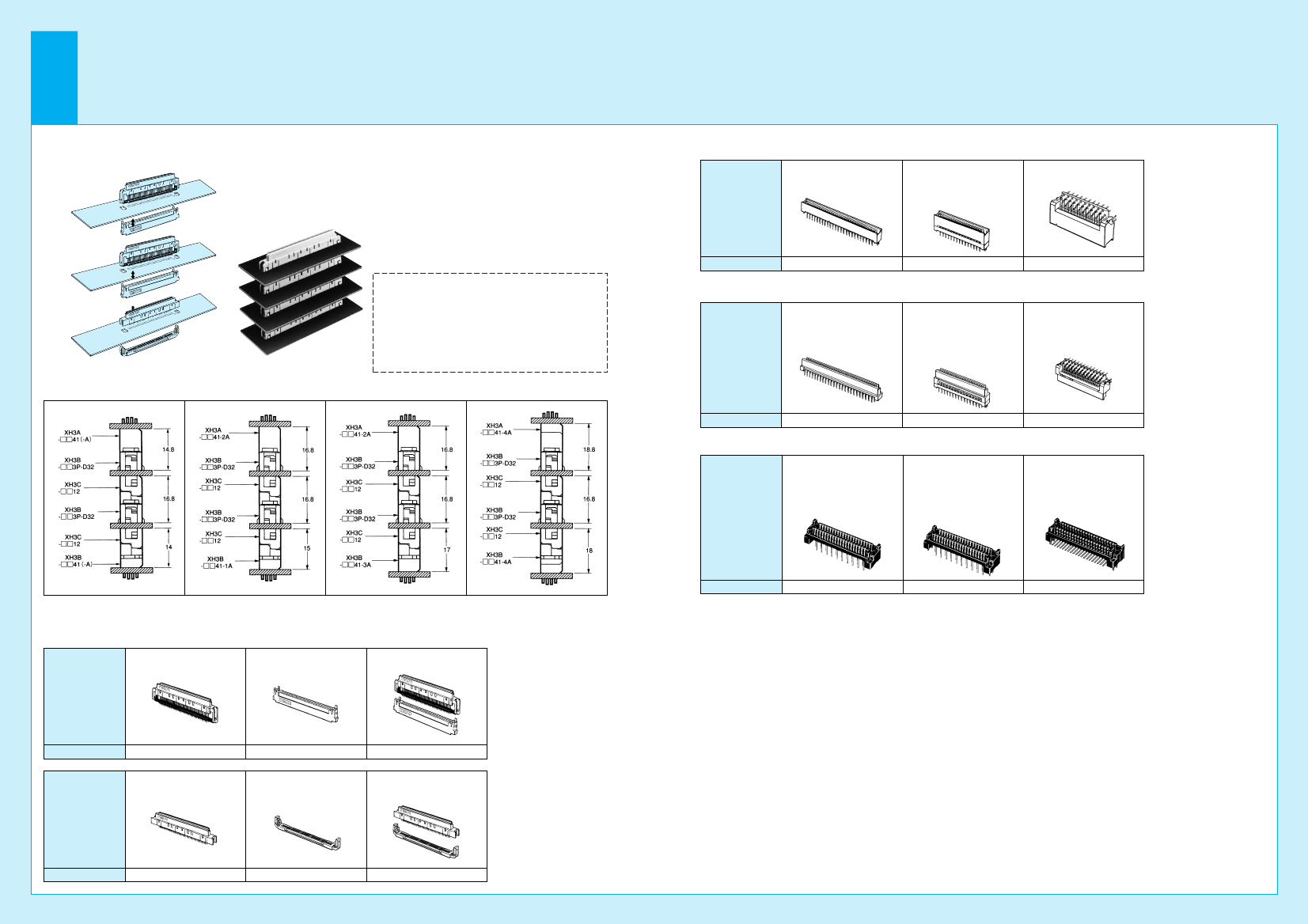

Connection Examples
Multi-tier Stacking of Fine-fit Models
XH3 Half-pitch Connectors (Board-to-Board Connection)
Plugs
Plug with Straight terminal
XH3A-
41
XH3A-
41-A
Plug with Straight terminal
(models with stacking height
adjustable in 2 or 4-mm increments)
XH3A-
41-2A
XH3A-
41-4A
Plug with Right angle terminal
XH3A-
42-A
Shape
Number of contacts
20,30,40,50,60,68,80,100,120
20,30,40,50,60,68,80,100,120
30,40,50,60,68,80,100
Fine Fit
The term " fine fit " (generally known as " press fit " ) refers to the
technique where the connector terminal are pressed into the
through holes of the PCB to connect the PCB and connector
electrically and mechanically with the spring pressure of the
terminal.
The connector is connected with no solder, eliminating the
soldering stage usually required with connectors. Furthermore
the PCB is free of thermal load or flux, thus contributing to cost
reductions and improvements in contact reliability.
Sockets
Socket with Straight terminal
XH3B-
41
XH3B-
41-A
Socket with Right angle terminal
Socket with Straight terminal
(models with stacking height adjustable (Provided with Lock Terminal)
XH3B-
in 1, 3, or 4-mm increments)
42-A
XH3B-
41-1A
XH3B-
41-3A
XH3B-
41-4A
Shape
Engagement
Stacking Fine-fit Plain Models with Straight Terminal
Number of contacts
20,30,40,50,60,68,80,100,120
20,30,40,50,60,68,80,100,120
30,40,50,60,68,80,100
XH4 Half-pitch Connectors (Low-profile Stacking Connection)
Half-pitch Connector with
Straight terminal
XH4A-
31
Half-pitch Connector with Straight terminal
(models other than standard models with stacking
height adjustable in 1, 2, or 3-mm increments)
XH4A-
31-A
XH4A-
31-1A
XH4A-
31-2A
XH4A-
31-3A
Half-pitch Connector with SMT
(models other than standard models with stacking
height adjustable in 1 or 2-mm increments)
XH4A-
35-A
XH4A-
35-1A
XH4A-
35-2A
Shape
Number of contacts
40,50,60,80,100
40,50,60,80,100
40,50,60,80,100
Ordering Information
XH3 Half-pitch Connectors (Fine-fit and Stacking Connection)
Socket (Backplane Model)
XH3B-013P-D32
Housing (Backplane Model)
XH3C-0112
Set model
XH3B-013P-D32-C
Shape
Number of contacts
100
Connector with socket and
short terminal
XH3B-013P-D5F
100
Cover for short terminal
XH3S-0111
100
Set model
XH3B-013P-D5F-S
Shape
Number of contacts
100
100
100
13
14
