SIG-21-S2.3: DescriptionPush-On Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size156KB，1 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

SIG-21-S2.3 Overview

Push-On Terminal, ROHS COMPLIANT

SIG-21-S2.3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	SIG
terminal gender	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL
Wire gauge	18 AWG

Preview

Download Datasheet

View All

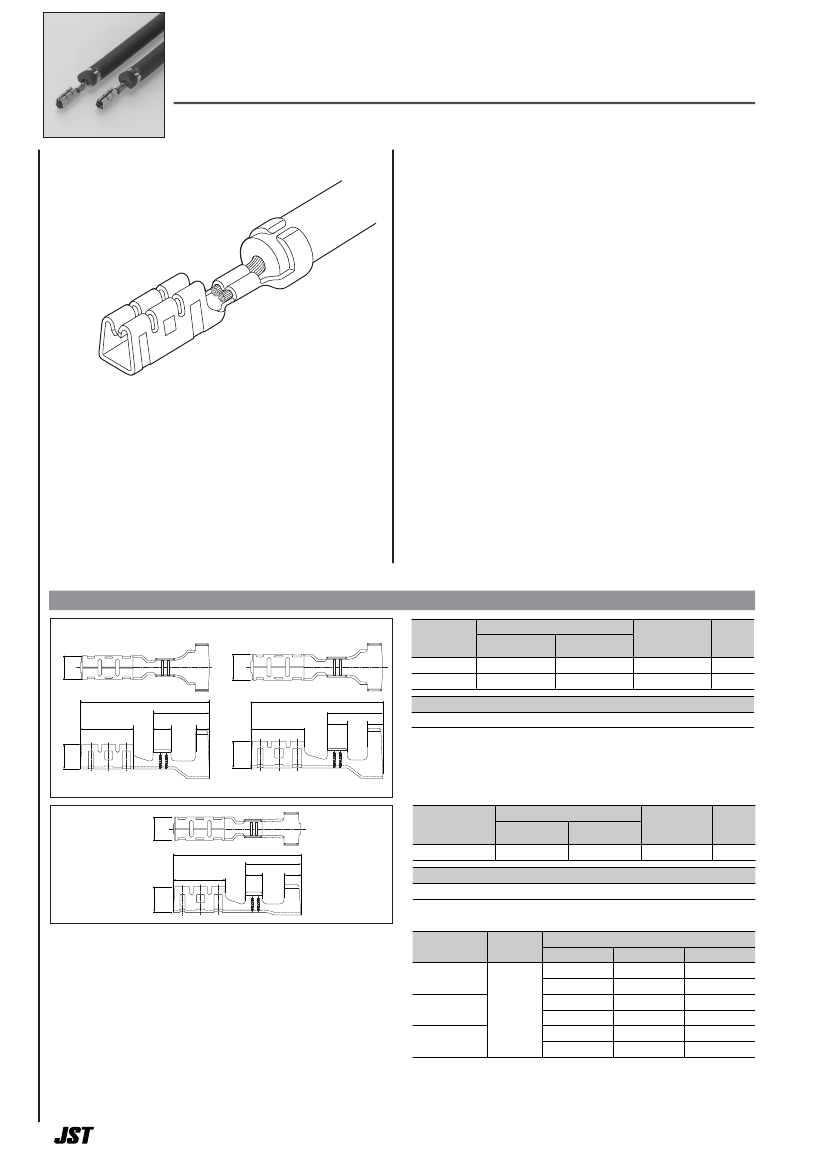

CONNECTOR

Specifications –––––––––––––––––––

320mA AC, DC (Stainless steel)

5A AC, DC (Copper alloy)

• Voltage rating: 23KV AC, DC (Stainless steel)

200V AC, DC (Copper alloy)

• Temperature range: -20˚C to +200˚C (including temperature rise in

applying electrical current) (Stainless steel)

-20˚C to +150˚C (including temperature rise

in applying electrical current) (Copper alloy)

• Contact resistance: Initial value/100m

Ω

max.

After environmental testing/150m

Ω

max.

• Applicable wire: AWG #22 to #18

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

• Current rating:

This is to connect ignition plug (size 2.0mm

dia.) of the Hot Water Supply and Heater.

• Easy connection

• Reliable contact resistance

• Excellent durability

Contact

SIG-21-S2.0

3.35

SIG-21-S2.3

3.6

Applicable wire

Model No.

SIG-21-S2.0

SIG-21-S2.3

18.2

Applicable wire

0.3∼0.89

AWG#

22∼18

Insulation O.D.

(mm)

3.5∼5.5

Q´ty /

reel

4,000

7.9

7.3

2.55

1.9

7.3

7.7

2.55

1.8

Material

Stainless steel

RoHS compliance

3.5

3.8

Applicable wire

3.35

Model No.

7.9

7.3

2.55

2.3

AWG#

22∼18

Insulation O.D.

(mm)

1.2∼3.5

Q´ty /

reel

4,000

SIG-21T-M2.0T

0.3∼0.89

Material and Finish

Copper alloy, tin-plated (reflow treatment)

3.5

RoHS compliance

Applicator

Crimp applicator

MK-L-SPS

―

MK-L-SPS

AP-K2N

―

MK-L-SPS

―

Contact

SIG-21-S2.0

SIG-21-S2.3

SIG-21T-M2.0T

Crimping

machine

Dies

MK/SIG-21-S20

―

MK/SIG-21-S20

―

MK/SIG-21-20T

―

Crimp applicator with dies

APLMK SIG21-S20

―

APLMK SIG21-S20

―

APLMK SIG21-20T

―

SIG-21-S2.3 Related Products

	SIG-21-S2.3	SIG-21-S2.0	SIG-21T-M2.0T
Description	Push-On Terminal, ROHS COMPLIANT	Push-On Terminal, ROHS COMPLIANT	Push-On Terminal, 0.89mm2, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	JST	JST	JST
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Manufacturer's serial number	SIG	SIG	SIG
terminal gender	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	PUSH-ON TERMINAL	PUSH-ON TERMINAL	PUSH-ON TERMINAL
Wire gauge	18 AWG	18 AWG	18 AWG
