BTS410G2E-3062A datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> BTS410G2E-3062A

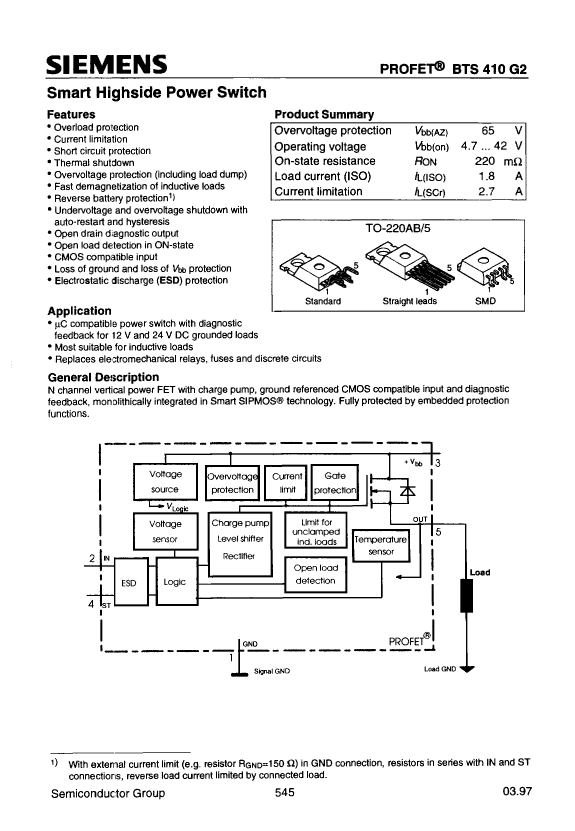

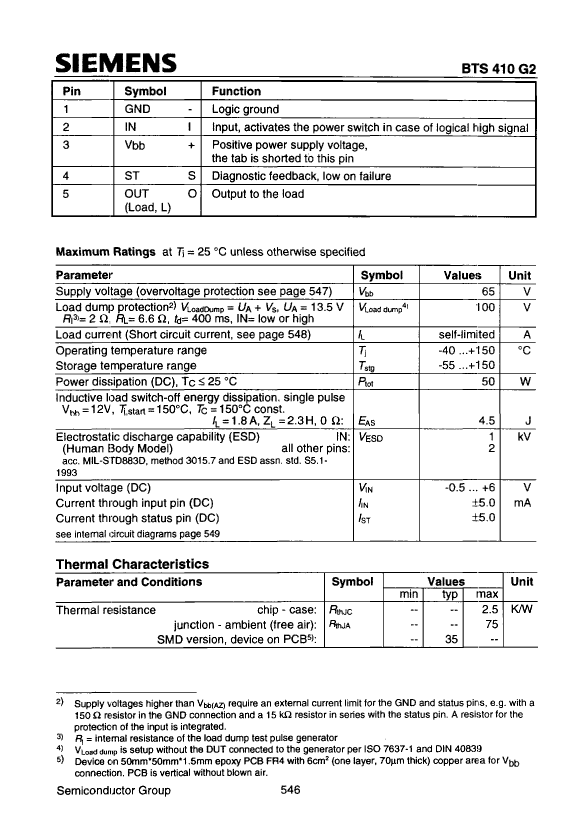

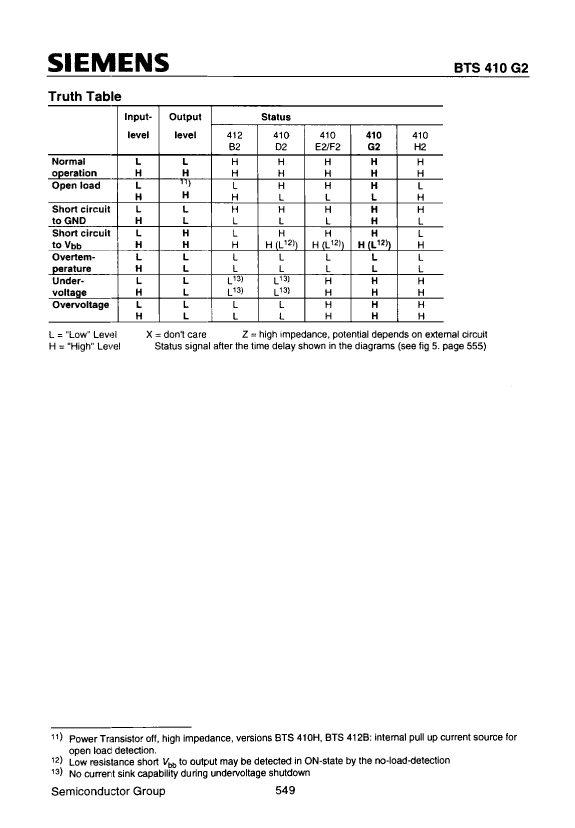

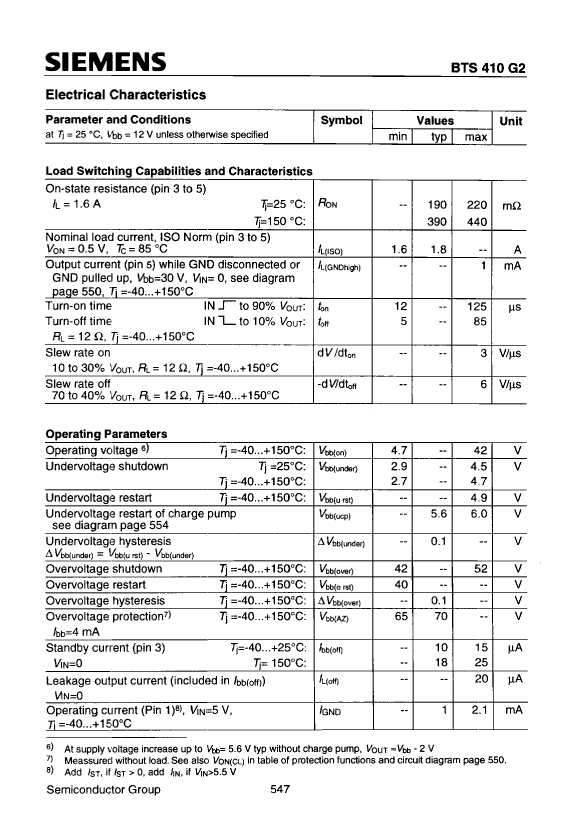

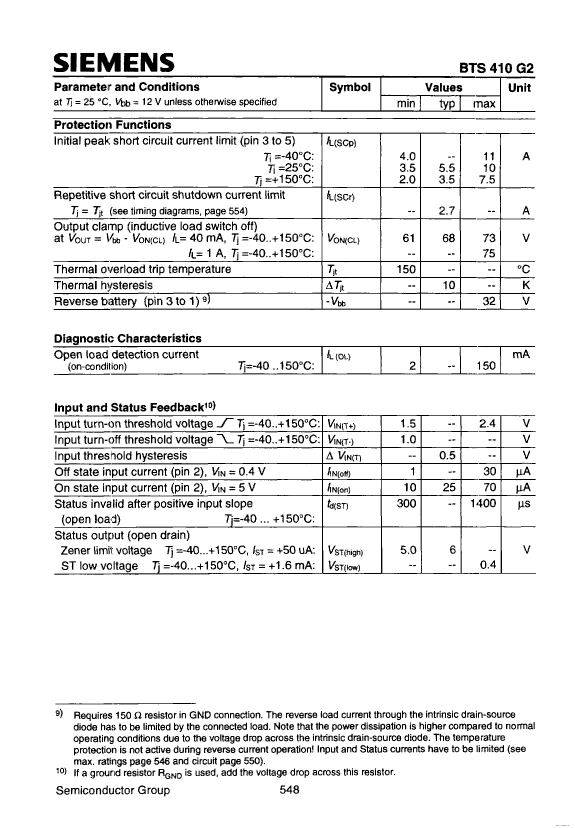

BTS410G2E-3062A: Description5.5A BUF OR INV BASED PRPHL DRVR, PSSO4, TO-220AB, 5 PIN; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size312KB，13 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BTS410G2E-3062A Overview

5.5A BUF OR INV BASED PRPHL DRVR, PSSO4, TO-220AB, 5 PIN

BTS410G2E-3062A Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	TO-220AB
package instruction	TO-220AB, 5 PIN
Contacts	3
Reach Compliance Code	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSSO-G4
Number of functions	1
Number of terminals	4
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	5.5 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	2.1 mA
Maximum supply voltage	42 V
Minimum supply voltage	4.7 V
Nominal supply voltage	12 V
surface mount	YES
technology	MOS
Terminal form	GULL WING
Terminal location	SINGLE
Disconnect time	85 µs
connection time	125 µs

Preview

Download Datasheet

View All

BTS410G2E-3062A Related Products

	BTS410G2E-3062A	BTS410G2E3062A	BTS410G2E3043	BTS410G2E-3043
Description	5.5A BUF OR INV BASED PRPHL DRVR, PSSO4, TO-220AB, 5 PIN	Buffer/Inverter Based Peripheral Driver, 5.5A, MOS, PSSO4, TO-220AB, 5 PIN	Buffer/Inverter Based Peripheral Driver, 5.5A, MOS, PSFM5, STRAIGHT, TO-220AB, 5 PIN	5.5A BUF OR INV BASED PRPHL DRVR, PSFM5, STRAIGHT, TO-220AB, 5 PIN
Maker	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Parts packaging code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSSO-G4	R-PSSO-G4	R-PSFM-T5	R-PSFM-T5
Number of functions	1	1	1	1
Number of terminals	4	4	5	5
Output characteristics	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE	SOURCE	SOURCE
Nominal output peak current	5.5 A	5.5 A	5.5 A	5.5 A
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	2.1 mA	2.1 mA	2.1 mA	2.1 mA
Maximum supply voltage	42 V	42 V	42 V	42 V
Minimum supply voltage	4.7 V	4.7 V	4.7 V	4.7 V
Nominal supply voltage	12 V	12 V	12 V	12 V
surface mount	YES	YES	NO	NO
technology	MOS	MOS	MOS	MOS
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Disconnect time	85 µs	85 µs	85 µs	85 µs
connection time	125 µs	125 µs	125 µs	125 µs
