SFH309P2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SFH309P2

SFH309P2: DescriptionPHOTOTRANSISTOR,NPN,860NM PEAK WAVELENGTH,15M,LED-2H; CategoryLED optoelectronic/LED photoelectric; File Size229KB，6 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric Compare View All

SFH309P2 Overview

PHOTOTRANSISTOR,NPN,860NM PEAK WAVELENGTH,15M,LED-2H

SFH309P2 Parametric

Parameter Name	Attribute value
Maker	Osram Opto Semiconductor
Reach Compliance Code	unknown
Maximum dark power	200 nA
Installation features	THROUGH HOLE MOUNT
Maximum on-state current	0.015 A
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
peak wavelength	860 nm
Maximum power dissipation	0.165 W
Maximum response time	0.000005 s
surface mount	NO

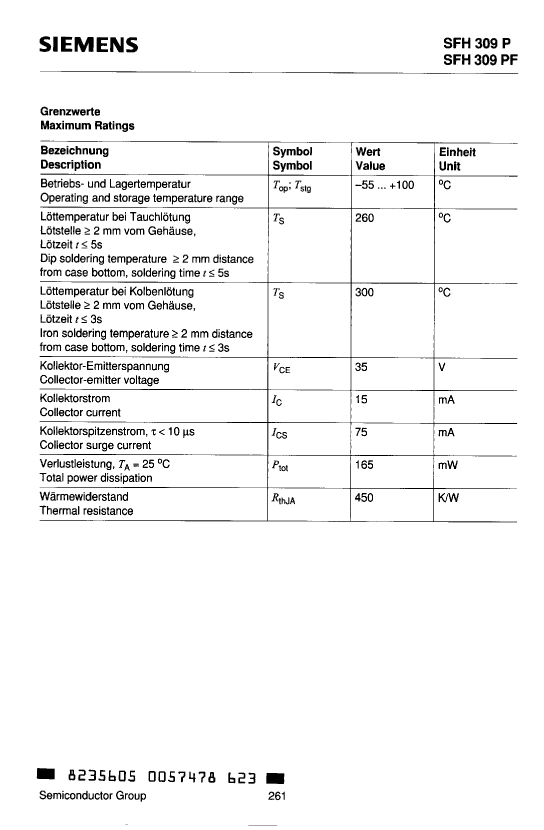

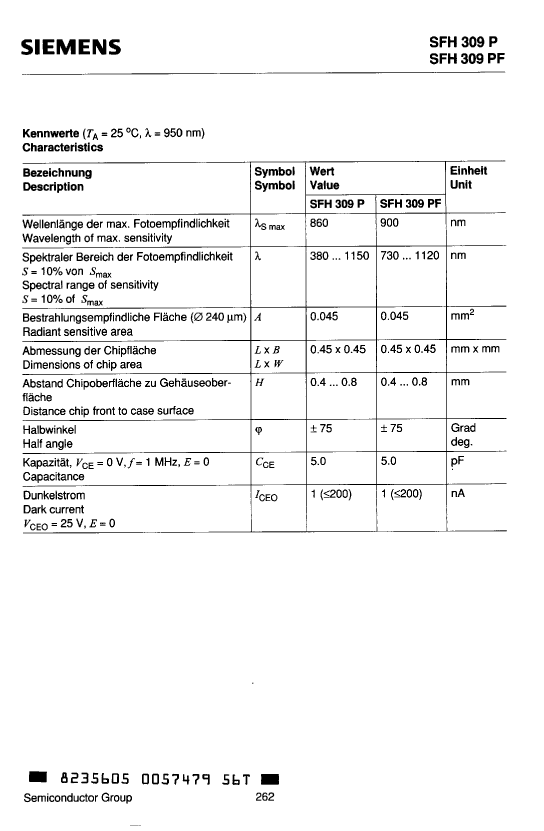

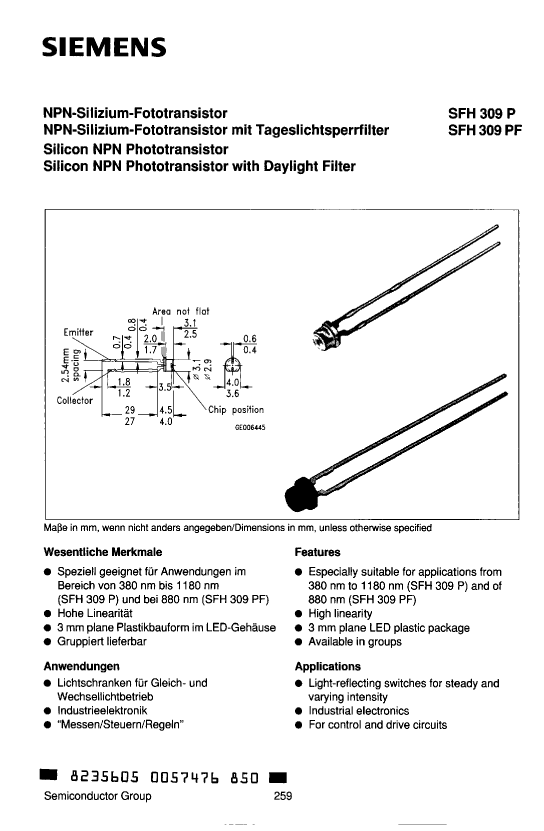

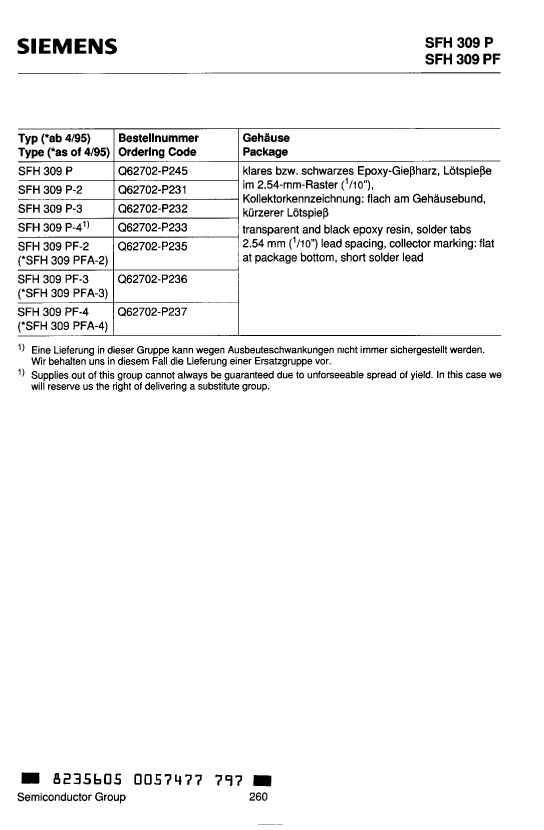

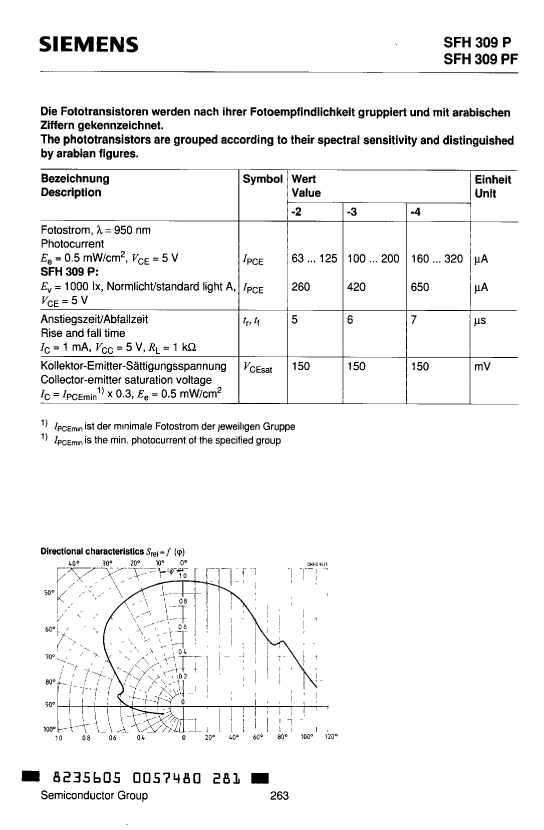

Preview

Download Datasheet

View All

SFH309P2 Related Products

	SFH309P2	SFH309PF2	SFH309P4	SFH309P3	SFH309PF4	SFH309PFA2	SFH309PFA4	SFH309PFA3	SFH309PF3
Description	PHOTOTRANSISTOR,NPN,860NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,860NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,860NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H	PHOTOTRANSISTOR,NPN,900NM PEAK WAVELENGTH,15M,LED-2H
Maker	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor	Osram Opto Semiconductor
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum dark power	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA	200 nA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum on-state current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
peak wavelength	860 nm	900 nm	860 nm	860 nm	900 nm	900 nm	900 nm	900 nm	900 nm
Maximum power dissipation	0.165 W	0.165 W	0.165 W	0.165 W	0.165 W	0.165 W	0.165 W	0.165 W	0.165 W
Maximum response time	0.000005 s	0.000005 s	0.000007 s	0.000006 s	0.000007 s	0.000005 s	0.000007 s	0.000006 s	0.000006 s
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
