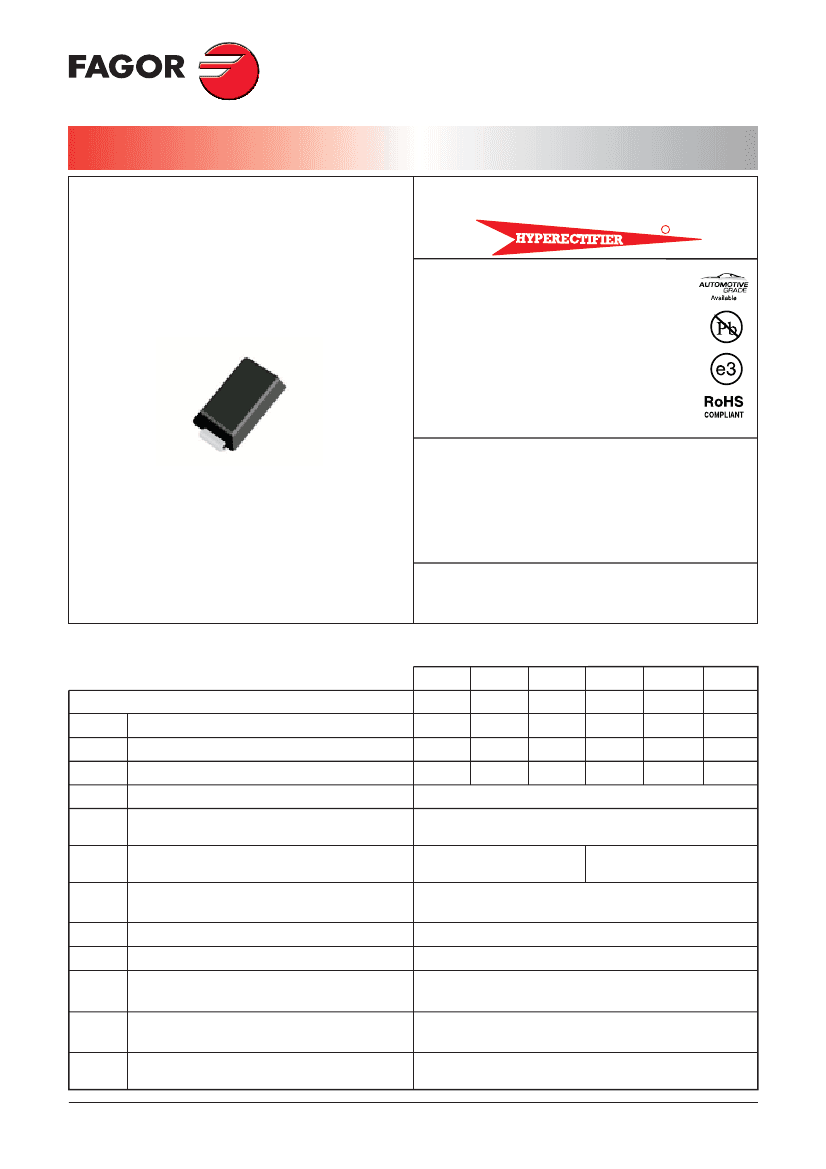

FES1A........FES1J
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier
Voltage
50 to 600 V
DO-214AC (SMA)
Current
1.0 A
R
FEATURES
Low profile package
Ideal for automated placement
Ultrafast recovery time for high efficiency
Low power losses
Low forward voltage drop
High forward surge current capability
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
DO-214AC (SMA). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
HE3
suffix
for high reliability grade, meets JESD 201
class 2 whisker test.
TYPICAL APPLICATIONS
Used in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
Maximun Ratings and Electrical Characteristics at 25°C
FES1A
FES1B
U2
FES1D
U3
FES1F
U4
FES1G
U5
FES1J
U6
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
T
rr
C
j
R
th (j-c)
R
th (j-a)
T
j
- T
stg
E
RSM
Maximum Recurrent Peak Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Forward current at T
C
= 110 °C
8.3 ms. peak forward surge current
(Jedec Method)
U1
50
35
50
100
70
100
200
140
200
1.0 A
30 A
300
210
300
400
280
400
600
420
600
Maximum Instantaneous Forward
Voltage at 1.0A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
0.95 V
Tj = 25 °C
Tj = 100 °C
5 µA
100 µA
50 ns
8 pF
27 °C/W
75 °C/W
-55 to + 150 °C
20 mJ
1.25 V
Maximum Reverse Recovery Time (0.5/1/0.25A)
Typical Junction Capacitance (1MHz; -4V)
Maximum Thermal Resistance
(5x5 mm
2
x 130 µ Copper Area)
Operating Junction and Storage
Temperature Range
Maximum non repetitive peak reverse
Avalanche Energy Tj = 25°C, I
(BR)R
= 1A
www.fagorelectronica.com
Document Name: fes1
Version: Jan-13
Page Number: 1/4

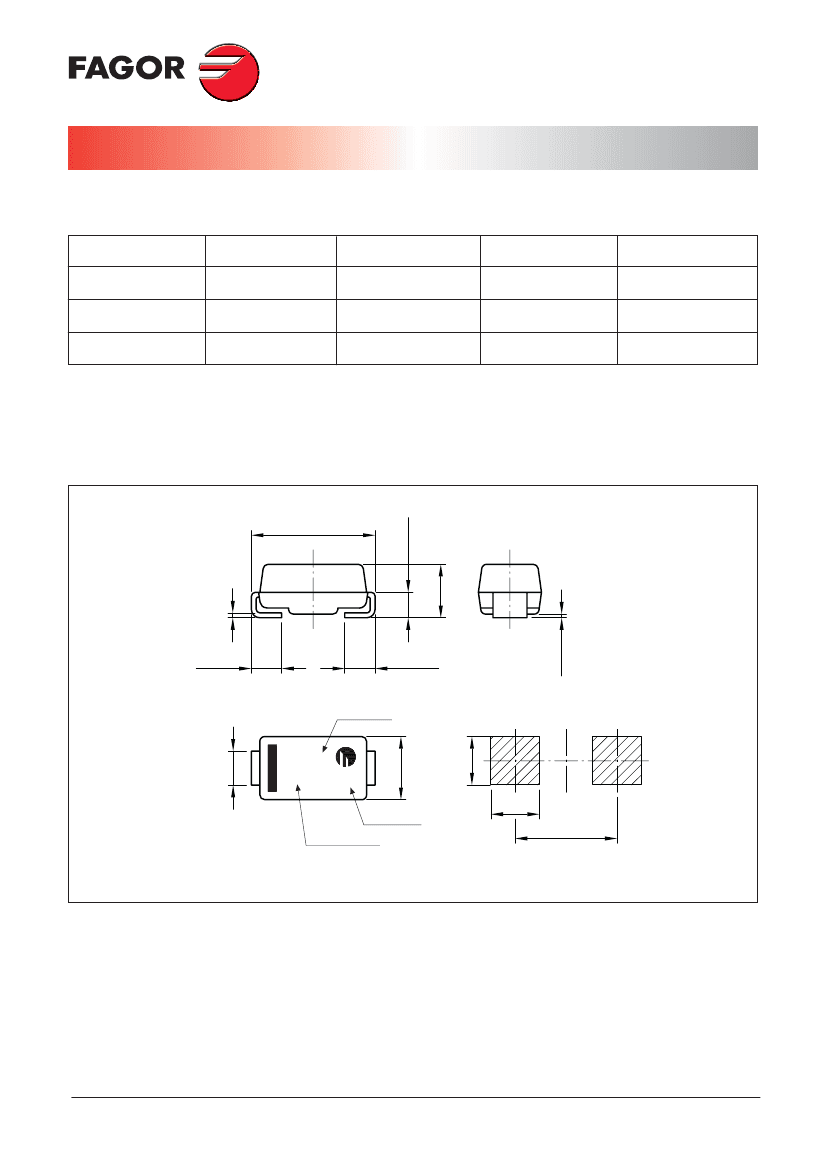

FES1A........FES1J
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier

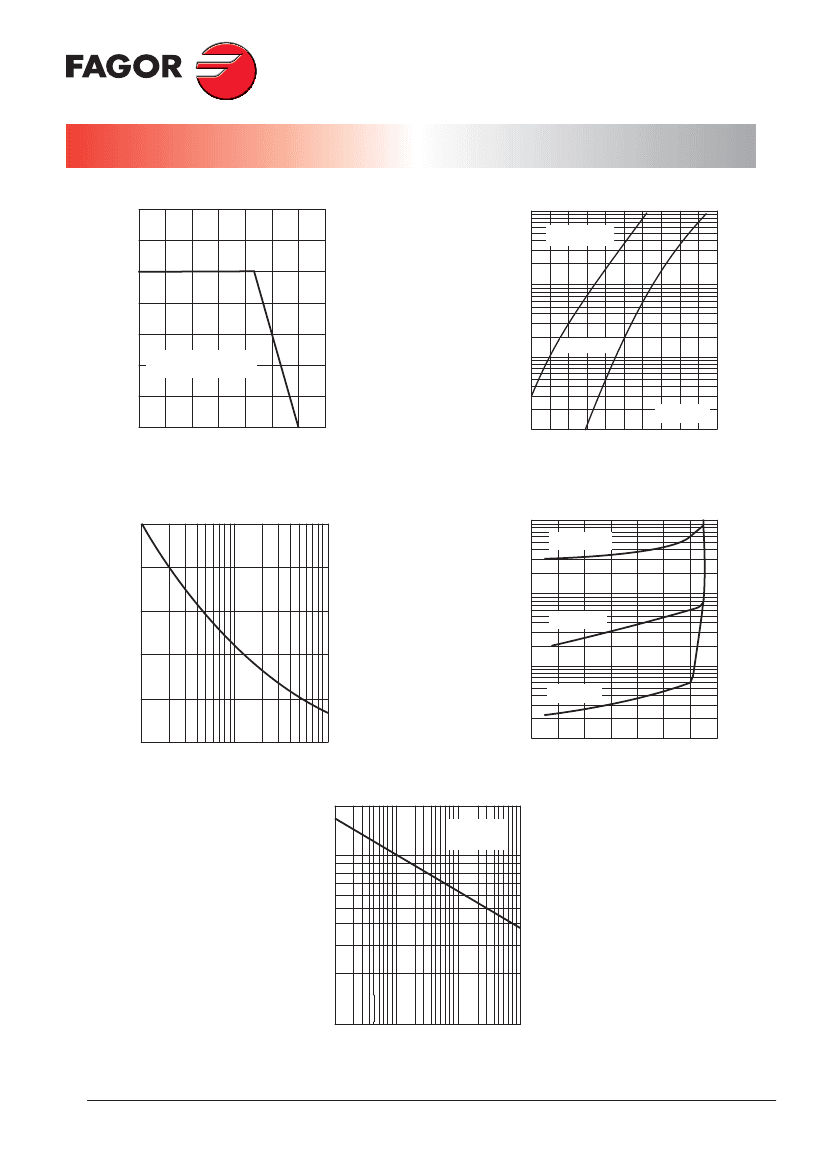

FORWARD CURRENT DERATING CURVE
1.4
TYPICAL FORWARD CHARACTERISTIC
10
I
F(AV)
, average forward rectified current (A)
I
F
, instantaneous forward current (A)
1.2
1
0.8
0.6
0.4
0.2
0
5x5mm
2
x 130
m
Thick Copper Land Areas
FES1A....1D
2
1
0.2
0.1
FES1F....1J
0
25
50
75 100 125 150 175
0.01
0.6
T = 25 ºC
j
0.8
1
1.2
1.4
1.6
Lead temperature (ºC)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
30
V
F
, instantaneous forward
voltage (V)
TYPICAL REVERSE CHARACTERISTIC
10
T j = 125 ºC
I
FSM
, peak forward surge current (A)
I
R
, Reverse current (mA)
25
20
15
10
5
1
T j = 75 ºC
0.1
T j = 25 ºC
0.01
1
2 4
6
10
20
40
100
TYPICAL JUNCTION
CAPACITANCE
Tj = 25 ºC
f = 1 MHz
20
40
60
80 100 120
Number of cycles at 60 Hz
20
Percent of rated peak
reverse voltage
C
j
, junction capacitance (pF)
10
8
6
4
2
1
0.1
0.4 1.0
4
10
40 100
V
R
, reverse voltage (V)
www.fagorelectronica.com
Document Name: fes1
Version: Jan-13
Page Number: 3/4
FES1A........FES1J
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier
