PT150KN16 datasheet, PDF - EEWORLD Datasheet

PT150KN16: Description150Ａ Avg 1600 Ｖolts; File Size97KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet View All

PT150KN16 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PT150KN16	-	-	View	Buy Now

PT150KN16 Overview

150Ａ Avg 1600 Ｖolts

Preview

Download Datasheet

View All

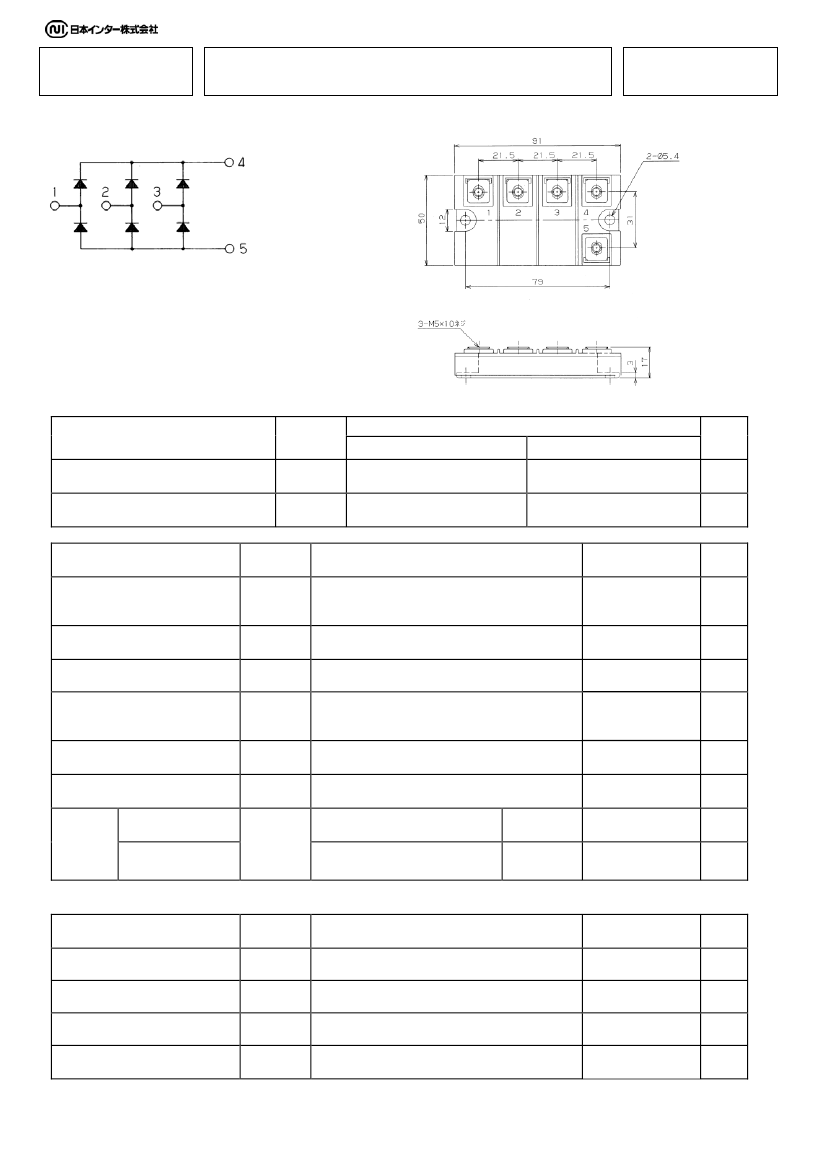

ＤＩＯＤＥ

■回路図

CIRCUIT

150Ａ Avg 16００Ｖolts

■外½寸法図

OUTLINE DRAWING

PT150KN16

Dimension:［mm½

■最大定格

Ｍaximum Ratings

項目

Parameter

くり返しピーク逆電圧

Repetitive Peak Reverse Voltage

非くり返しピーク逆電圧

Non Repetitive Peak Reverse Voltage

項目

Parameter

平均出力電流

Average Rectified

Output Current

サージ順電流

Surge Forward Current

電流二乗時間積

I Squared t

動½接合温度範囲

Operating Junction

Temperature Range

保存温度範囲

Storage Temperature Range

絶縁耐圧

Isolation Voltage

ベース部

締付トルク

Mounting

主端子部

Torque

Terminal

記号

Symbol

RRM

RSM

耐圧クラス

Grade

PT150KN16

1600

1700

単

Unit

記号

Symbol

(AV)

FSM

Tjw

Tstg

Viso

条件

Conditions

三相全波整流

Tc=Tt=113℃

3-Phase Full Wave Rectified

(Tc：測定点チップ直下／Tt：Terminal)

50Hz

正弦半波，1 ½½½ﾙ，非くり返し

Half Sine Wave, 1Pulse, Non-Repetitive

2∼10ms

定格値

Max.Rated Value

150

1200

7200

-40

∼

+150

-40

∼

+125

単

Unit

℃

N・m

Ｆ

端子−ベース間，AC

分間

Terminal to Base, AC 1min.

½½ﾏﾙ½ﾝﾊﾟ½ﾝﾄﾞ塗布

Greased

2500

2.4

∼

2.8

2.4

∼

2.8

■電気的特性

Electrical Characteristics

項目

Parameter

ピーク逆電流

Peak Reverse Current

ピーク順電圧

Peak Forward Voltage

熱抵抗

Thermal Resistance

接触熱抵抗

Thermal Resistance

質量 −−− 約

210g

Approximate Weight

記号

Symbol

Rth(j-c)

Rth(c-f)

条件

Conditions

Tj=150℃，V

RRM

Tj= 25℃，I

=150A

特性値（最大）

Maximum Value

1.40

単

Unit

℃/W

接合部−ケース間（ﾄ½ﾀﾙ：Tc 測定点ﾁ½ﾌﾟ直下）

0.06

Junction to Case, Total

ケース−フィン間（ﾄ½ﾀﾙ），½½ﾏﾙ½ﾝﾊﾟ½ﾝﾄﾞ塗布

0.06

Case to Fin, Total, Greased

*1：１アーム½りの値 Value Per 1 Arm.
