Datasheet> All Categories > storage> storage> N541512SO-15

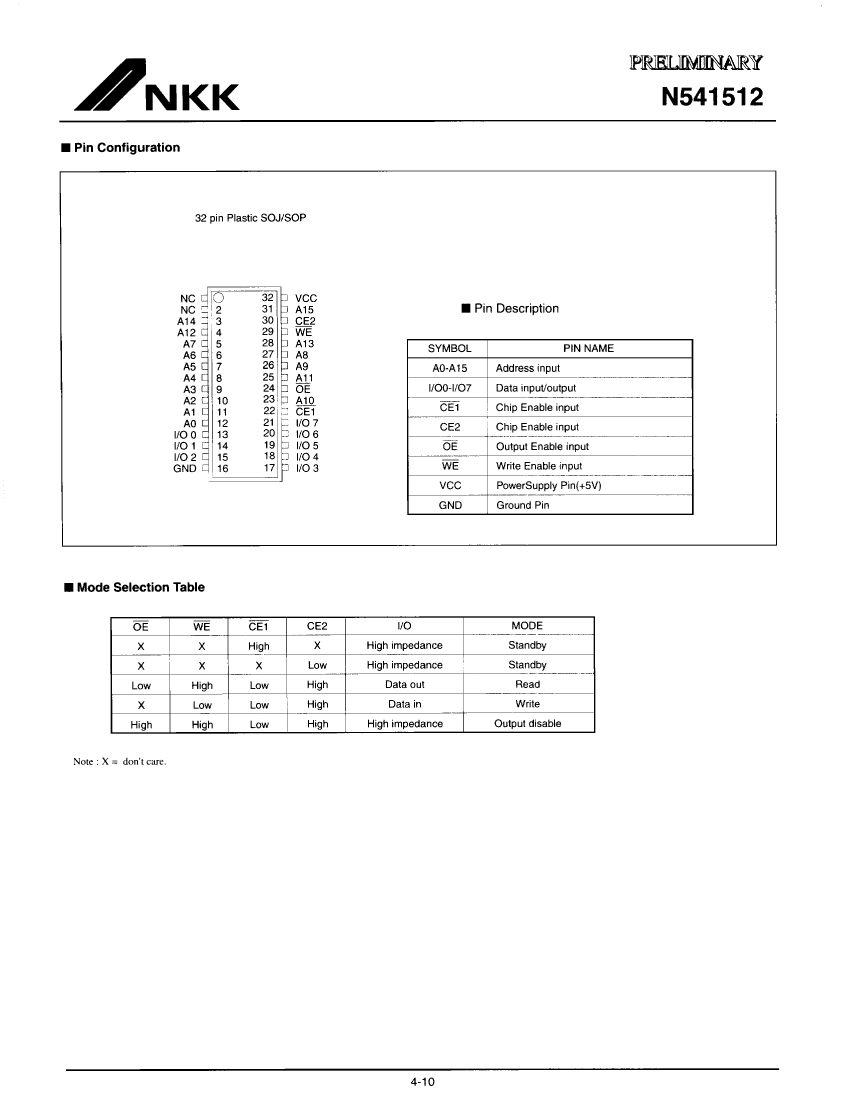

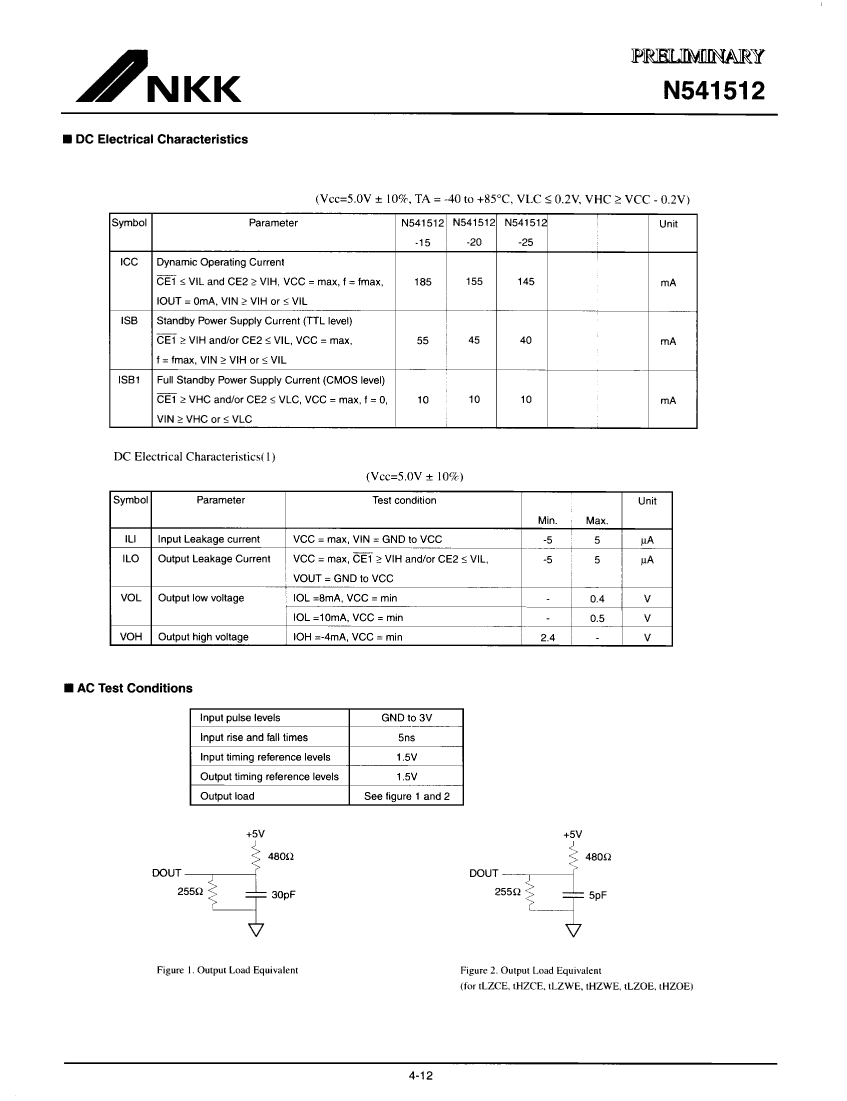

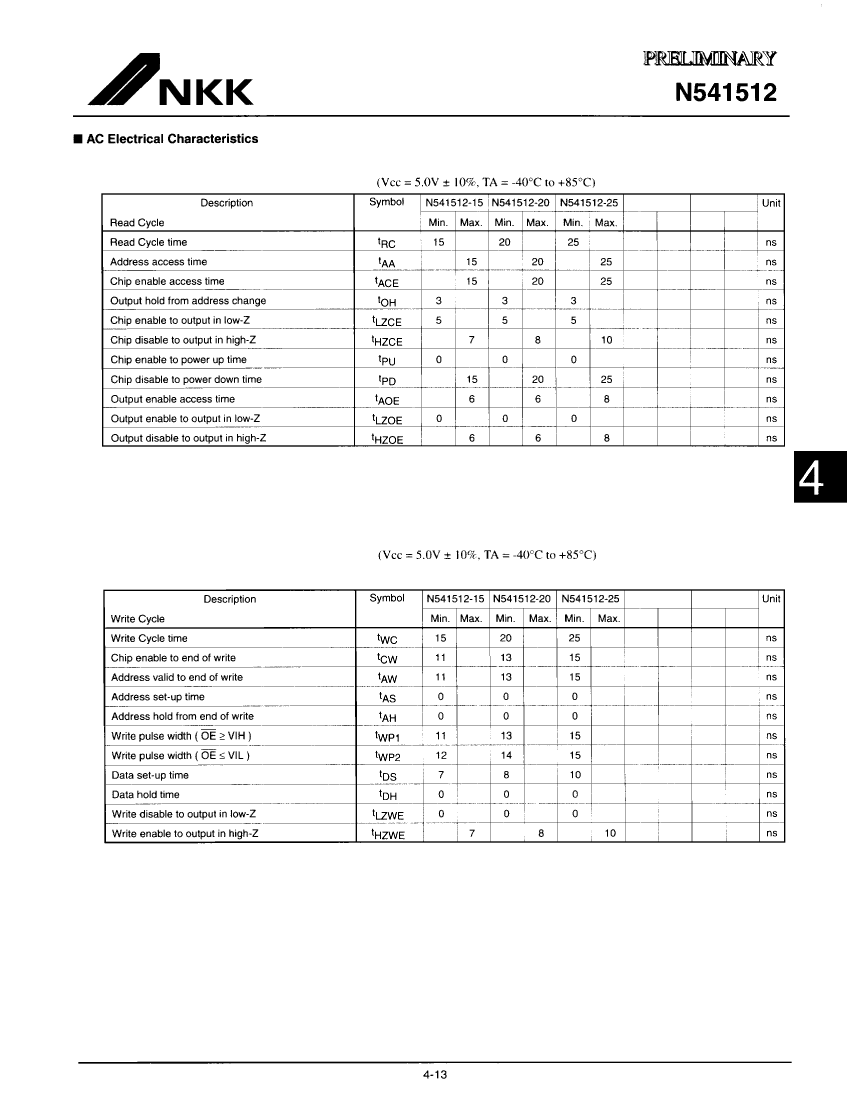

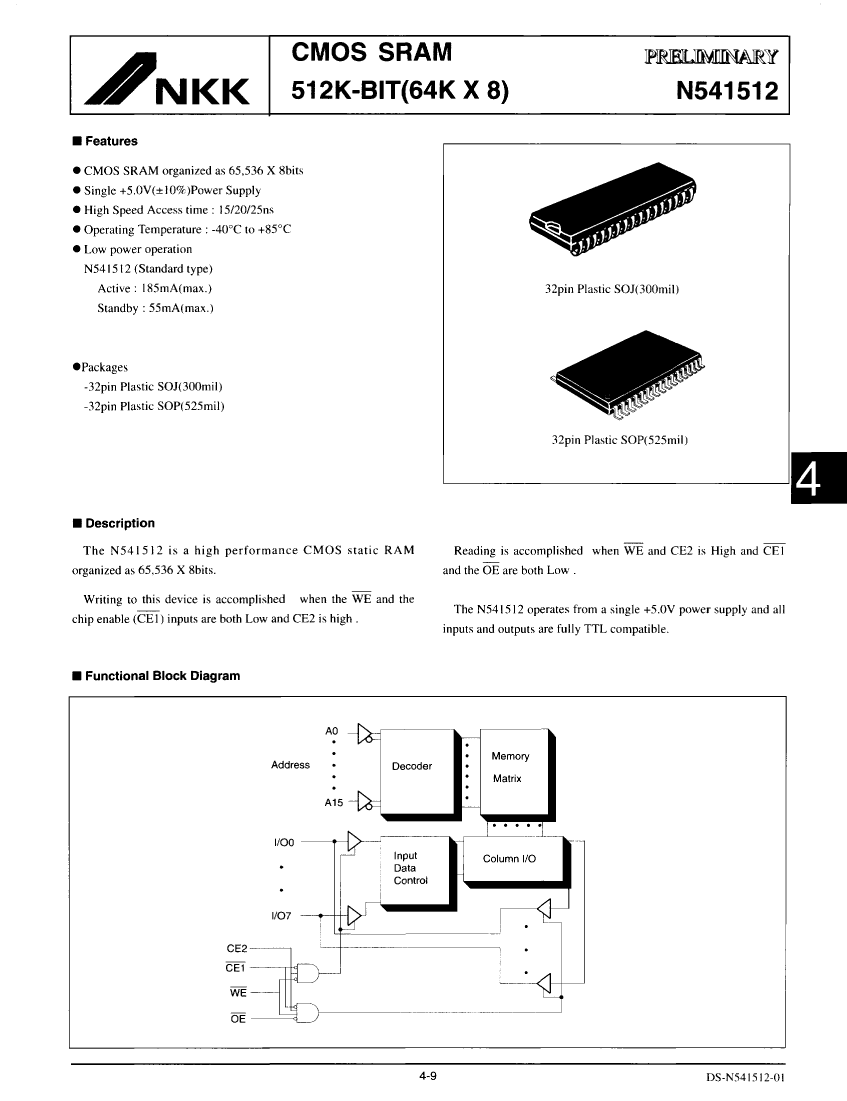

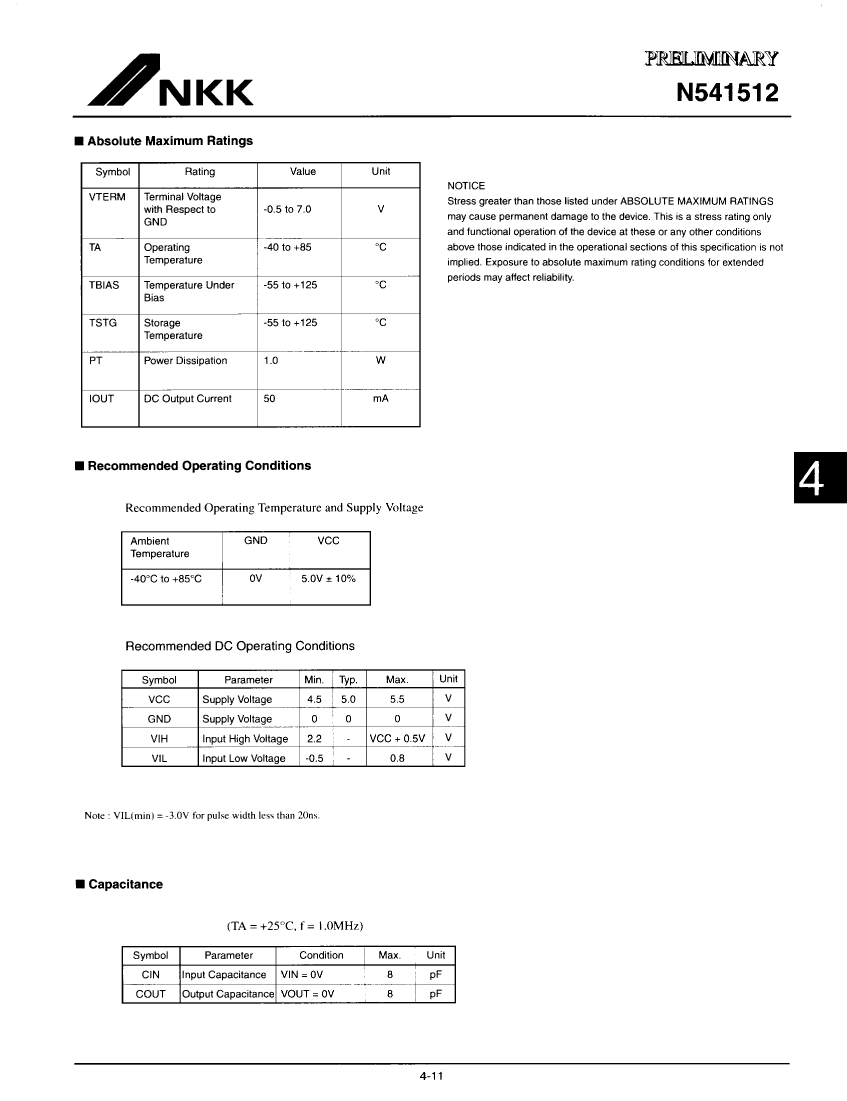

Preview

N541512SO-15: DescriptionStandard SRAM, 64KX8, 15ns, CMOS, PDSO32; Categorystorage storage; File Size179KB，8 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric Compare View All

N541512SO-15 Overview

Standard SRAM, 64KX8, 15ns, CMOS, PDSO32

N541512SO-15 Parametric

Parameter Name	Attribute value
Maker	NDK
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	15 ns
JESD-30 code	R-PDSO-G32
memory density	524288 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

N541512SO-15 Related Products

	N541512SO-15	N541512SO-25	N541512SO-20	N541512SJ-15	N541512SJ-25	N541512SJ-20
Description	Standard SRAM, 64KX8, 15ns, CMOS, PDSO32	Standard SRAM, 64KX8, 25ns, CMOS, PDSO32	Standard SRAM, 64KX8, 20ns, CMOS, PDSO32	Standard SRAM, 64KX8, 15ns, CMOS, PDSO32	Standard SRAM, 64KX8, 25ns, CMOS, PDSO32	Standard SRAM, 64KX8, 20ns, CMOS, PDSO32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.B	EAR99	3A991.B.2.B	3A991.B.2.B	EAR99	3A991.B.2.B
Maximum access time	15 ns	25 ns	20 ns	15 ns	25 ns	20 ns
JESD-30 code	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32	R-PDSO-J32	R-PDSO-J32	R-PDSO-J32
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	NDK	-	NDK	NDK	NDK	NDK
