PLL Synthesizer
Product Features
• PLL + VCO+ Rom + TCXO Type
• Excellent Phase Noise
• Low Spurious
• Surface Mount Package
• RF Frequency up to 5.8GHz
• Internal Crystal Reference Clock
(-30°C~+80°C:2.5ppm Tolerance )
PLA Series
• Pb Free / RoHS Compliant
Package Type : PS-16 / PS-26
PS-32 / PS-42
Application
• Wireless Communication System
• Base Station
• Cable Telephone, TV
• Others Wireless Communication System

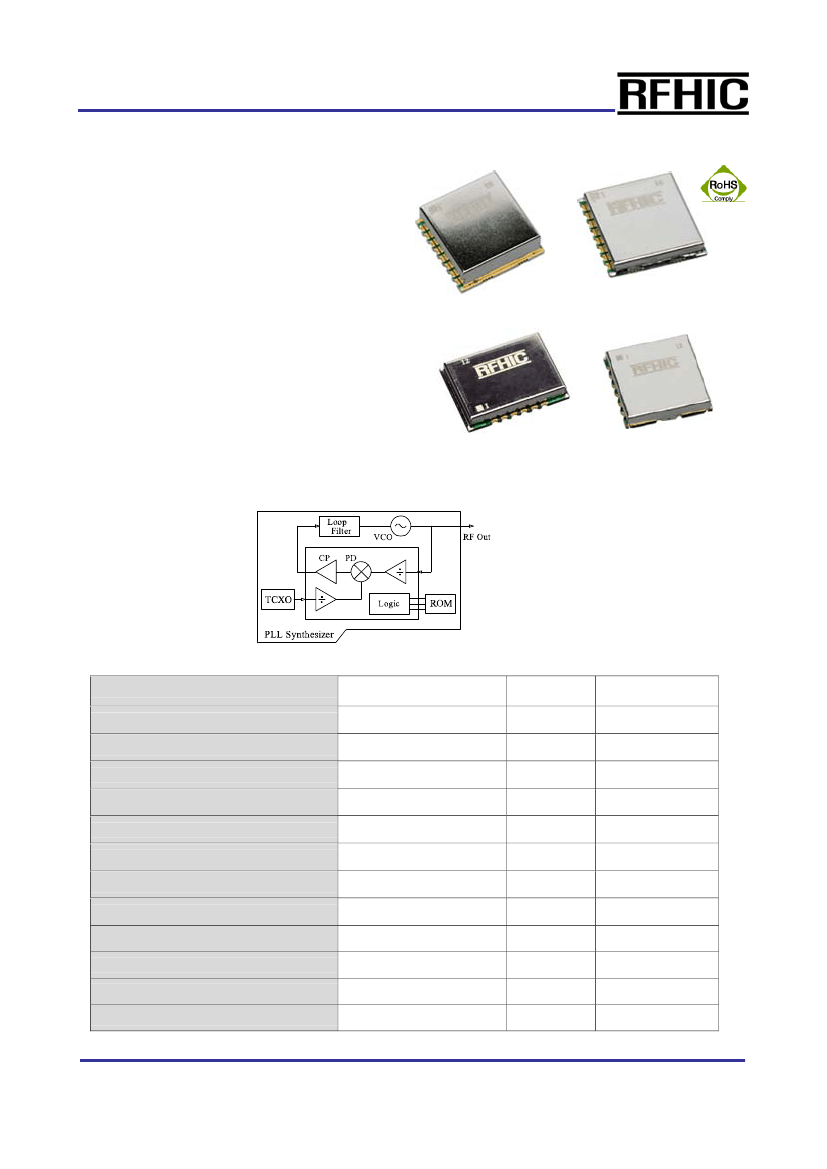

Series View
•
A
: TCXO, ROM included
Test Configuration
Specifications
PARAMETER
Storage Temperature
Operating Temperature
Frequency
Supply Voltage VCC (PLL) / VCC (VCO)
Reference Frequency
Channel Step
Output Power
Current Consumption
Spurious
Lock Time
Phase Noise
Output Impedance
(Operating Temperature:-30°C~+80°C)
SPECIFICATION
-40 ~ +85
-30 ~ +80
10 ~ 5800
3 ~5
5 ~ 40
10 ~ 10000
-3 ~ +7
40
-70
0.1 ~ 30
-105
50
UNIT
°C
°C
MHz
V
MHz
KHz
dBm
mA / Max
dBc / Max
ms
dBc/Hz
Ω
CONDITION
@ 10 KHz Offset
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.2
PLL Synthesizer

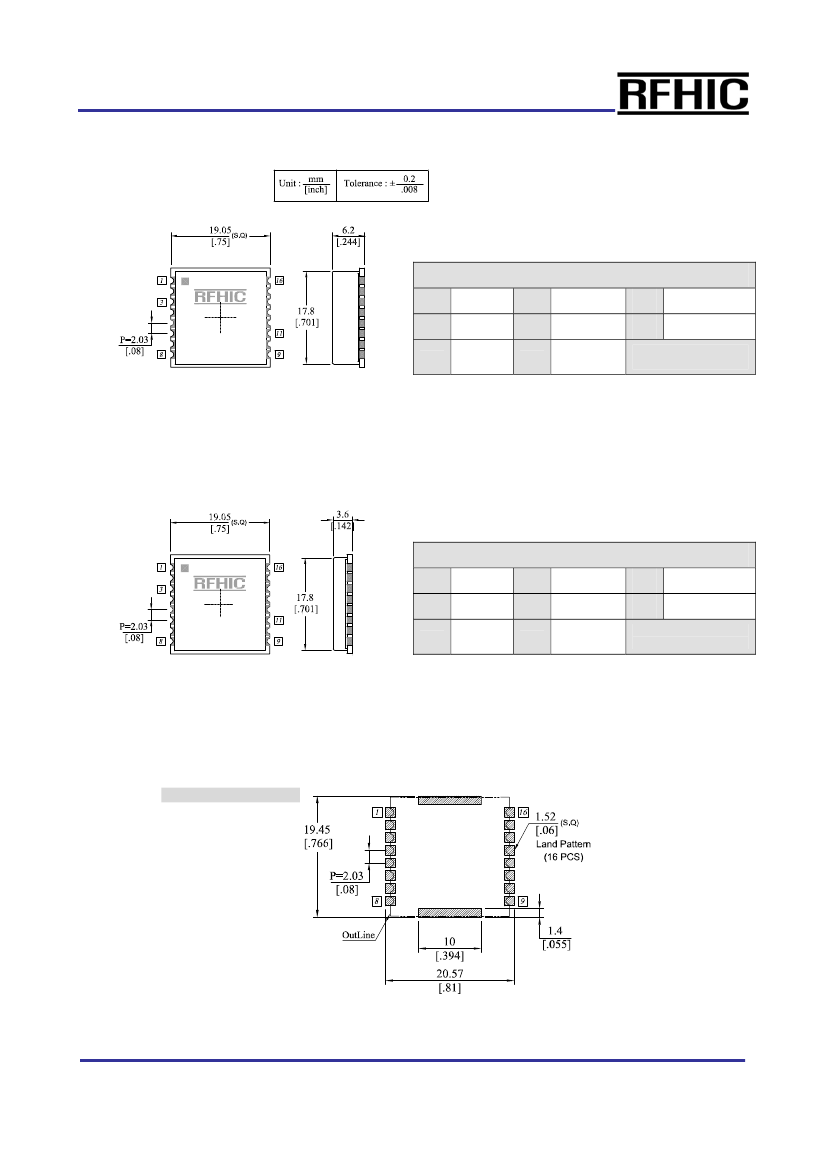

Package Dimensions
PS-16 type
PLA Series
PLV Series Pin Assignment
1
4
15
Clock
Ref. IN
VCC
(PLL)
2
9
16
Data
VCC(VCO)
Lock
Detect
3
13
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
PS-26 Type
PLV Series Pin Assignment
1
4
15
Clock
Ref. IN
VCC
(PLL)
2
9
16
Data
VCC(VCO)
Lock
Detect
3
13
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
Recommended Pattern
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.2
PLL Synthesizer

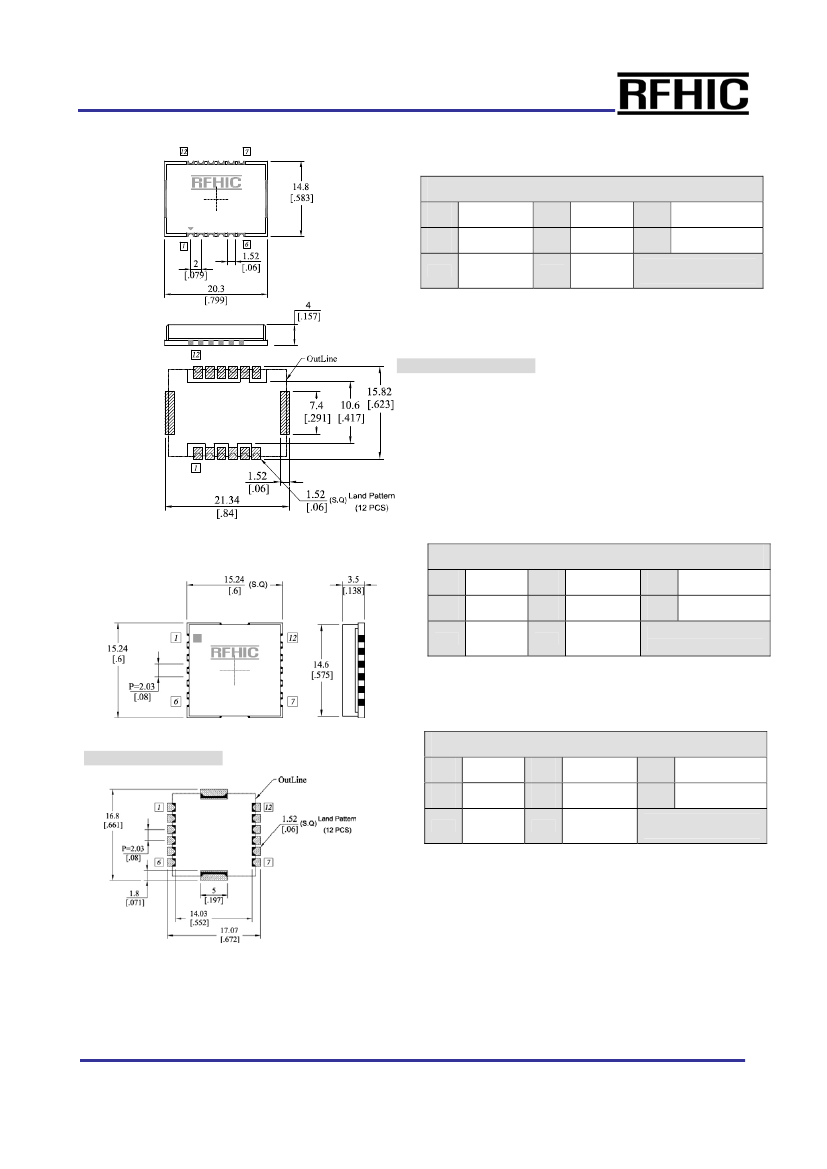

PS-32 type
PLA Series
PLV Series Pin Assignment
1
7
11
VCC(PLL)
RF Out
Data
3
9
12
Ref. IN
LD
Enable
5
10
VCC(VCO)
Clock
All other pins
are GND
Recommended Pattern
PS-42 type
PLV-K Series Pin Assignment
1
4
11
Clock
Ref. IN
VCC
(PLL)
2
7
12
Data
VCC(VCO)
Lock
Detect
3
10
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
Recommended Pattern
PLV-S Series Pin Assignment
1
4
11
Clock
Ref. IN
Lock
Detect
2
7
12
Data
VCC(VCO)
VCC(PLL)
3
9
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
RFHIC Corporation (RFHIC) reserves the right to make changes to any products herein or to discontinue any product at any time without notice. RFHIC do not
assume any liability for the suitability of its products for any particular purpose, and disclaims any and all liability, including without limitation consequential or
incidental damages. The product specifications herein expressed have been carefully checked and are assumed to be reliable. However, RFHIC disclaims liability for
inaccuracies and strongly recommends buyers to verify that the information they are using is current before placing purchase orders. RFHIC products are not
intended for use in life support equipment or application where malfunction of the product can be expected to result in personal injury or death. Buyer uses or sells
such products for any such unintended or unauthorized application, buyer shall indemnify, protect and hold RFHIC and its directors, officers, stockholders,
employees, representatives and distributors harmless against any and all claims arising out of such use. RFHIC’s liability under or arising out of damages, claims of
whatsoever kind and nature which RFHIC products could cause shall be limited in amount to the net purchase price of the products sold to buyer by RFHIC
.
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.2
