Radial Leaded PPTC
FRA Series
FEATURES
•Low hold current, Solid state, Radial-leaded product ideal
for up to 120VDC/120VAC
•Application: Wide variety of electronic equipment
•Operation Current: 100mA ~ 3.75A
•Maximum Voltage: 120VDC/120/VAC
•Temperature Range: -40°C to 85°C
RoHS
ü
ALSO SEE FRV AND FRVL SERIES
ELECTRICAL CHARACTERISTICS (23°C)
Part Number
FRA010-120F
FRA017-120F
FRA020-120F
FRA025-120F
FRA030-120F
FRA040-120F
FRA050-120F
FRA065-120F
FRA075-120F
FRA090-120F
FRA110-120F
FRA135-120F
FRA160-120F
FRA185-120F
FRA250-120F
FRA300-120F
FRA375-120F
Hold
Current
I
H
, A
0.10
0.17
0.20
0.25
0.30
0.40
0.50
0.65
0.75
0.90
1.10
1.35
1.60
1.85
2.50
3.00
3.75
Trip
Current
I
T
, A
0.20
0.34
0.40
0.50
0.60
0.80
1.00
1.30
1.50
1.80
2.20
2.70
3.20
3.70
5.00
6.00
7.50
Maximum
time to trip
at 5xIH, sec
4.0
3.0
2.2
2.5
3.0
3.8
4.0
5.3
6.3
7.2
8.2
9.6
11.4
12.6
15.6
19.8
24.0
Maximum
Current
I
MAX
, A
2.0
2.0
2.0
3.0
3.0
3.0
3.0
3.0
5.0
5.0
5.0
8.0
8.0
8.0
12.0
15.0
15.0
Rated
Voltage
V
MAX
, Vdc
120
120
120
120
120
120
120
120
120
120
120
120
120
120
120
120
120
Typical
Power
Pd, W
0.57
0.59
0.62
0.68
0.74
0.84
1.16
1.32
1.38
1.49
2.25
2.55
2.85
3.15
3.75
4.20
4.80
Resistance Tolerance
R
MIN
R1
MAX
OHMS
2.50
2.00
1.83
1.25
0.88
0.55
0.50
0.31
0.25
0.20
0.15
0.12
0.09
0.08
0.05
0.04
0.03
OHMS
7.50
7.00
4.40
3.00
2.10
1.29
1.17
0.72
0.60
0.47
0.38
0.30
0.22
0.19
0.13
0.10
0.08
I
H
=Hold current-maximum current at which the device will not trip at 23°C still air.
I
T
=Trip current-maximum current at which the device will always trip at 23°C still air.
V
MAX
=Maximum voltage device can withstand without damage at its rated current.
I
MAX
=Maximum fault current device can withstand without damage at rated voltage (V
MAX
).
Pd=Typical power dissipated from device when in the tripped state in 23°C still air environment.
R
MIN
=Minimum device resistance at 23°C.
R1
MAX
=Maximum device resistance at 23°C, 1 hour after tripping.
Physical specifications:
Lead material: FRA010~FRA090 Tin plated copper, 22 AWG.
FRA110~FRA375 Tin plated copper, 20 AWG.
Soldering characteristics: MIL-STD-202, Method 208E.
Insulating coating: Flame retardant epoxy, meet UL-94V-0 requirement.

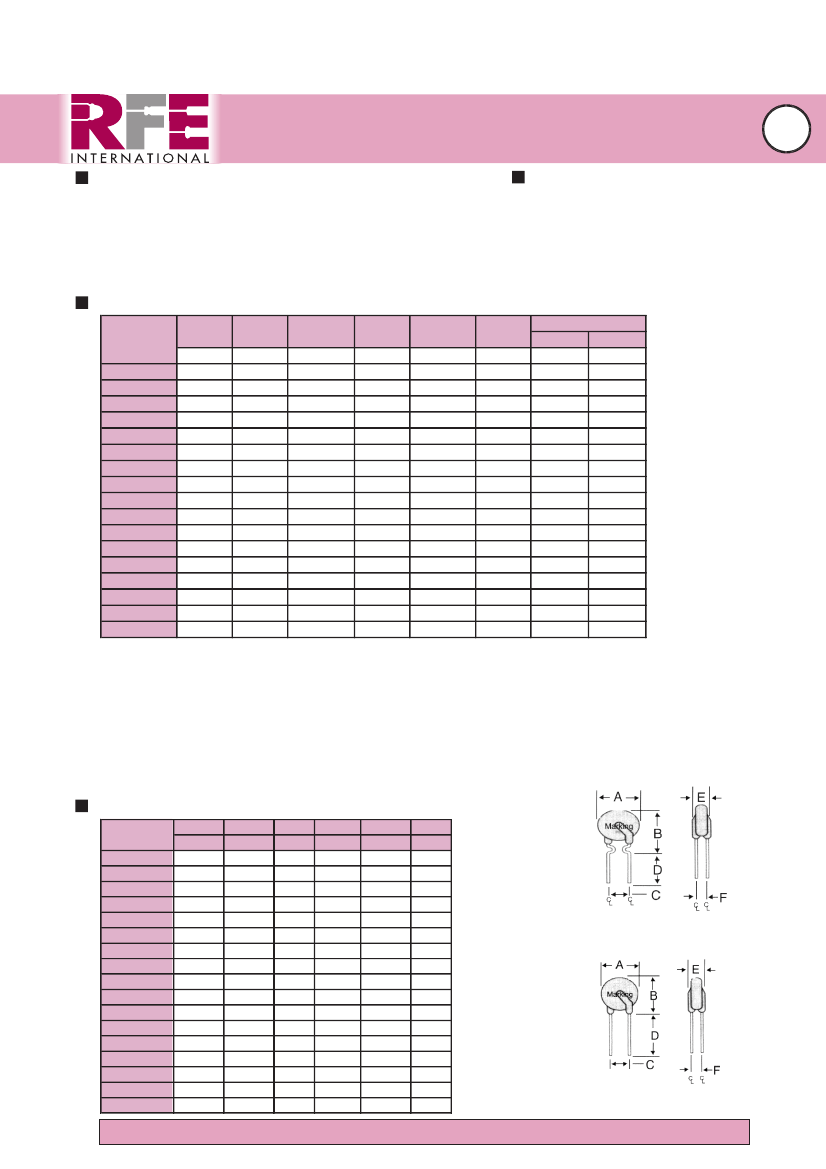

FRA PRODUCT DIMENSIONS (MILLIMETERS)
Part Number
FRA010-120F
FRA017-120F
FRA020-120F
FRA025-120F
FRA030-120F
FRA040-120F
FRA050-120F
FRA065-120F
FRA075-120F
FRA090-120F
FRA110-120F
FRA135-120F
FRA160-120F
FRA185-120F
FRA250-120F
FRA300-120F
FRA375-120F
A
7.9
7.9
7.9
7.9
7.9
8.2
9.2
9.7
10.6
11.9
13.3
15.5
17.5
19.9
22.5
25.5
29.5
B
12.7
12.7
12.2
12.7
13.0
14.2
14.9
14.9
15.5
15.9
18.3
20.6
22.5
24.9
27.5
30.0
34.0
C
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
5.1
10.2
10.2
10.2
D
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
7.6
E
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
F
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
FRA 110-120 ~ FRA 375-120
Lead Size: 20AWG (0.81mm)
FRA 010-120 ~ FRA 090-120
Lead Size: 22AWG (0.65mm)
Maximum Maximum Typical Minimum Maximum Typical
RFE International
• Tel:(949) 833-1988 • Fax:(949) 833-1788 • E-Mail Sales@rfeinc.com
C5EB11
REV 2007.06.1
Radial Leaded PPTC
FRA Series

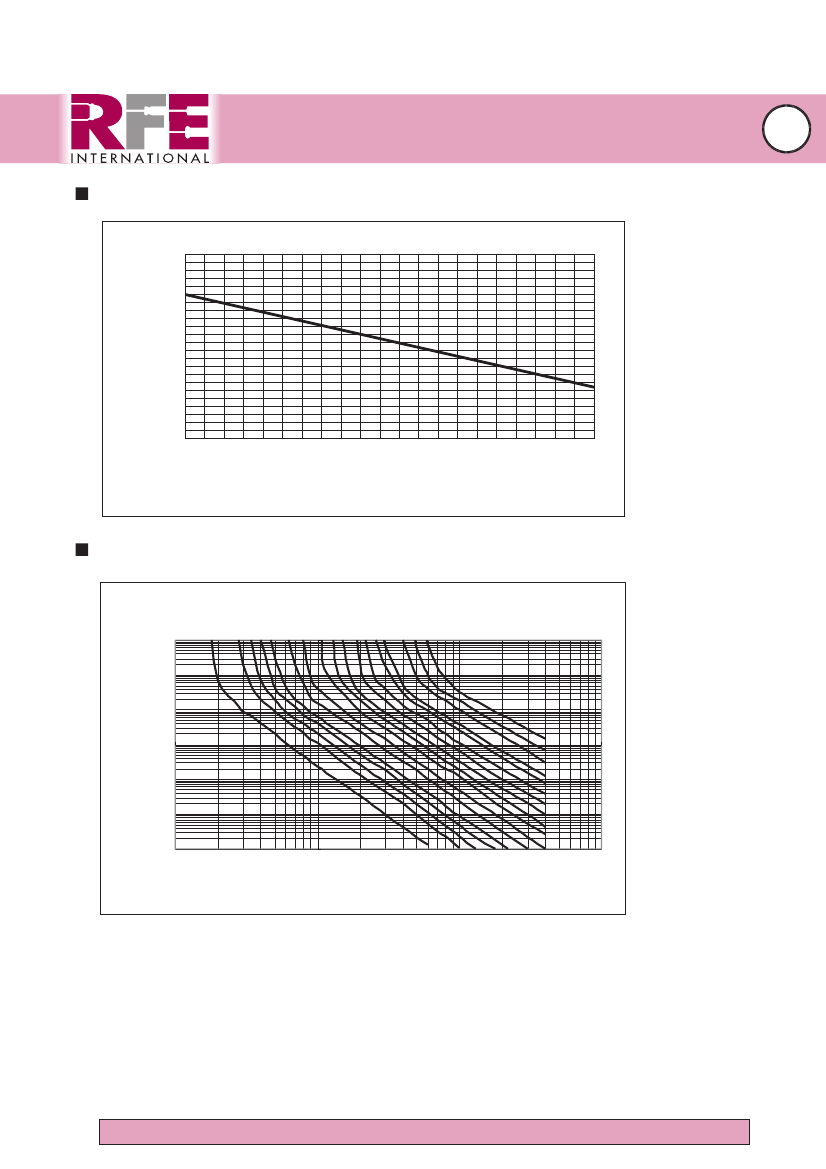

THERMAL DERATING CURVE
Thermal Derating Curve - FRA Series
200%
RoHS
ü
Percent of Rated Hold and Trip
Curent
D
150%
D
100%
D
50%
D
0%
-40
-20
0
20
40
60
80
Ambient Temperature ( C)
TYPICAL TIME-TO-TRIP AT 23°C
A
1000
100
B CDE F G H I J K LMNO P Q
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
= FRA010-120F
= FRA017-120F
= FRA020-120F
= FRA025-120F
= FRA030-120F
= FRA040-120F
= FRA050-120F
= FRA065-120F
= FRA075-120F
= FRA090-120F
= FRA110-120F
= FRA135-120F
= FRA160-120F
= FRA185-120F
= FRA250-120F
= FRA300-120F
= FRA375-120F
Time-to-trip (S)
10
1
0.1
0.01
0.001
0.1
1
Fault current (A )
10
100
NOTE: All specification subject to change without notice.
