94276-004 datasheet, PDF - EEWORLD Datasheet

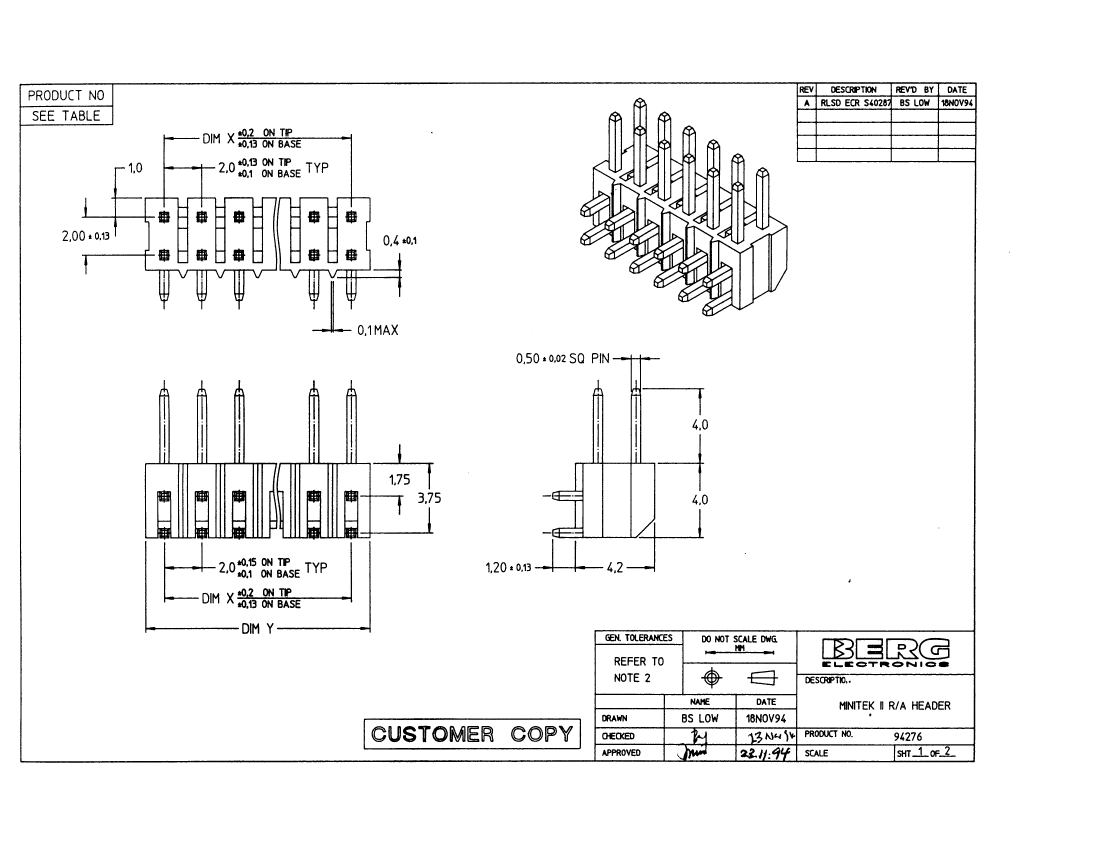

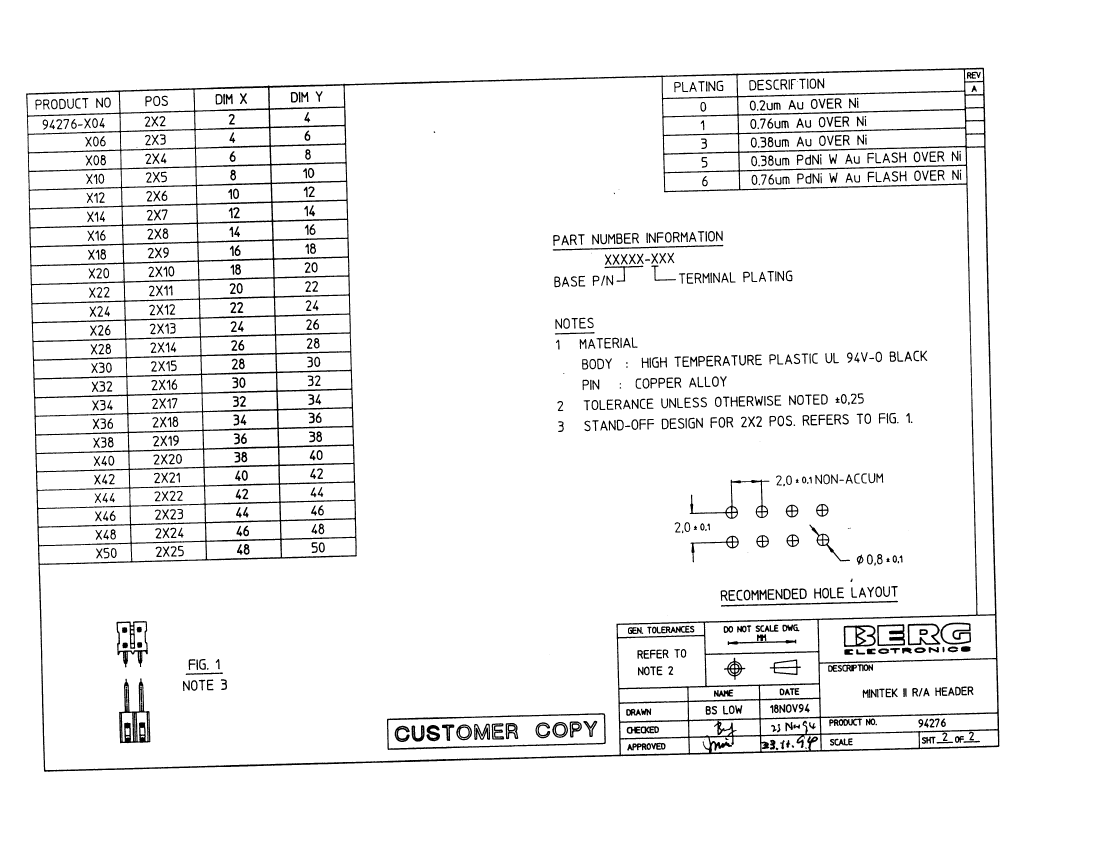

94276-004: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size222KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

94276-004 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	2140618729
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.7
Other features	NONE
body width	0.165 inch
subject depth	0.157 inch
body length	0.157 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD (8) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VDC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	8u inch
Rated current (signal)	2 A
Guideline	UL, CSA
Terminal length	0.047 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

PDM: Rev:A

STATUS:

Released

Printed: Nov 28, 2002
