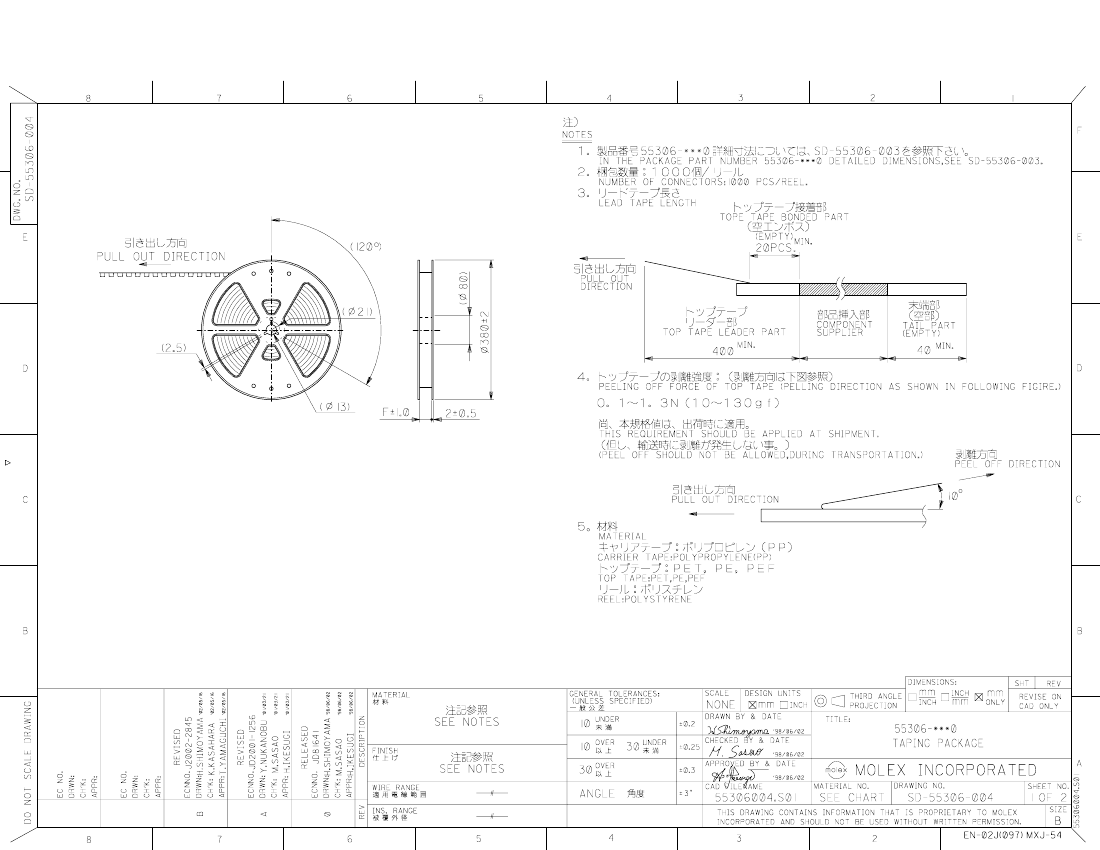

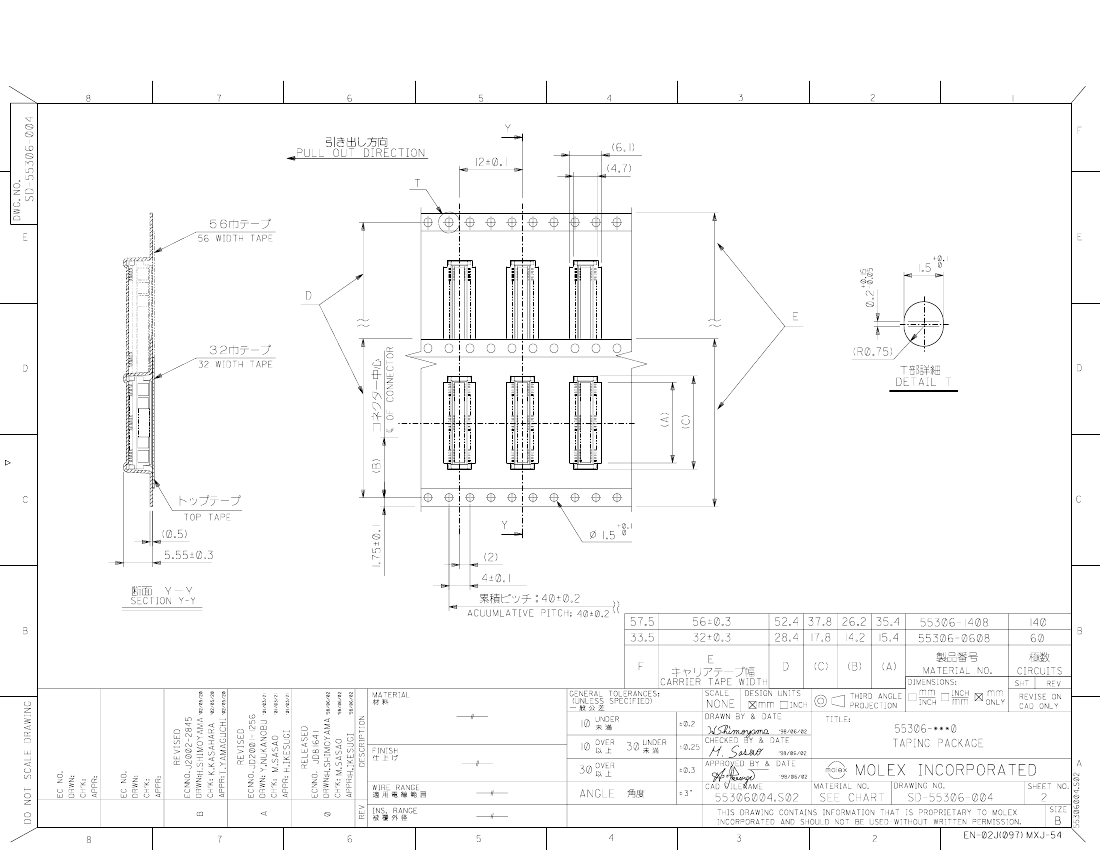

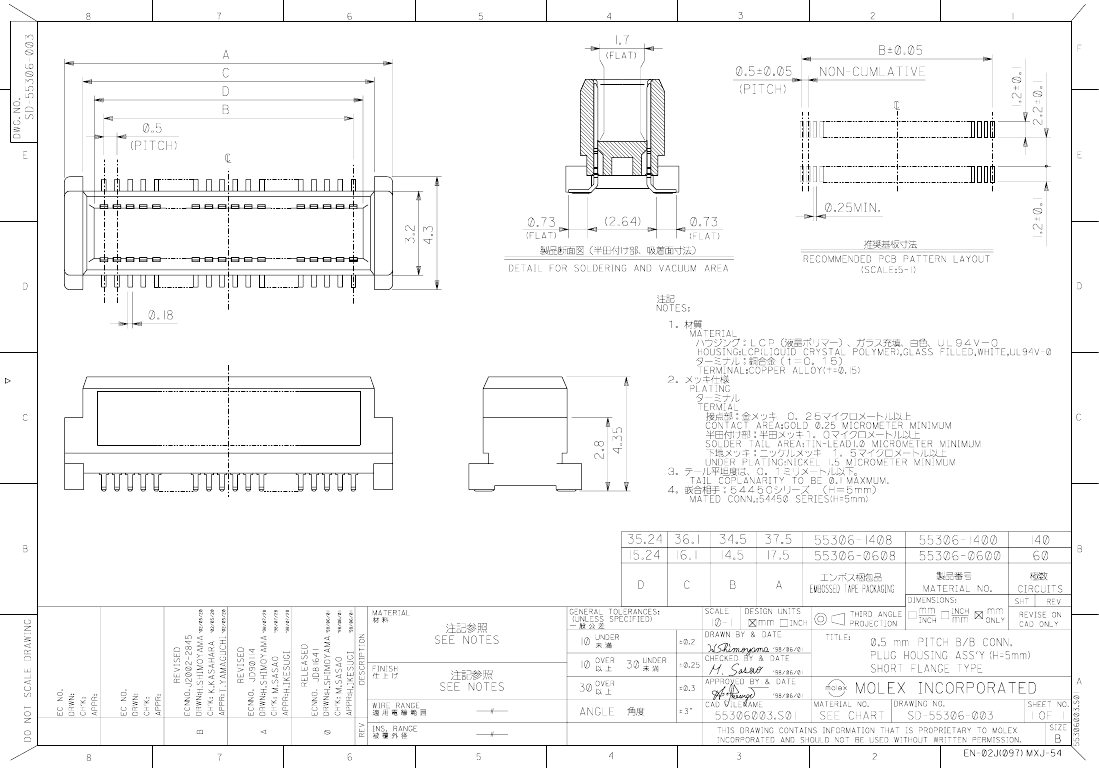

Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, White Insulator, Plug
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | SLIMSTACK, SHROUDED |
| body width | 0.169 inch |
| subject depth | 0.171 inch |
| body length | 1.476 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 70 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 125VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .5004 N |
| Insulation resistance | 100000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 55306 |
| Plug contact pitch | 0.02 inch |
| Plug information | MULTIPLE PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.4036 mm |
| Plating thickness | 10u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 140 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0556 N |
| 55306-1408 | 55306-0600 | 55306-1400 | |
|---|---|---|---|
| Description | Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, White Insulator, Plug | Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Plug, | Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Plug, |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | SLIMSTACK, SHROUDED | SLIMSTACK, SHROUDED | SLIMSTACK, SHROUDED |
| Body/casing type | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| MIL compliance | NO | NO | NO |
| Plug information | MULTIPLE PARTS AVAILABLE | MULTIPLE PARTS AVAILABLE | MULTIPLE PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 140 | 60 | 140 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
