CTS08-06516-0DM datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CTS08-06516-0DM

CTS08-06516-0DM: DescriptionBase Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size127KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

CTS08-06516-0DM Overview

Base Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth

CTS08-06516-0DM Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	8 deg
Beamwidth-H	65 deg
Characteristic impedance	50 Ω
front to back ratio	30 dB
Gain	17.7 dB
Omnidirectional	NO
Maximum operating frequency	894 MHz
Minimum operating frequency	824 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph

Preview

Download Datasheet

View All

Base Station Antennas

ANTENNA SPECIFICATIONS

ANTENNA TYPE:

Description:

Electrical Specifications

Frequency Band, MHz

Gain, dBd (dBi)

Azimuth Beamwidth, degrees

Elevation Beamwidth, degrees

Front-to-Back Ratio, dB

Return Loss, dB (VSWR)

Impedance, ohms

Intermodulation, dBc

Polarization Type

Electrical Downtilt, degrees

Maximum Input Power, watts

Lightning Protection

Connector Type

Connector Position

Number of Connectors

CTS08-06516-0D

824-894 MHz, single polarized, 65 degree azimuth beamwidth,

16 dBd gain panel antenna with 0 degrees of electrical downtilt

PerforMax

824-894

15.5 (17.7)

>30

>15.5 (<1.4)

<-150

Single, Vertical

500

DC Ground

7-16 DIN Female

Bottom

Mechanical Specifications

Antenna Dimensions - L x W x D, mm (in)

Antenna Weight, kg (lb)

Radome Color

Radome Material

2422 (95.4) x 267 (10.5) x 127 (5)

16.1 (35.5)

Gray

UV Protected PVC

Environmental Specifications

Survival Wind Speed, km/h (mph)

Wind Load - frontal, N (lbf)*

Wind Load - lateral, N (lbf)*

Wind Load - rear, N (lbf)*

Temperature Range, degrees C

Humidity, %

* Based on 100 mph (161 km/h)

201 (125)

1134 (255)

231 (52)

1371 (308)

-40 to +65

Up to 100

Shipping Specifications

Shipping Dimensions - L x W x D, mm (in)

Shipping Weight, kg (lb)

2540 (100) x 406 (16) x 267 (10.5)

20.0 (44.0)

Mounting Hardware Specifications

Mounting Bracket Part Number

Mount Description

Mount Weight, kg (lb)

To include mounting bracket with antenna,

order part number:

Shipping Dimensions - mount with antenna -

L x W x D, mm (in)

Shipping Weight - mount with antenna, kg (lb)

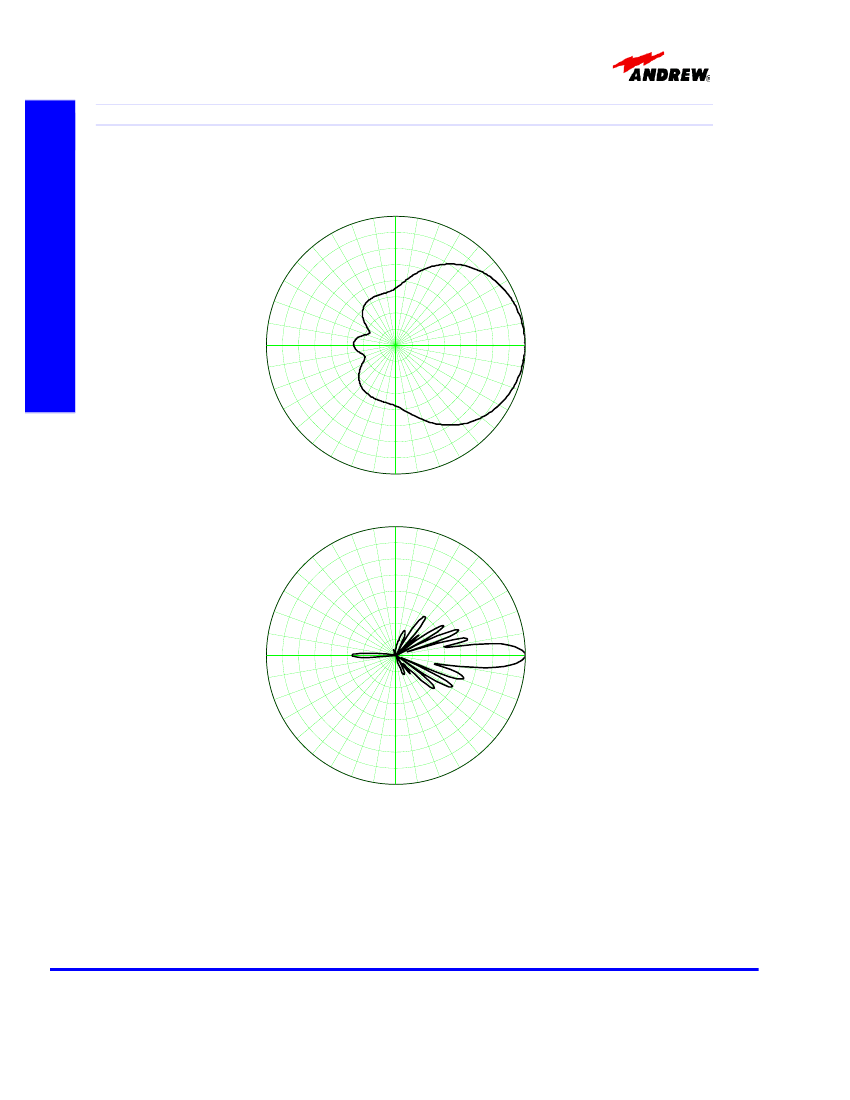

Customer Support Center:

From North America: 1-800-255-1479

International: +1-708-873-2307

600899A-2

Adjustable downtilt, 0 to 13 degrees

4.1 (9.0)

CTS08-06516-0DM

2623 ( 103.3) x 406 (16) x 267 (10.5)

24.3 (53.5)

This Specification Sheet is for reference only and is subject to change without notice.



2001 Andrew Corporation, Printed in the U.S.A.

Bulletin # 94021 - Rev. 9/17/2001

www.andrew.com

CTS08-06516-0DM Related Products

	CTS08-06516-0DM	CTS08-06516-0D
Description	Base Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 824MHz Min, 894MHz Max, 17.7dB Gain, 65deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown
Beam Width-E	8 deg	8 deg
Beamwidth-H	65 deg	65 deg
Characteristic impedance	50 Ω	50 Ω
front to back ratio	30 dB	30 dB
Gain	17.7 dB	17.7 dB
Omnidirectional	NO	NO
Maximum operating frequency	894 MHz	894 MHz
Minimum operating frequency	824 MHz	824 MHz
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-40 °C	-40 °C
polarization	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W
Maximum voltage standing wave ratio	1.4	1.4
Commentary	125 mph	125 mph
