BH16841ADGG: DescriptionIC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56, Bus Driver/Transceiver; Categorylogic logic; File Size212KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BH16841ADGG Overview

IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56, Bus Driver/Transceiver

BH16841ADGG Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
series	ABT
JESD-30 code	R-PDSO-G56
length	14 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	10
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Maximum supply current (ICC)	19 mA
propagation delay (tpd)	3.1 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

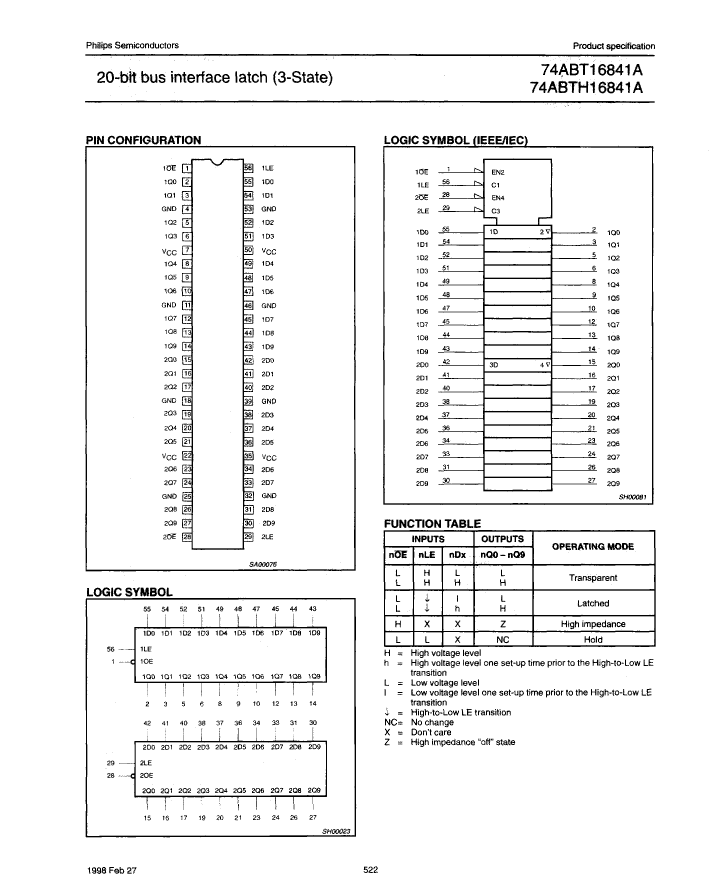

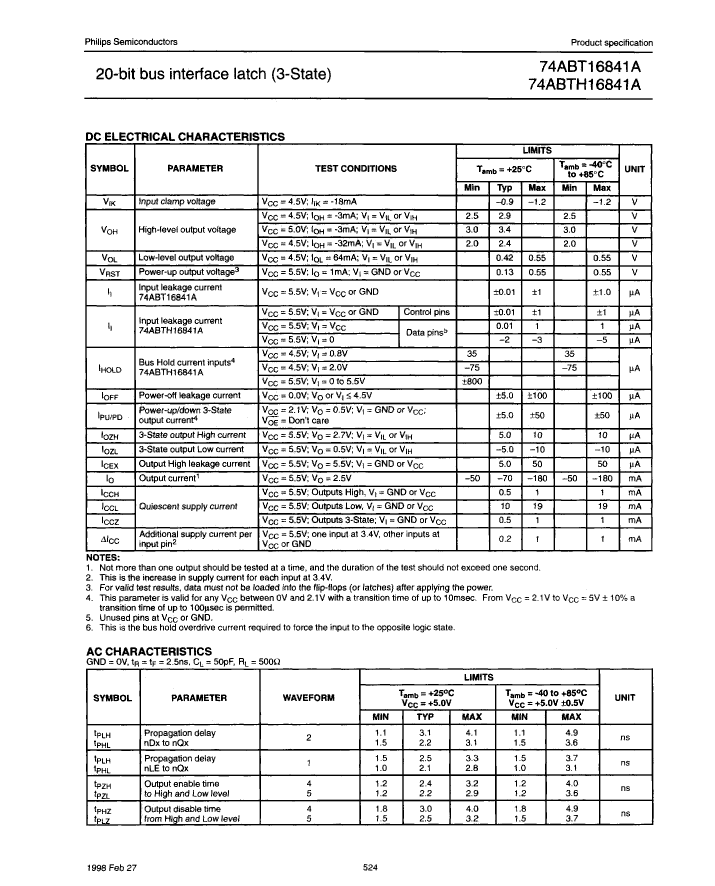

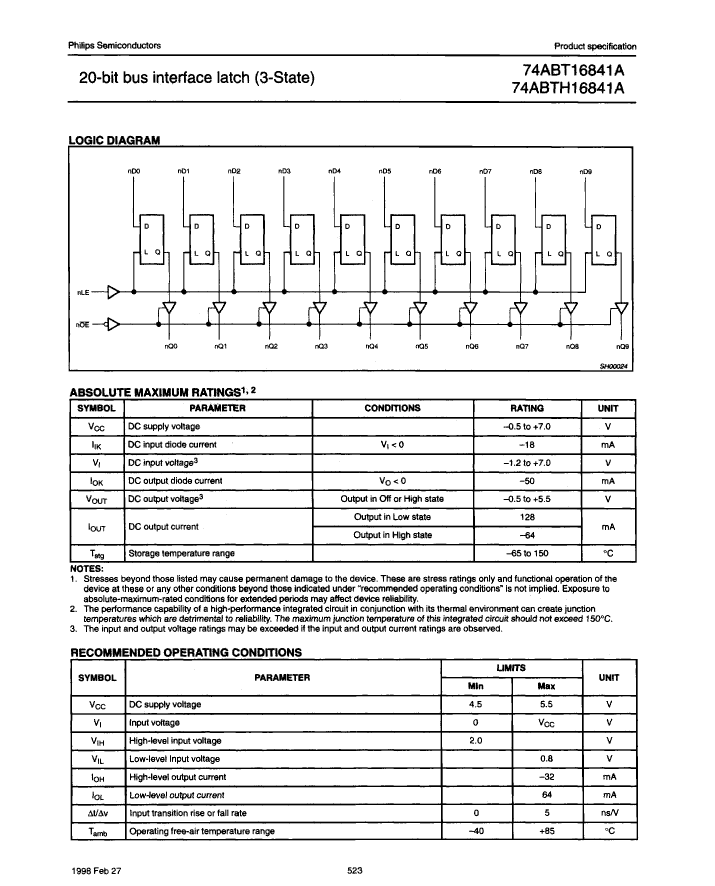

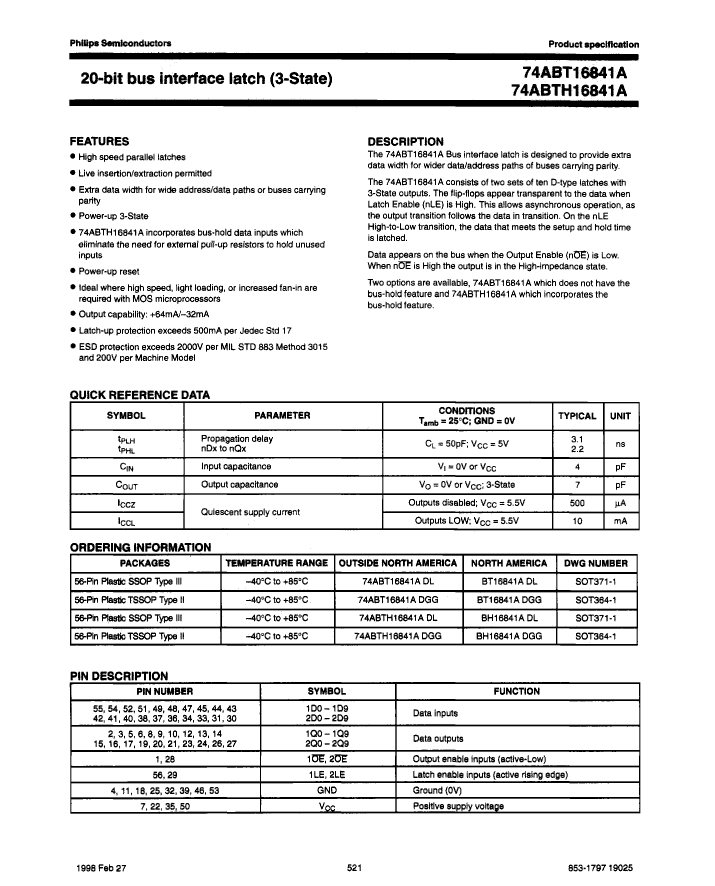

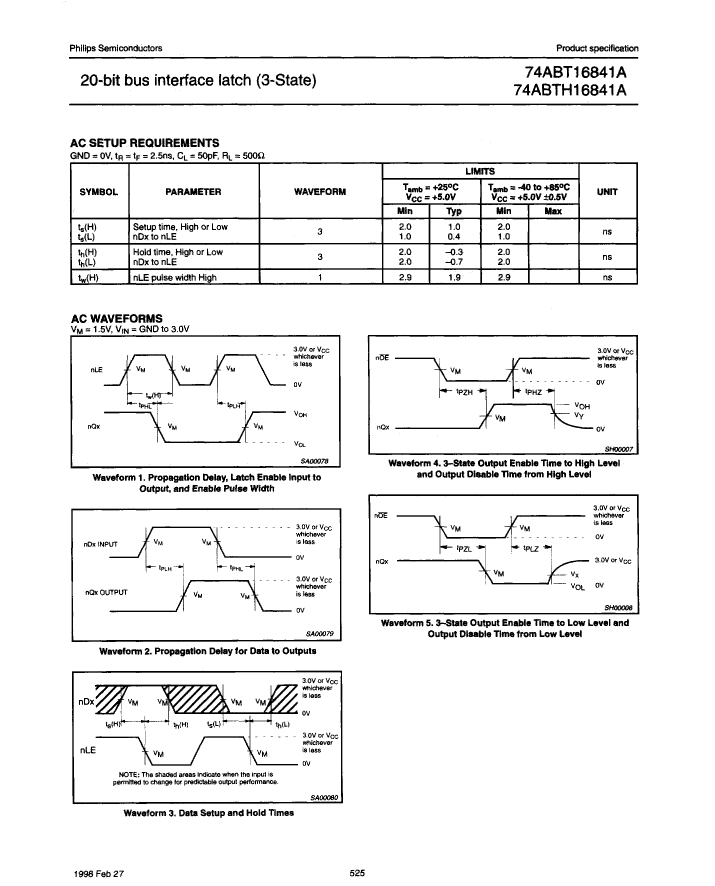

Preview

Download Datasheet

View All

BH16841ADGG Related Products

	BH16841ADGG	74ABTH16841ADGG-T	1700023855-01	74ABTH16841ADGG	74ABTH16841ADL-T	BH16841ADL-T	BH16841ADL
Description	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56, Bus Driver/Transceiver	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56, Bus Driver/Transceiver	Independent Dual Displays Fanless Box PC	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 6.10 MM, PLASTIC, SOT-364-1, TSSOP2-56, Bus Driver/Transceiver	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, SOT-371-1, SSOP3-56, Bus Driver/Transceiver	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, SOT-371-1, SSOP3-56, Bus Driver/Transceiver	IC ABT SERIES, DUAL 10-BIT DRIVER, TRUE OUTPUT, PDSO56, 7.50 MM, PLASTIC, SOT-371-1, SSOP3-56, Bus Driver/Transceiver
Maker	NXP	NXP	-	NXP	NXP	NXP	NXP
Parts packaging code	TSSOP	TSSOP	-	TSSOP	SSOP	SSOP	SSOP
package instruction	TSSOP,	TSSOP,	-	TSSOP,	SSOP,	7.50 MM, PLASTIC, SOT-371-1, SSOP3-56	SSOP,
Contacts	56	56	-	56	56	56	56
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknown	unknown
series	ABT	ABT	-	ABT	ABT	ABT	ABT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	-	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
length	14 mm	14 mm	-	14 mm	18.425 mm	18.425 mm	18.425 mm
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	-	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	10	10	-	10	10	10	10
Number of functions	2	2	-	2	2	2	2
Number of ports	2	2	-	2	2	2	2
Number of terminals	56	56	-	56	56	56	56
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	-	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	-	TSSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Maximum supply current (ICC)	19 mA	19 mA	-	19 mA	19 mA	19 mA	19 mA
propagation delay (tpd)	3.1 ns	3.1 ns	-	3.1 ns	3.7 ns	3.1 ns	3.1 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	-	1.2 mm	2.8 mm	2.8 mm	2.8 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V	5 V
surface mount	YES	YES	-	YES	YES	YES	YES
technology	BICMOS	BICMOS	-	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	-	0.5 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
width	6.1 mm	6.1 mm	-	6.1 mm	7.5 mm	7.5 mm	7.5 mm
