BU2520DW

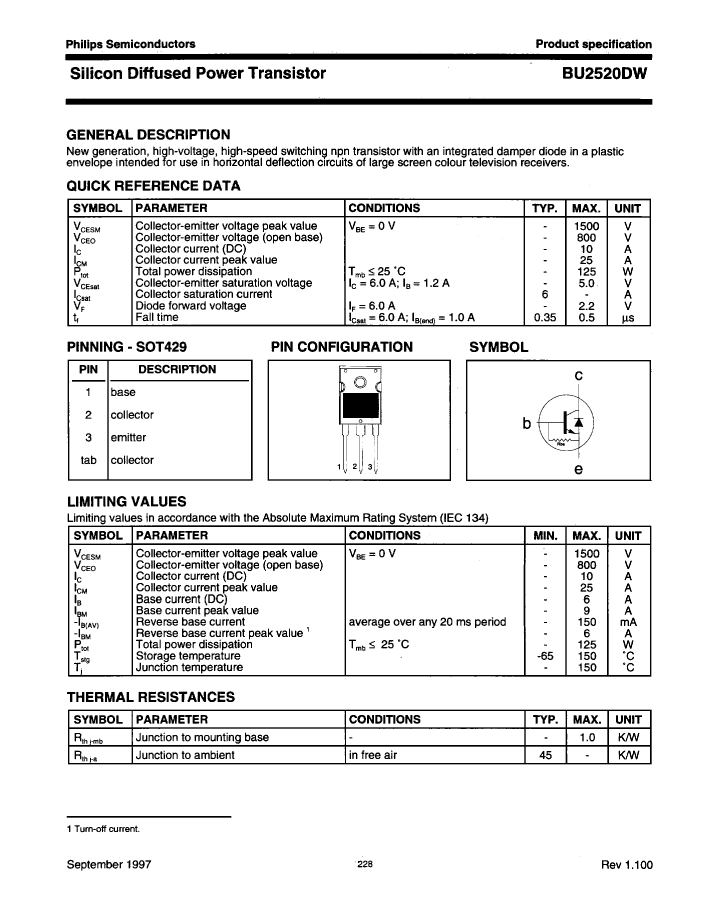

Description
10A, 800V, NPN, Si, POWER TRANSISTOR, TO-247, PLASTIC, SOT-429, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size144KB,4 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

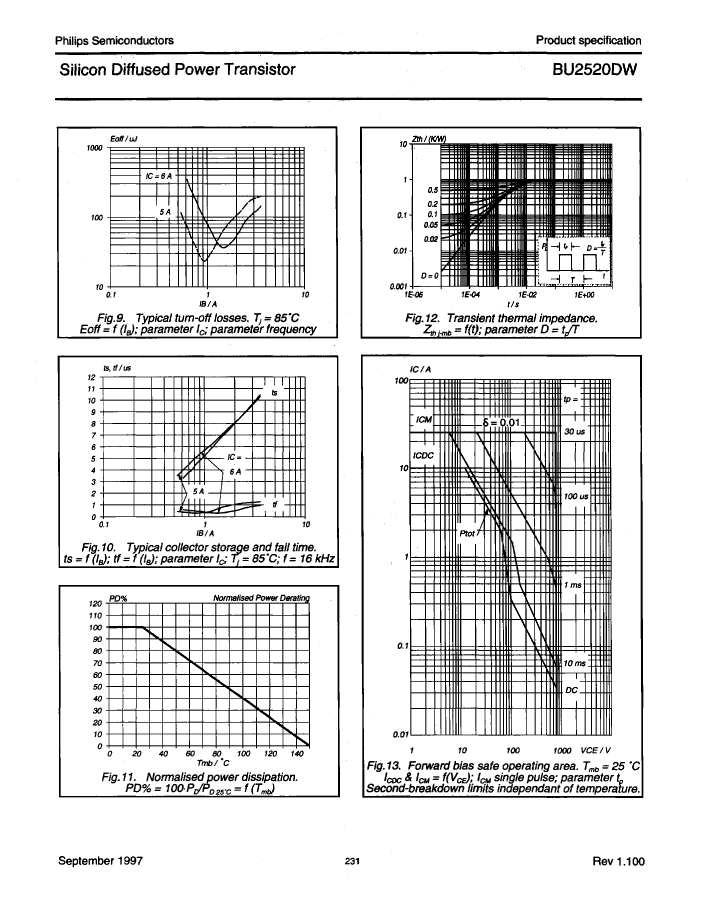

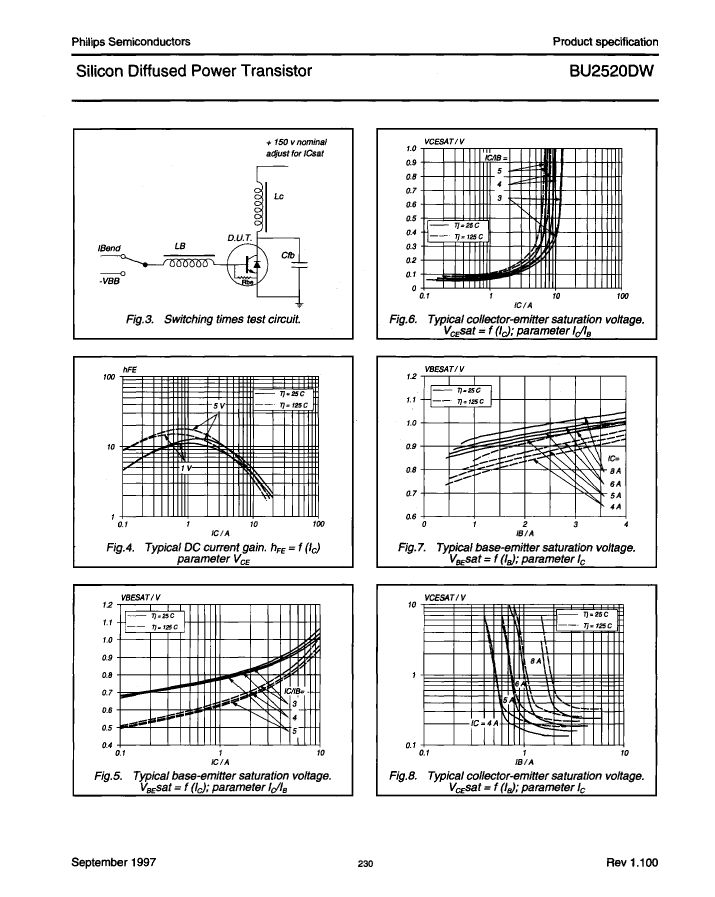

BU2520DW Overview

10A, 800V, NPN, Si, POWER TRANSISTOR, TO-247, PLASTIC, SOT-429, 3 PIN

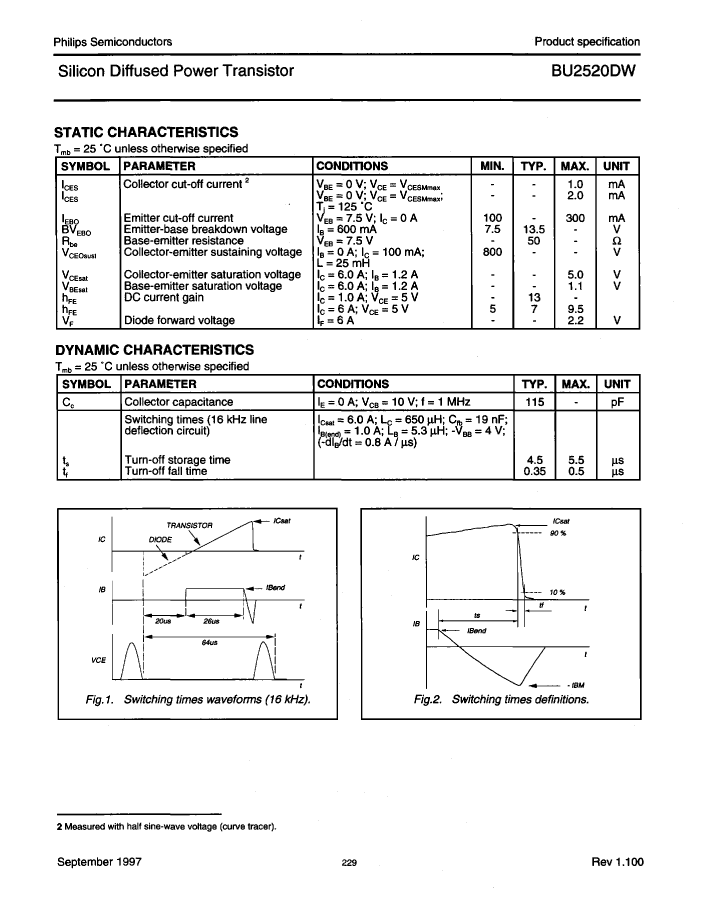

BU2520DW Parametric

Parameter NameAttribute value
MakerNXP
Parts packaging codeTO-247
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
Shell connectionCOLLECTOR
Maximum collector current (IC)10 A
Collector-emitter maximum voltage800 V
ConfigurationSINGLE WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)5
JEDEC-95 codeTO-247
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Maximum power consumption environment125 W
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
Maximum off time (toff)6000 ns
VCEsat-Max5 V
