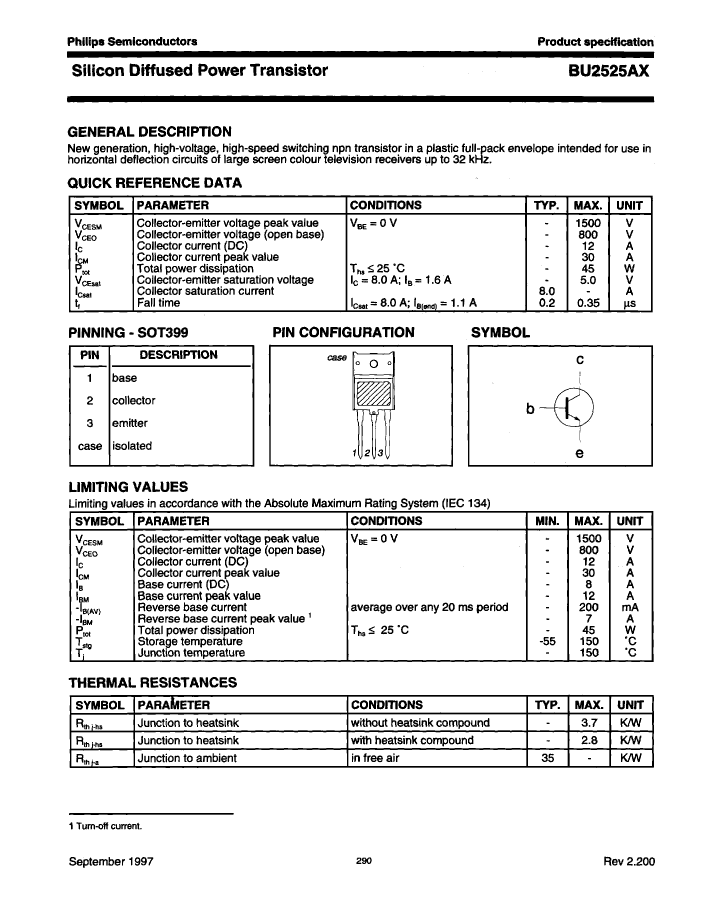

BU2525AX

Description
TRANSISTOR 12 A, 800 V, NPN, Si, POWER TRANSISTOR, PLASTIC, SOT-399, 3 PIN, BIP General Purpose Power
CategoryDiscrete semiconductor    The transistor
File Size162KB,5 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BU2525AX Overview

TRANSISTOR 12 A, 800 V, NPN, Si, POWER TRANSISTOR, PLASTIC, SOT-399, 3 PIN, BIP General Purpose Power

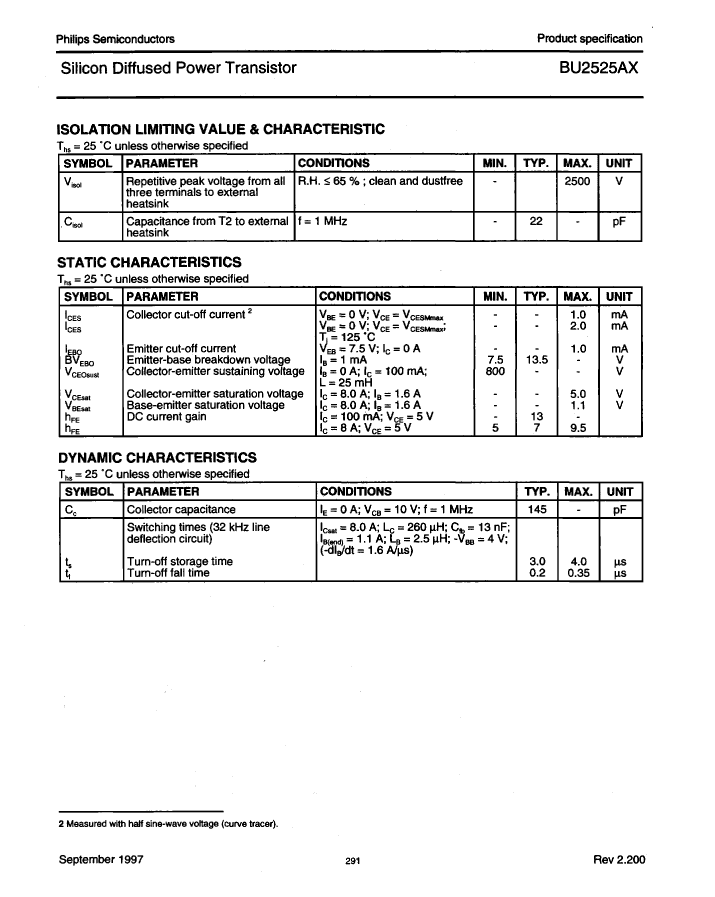

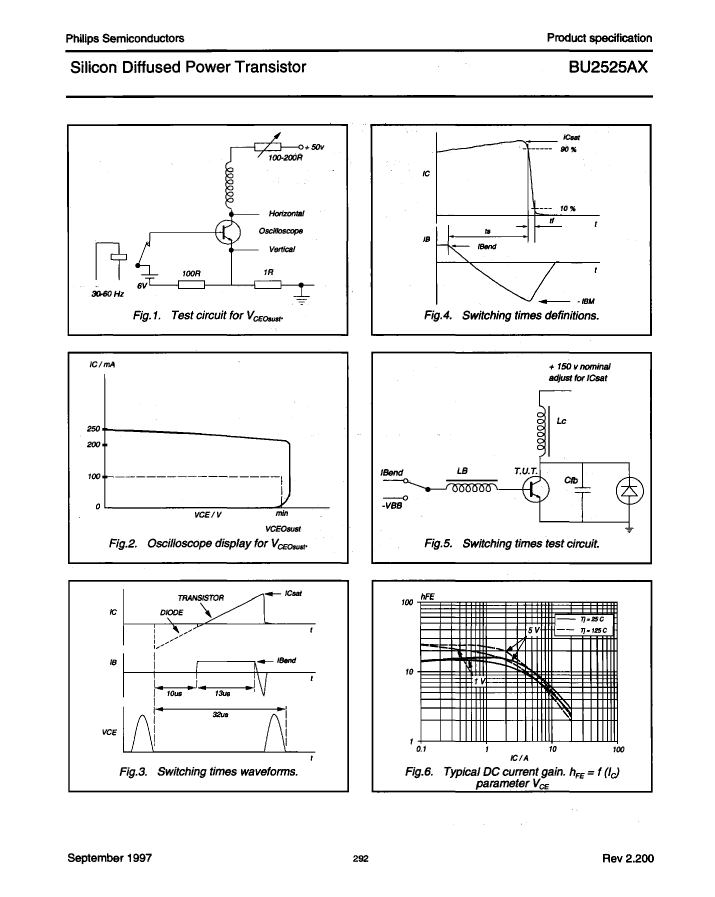

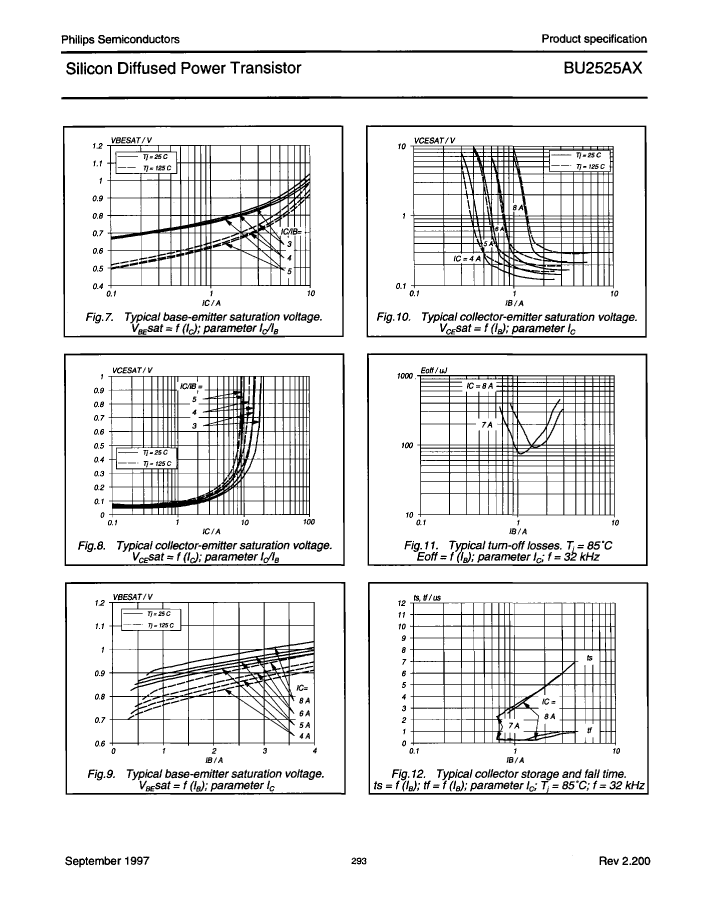

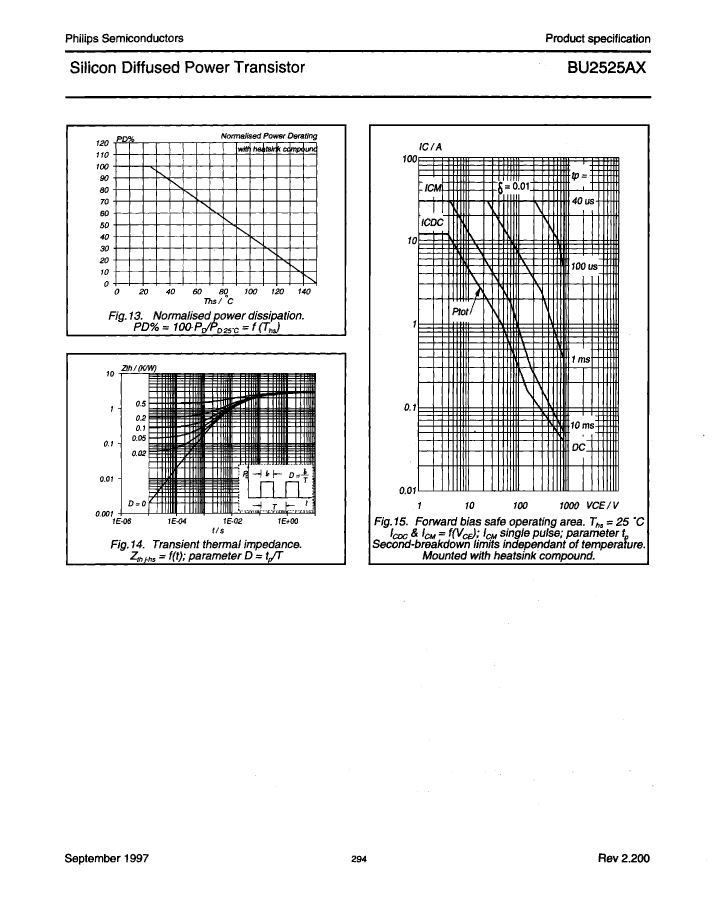

BU2525AX Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNXP
Parts packaging codeSOT
package instructionPLASTIC, SOT-399, 3 PIN
Contacts3
Manufacturer packaging codeSOT399
Reach Compliance Codeunknown
Shell connectionISOLATED
Maximum collector current (IC)12 A
Collector-emitter maximum voltage800 V
ConfigurationSINGLE
Minimum DC current gain (hFE)5
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power consumption environment45 W
Maximum power dissipation(Abs)45 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Maximum off time (toff)4350 ns
VCEsat-Max5 V
