CAT93C57JI-2.7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT93C57JI-2.7

CAT93C57JI-2.7: DescriptionEEPROM, 128X16, Serial, CMOS, PDSO8; Categorystorage storage; File Size509KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT93C57JI-2.7 Overview

EEPROM, 128X16, Serial, CMOS, PDSO8

CAT93C57JI-2.7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Catalyst
package instruction	SOP, SOP8,.25
Reach Compliance Code	unknown
Spare memory width	8
Data retention time - minimum	100
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
memory density	2048 bit
Memory IC Type	EEPROM
memory width	16
Number of terminals	8
word count	128 words
character code	128
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	3/5 V
Certification status	Not Qualified
Serial bus type	MICROWIRE
Maximum standby current	0.00005 A
Maximum slew rate	0.003 mA
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
write protect	SOFTWARE

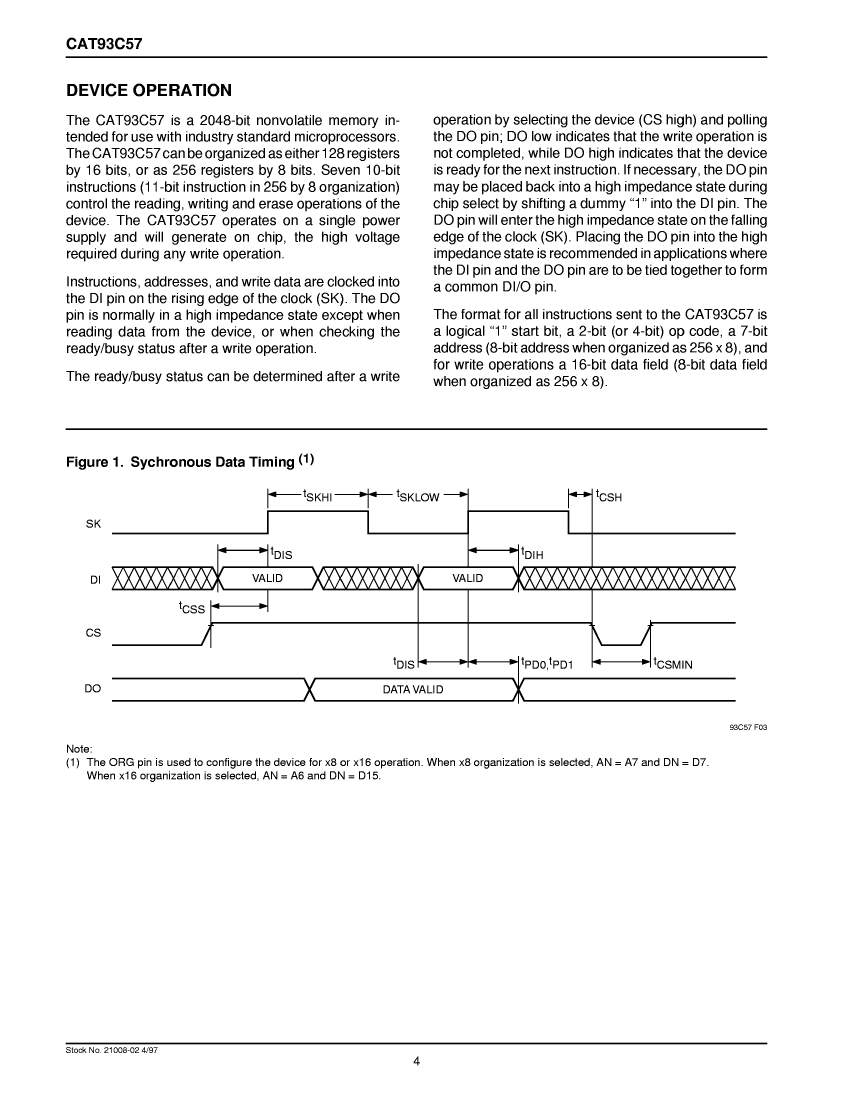

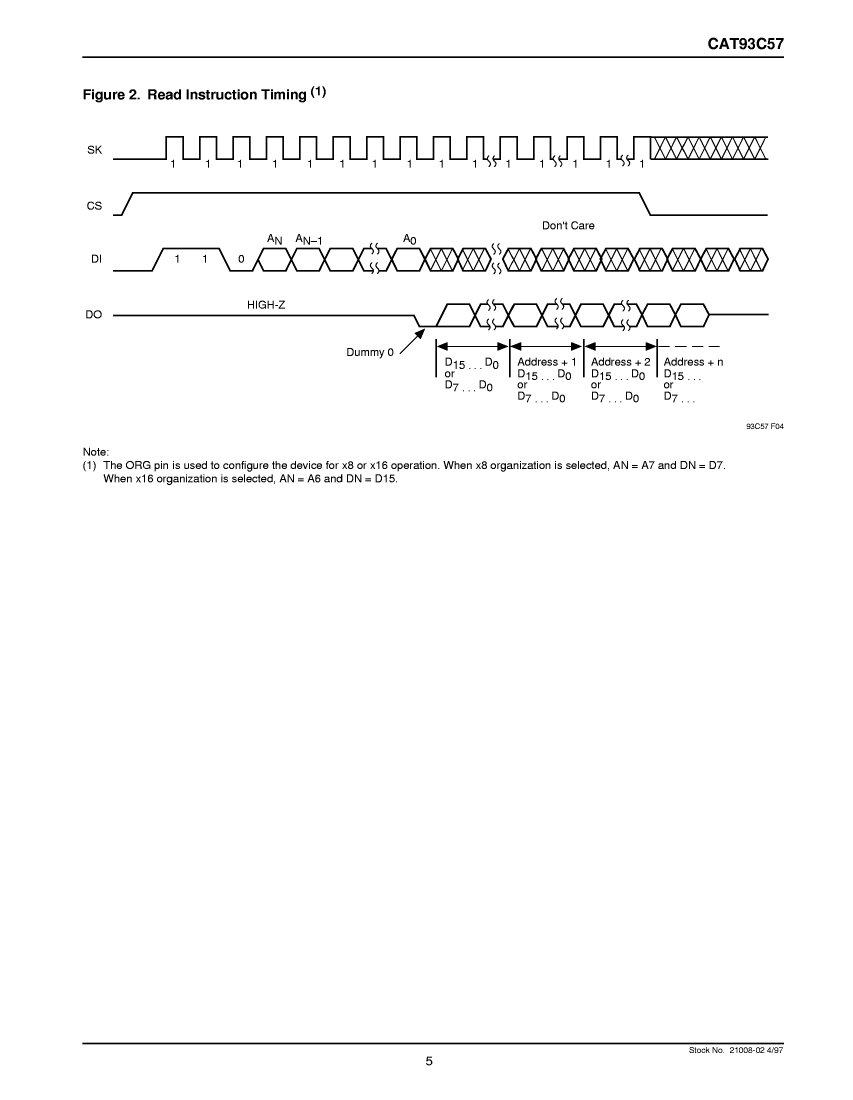

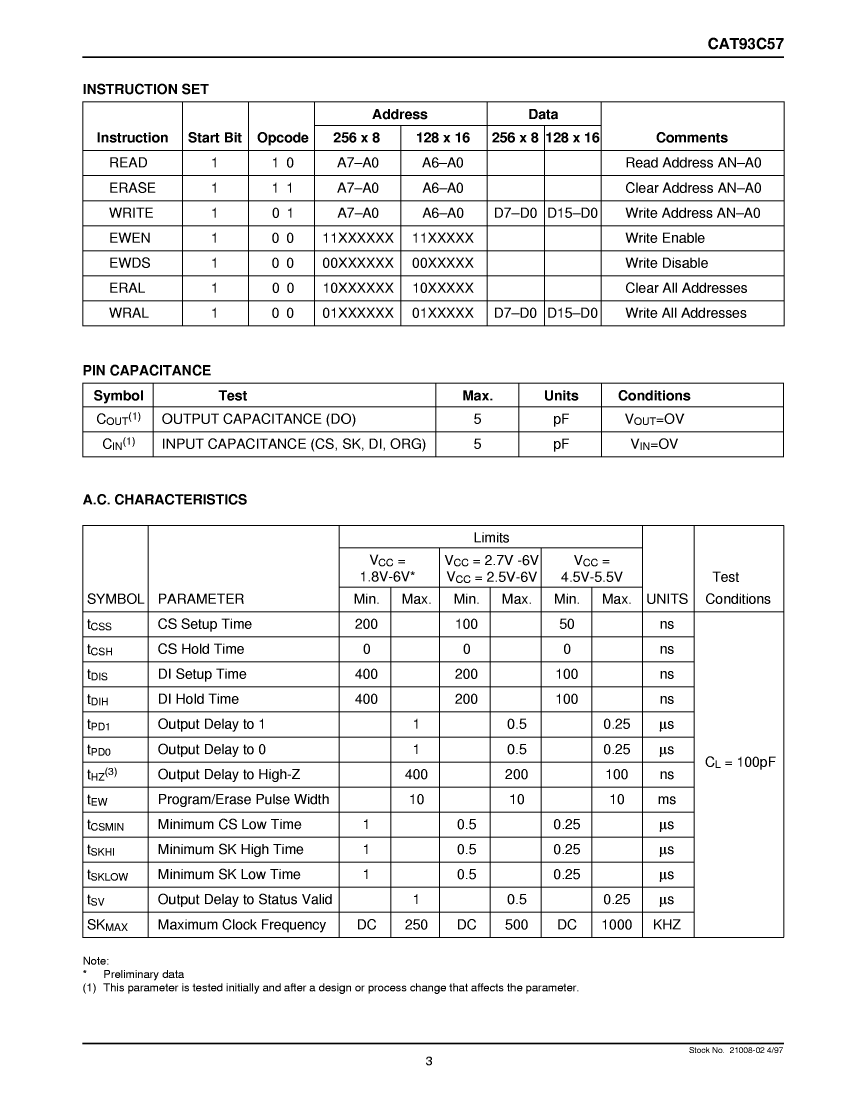

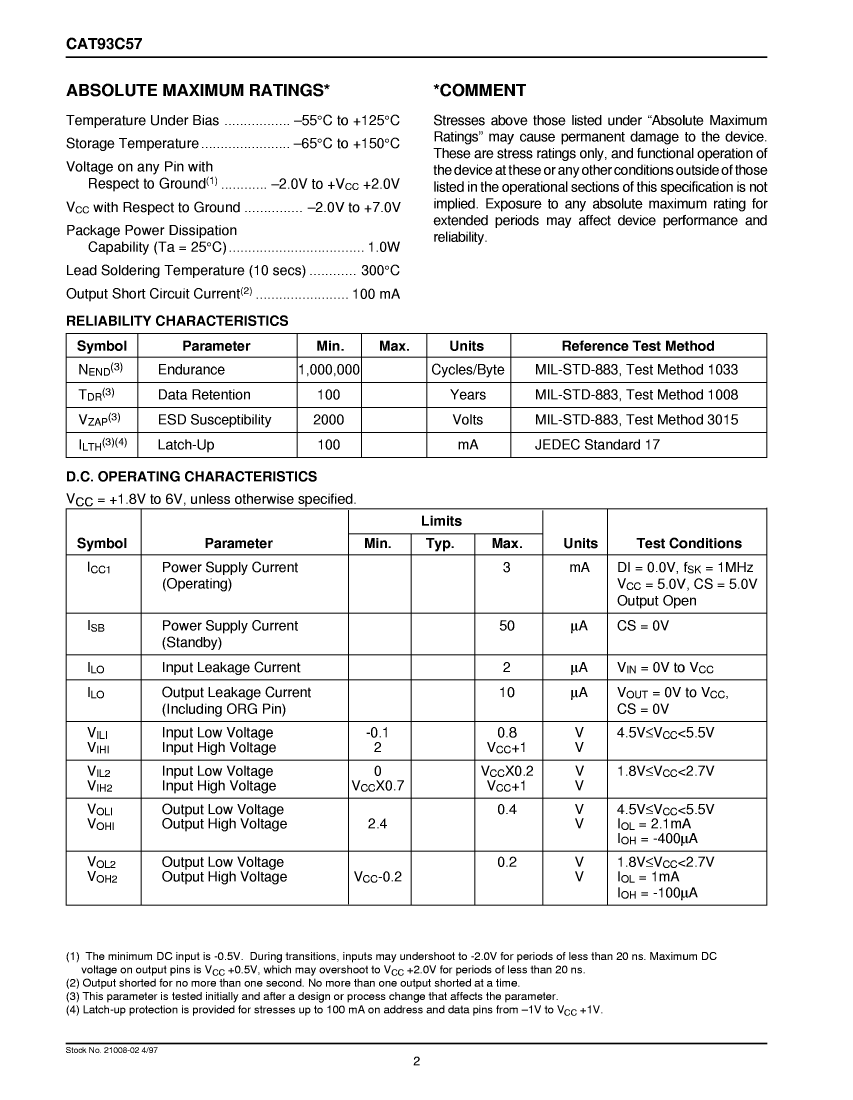

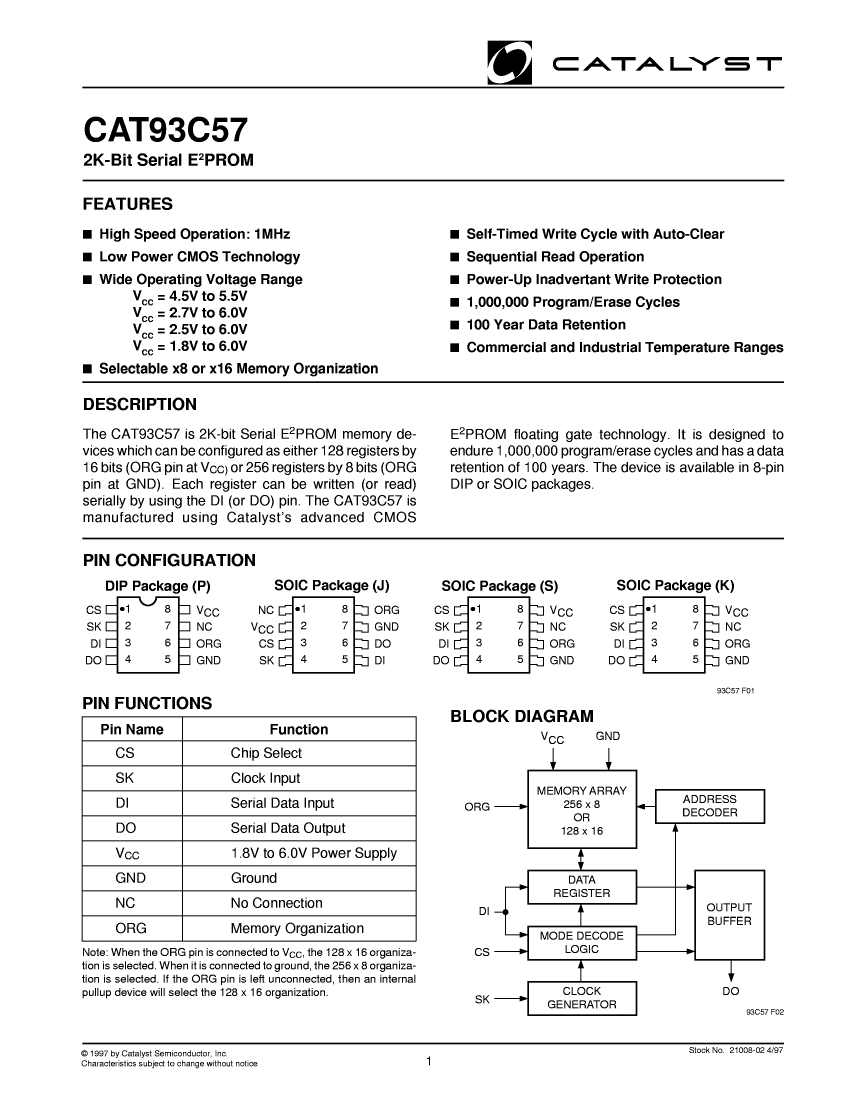

Preview

Download Datasheet

View All

CAT93C57JI-2.7 Related Products

	CAT93C57JI-2.7	CAT93C57S-2.5	CAT93C57J-2.5	CAT93C57SI-2.5	CAT93C57SI-2.7	CAT93C57KI-2.7	CAT93C57JI-2.5
Description	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8	EEPROM, 128X16, Serial, CMOS, PDSO8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.3	SOP, SOP8,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Spare memory width	8	8	8	8	8	8	8
Data retention time - minimum	100	100	100	100	100	100	100
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
memory density	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16	16
Number of terminals	8	8	8	8	8	8	8
word count	128 words	128 words	128 words	128 words	128 words	128 words	128 words
character code	128	128	128	128	128	128	128
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-40 °C
organize	128X16	128X16	128X16	128X16	128X16	128X16	128X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum standby current	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A	0.00005 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
write protect	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE	SOFTWARE
Maker	Catalyst	Catalyst	-	-	-	Catalyst	Catalyst
Is Samacsys	-	N	N	N	N	-	-
Base Number Matches	-	1	1	1	1	-	-
