FR2J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR2J

FR2J: DescriptionRectifier Diode; CategoryDiscrete semiconductor diode; File Size351KB，2 Pages; ManufacturerPRO-AN Electronic Co., Ltd.

Download Datasheet Parametric Compare View All

FR2J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FR2J	-	-	View	Buy Now

FR2J Overview

Rectifier Diode

FR2J Parametric

Parameter Name	Attribute value
Maker	PRO-AN Electronic Co., Ltd.
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
Other features	LOW LEAKAGE CURRENT
application	FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.5 µs
Reverse test voltage	600 V
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

FR2A

RECTIFIER SPECIALISTS

THRU

FR2K

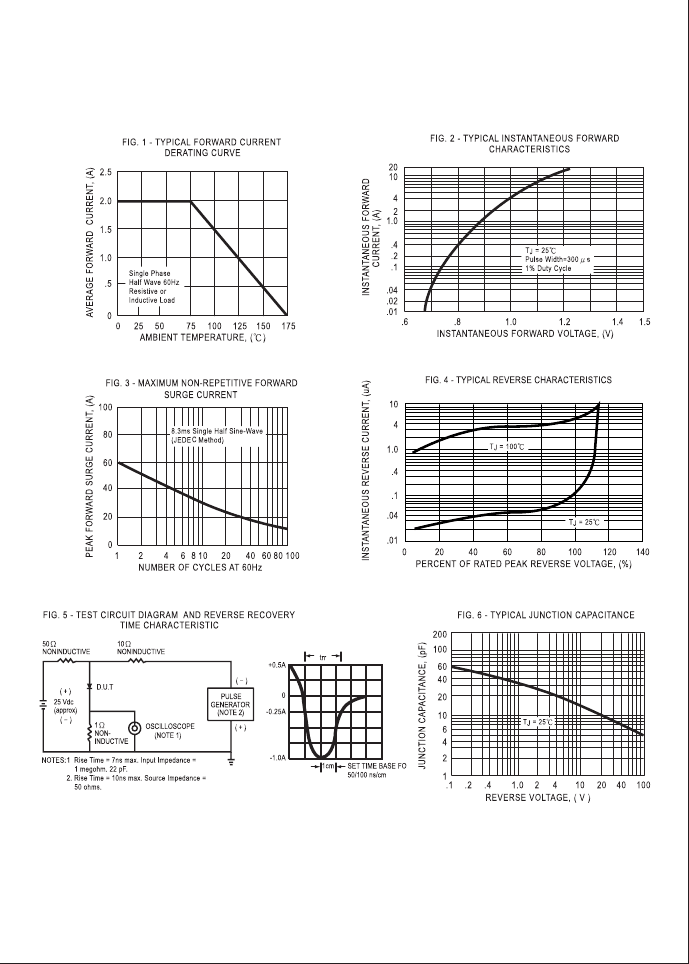

TECHNICAL SPECIFICATIONS OF SURFACE MOUNT FAST RECOVERY RECTIFIER

VOLTAGE RANGE - 50 to 800 Volts

CURRENT - 4.0 Amperes

FEATURES

* ldeal for surface mounted applications

* Low leakage current

* Glass passivated junction

SMB ( DO-214AA )

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

*Terminals: Solder plated, solderable per

MIL-STD-750, Method 2026

* Polarity: As marked

* Mounting position: Any

* Weight: 0.093 gram

.083(2.11)

.075(1.91)

.185(4.70)

.160(4.06)

.060(1.52)

.030(0.76)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

.220(5.59)

.200(5.08)

Dimensions in inches and (millimeters)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at TA = 75

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC Method)

Maximum Instantaneous Forward Voltage at 2.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

Maximum Reverse Recovery Time (Note 3)

Typical Thermal Resistance (Note 2)

Typical Junction Capacitance (Note 1)

Operating and Storage Temperature Range

= 25 C

= 100 C

FR2A

FR2B

100

FR2D

200

140

200

2.0

1.3

5.0

150

FR2G

400

280

400

FR2J

600

420

600

FR2K

800

560

600

UNITS

Volts

Amps

Volts

uAmps

RRM

RMS

FSM

trr

RθJL

STG

150

250

500

nSec

C/ W

-65 to + 175

NOTES : 1. Measured at 1 MHz and applied reverse voltage of 4.0 volts.

2. Thermal Resistance (Junction to Ambient), 0.2x0.2in

(5X5mm

) copper pads to each terminal.

3. Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A.

PRO-AN Electronic Co., Ltd.

Email:info@proan.com.hk

Http://www.proan.com.hk

FR2J Related Products

	FR2J	FR2G	FR2K	FR2A
Description	Rectifier Diode	Rectifier Diode	Rectifier Diode	Rectifier Diode
Maker	PRO-AN Electronic Co., Ltd.	PRO-AN Electronic Co., Ltd.	PRO-AN Electronic Co., Ltd.	PRO-AN Electronic Co., Ltd.
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	600 V	400 V	800 V	50 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.5 µs	0.25 µs	0.5 µs	0.15 µs
Reverse test voltage	600 V	400 V	800 V	50 V
surface mount	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
