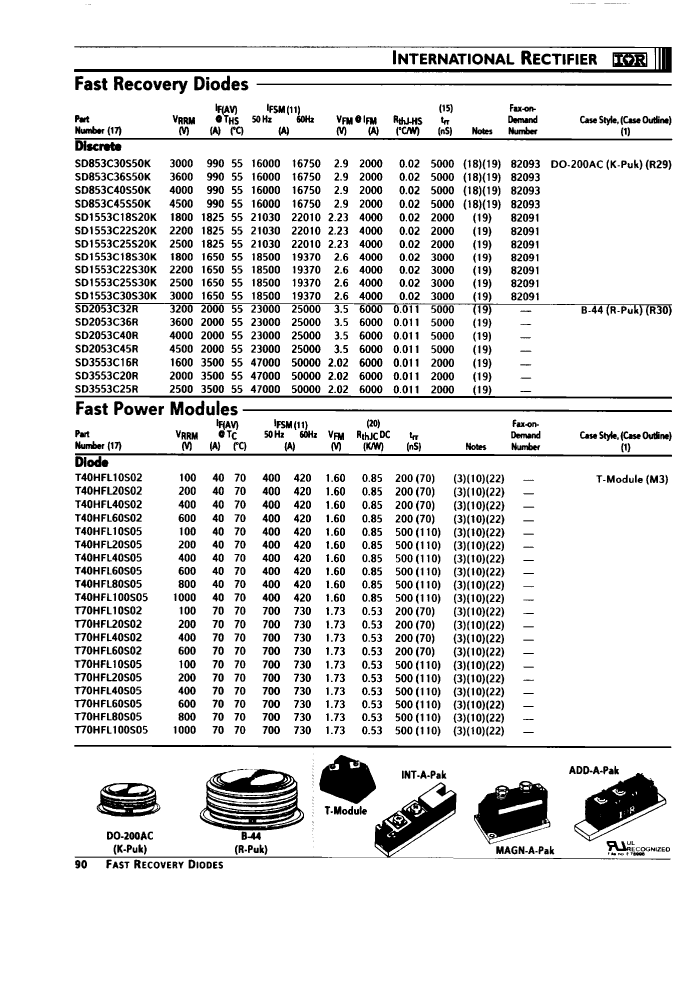

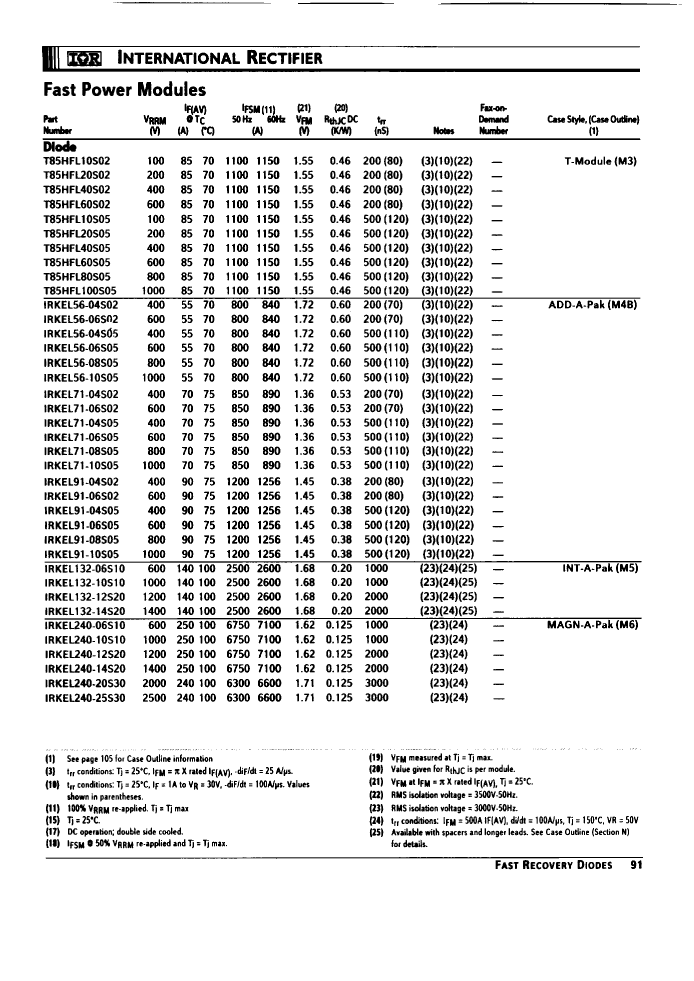

IRKEL71-08S05PBF datasheet, PDF

IRKEL71-08S05PBF: DescriptionRectifier Diode, 1 Phase, 1 Element, 70A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size105KB，2 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

IRKEL71-08S05PBF Overview

Rectifier Diode, 1 Phase, 1 Element, 70A, 800V V(RRM), Silicon,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	R-PUFM-X3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS NOT AT 25 DEG C
application	FAST RECOVERY POWER
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.36 V
JESD-30 code	R-PUFM-X3
Maximum non-repetitive peak forward current	890 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	70 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	20000 µA
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40
