PS2607L-E3-N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2607L-E3-N

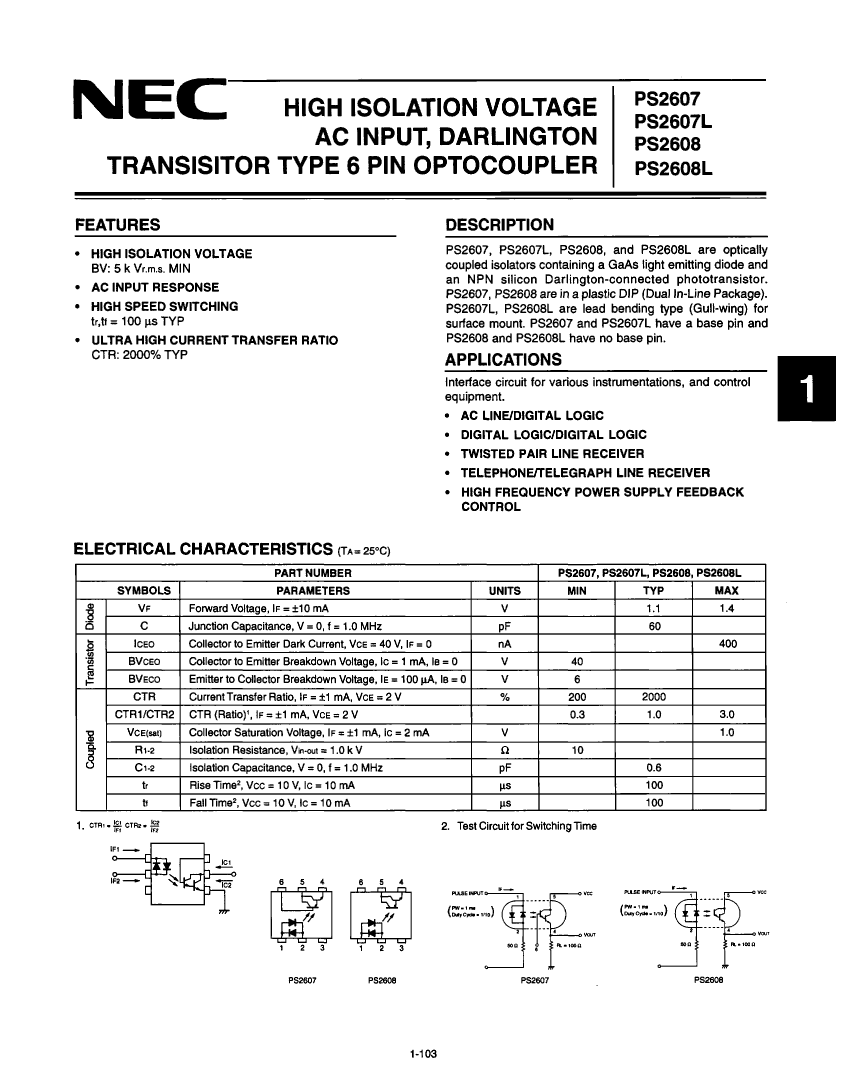

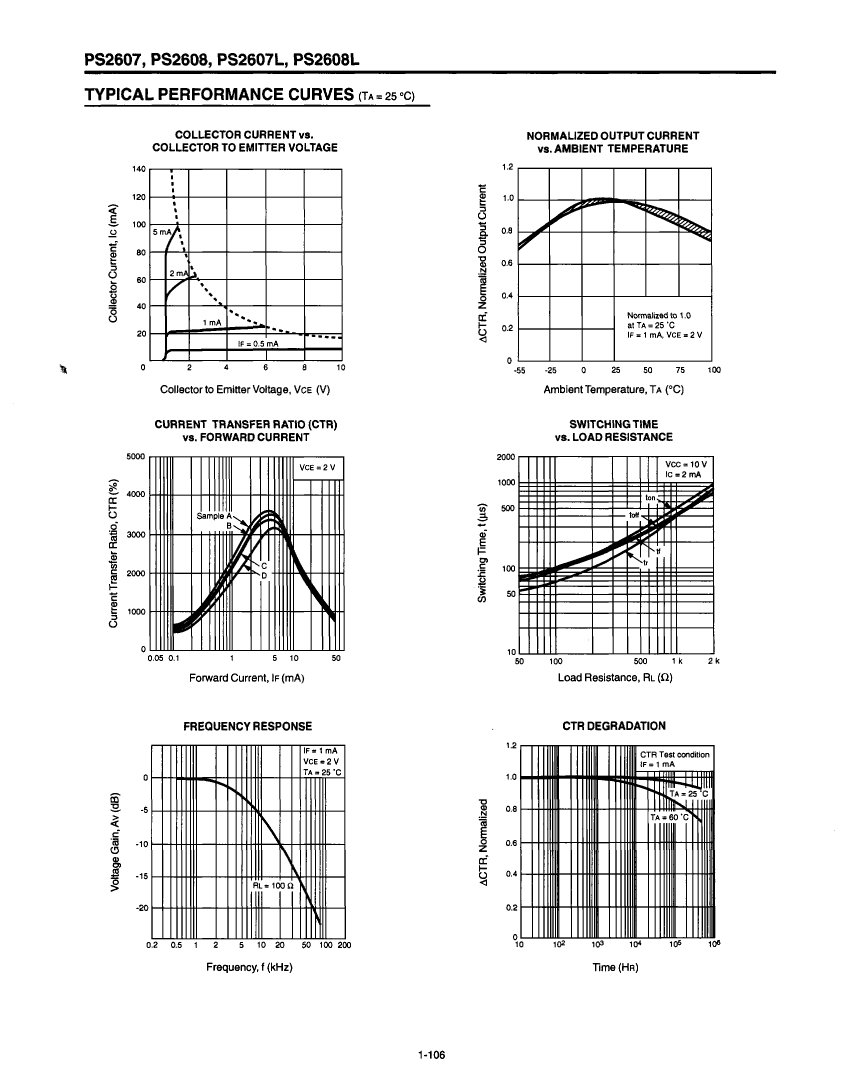

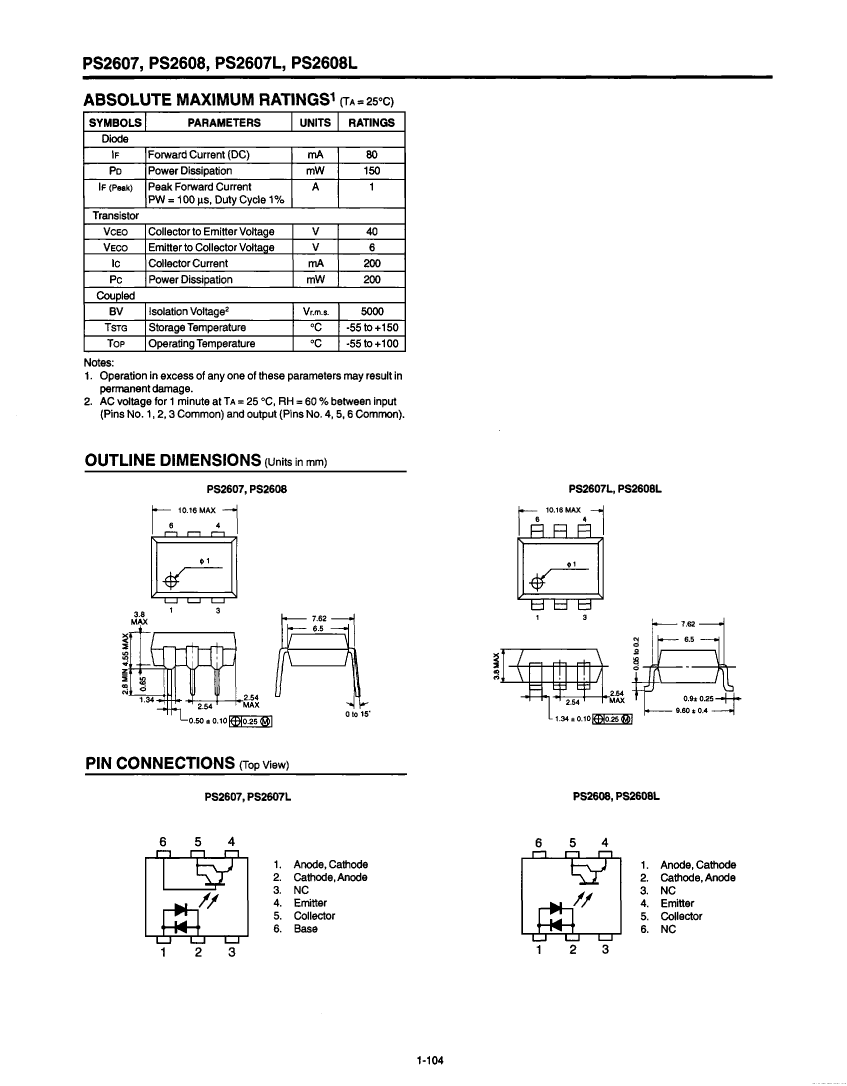

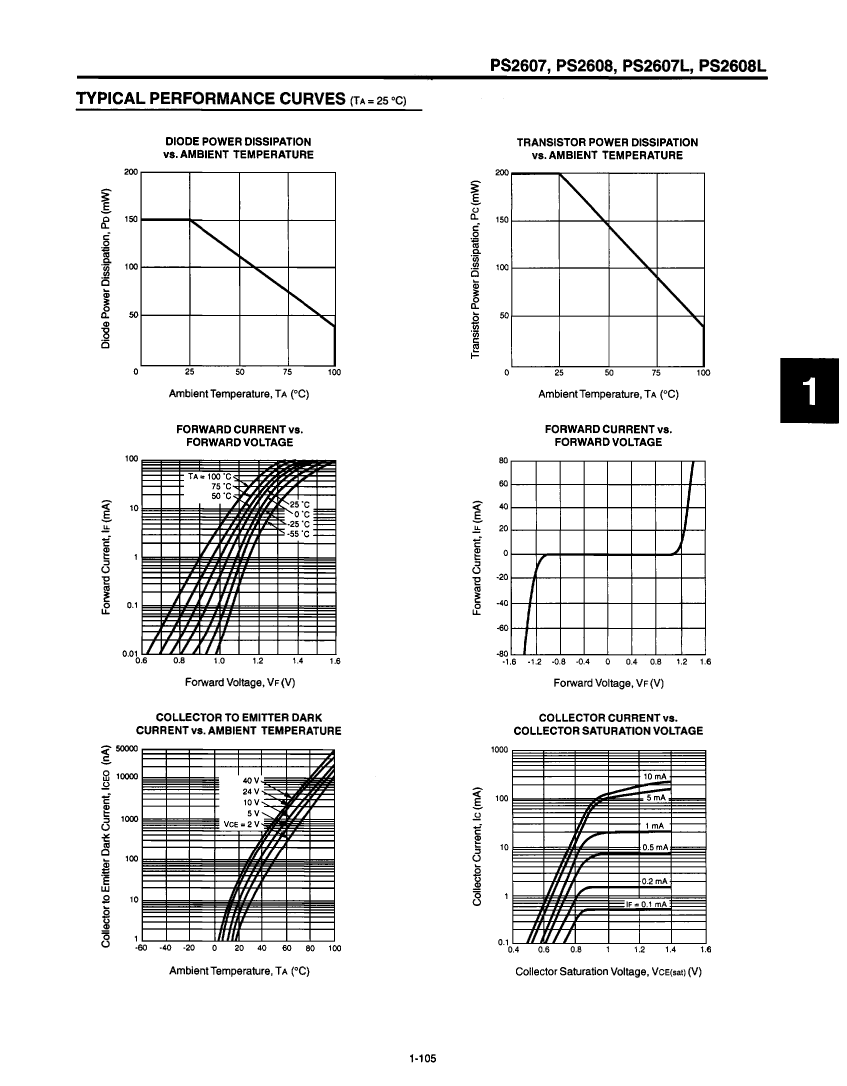

Preview

PS2607L-E3-N: DescriptionAC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6; CategoryLED optoelectronic/LED photoelectric; File Size140KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

PS2607L-E3-N Overview

AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6

PS2607L-E3-N Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	DSO-6
Reach Compliance Code	unknown
Coll-Emtr Bkdn Voltage-Min	40 V
Configuration	SINGLE
Nominal current transfer ratio	2000%
Maximum dark power	400 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

PS2607L-E3-N Related Products

	PS2607L-E3-N	PS2608L-E4-N	PS2607L2-E3-N	PS2608L2-E4-N	PS2607L-E4-N	PS2607-N	PS2608L-E3-N	PS2608-N
Description	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation,	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation,	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, DSO-6	AC Input-Darlington Output Optocoupler, 1-Element, 5000V Isolation, PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Coll-Emtr Bkdn Voltage-Min	40 V	40 V	40 V	40 V	40 V	40 V	40 V	40 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	2000%	2000%	2000%	2000%	2000%	2000%	2000%	2000%
Maximum dark power	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA	400 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER
Maker	NEC Electronics	NEC Electronics	-	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	DSO-6	DSO-6	-	-	DSO-6	PLASTIC, DIP-6	DSO-6	PLASTIC, DIP-6
