HIGH ISOLATION VOLTAGE
HIGH COLLECTOR TO EMITTER VOLTAGE
SOP MULTI OPTOCOUPLER
FEATURES
• HIGH COLLECTOR TO EMITTER VOLTAGE
V
CEO
= 300 V : PS2832-1,-4
V
CEO
= 350 V : PS2833-1,-4
• SMALL THIN PACKAGE
4, 16-pin SOP, pin pitch 1.27 mm
• HIGH ISOLATION VOLTAGE
BV = 2500 Vr.m.s.
• HIGH CURRENT TRANSFER RATIO
CTR = 2000 % TYP
• TAPING PRODUCT NUMBER
PS2832-1-F3, F4, PS2833-1-F3, F4
PS2832-4-F3, F4, PS2833-4-F3, F4
PS2832-1,-4
PS2833-1,-4
DESCRIPTION
PS2832-1,-4 and PS2833-1,-4 are optically coupled isolators
containing a GaAs light emitting diode and an NPN silicon
darlington-connected phototransistor. The package is an SSOP
(Super Small Out-Line Package) type for high density mount-
ing applications.
APPLICATIONS
• HYBRID IC
• TELEPHONE / TELEGRAPH RECEIVER
• FAX
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C)
PART NUMBER
SYMBOLS
PARAMETERS
Forward Voltage, I
F
= 10 mA
Reverse Current, V
R
= 5 V
Terminal Capacitance, V = 0, f = 1.0 MHz
Collector to Emitter Current
I
F
= 0 mA, V
CE
= 300 V
Current Transfer Ratio, (I
C
/I
F
) I
F
= 1 mA, V
CE
= 2 V
Collector Saturation Voltage, I
F
= 1 mA, I
C
= 2 mA
Isolation Resistance, V
in-out
= 1.0 kV
DC
Isolation Capacitance, V = 0, f = 1.0 MHz
Rise Time
1
, V
CC
= 5 V, I
C
= 10 mA, R
L
= 100
Ω
Fall Time , V
CC
= 5 V, I
C
= 10 mA, R
L
= 100
Ω
1
PS2832-1, -4, PS2833-1, -4
UNITS
V
µA
pF
nA
%
V
Ω
pF
µs
µs
10
11
0.4
20
5
400
2000
15
400
4500
1.0
MIN
TYP
1.2
MAX
1.4
5
Diode
V
F
I
R
C
I
CEO
CTR
Tran-
sistor
Coupled
V
CE(sat)
R
I-O
C
I-O
t
r
t
f
1. Test Circuit for Switching Time
PULSE INPUT
1 ms
(
PW =Cycle = 1/10
)
Duty
I
F
50
Ω
V
CC
V
out
R
L
= 100
Ω
California Eastern Laboratories
PS2832-1, -4, PS2833-1, -4
ABSOLUTE MAXIMUM RATINGS
1
(T
A
= 25°C)
SYMBOLS
Diode
I
F
V
R
∆P
D
/°C
P
D
I
F(Peak)
Transistor
V
CEO
V
ECO
I
C
∆P
C
/°C
P
C
Coupled
BV
T
A
T
STG
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
Isolation Voltage
2
Operating Ambient Temp.
Storage Temperature
V
V
mA/Ch
mW/°C
mW/Ch
V
r.m.s.
°C
°C
300
350
0.3
60
1.2
120
2500
-55 to +100
-55 to +150
300
350
PARAMETERS
Forward Current (DC)
Reverse Voltage
Power Dissipation Derating
Power Dissipation
Peak Forward Current
PW = 100
µs,
Duty Cycle 1%
UNITS
PS2832-1
mA
V
mW/°C
mW/Ch
A
0.6
60
1
RATINGS
PS2833-1
PS2832-4
50
6
0.8
80
PS2833-4
Notes:
1. Operation in excess of any one of these parameters may result
in permanent damage.
2. AC voltage for 1 minute at T
A
= 25
°C,
RH = 60 % between
input and output.
OUTLINE DIMENSIONS
(Units in mm)
PS2832-1
PS2833-1
2.7±0.3
4
3
4
3
PS2832-4
PS2833-4
16 15 14 13 12 11 10
9
1.
2.
3.
4.
1
2
Anode
Cathode
Emitter
Collector
10.3±0.3
16
9
1
2
3
4
5
6
7
8
0.1±0.1
0.15
+0.10
-0.05
1
2.3
-0.2
+0.3
2
7.0 ± 0.3
4.4
1.3
1
2
-0.2
2.0
1, 3, 5, 7.
2, 4, 6, 8.
9, 11, 13, 15.
10, 12, 14, 16.
8
7.0 ± 0.3
4.4
0.15
-0.05
+0.10
Anode
Cathode
Emitter
Collector
0.5 ± 0.3
1.27
0.4 ± 0.10
0.12
M
1.3
+0.3
0.1 ± 0.1
1.27
0.40
-0.05
+0.10
0.63 MAX
0.12
M
0.5 ± 0.3
MARKING
PS2832-1
PS2833-1
PS2832-4
PS2833-4
NEC
PS2832-4
N 003
No. 1 pin
mark
Country Assembled
Type Number
Assembly lot
32
003
Assembly lot
Last number of type No. 32/33
0 03
Week Assembled
Year Assembled (Last 1 Digit)
N 0 03
Week Assembled
Year Assembled (last 1 digit)
CTR Rank Code
PS2832-1, -4, PS2833-1, -4

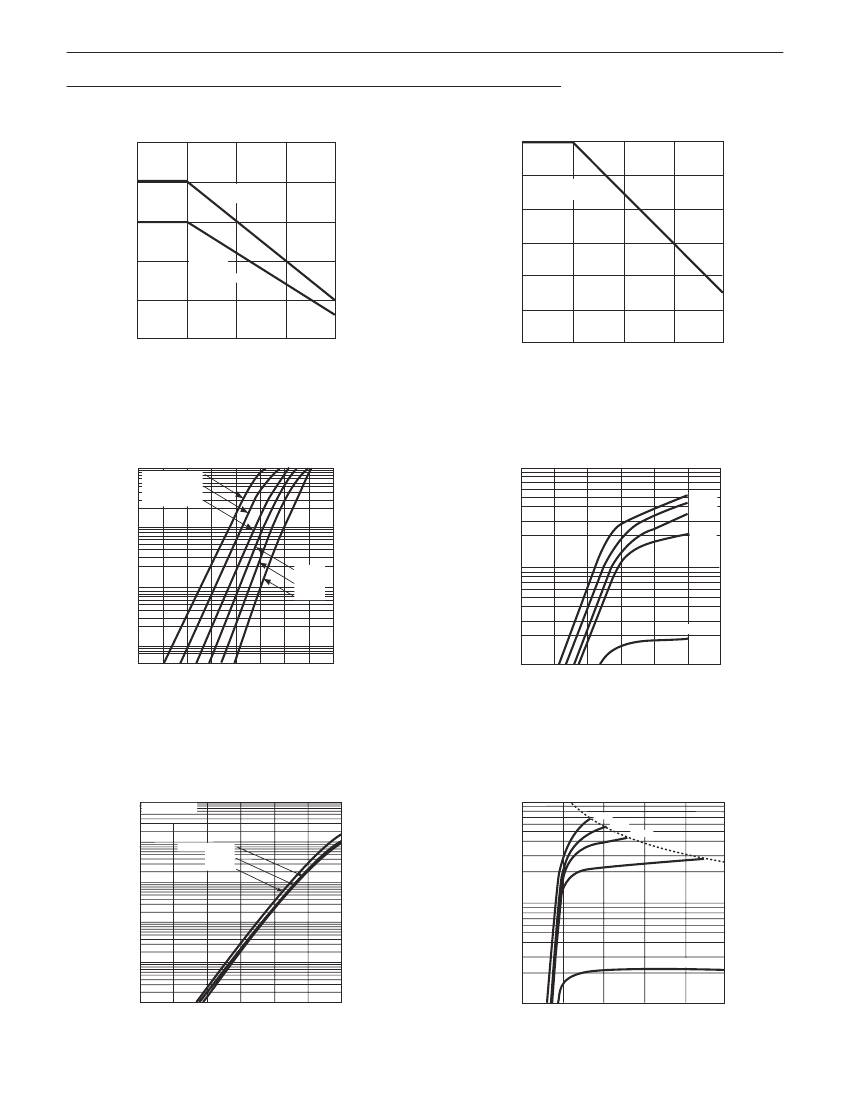

TYPICAL PERFORMANCE CURVES
(T
A
= 25°C unless otherwise specified)
DIODE POWER DISSIPATION
vs. AMBIENT TEMPERATURE
TRANSISTOR POWER DISSIPATION
vs. AMBIENT TEMPERATURE
Transistor Power Dissipation, P
C
(mW)
100
120
Diode Power Dissipation, P
D
(mW)
80
100
PS2832-1, -4
PS2833-1, -4
80
PS2832-4
PS2833-4
0.8 mW/°C
60
60
40
PS2832-1
PS2833-1
0.6 mW/°C
1.2 mW/°C
40
20
20
0
25
50
75
100
0
25
50
75
100
Ambient Temperature, T
A
(°C)
Ambient Temperature, T
A
(°C)
FORWARD CURRENT
vs. FORWARD VOLTAGE
100
50
T
A
= +100 °C
+60 °C
+25 °C
COLLECTOR CURRENT vs.
COLLECTOR SATURATION VOLTAGE
100
5 mA
3 mA
2 mA
1 mA
10
5
I
F
= 0.5 mA
1
10.4
Forward Current, I
F
(mA)
10
5
0 °C
-25 °C
-50 °C
1
0.5
0.1
0.7 0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
Collector Current, I
C
(mA)
50
0.6
0.8
1.0
1.2
1.4
1.6
Forward Voltage,V
F
(V)
Collector Saturation Voltage, V
CE(SAT)
(V)
COLLECTOR TO EMITTER DARK CURRENT
vs. AMBIENT TEMPERATURE
COLLECTOR CURRENT
vs. COLLECTOR TO EMITTER VOLTAGE
100
50
5 mA
3 mA
2 mA
1 mA
Collector to Emitter Dark Current, I
CEO
(nA)
100,000
V
CEO
= 300 V
10,000
1000
Collector Current, I
C
(mA)
CTR = 1068 %
2290 %
4360 %
10
100
5
10
I
F
= 0.5 mA
1
-50
1
-25
0
25
50
75
100
0
1
2
3
4
5
Ambient Temperature, T
A
(°C)
Collector to Emitter Voltage, V
CE
(V)
PS2832-1, -4, PS2833-1, -4
TYPICAL PERFORMANCE CURVES
(T
A
= 25°C unless otherwise specified)

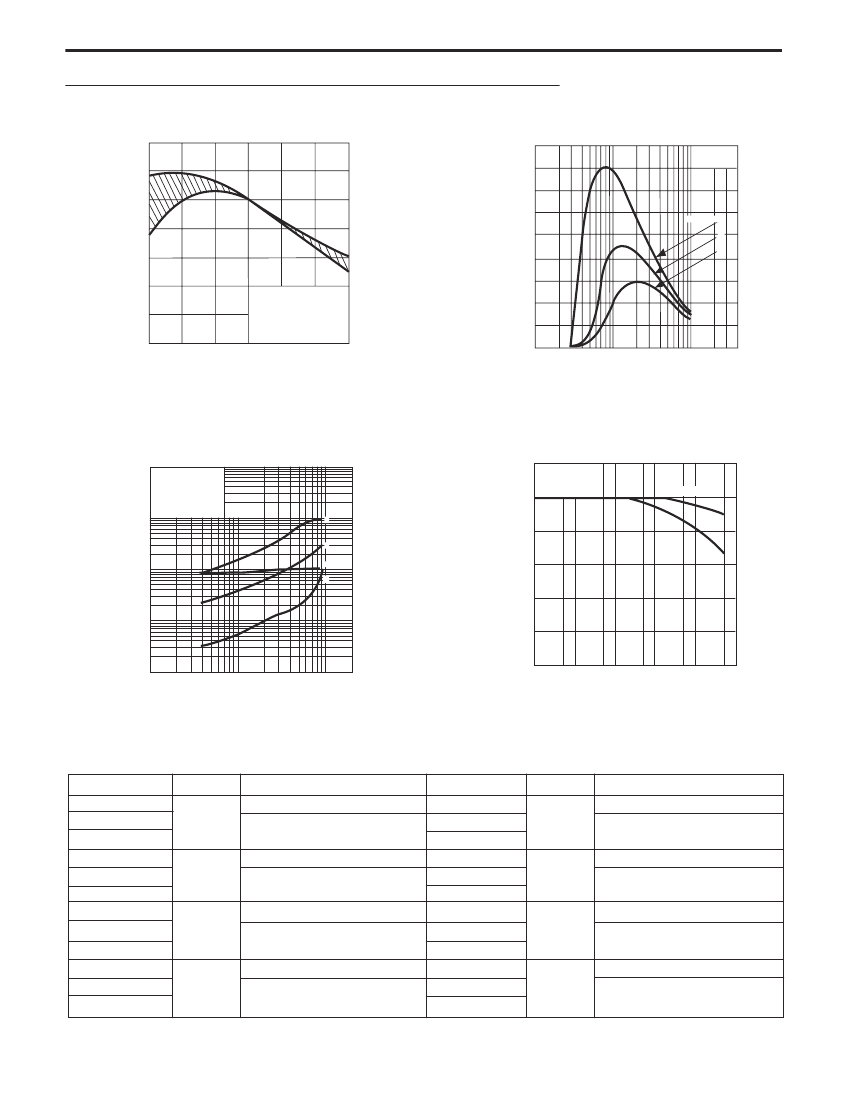

NORMALIZED CURRENT TRANSFER RATIO
vs. AMBIENT TEMPERATURE
CURRENT TRANSFER RATIO
vs. FORWARD CURRENT
4500
V
CE
= 2 V
Normalized Current Transfer Ratio, CTR
1.4
1.2
1.0
Current Transfer Ratio, CTR (%)
4000
3500
3000
2500
2000
1500
1000
500
0
0.1
Sample A
B
C
0.8
0.6
0.4
0.2
0.0
-50
Normalized to 1.0
at T
A
= 25°C,
I
F
= 1 mA, V
CE
= 2 V
-25
0
25
50
75
100
0.5
1
5
10
40
Ambient Temperature, T
A
(°C)
Forward Current, I
F
(mA)
SWITCHING TIME
vs. LOAD RESISTANCE
1000
1.2
LONG TERM CTR DEGRADATION
I
F
=
1 mA
T
A
= 25°C
V
CC = 10,
I
C
= 10 mA,
CTR = 2300 %
t
r
t
f
1.0
Switching Time, t(µs)
100
CTR (Reliable Value)
0.8
60°C
0.6
10
t
d
t
s
0.4
1
0.2
0.1
10
50
100
500
1000
0.0
10
10
2
10
3
10
4
10
5
10
6
Load Resistance, R
L
(Ω)
Remark: The graphs indicate nominal characteristics.
Time (Hr)
ORDERING INFORMATION
PART NUMBER
PS2832-1
PS2832-1-F3
PS2832-1-F4
PS2832-4
PS2832-4-F3
PS2832-4-F4
PS2832-1-V
PS2832-1-V-F3
PS2832-1-V-F4
PS2832-4-V
PS2832-4-V-F3
PS2832-4-V-F4
16 pin SOP Magazine case 45 pcs
Embossed Tape 2500 pcs/reel
4 pin SOP
50 pcs (Tape 50 pcs cut)
Embossed Tape 3500 pcs/reel
16 pin SOP Magazine case 45 pcs
Embossed Tape 2500 pcs/reel
PACKAGE
4 pin SOP
PACKING STYLE
50 pcs (Tape 50 pcs cut)
Embossed Tape 3500 pcs/reel
PART NUMBER
PS2833-1
PS2833-1-F3
PS2833-1-F4
PS2833-4
PS2833-4-F3
PS2833-4-F4
PS2833-1-V
PS2833-1-V-F3
PS2833-1-V-F4
PS2833-4-V
PS2833-4-V-F3
PS2833-4-V-F4
16 pin SOP Magazine case 45 pcs
Embossed Tape 2500 pcs/reel
4 pin SOP
50 pcs (Tape 50 pcs cut)
Embossed Tape 3500 pcs/reel
16 pin SOP Magazine case 45 pcs
Embossed Tape 2500 pcs/reel
PACKAGE
4 pin SOP
PACKING STYLE
50 pcs (Tape 50 pcs cut)
Embossed Tape 3500 pcs/reel
PS2832-1, -4, PS2833-1, -4

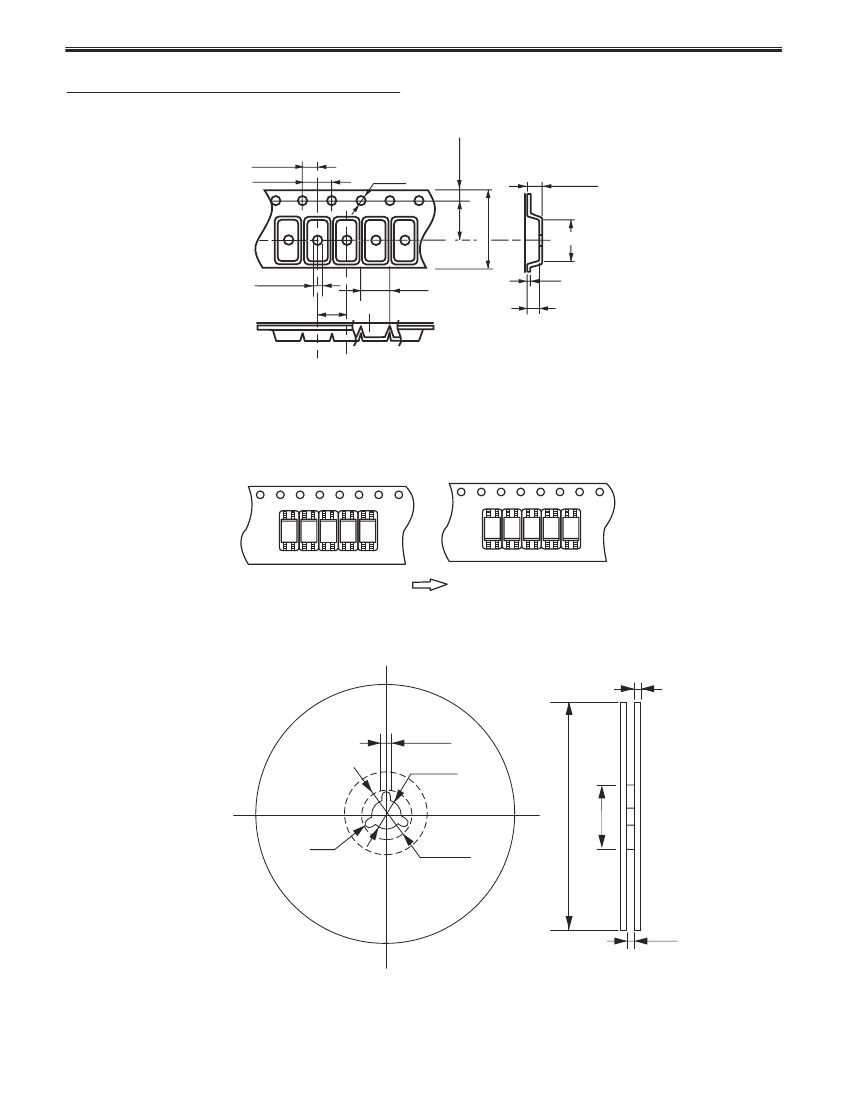

TAPING SPECIFICATIONS
(Units in mm)
TAPE OUTLINE AND DIMENSIONS
2.0 ± 0.1
4.0 ± 0.1
ø1.5 ± 0.1
1.75 ± 0.1
2.8 MAX
16.0 ± 0.3
7.5 ± 0.1
7.55 ± 0.1
0.3
2.3±0.1
1.55 ± 0.1
4.0 ± 0.1
2.85 ± 0.1
TAPE DIRECTION
PS2832-1-F3
PS2833-1-F3
PS2832-1-F4
PS2833-1-F4
003
003
003
003
32
32
32
32
REEL OUTLINE DIMENSIONS
32
003
32
32
32
32
32
R 1.0
φ21.0
± 0.8
φ100±5.0
φ330
Packing: 3500 pcs/Reel
003
003
003
003
003
2.5
2.0 ± 0.5
φ13.0
± 0.5
16.4
- 0.0
+2.0
