Part Number

Search

39-27-1069

Description
Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Beige Insulator, Receptacle
CategoryThe connector    The connector

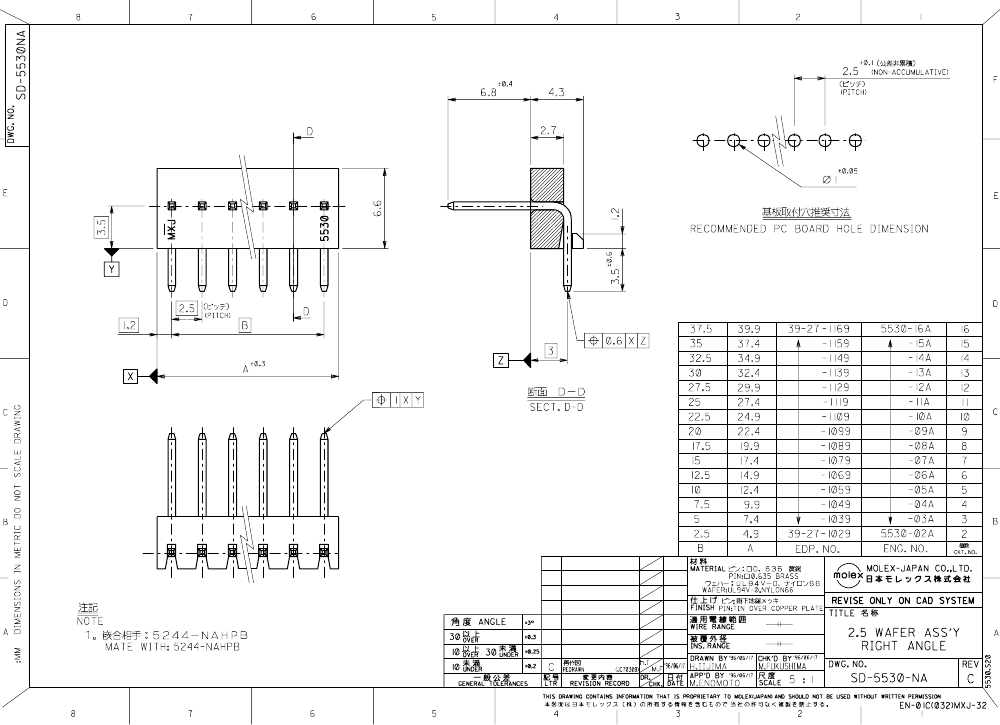

File Size53KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-27-1069 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Beige Insulator, Receptacle

39-27-1069 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT & BAG PACKAGE
body width0.26 inch
subject depth0.169 inch
body length0.587 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force7.1168 N
Insulation resistance1000000000 Ω
Insulator colorBEIGE
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number5530
Plug contact pitch0.098 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Evacuation force-minimum value.5838 N
