BSS-150-01-L-D-A-TR: DescriptionBoard Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size807KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

BSS-150-01-L-D-A-TR Overview

Board Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

BSS-150-01-L-D-A-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	300

Preview

Download Datasheet

View All

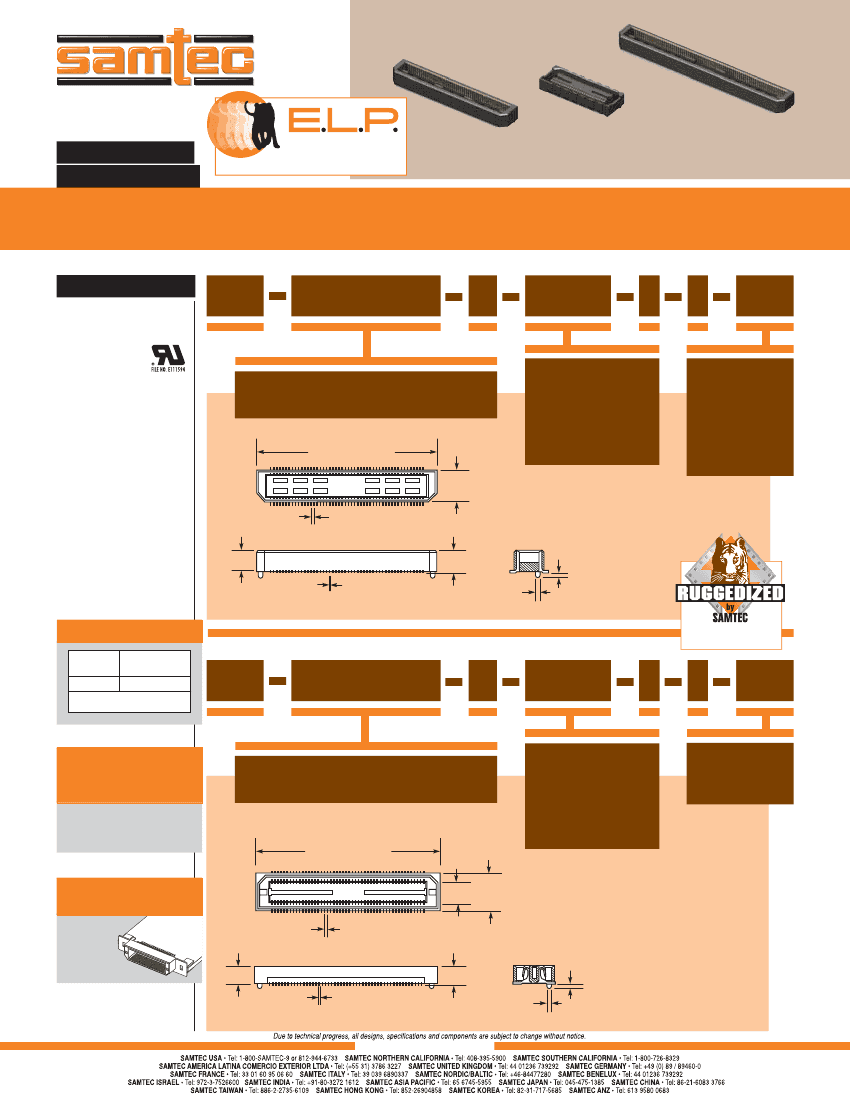

F-212

BSS–025–01–L–D–A

TM

BTS–075–01–L–D–A

EXTENDED LIFE PRODUCT

BTS–050–01–F–D–A

(0,635mm) .025"

BTS, BSS SERIES

10 year Mixed Flowing Gas with 50µ" Gold

Call Samtec for maximum cycles

BASIC BLADE & BEAM HEADER & SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?BTS or

www.samtec.com?BSS

Insulator Material:

Liquid Crystal

Polymer

Terminal Material (BTS):

Phosphor Bronze

Contact Material (BSS):

Phosphor Bronze

Plating:

Au or Sn over 50µ" (1,27µm) Ni

Current Rating:

1.6A @ 80°C ambient

Operating Temp Range:

-55°C to +125°C

RoHS Compliant:

Yes

BTS

Mates with:

BSS

NO. OF POSITIONS

PER ROW

01

PLATING

OPTION

D

A

OTHER

OPTION

–F

–025, –050, –075,

–100, –125, –150

No. of Positions x (0,635) .025

+ (4,13) .163

01

–K

= (7,00mm) .275" DIA

Polyimide Film Pick

& Place Pad

= Gold Flash on contact,

Matte Tin on tail

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

–TR

= Tape & Reel

(–100 positions

maximum)

(5,97)

.235

02

Note:

Other Gold plating

options available.

Contact Samtec.

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

Board Stacking:

For applications requiring more

than two connectors per board

or 100 positions or higher,

contact ipg@samtec.com

(0,635)

.025

(4,27)

.168

(0,20)

.008

(0,89)

.035

DIA

• Passes

10 year MFG

(4,06)

.160

(0,89)

.035

MATED HEIGHT

LEAD

STYLE

MATED

HEIGHT*

(5,00) .197

–01

BSS

Mates with:

BTS

*Processing conditions will

affect mated height.

NO. OF POSITIONS

PER ROW

01

PLATING

OPTION

D

A

OTHER

OPTION

APPLICATION

SPECIFIC

OPTION

30µ" (0,76µm) Gold

available.

Call Samtec.

02

–F

–025, –050, –075,

–100, –125, –150

No. of Positions x (0,635) .025

+ (5,41) .213

= Gold Flash on contact,

Matte Tin on tail

–TR

= Tape & Reel

(–100 positions

maximum)

–L

= 10µ" (0,25µm)

Gold on contact,

Matte Tin on tail

Note:

Other Gold plating

options available.

Contact Samtec.

EDGE MOUNT

CAPABILITY

Edge Mount

capability.

Call for

availability.

01

(3,81) (7,24)

.150 .285

(0,635)

.025

(0,76)

.030

(0,15)

.006

(0,89)

.035

DIA

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(3,43)

.135

(3,63)

.143

WWW.SAMTEC.COM

BSS-150-01-L-D-A-TR Related Products

	BSS-150-01-L-D-A-TR	BSS-125-01-F-D-A-TR	BSS-125-01-L-D-A-TR	BSS-150-01-F-D-A-TR	BTS-125-01-F-D-A-TR	BTS-125-01-L-D-A-TR	BTS-150-01-F-D-A-TR	BTS-150-01-L-D-A-TR
Description	Board Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 250 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 250 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 250 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 250 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT	Board Connector, 300 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (10) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (10) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	300	250	250	300	250	250	300	300
