BSW-128-24-T-E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BSW-128-24-T-E

Preview

BSW-128-24-T-E: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size645KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BSW-128-24-T-E Overview

Board Connector, 28 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

BSW-128-24-T-E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TIGER BUY CONTACT; LOW PROFILE
body width	0.27 inch
subject depth	0.35 inch
body length	2.83 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Evacuation force-minimum value	2.224 N

Preview

Download Datasheet

View All

F-214

BSW–124–04–T–S–S

BSW–115–04–G–D

BSW–110–24–L–S

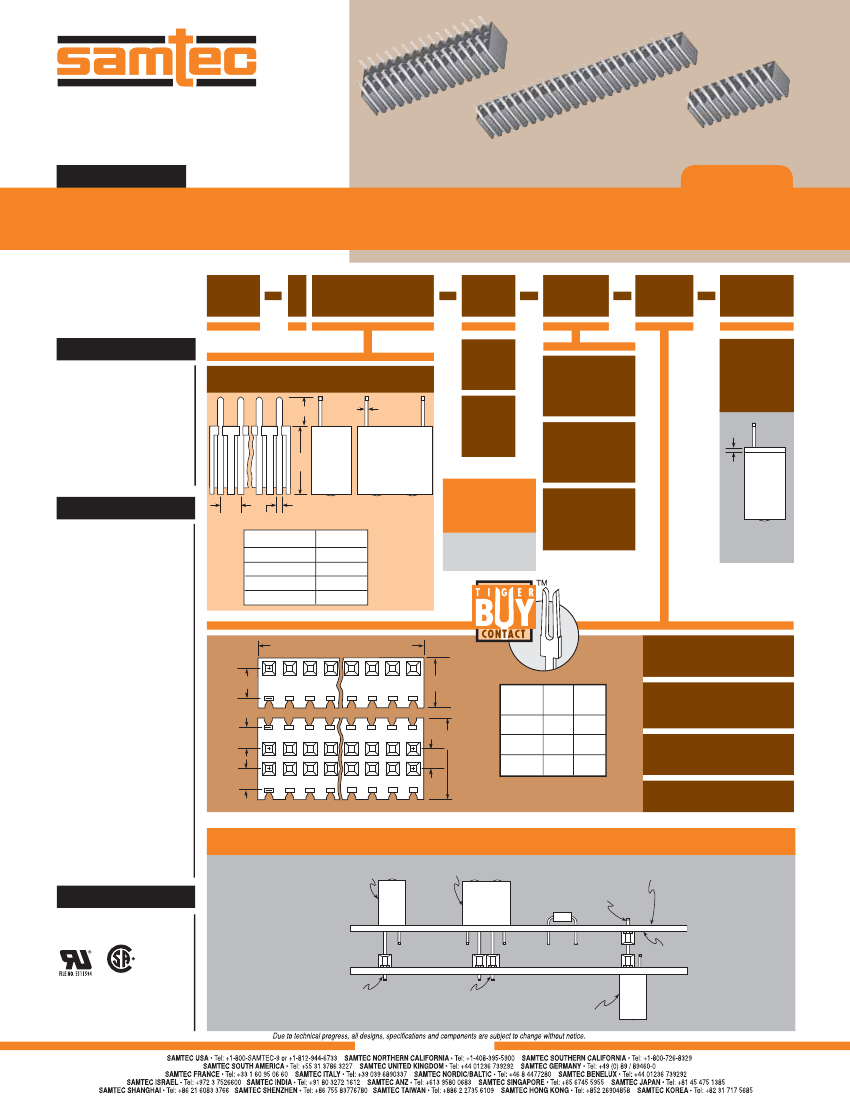

(2,54 mm) .100"

BSW SERIES

BOTTOM MOUNT SOCKET STRIPS

Mates with:

TSW, MTSW, HTSW,

MTLW, TSM, EW, ZW,

HW, DW, PHT

BSW

1

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

FEATURES

•

Bottom mount socket

strips accept .025" SQ

terminals.

•

Ideal for soldering and

plugging from the same

side of the board.

•

For low proﬁle

connections and high

temperature soldering.

–04

02 thru 36

Z

(0,41)

.016

TYP

= Standard

Lead

–L

= 10µ" (0,25 µm)

Gold contact,

Matte Tin on tail

–S

= Standoffs

for single

and double

rows only.

–24

= Low

Insertion

Force

–G

= 20µ" (0,51 µm)

Gold contact,

Gold Flash on tail

(0,38)

.015

(8,89)

.350

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?BSW

Insulator Material:

Black Thermoplastic

Insulation Resistance:

5000 MΩ min

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Withstanding Voltage:

1000 VRMS @ 60 Hz

Contact Resistance:

10 mΩ

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

Standard = 8 oz (2,23 N) avg.

Low Insertion Force = 3 oz

(0,83 N) avg.

Withdrawal Force:

(Single contact only)

Standard = 8 oz (2,23 N) avg.

Low Insertion Force = 3 oz

(0,83 N) avg.

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

(2,54)

.100

TYP

–S, –M, –E

(0,79) .031

TYP

–D

ALSO

AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

–T

= Matte Tin

(N/A with Low

Insertion Force)

(–S & –D only)

Row Option

–S*

–M

–E

–D*

Z

(4,31) .170

(3,43) .135

(2,54) .100

(4,32) .170

*

Less

(0,38 mm)

.015" with

standoffs

(No. of Pos. X (2,54) .100) + (0,51) .020

01

36

X

72

02

Y

–S

–M

–E

–S

= Single Row

Row

Option

–S

X

(2,54)

.100

(3,81)

.150

(4,31)

.170

Y

(5,08)

.200

(6,35)

.250

(6,86)

.270

Row

–M

= SinglePlug Space

More

(2,54)

.100

(10,16)

.400

(2,54)

.100

–M

–E

–D

–E

= Single Row Space

Extended Plug

–D

= Double Row

(2,54)

.100

71

01

Body design may vary slightly

from drawing shown.

APPLICATIONS

BSW

(SINGLE ROW)

BSW

(DOUBLE ROW)

EW

(SINGLE ROW)

COMPONENT

SIDE

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

PC

BOARD

FILE NO: 090871_0_000

PC

BOARD

TSW

(SINGLE ROW)

SOLDER

SIDE

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

TSW

(DOUBLE ROW)

BSW

(SINGLE ROW)
