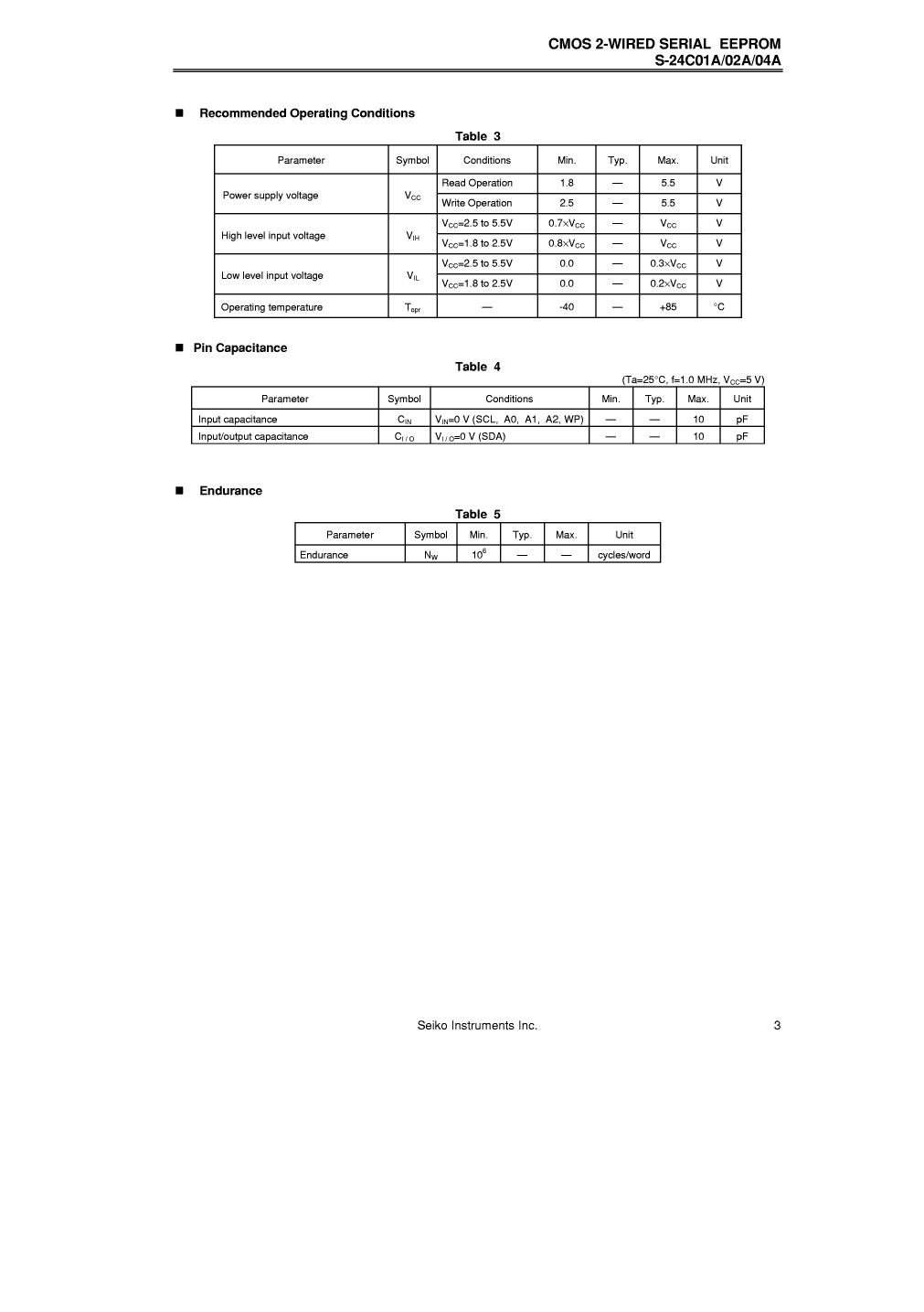

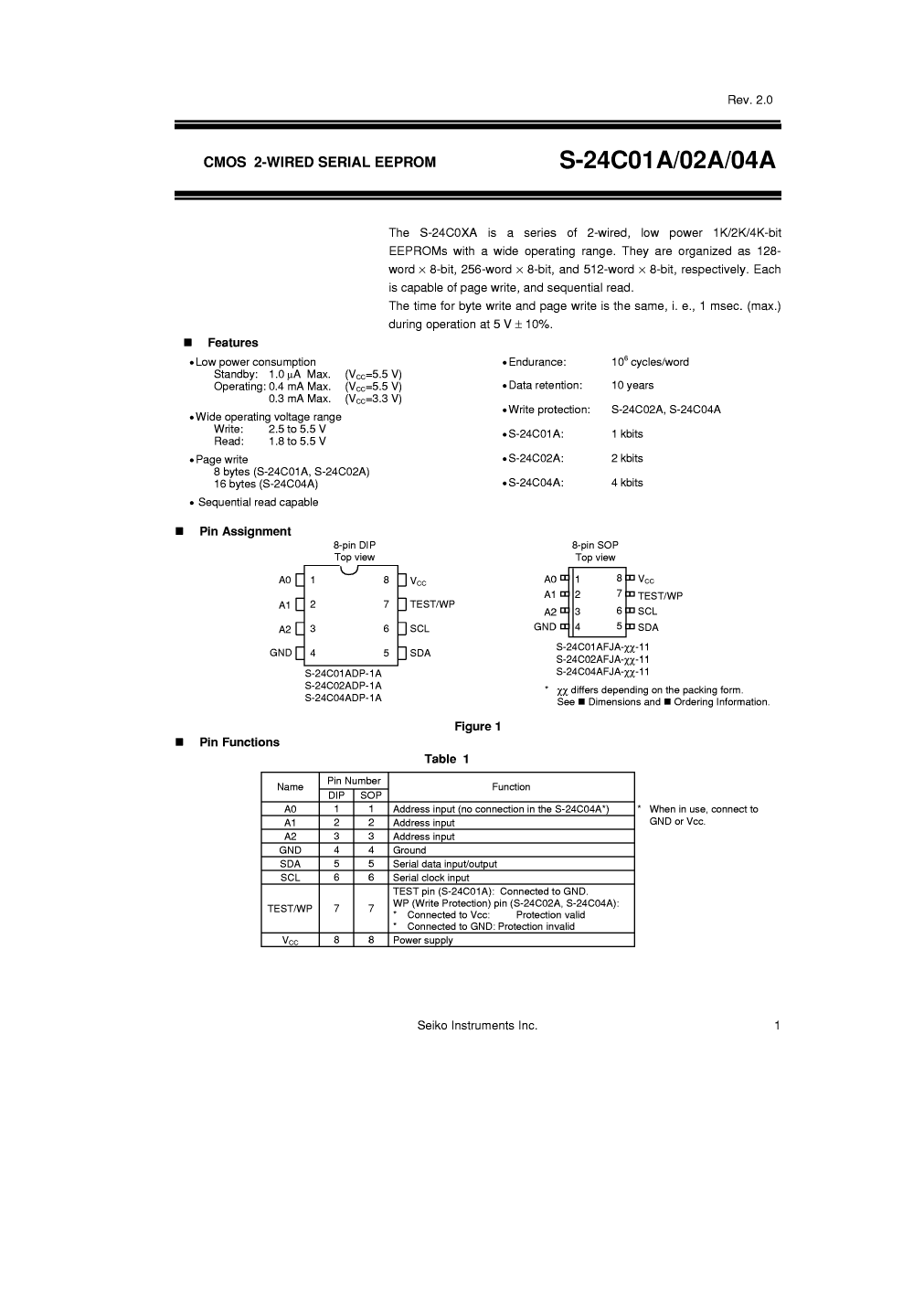

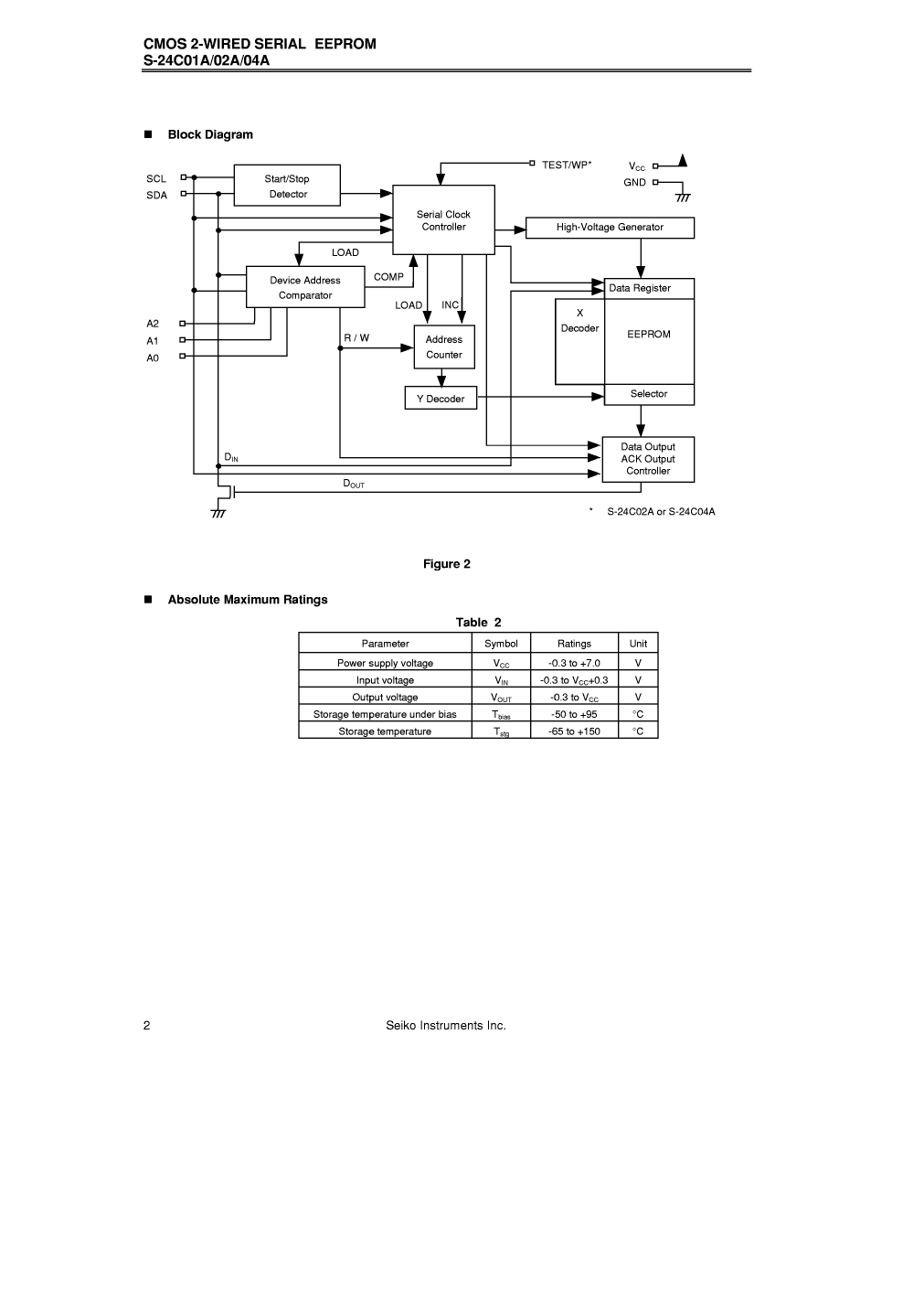

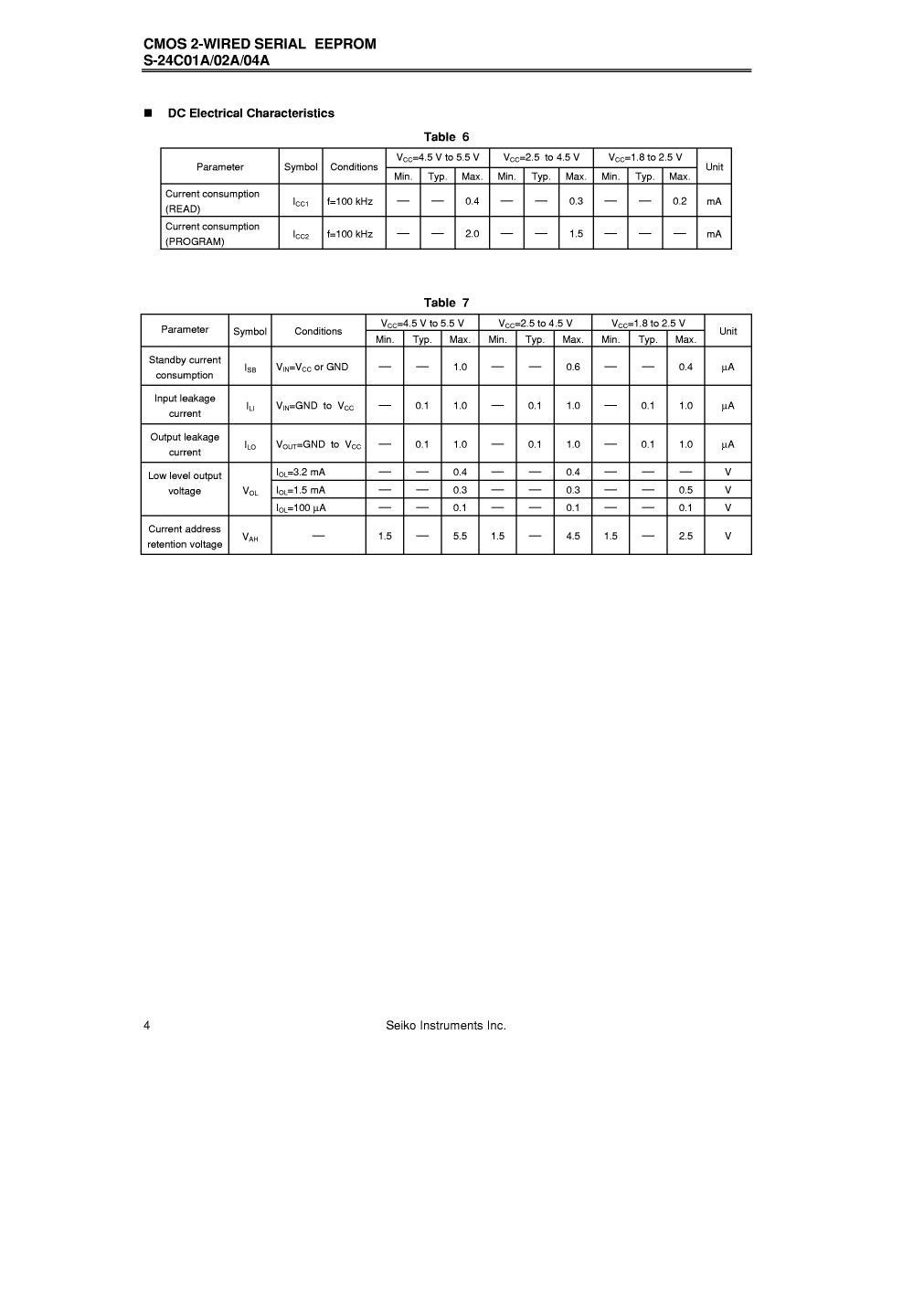

S-24C01ADP-1A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> S-24C01ADP-1A

Preview

S-24C01ADP-1A: Description128X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, DIP-8; Categorystorage storage; File Size495KB，20 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

S-24C01ADP-1A Overview

128X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, DIP-8

S-24C01ADP-1A Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.1 MHz
JESD-30 code	R-PDIP-T8
length	9.6 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Maximum write cycle time (tWC)	5 ms

Preview

Download Datasheet

View All

S-24C01ADP-1A Related Products

	S-24C01ADP-1A	S-24C02ADP-1A	S-24C04AFJA-11	S-24C02AFJA-11	S-24C02AFJA-TB-11	S-24C04AFJA-TB-11	S-24C01AFJA-11	S-24C01AFJA-TB-11	S-24C04ADP-1A
Description	128X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, DIP-8	256X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, DIP-8	512X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	256X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	512X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, SOP-8	512X8 I2C/2-WIRE SERIAL EEPROM, PDIP8, DIP-8
Parts packaging code	DIP	DIP	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	DIP
package instruction	DIP,	DIP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	DIP,
Contacts	8	8	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8
length	9.6 mm	9.6 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	9.6 mm
memory density	1024 bit	2048 bit	4096 bit	2048 bit	2048 bit	4096 bit	1024 bit	1024 bit	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
word count	128 words	256 words	512 words	256 words	256 words	512 words	128 words	128 words	512 words
character code	128	256	512	256	256	512	128	128	512
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	128X8	256X8	512X8	256X8	256X8	512X8	128X8	128X8	512X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	5.08 mm
Serial bus type	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm
Maximum write cycle time (tWC)	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms	5 ms
Maker	Seiko Epson Corporation	-	-	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation
