S-29390AFJ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> S-29390AFJ

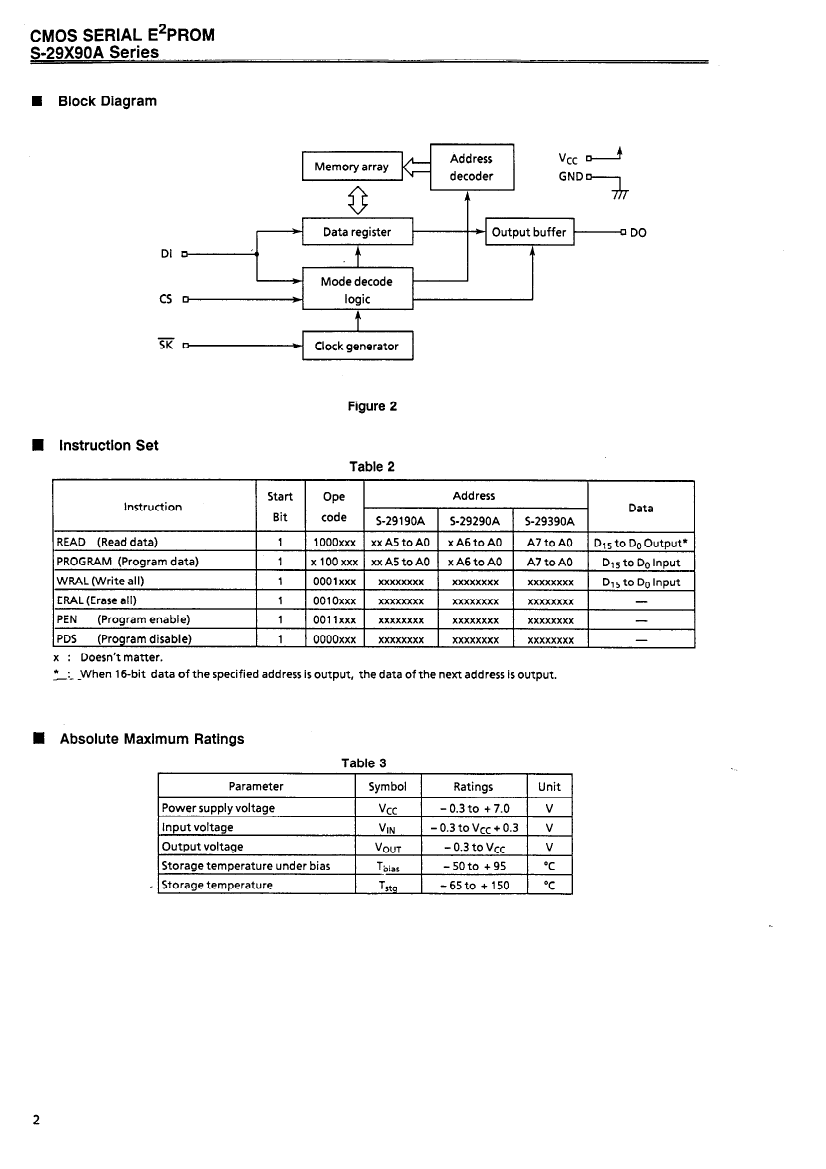

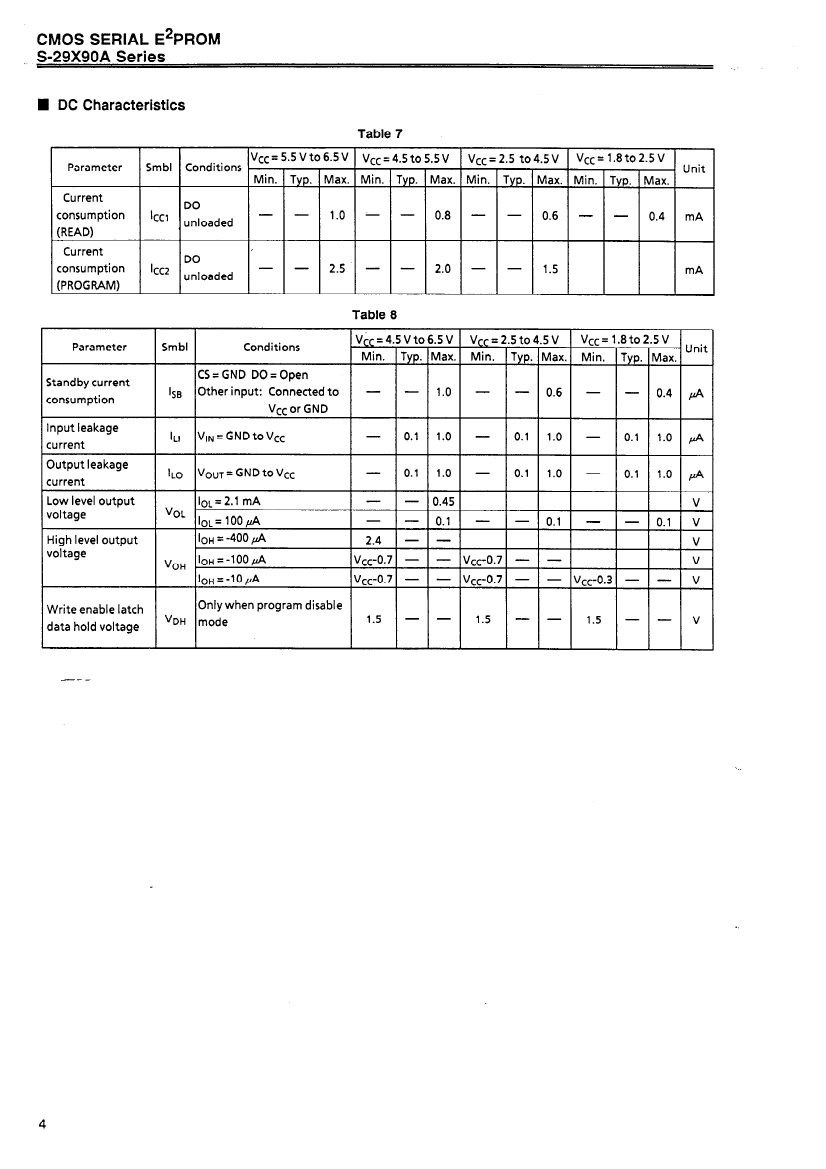

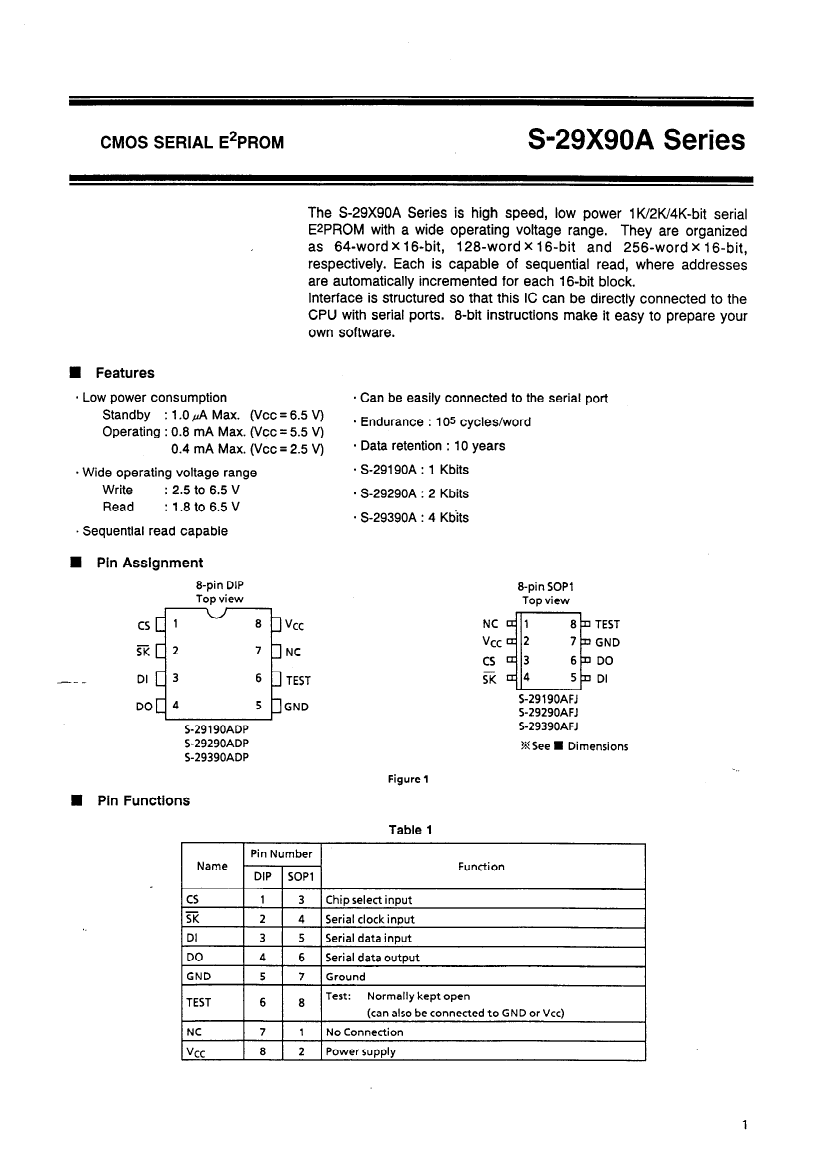

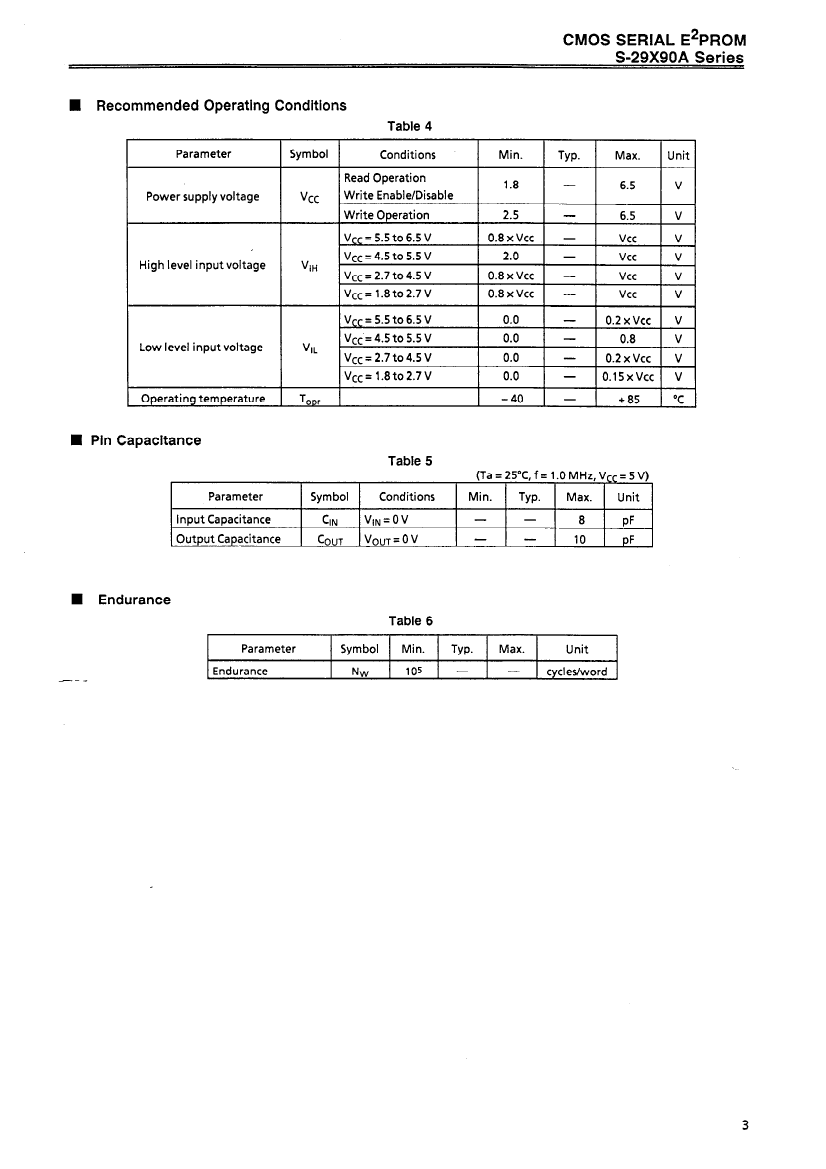

Preview

S-29390AFJ: DescriptionEEPROM, 256X16, Serial, CMOS, PDSO8, SOP1-8; Categorystorage storage; File Size805KB，17 Pages; ManufacturerABLIC

Download Datasheet Parametric Compare View All

S-29390AFJ Overview

EEPROM, 256X16, Serial, CMOS, PDSO8, SOP1-8

S-29390AFJ Parametric

Parameter Name	Attribute value
Maker	ABLIC
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA RETENTION: 10 YEARS
Maximum clock frequency (fCLK)	2 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	1.8/6.5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	MICROWIRE
Maximum standby current	4e-7 A
Maximum slew rate	0.0025 mA
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
write protect	SOFTWARE

Preview

Download Datasheet

View All

S-29390AFJ Related Products

	S-29390AFJ	S-29290AFJ	S-29290ADP
Description	EEPROM, 256X16, Serial, CMOS, PDSO8, SOP1-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP1-8	EEPROM, 128X16, Serial, CMOS, PDIP8, DIP-8
Maker	ABLIC	ABLIC	ABLIC
Parts packaging code	SOIC	SOIC	DIP
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3
Contacts	8	8	8
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	DATA RETENTION: 10 YEARS	DATA RETENTION: 10 YEARS	DATA RETENTION: 10 YEARS
Maximum clock frequency (fCLK)	2 MHz	2 MHz	2 MHz
Data retention time - minimum	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8
length	4.9 mm	4.9 mm	9.5 mm
memory density	4096 bit	2048 bit	2048 bit
Memory IC Type	EEPROM	EEPROM	EEPROM
memory width	16	16	16
Number of functions	1	1	1
Number of terminals	8	8	8
word count	256 words	128 words	128 words
character code	256	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	256X16	128X16	128X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL
power supply	1.8/6.5 V	1.8/6.5 V	1.8/6.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	3.94 mm
Serial bus type	MICROWIRE	3-WIRE	3-WIRE
Maximum standby current	4e-7 A	4e-7 A	4e-7 A
Maximum slew rate	0.0025 mA	0.0025 mA	0.0025 mA
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V	2.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	7.62 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms
write protect	SOFTWARE	SOFTWARE	SOFTWARE
