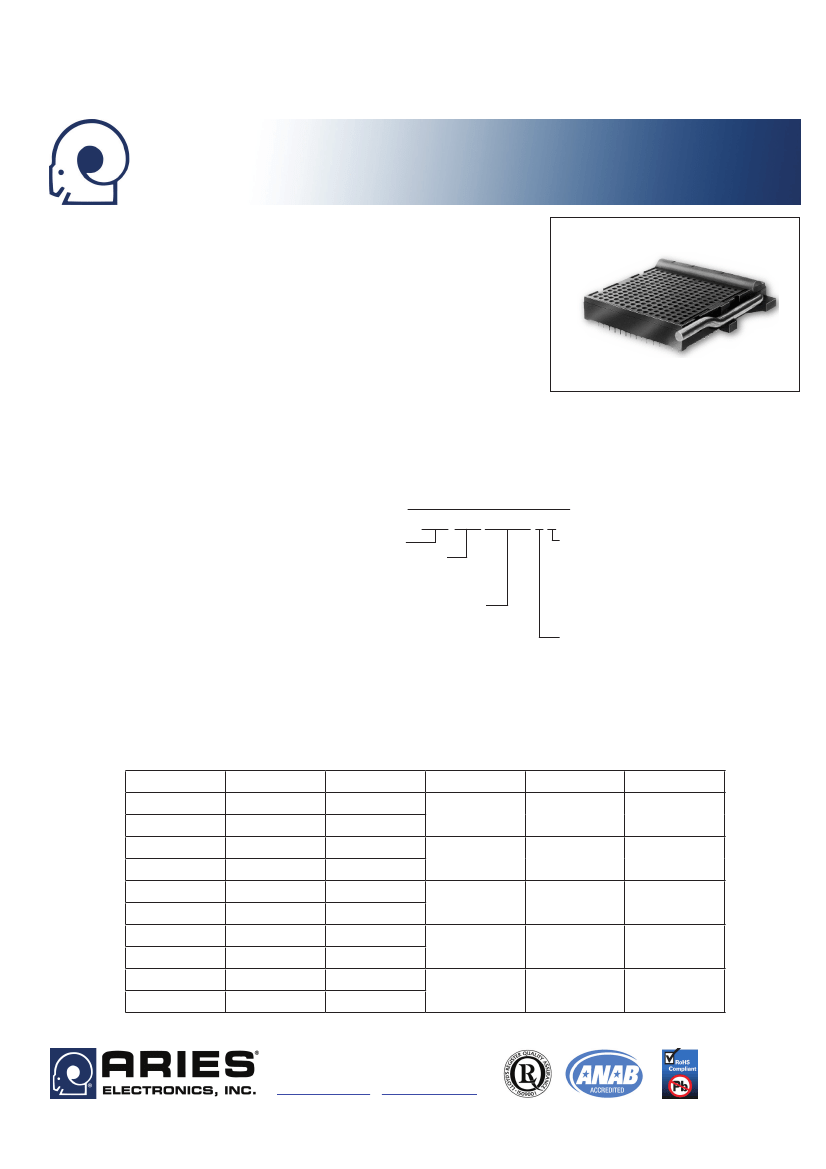

ZIF PGA Test & Burn-in Socket for
Any Footprint on Std 13x13 to 21x21 Grid
FEATURES
• A strong, metal cam activates the normally closed contacts, preventing dependency
on plastic for contact force
• The handle can be provided on right or left hand side
• Consult factory for special handle requirements
• Any footprint accepted on standard 13x13 to 21x21 grid
GENERAL SPECIFICATIONS
• SOCKET BODY: black UL 94V-0 Polyphenylene Sulfide (PPS)
• CONTACTS: BeCu 174, 1/2-hard
or
NiB (Spinodal)
• BeCu CONTACT PLATING OPTIONS: “2” 30μ [0.762μ] min. Au per MIL-G-45204
on contact area, 200μ [5.08μ] min. matte Sn per ASTM B545-97 on solder tail,
In addition to the standard
both over 30μ [0.762μ] min. Ni per QQ-N-290 all over. Consult factory for other
CUSTOMIZATION:
specializes in custom designproducts shown
on this page, Aries
and production.
plating options not shown
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• SPINODAL PLATING CONTACT ONLY: “6”: 50μ [1.27μ] min. NiB
right to change product general specifications without notice.
• HANDLE: Stainless Steel
• CONTACT CURRENT RATING: 1 amp
• OPERATING TEMPERATURES: -85°F to
ORDERING INFORMATION
257°F [-65°C to 125°C] Au plating, -85°F
XXX-PXX XXXXX-1 X
to 392°F [-65°C to 200°C] NiB (Spinodal)
No. of Pins
Plating
• ACCEPTS LEADS: 0.014-0.026 [0.36-
Series Designator
2 = Au Contacts, Sn over Nic Tail
0.66] dia., 0.120-0.290 [3.05-7.37] long
PRS = Std
6 = NiB (spinodal) Pin Only
MOUNTING CONSIDERATIONS
PLS = Handle of Left
CONSULT FACTORY FOR MINIMUM ORDERING
Grid Size & Footprint No.
QUANTITY AS WELL AS AVAILABILITY OF THIS
• SUGGESTED PCB HOLE SIZE: 0.032
PIN
±0.002 [0.81 ±0.05] dia.
Solder Pin Tail
• See PCB footprint below
• Plugs into standard PGA sockets
Grid Size
12 x 12*
13 x 13
14 x 14*
15 x 15
16 x 16*
17 x 17
18 x 18*
19 x 19
20 x 20*
21 x 21
No. of Pins
144
169
196
225
256
289
324
361
400
441
Dim. “C”
1.100 [27.94]
1.200 [30.48]
1.300 [33.02]
1.400 [35.56]
1.500 [38.10]
1.600 [40.64]
1.700 [43.18]
1.800 [45.72]
1.900 [48.26]
2.000 [50.80]
Dim. “A”
1.894 [48.10]
2.094 [53.20]
2.294 [58.26]
2.494 [63.34]
2.694 [68.42]
Dim. “B”
1.510 [38.35]
1.710 [43.43]
1.910 [48.51]
2.110 [53.59]
2.310 [58.67]
Dim. “D”
1.675 [42.54]
1.875 [47.62]
2.075 [52.70]
2.275 [57.78]
2.475 [62.86]
* Top and Right-hand Side Row left out
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
10004
Rev. AB
1 of 2
ZIF PGA Test & Burn-in Socket for
Any Footprint on Std 13x13 to 21x21 Grid
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

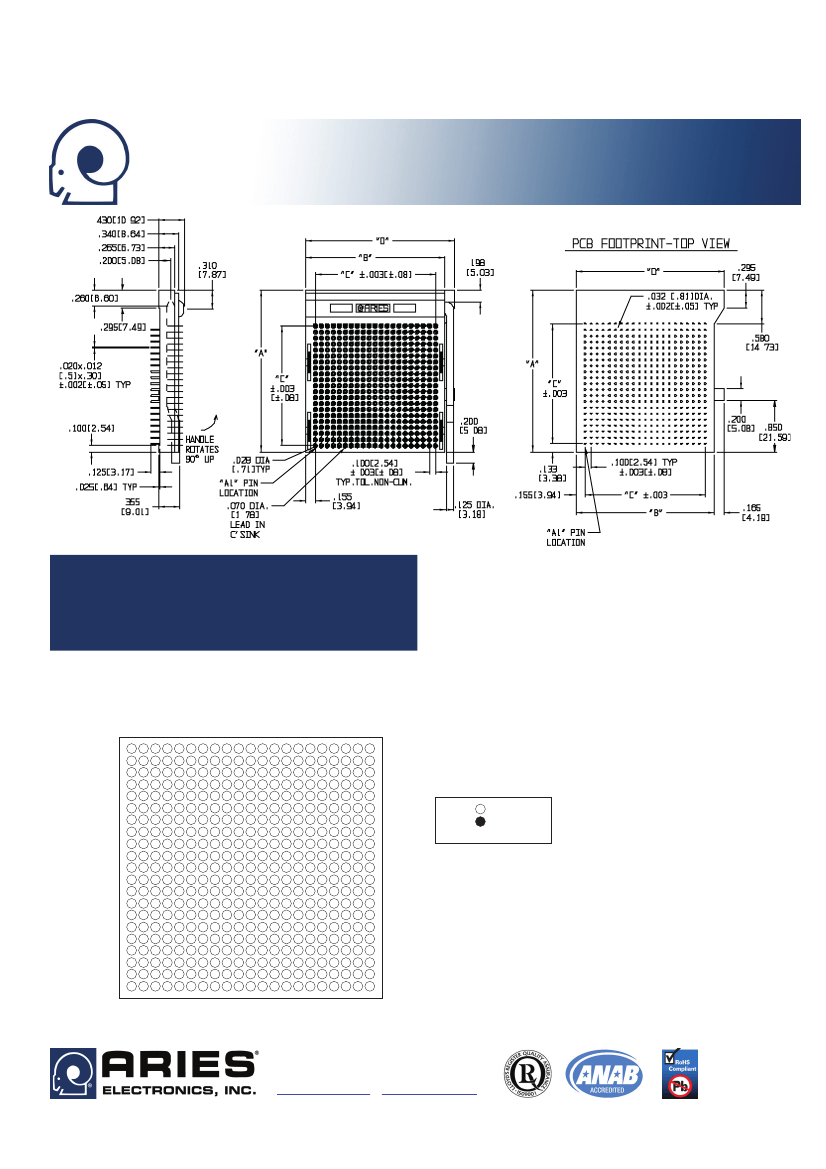

TOP VIEW
X
W
V
U
T
S
R
P
N
M
L
K
J
H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
SPECIAL FOOTPRINT INSTRUCTIONS
1. Make a copy of this sheet
2. Fill-in circles for footprint desired using the key below
3. Fill-in the information below, including Series and Plating
options. See Ordering Information above
4. Send sheet to Aries for prompt quote
KEY
= no pin
= pin
X
= plug hole
COMPANY NAME ___________________________
ADDRESS ________________________________
CITY ____________________________________
REQUESTED BY ____________________________
PHONE __________________________________
DATE ___________________________________
TOTAL NUMBER OF PINS _____________________
SERIES
(circle one)
PRS
PLS
PLATING
(circle one)
2
10004
Rev. AB
2 of 2
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
